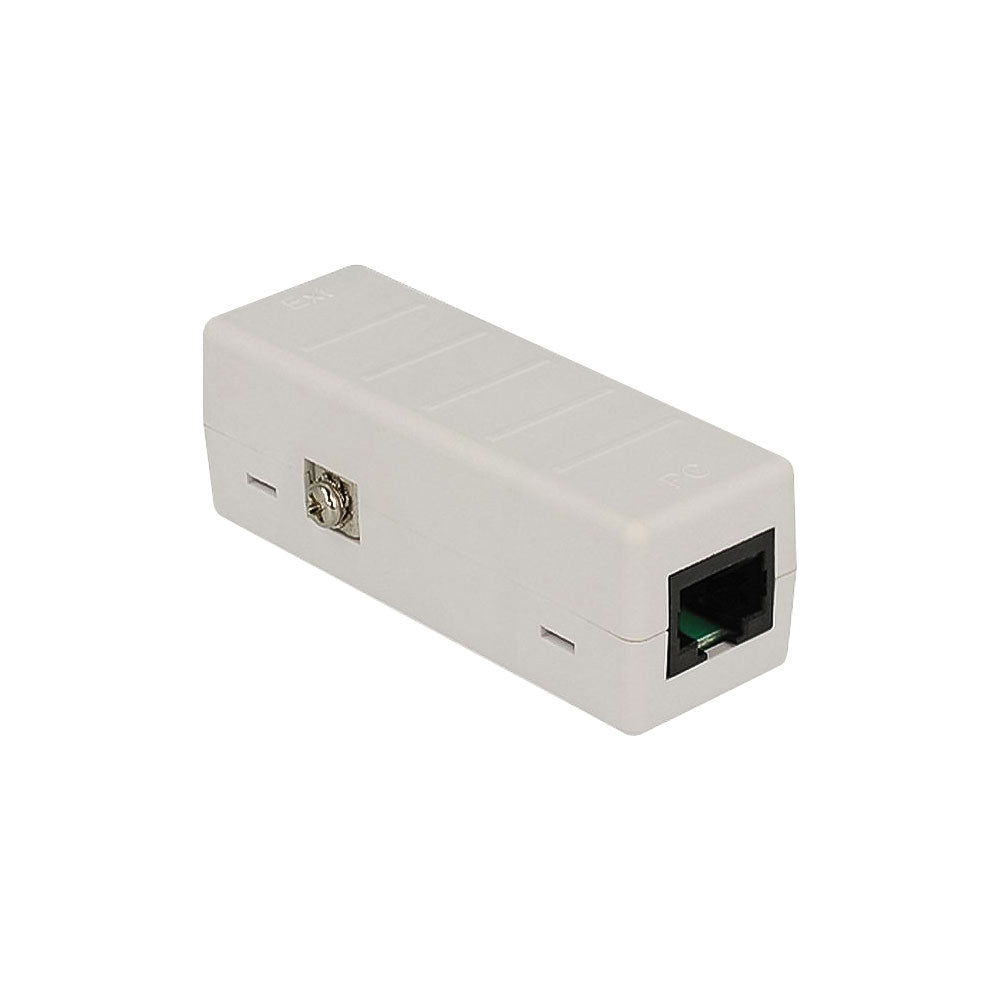

Delock 62620 CAT6 Gigabit RJ45 6kV Network Surge Protector with 90W PoE++
Protect Your Network Connection from Damaging Power Surges.
The Delock 62620 helps protect connected network equipment against electrical surges transmitted through an Ethernet connection. Supporting CAT6 Gigabit Ethernet at up to 1,000Mbps, it provides reliable network protection without compromising standard data performance. The unit also supports IEEE 802.3af, 802.3at and 802.3bt Power over Ethernet at 48V with up to 90W, making it suitable for compatible PoE, PoE+ and PoE++ devices. Inductive galvanic isolation and a tested 6kV common-mode surge rating provide an additional protective barrier between the external network line and the connected equipment. Its compact plastic housing is easy to position near the protected device, while the dedicated screw terminal enables the essential equipotential bonding connection required for safe and effective surge diversion.
Features
- 6kV Surge Protection - Helps protect connected network equipment against common-mode electrical surges
- Gigabit Ethernet Support - Handles network speeds of 10/100/1,000Mbps
- CAT6 Compatibility - Suitable for compatible CAT6 Ethernet connections
- 90W PoE++ Passthrough - Supports IEEE 802.3af, 802.3at and 802.3bt PoE at 48V
- Galvanic Isolation - Provides inductive electrical separation between the external line and protected device
- High Arrest Capacity - Designed to handle surge current of up to 1,000A
- Equipotential Bonding Terminal - Provides a dedicated connection for secure grounding
Specifications
Network Performance
- Network Standard: CAT6
- Data Transfer Rate: Gigabit
- Shielding: Unshielded
Power Over Ethernet
- PoE Standards: IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
- PoE Voltage: 48V
- Maximum PoE Power: 90W
Surge Protection
- Isolation Type: Inductive Galvanic Isolation
- Common-Mode Surge Test: 6kV at 10/700µs
- Arrest Capacity: 1,000A at 8/20µs
- Ignition Voltage: 68V
- Grounding Connection: Screw Terminal for Equipotential Bonding
Connections
- Device Connection: 1× RJ45 Female
- External Connection: 1× RJ45 Female
Physical Characteristics
- Housing Material: Plastic
- Housing Colour: White
- Dimensions: Approximately 70 × 25 × 25mm
- Operating Temperature: 0~50°C
Compliance
- RoHS: 2011/65/EU, 2017/2102 and (EU) 2015/863
Notes
- The network cable between the protector and protected device should be as short as possible, with a maximum length of 50cm
- This passive device does not generate PoE; it passes compatible PoE power through the connection
