Achieve superior cooling performance, the foundation for any serious gaming rig.
Quick Specs
- Full-sized ATX support for unrestricted component choice.
- Pre-installed 120mm ARGB fan ensures immediate, balanced airflow.
- Massive GPU clearance up to 410mm accommodates modern graphics cards.
- Top, side, and rear radiator support permits complex liquid cooling setups.
- Dual-chamber structure aids in clean cable management and thermal separation.
The necessary stance for high performance

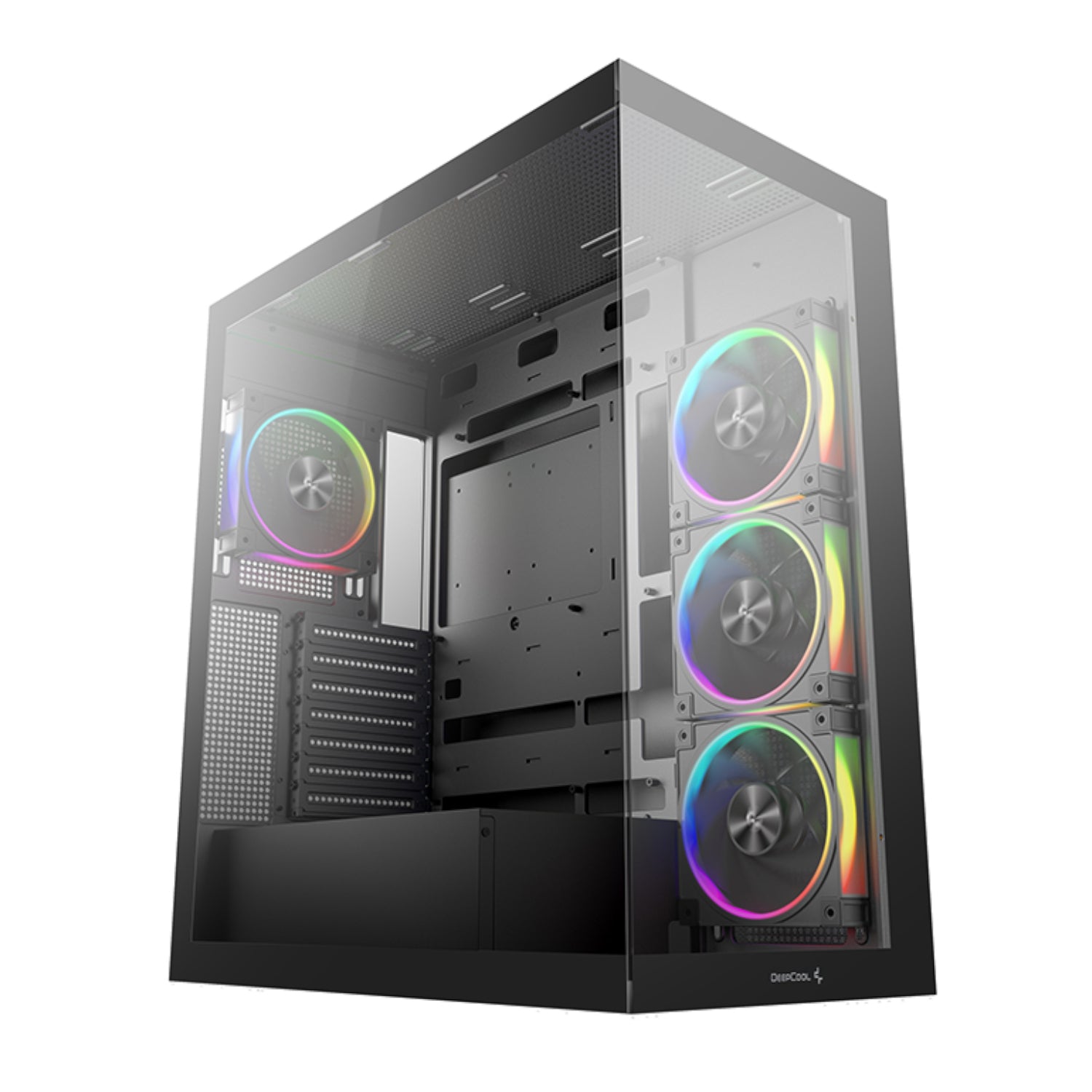

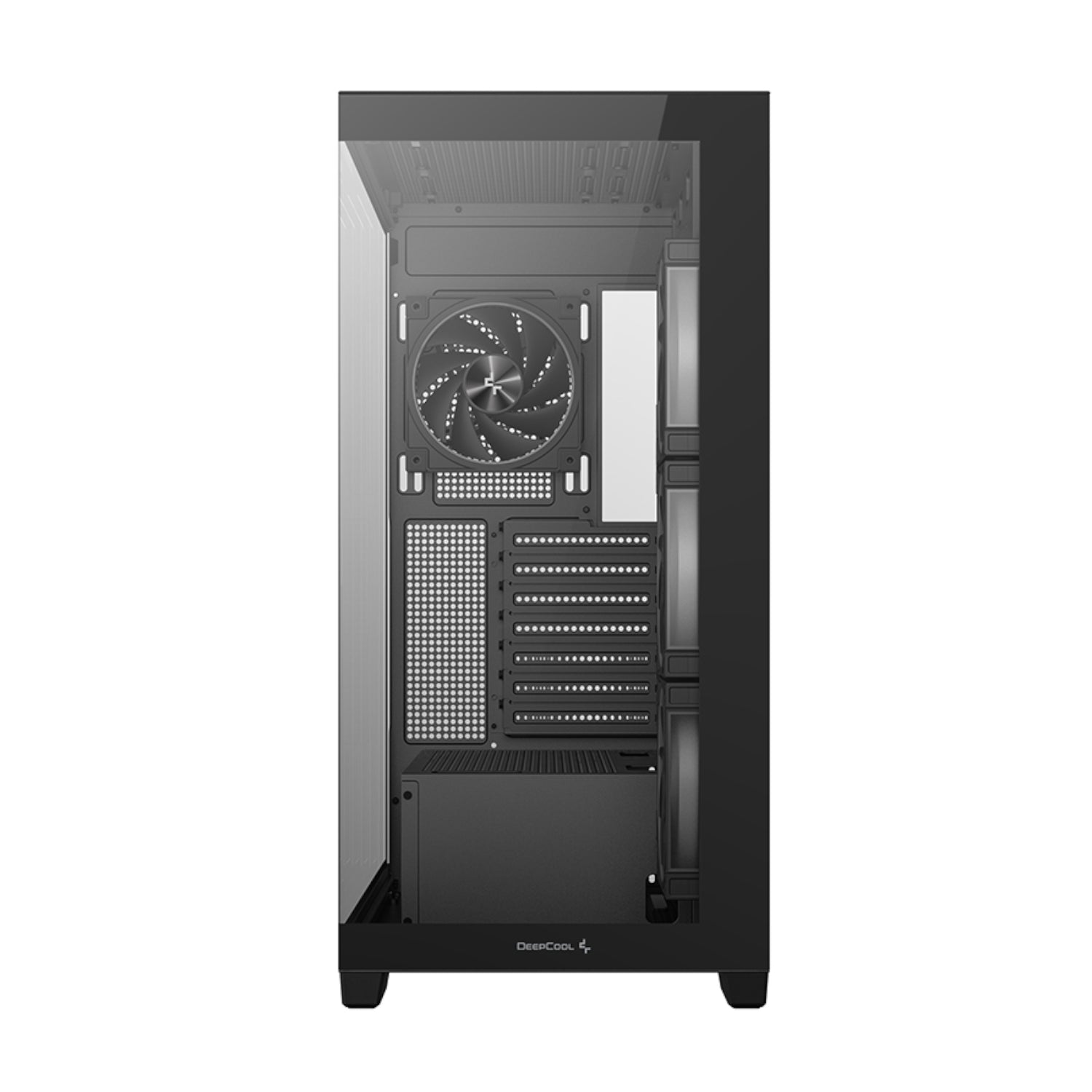

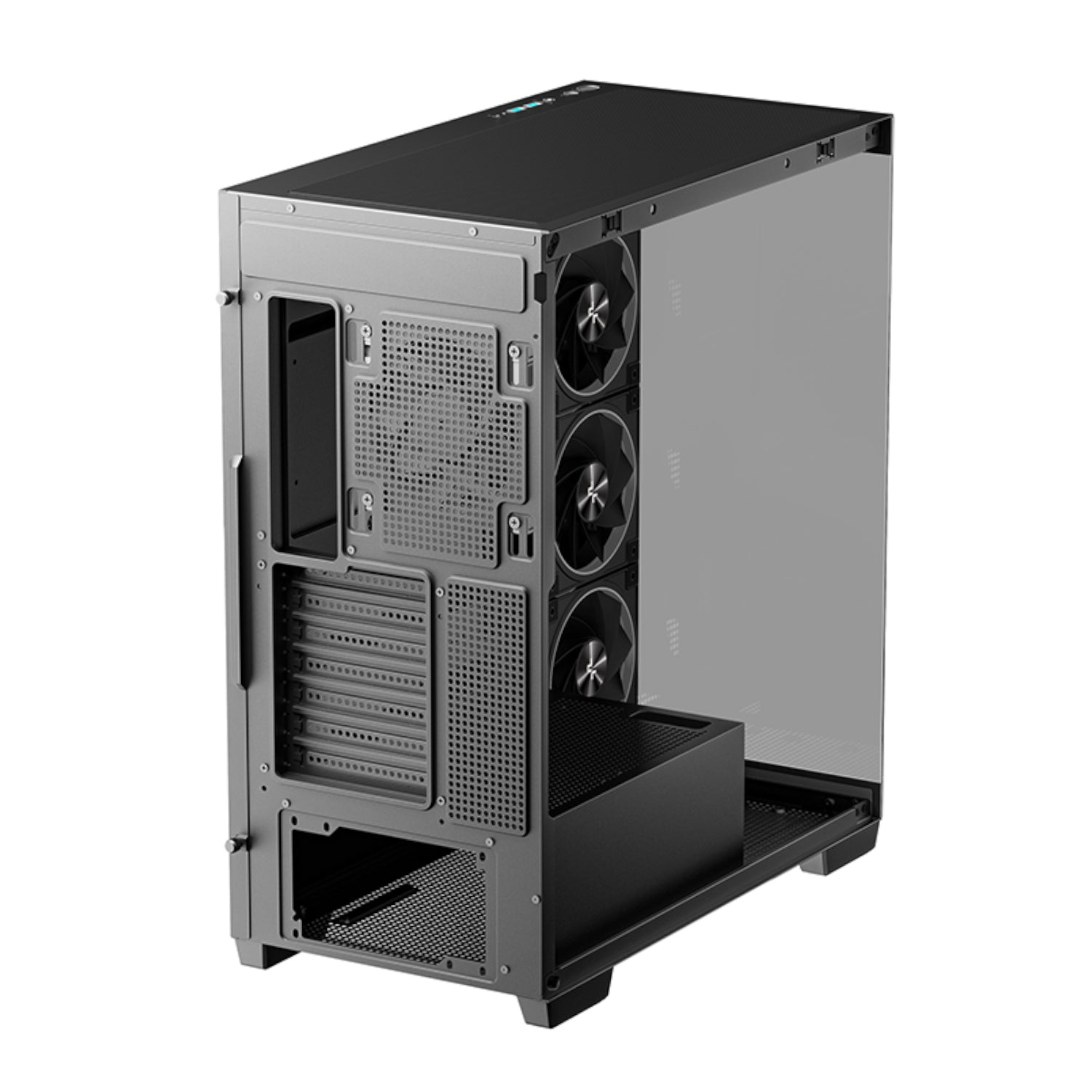

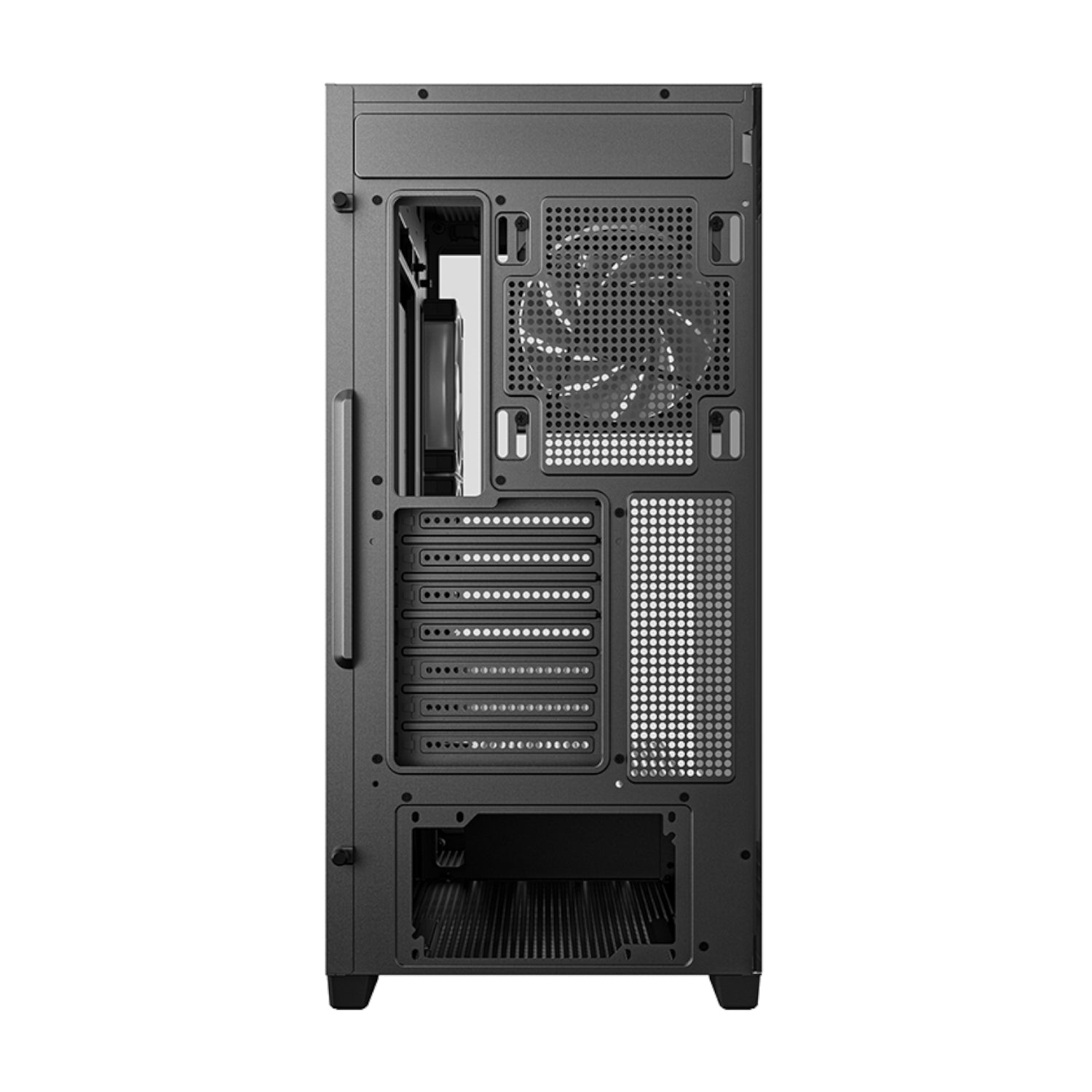

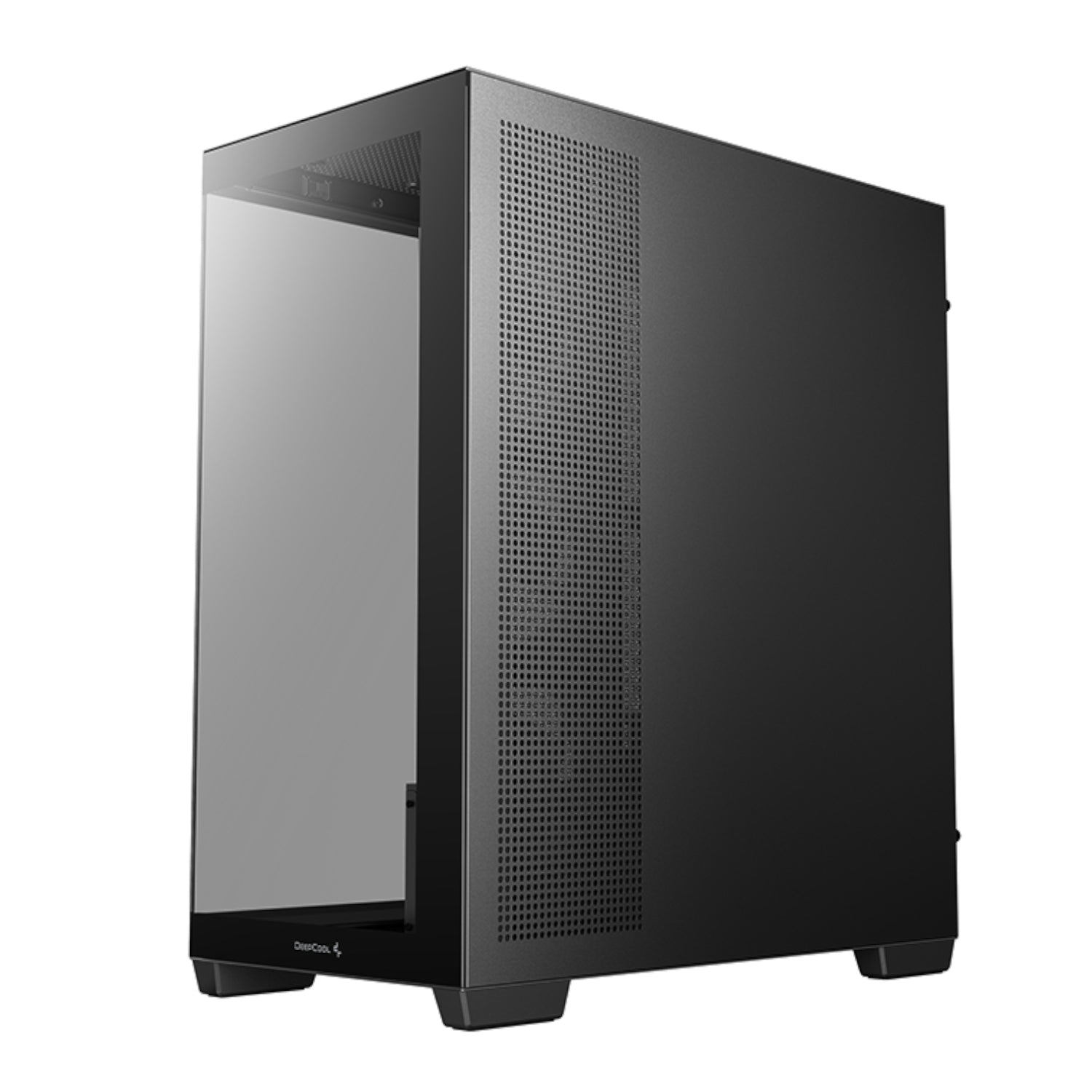

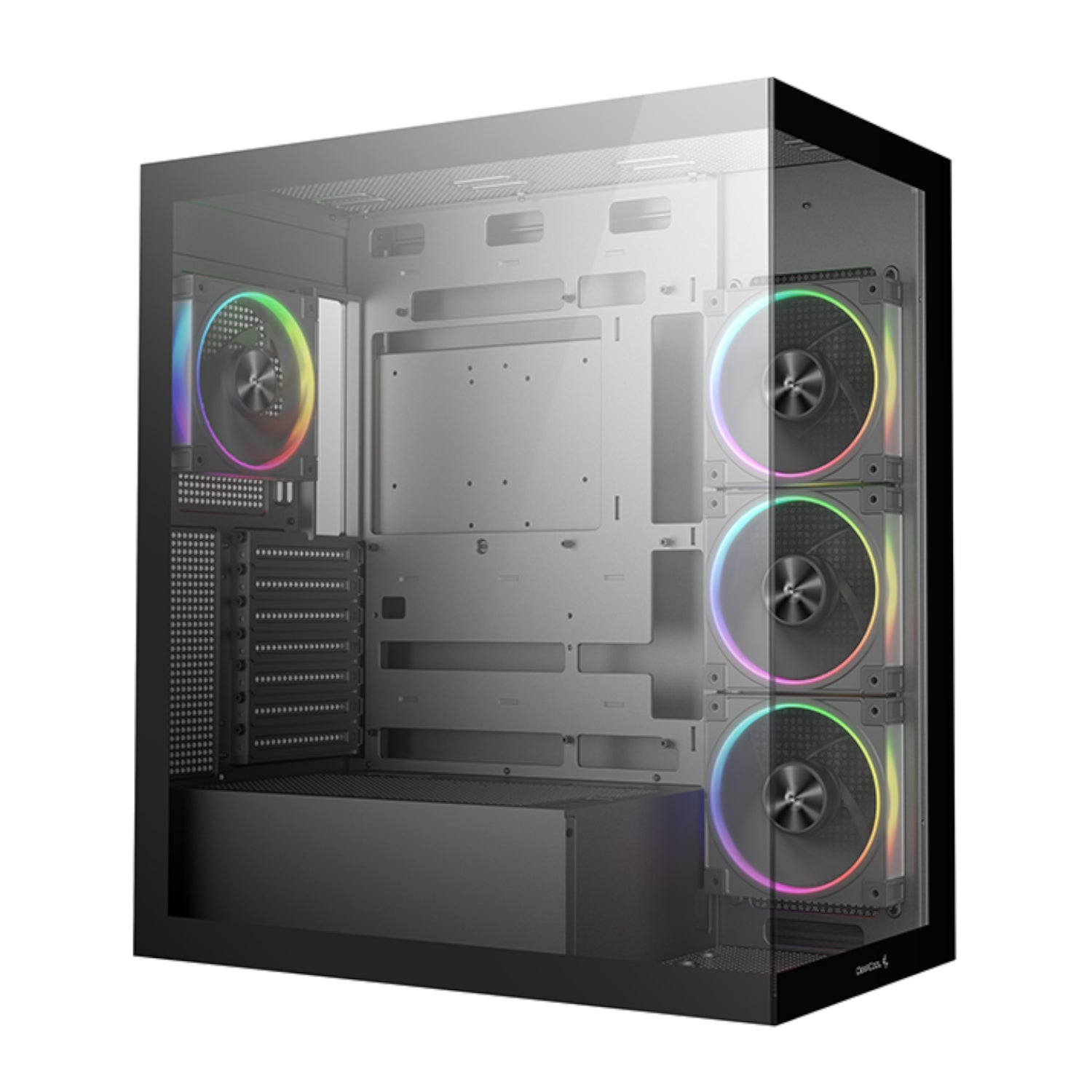

This DeepCool CG580 chassis is forged for the serious system builder and competitive South African gamer who understands that heat is the enemy of sustained performance. It is not merely a box to hold components; it is an airflow conduit designed to maintain optimal operating temperatures under extreme load. If you demand consistency from your CPU and GPU during long sessions, this structure provides the discipline required, unlike bulkier cases.
A structure built for component viability
The internal layout prioritises ease of construction while maximising thermal potential. The dual-chamber design clearly separates the main board and GPU area from the power supply and drive cage. This separation channels cooler air directly across the critical processing areas, preventing waste heat from recirculating. The spacious interior accommodates large hardware without imposing restrictive compromises on your build plan, an advantage often sought over competitors.
Clarity in connectivity and access
Accessing your system controls and essential peripherals should be immediate. The front panel is designed for rapid deployment of your devices, providing modern, high-speed connectivity without fumbling behind the case. The tempered glass side panel grants a clear view of your meticulously assembled hardware, showcasing the efficiency of your internal configuration, a hallmark of superior gaming chassis design.
Cooling mastery built-in
The foundation of any potent gaming rig is effective thermal dissipation. This DeepCool CG580 chassis is engineered with extensive fan and radiator mounting options across five distinct zones. It accepts substantial cooling hardware, allowing builders to implement complex air cooling stacks or multi-radiator liquid cooling systems necessary for overclocked, high-end processors common in enthusiast builds across the region, establishing cooling dominance.
Future-proofing your investment
Understanding that hardware evolves, the CG580 offers expansive support for current and future-generation components. The significant clearance for lengthy graphics cards and tall CPU coolers ensures that upgrading your primary combat tools will not necessitate replacing the chassis. This commitment to space represents long-term value in a market often defined by premature obsolescence.
FEATURES:
- Manage airflow paths effectively through the dedicated dual-chamber layout, isolating heat sources for superior temperature stability.
- Install the latest, most powerful graphics cards, knowing the 410mm clearance range supports lengthy, high-end GPUs essential for top-tier performance.
- Control your thermal environment precisely by supporting up to three 120mm or two 140mm fans on the top panel alone, alongside the included rear exhaust.
- Integrate modern high-speed peripherals using the front input/output panel, featuring two USB 3.0 ports and a high-bandwidth Type-C connection.
- Build with confidence knowing the structure supports CPU coolers up to 176mm in height, accommodating large tower coolers essential for high-TDP processors.
SPECIFICATIONS:
- Materials ABS + SGCC + Tempered Glass
- Motherboard Support
- ITX/Micro-ATX/ATX
- ATX(Rear Connector)
- Micro-ATX(Rear Connector)
- Front I/O Ports: USB3.0×2/Gen2 Type-C×1/Audio&Mic×1
- 3.5" Drive Bays: 2
- 2.5" Drive Bays: 2
- Expansion Slots: 7 Slots
- Pre-Installed Fans Side:
- 3×120mm(PWM+ARGB Reverse Blade)
- Rear: 1×120mm(PWM+ARGB)
- Fan Support:
- Front: NA
- Top: 3×120mm/2x140mm
- Side: 3x120mm
- Rear: 1×120mm/1x140mm
- Bottom: 1×120mm(3.5 HDD/120FAN :Choose one of two)
- PSU Shrouded: 2×120mm
- Radiator Support
- Front: NA
- Top: 120/140/240/280/360mm
- Side: 120/240/360mm
- Rear: 120/140mm
- CPU Cooler Height Limit: 176mm
- GPU Length Limit: 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side)
- Power Supply Type: ATX PS2(maximum length: 210mm)
- Colour: Black
- Product Dimensions: 43.7 x 23.5 x 50.1 cm
- Product Weight: 8800g
WHAT'S IN THE BOX:
- DeepCool CG580 4F V2 ARGB ATX Gaming Chassis - Black x1
Why DeepCool?
DeepCool has maintained a steadfast presence in the component market by refusing to compromise on foundational engineering. For the South African builder, this means receiving expertly validated thermal solutions and robust construction that supports multi-year use cycles. Choosing DeepCool is selecting a component built with the discipline required to withstand the rigours of demanding computational tasks, offering reliability where it matters most: during peak operation, ensuring your build maintains integrity.
- Length: 55.0 cm
- Width: 31.0 cm
- Height: 51.0 cm
- Weight: 0.88 kg
