120 mm single-fan air cooling | Maximum noise level of 36 dB | Intel LGA1851, LGA1700, LGA1200, LGA115X and AMD AM5, AM4 support | 157 mm cooler height
Quick Specs
- Enjoy dependable air cooling from a single 120 mm fan
- Experience a maximum noise level of just 36 dB
- Connect to modern and recent platforms, from Intel LGA1851 to AMD AM5
- Achieve a straightforward upgrade for AMD AM4 and Intel LGA1200 builds
- Fit with confidence, knowing the cooler stands 157 mm tall
A Capable Air Cooler for Your Next PC Build

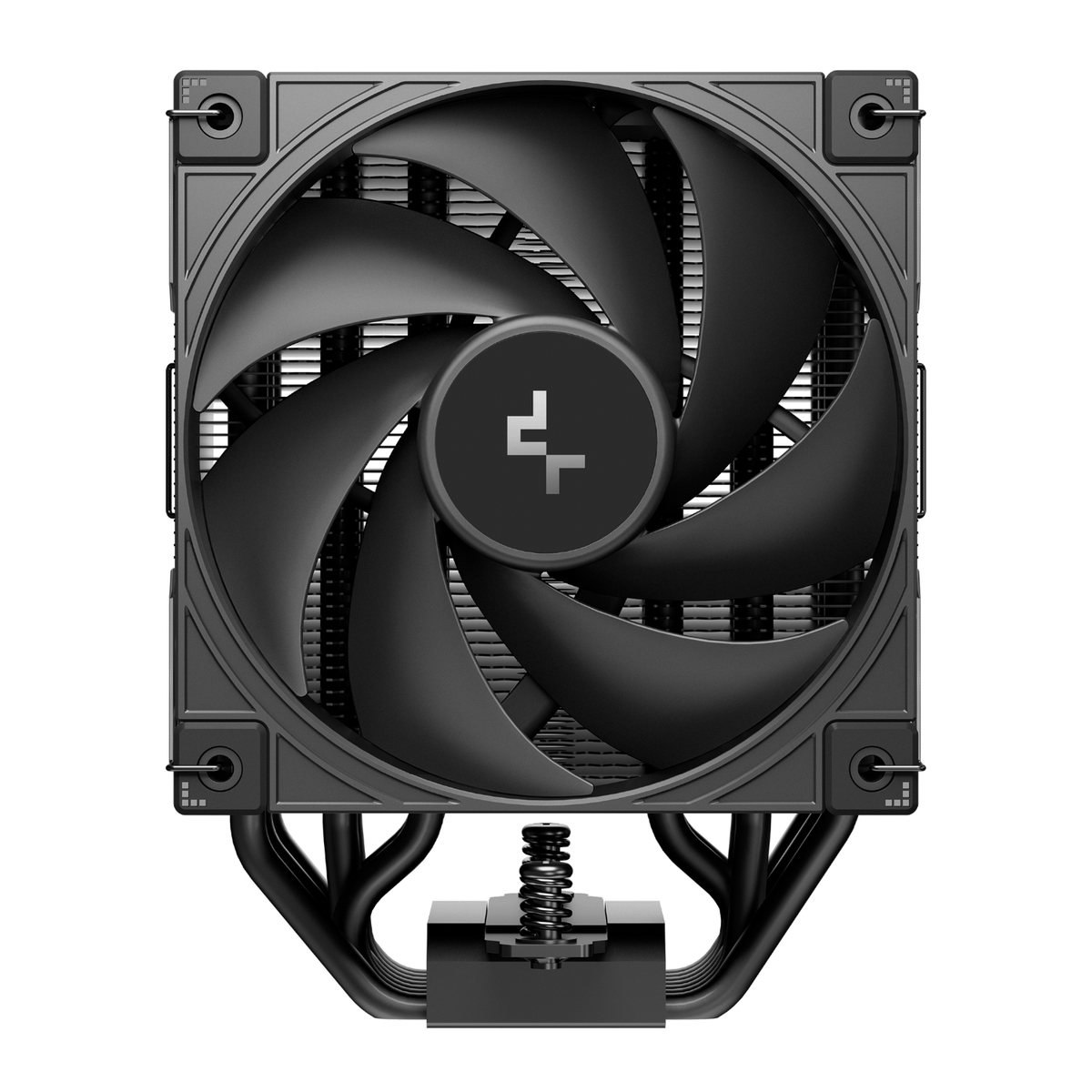

The DeepCool AK700 DIGITAL NYX 120mm Air Cooler in Black is made for builders and upgraders who want proven air cooling rather than the added complexity of liquid loops. It pairs a single 120 mm fan with a heatsink to keep your processor running comfortably during everyday work, long editing sessions and gaming. The black finish suits the majority of modern case interiors, so it blends in with your components instead of drawing the eye.
Quiet Running When the Workload Climbs
Tired of a PC that sounds like it is about to take off whenever you open a demanding application? This CPU cooler has a maximum noise level of 36 dB, so you can keep working, streaming or playing without constant fan noise in the background. A single 120 mm fan keeps the design simple, which makes it easy to understand and easy to live with in a home office, bedroom or lounge setup.
Wide Socket Compatibility for New and Existing Systems
Whether you are building fresh or refreshing an existing machine, this air cooler supports Intel LGA1851, LGA1700, LGA1200 and LGA115X, as well as AMD AM5 and AM4. That coverage means you can carry the cooler over when you upgrade your processor or motherboard within these platforms, rather than buying a new one each time. It is a practical choice if you move between Intel and AMD builds.
Sized With Case Clearance in Mind

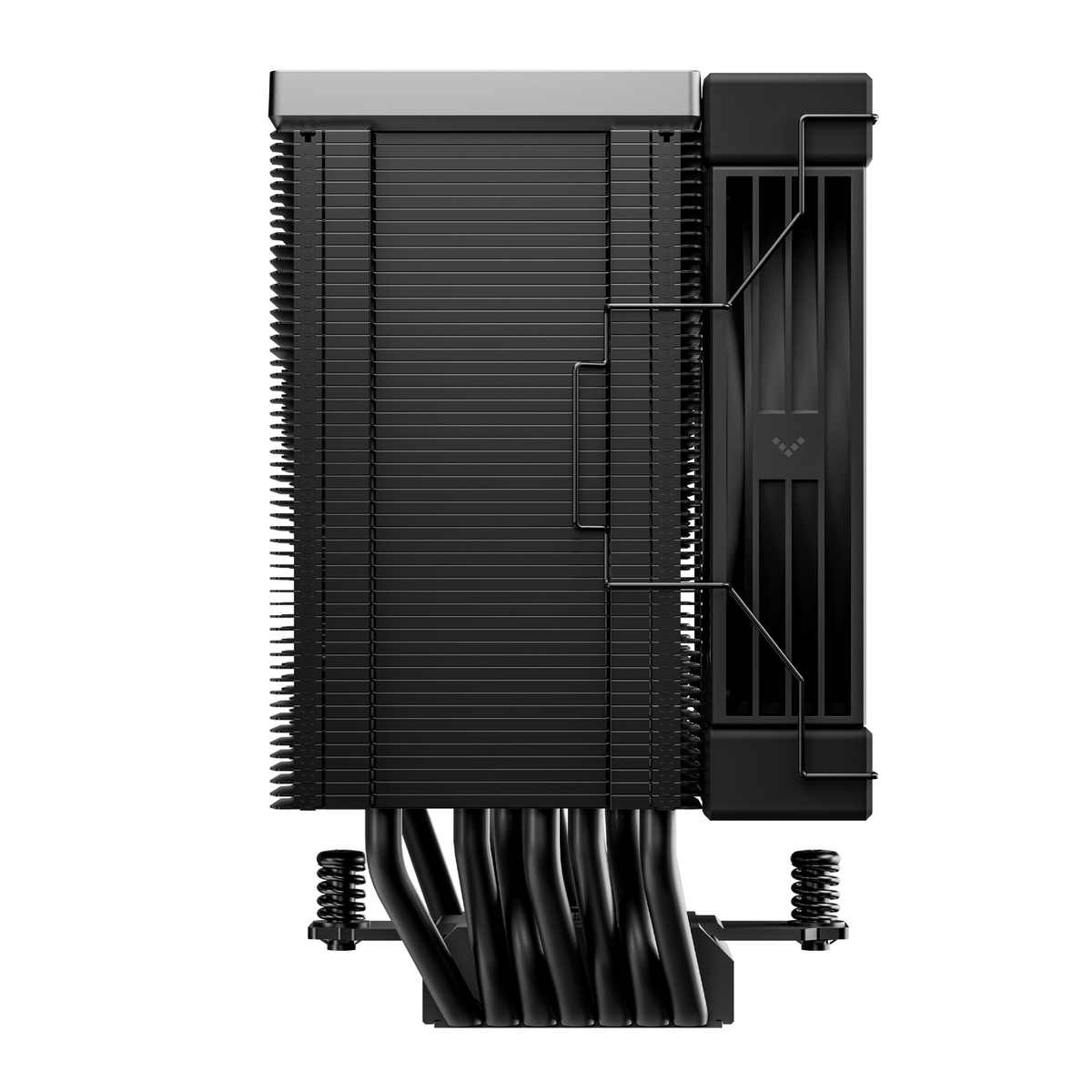

At 157 mm tall, with product dimensions of 12.6 x 9.8 x 15.7 cm, the AK700 DIGITAL NYX is easy to check against your case specifications before you buy. Weighing 1.252 kg, it is a substantial piece of hardware that deserves proper mounting. Measure your case's CPU cooler clearance first, and you can build with confidence knowing the cooler will fit.
Features
- Single 120 mm fan delivers focused air cooling for your processor
- Maximum noise level of 36 dB for comfortable everyday use
- Supports Intel LGA1851, LGA1700, LGA1200 and LGA115X sockets
- Supports AMD AM5 and AM4 sockets for Ryzen platforms
- Cooler height of 157 mm, making case clearance simple to check
- Black finish that suits most modern PC builds
- Product weight of 1.252 kg for a solid, substantial build
Specifications

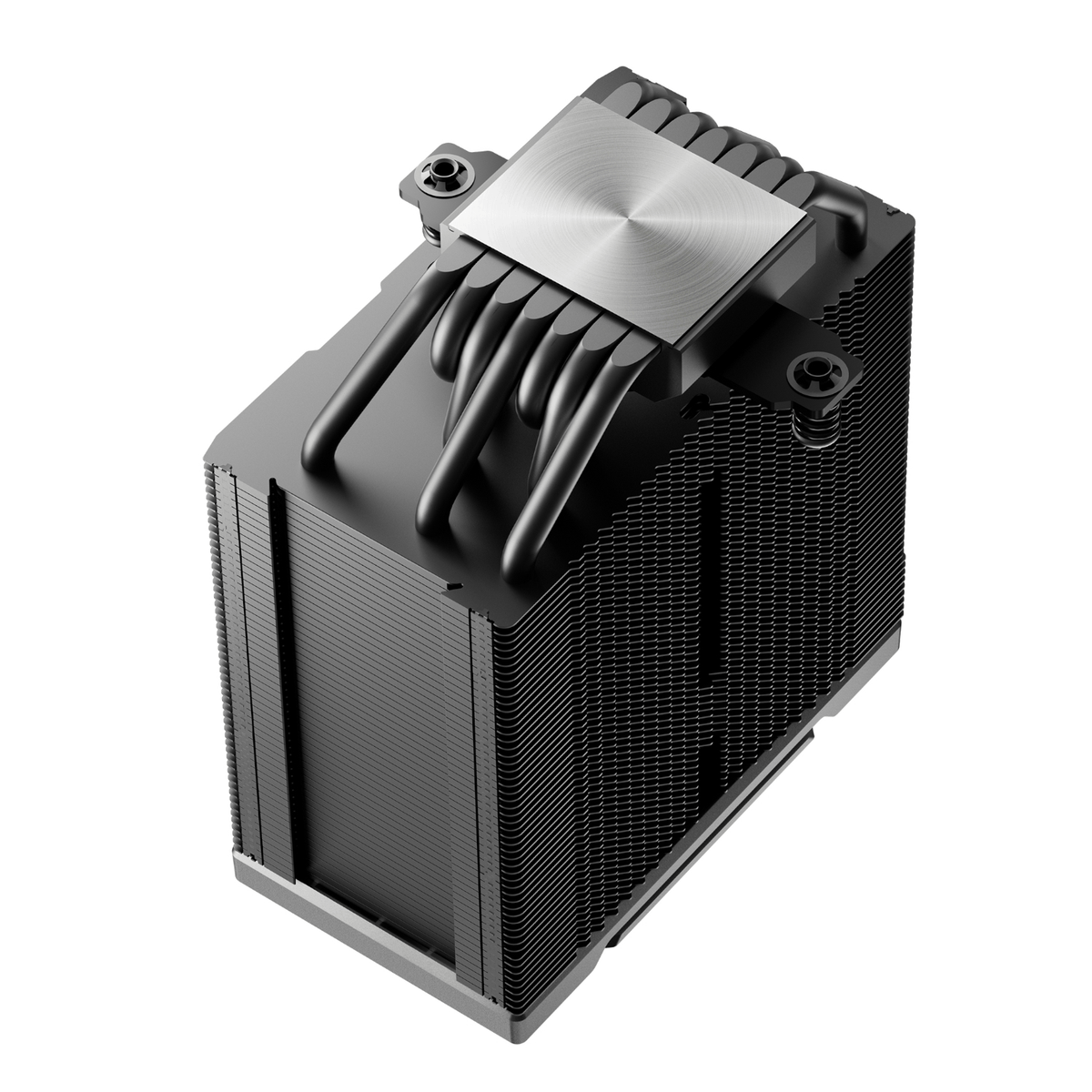

- Heatpipe: Ø6 mm×7 pcs
- Fan Dimensions: 120×120×25 mm
- Fan Speed: 2700±10% RPM(max)
- Fan Airflow: 77.23 CFM
- Fan Air Pressure: 5.13 mmAq
- Fan Noise: 21.0/28.8/36.0 dB(A)
- Fan Connector: 4-pin PWM
- Bearing Type: Hydro Bearing
- Fan Rated Voltage: 12 VDC
- Fan Rated Current: 0.35 A
- Fan Power Consumption: 4.2 W
- Display Module Rated Current: 0.13 A±10%
- Display Module Rated Voltage: 5 VDC
- Display Module Power Consumption: 0.65 W
- Display Area: 29 x 39 mm
- Socket Compatibility:
- Intel LGA1851 / LGA1700 / LGA1200 / LGA115X
- AMD AM5 /AM4
- Colour: Black
- Heatsink Dimensions: 12.4 x 7.6 x 15.1 cm
- Product Dimensions: 12.6 x 9.8 x 15.7 cm
- Product Weight: 1252g

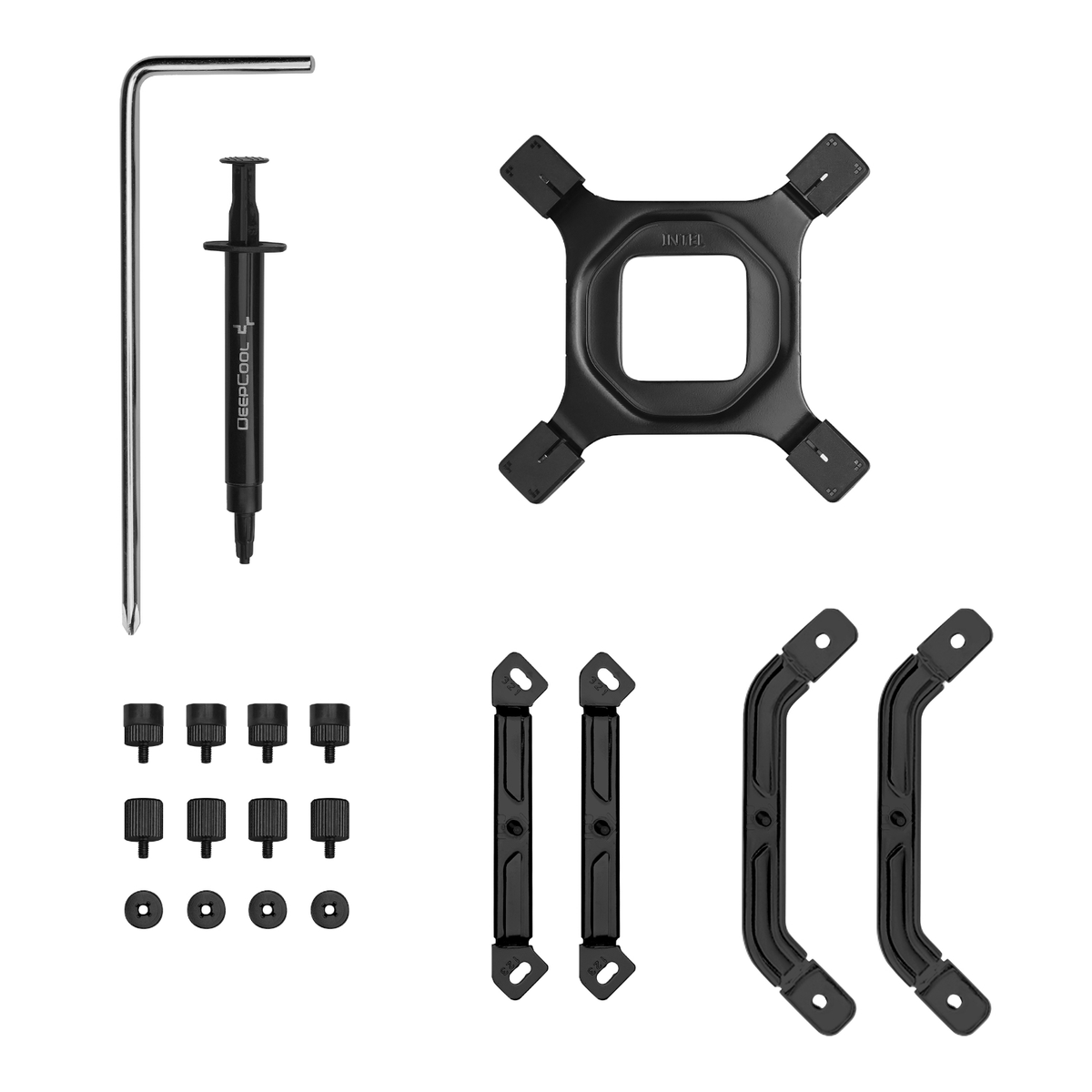

What's in the Box
- 1 x DeepCool AK700 DIGITAL NYX 120mm Air Cooler - Black
- 1 x Mounting Kit
- 1 x Thermal Paste
Why DEEPCOOL
Choose DEEPCOOL for a Air coolers with clearly documented capabilities and specifications, making it easier to select the right fit with confidence.
- Length: 21.9 cm
- Width: 17.1 cm
- Height: 16.0 cm
- Weight: 1.252 kg
