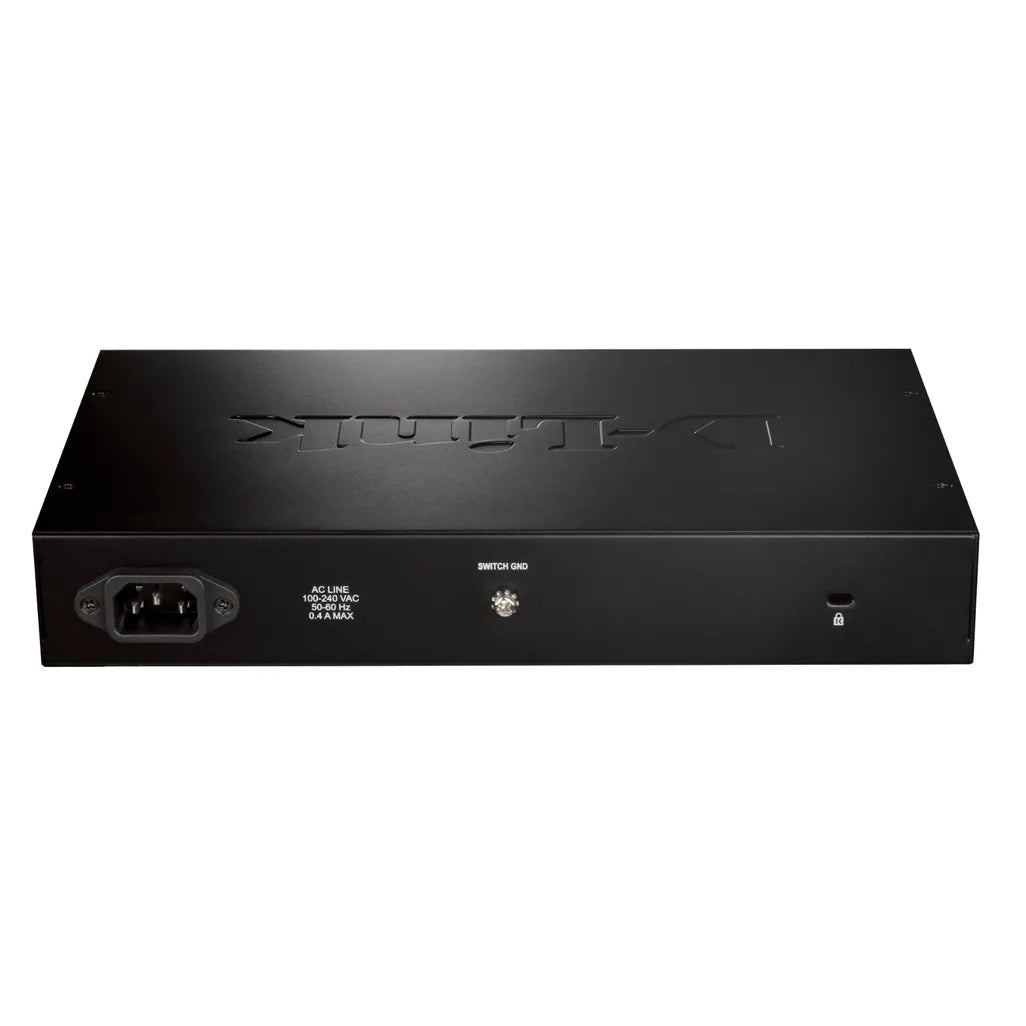

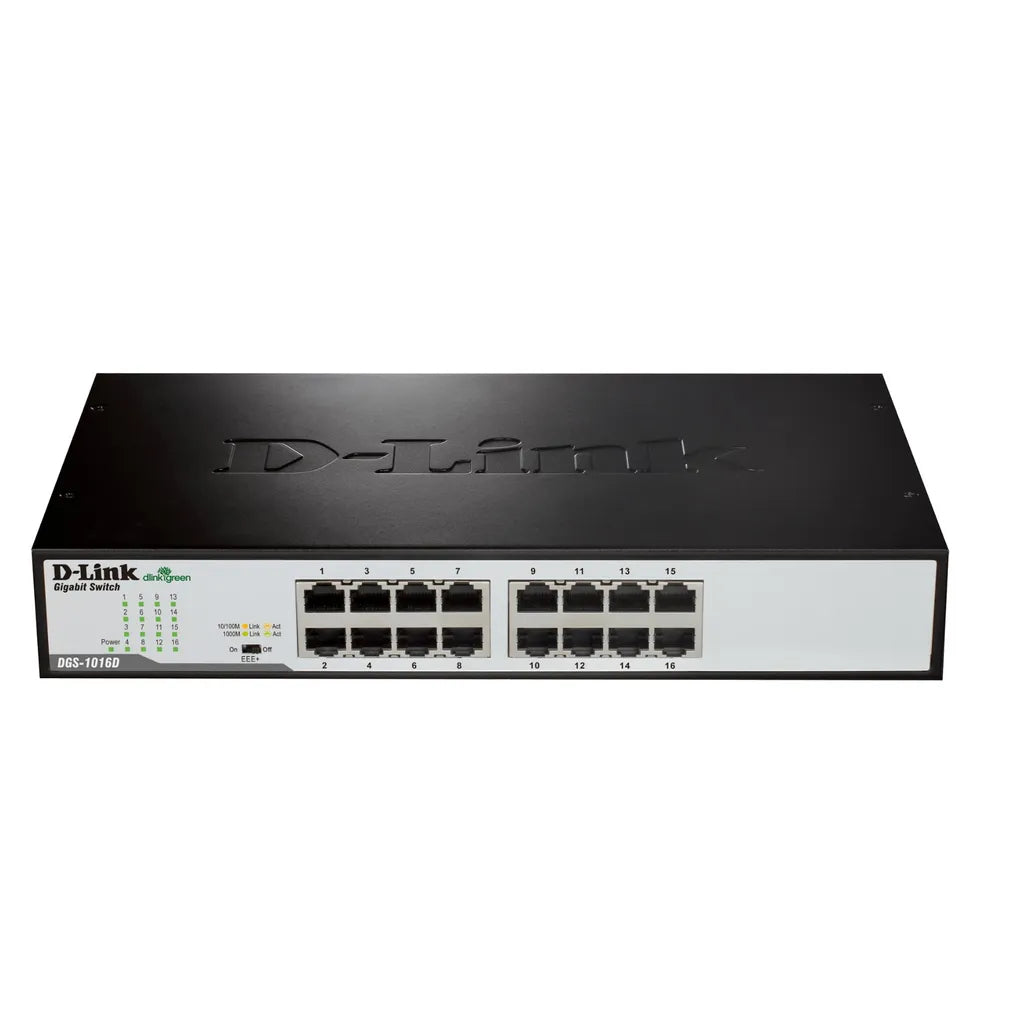

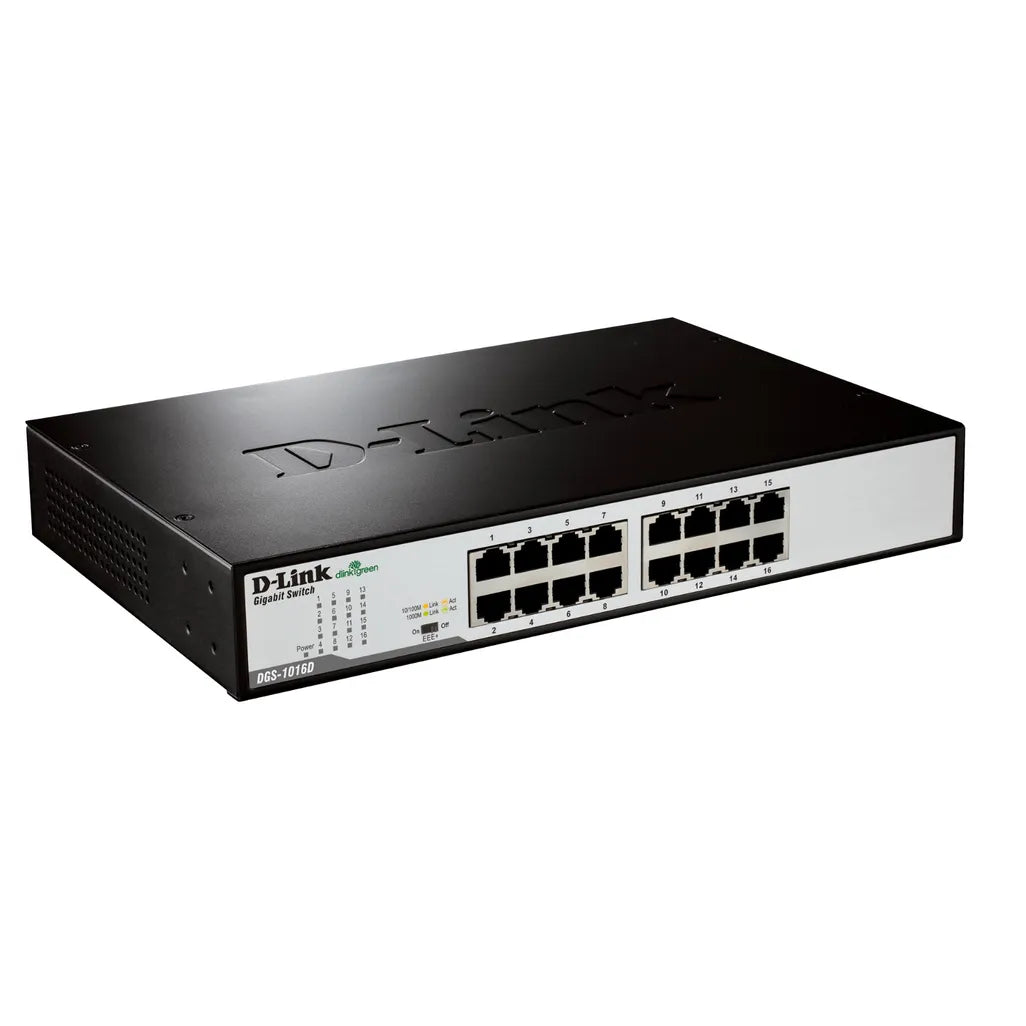

D-Link DGS-1016D/E. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x. Rack mounting
Power
| AC input voltage |
100 - 240 |
| AC input frequency |
50 - 60 |
| Power consumption (typical) |
11.7 |
Operational conditions
| Operating temperature (T-T) |
0 - 40 |
| Operating relative humidity (H-H) |
5 - 95 |
| Storage temperature (T-T) |
-10 - 55 |
Weight & dimensions
| Width |
281.9 |
| Weight |
1350 |
| Depth |
180.3 |
| Height |
44.5 |
Performance
| Mean time between failures (MTBF) |
828109 |
Technical details
| Shipping (inner) case length |
572 |
| Shipping (inner) case width |
197 |
| Shipping (inner) case height |
359 |
| Shipping (inner) case gross weight |
9206 |
| Shipping (inner) case net weight |
8545 |
| Pallet gross weight (air) |
295680 |
| Number of cartons per pallet (air) |
30 |
| Quantity per pallet (air) |
150 |
| Pallet length |
1100 |
| Pallet width |
1200 |
| Pallet height (air) |
1212 |
| Pallet gross weight (sea) |
480300 |
| Number of cartons per pallet (sea) |
50 |
| Quantity per pallet (sea) |
250 |
| Pallet height (sea) |
1930 |
| Quantity per shipping (inner) case |
5 |
Packaging data
| Package width |
180 |
| Package depth |
328 |
| Package height |
108 |
| Package weight |
1709 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
16 |
Network
| Networking standards |
IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| Copper ethernet cabling technology |
1000BASE-T,100BASE-T,10BASE-T |
| 10G support |
N |
| Full duplex |
Y |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
Design
| Product colour |
Black,Metallic |
| Certification |
FCC Class A, CE, ICES-003, VCCI, C-Tick, RoHS |
| LED indicators |
Y |
| Rack mounting |
Y |
| Stackable |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Data transmission
| MAC address table |
8000 |
| Switching capacity |
32 |
| Jumbo frames support |
Y |
| Maximum data transfer rate |
1 |
| Store-and-forward |
Y |
| Packet buffer memory |
0.340 |
Management features
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Y |
