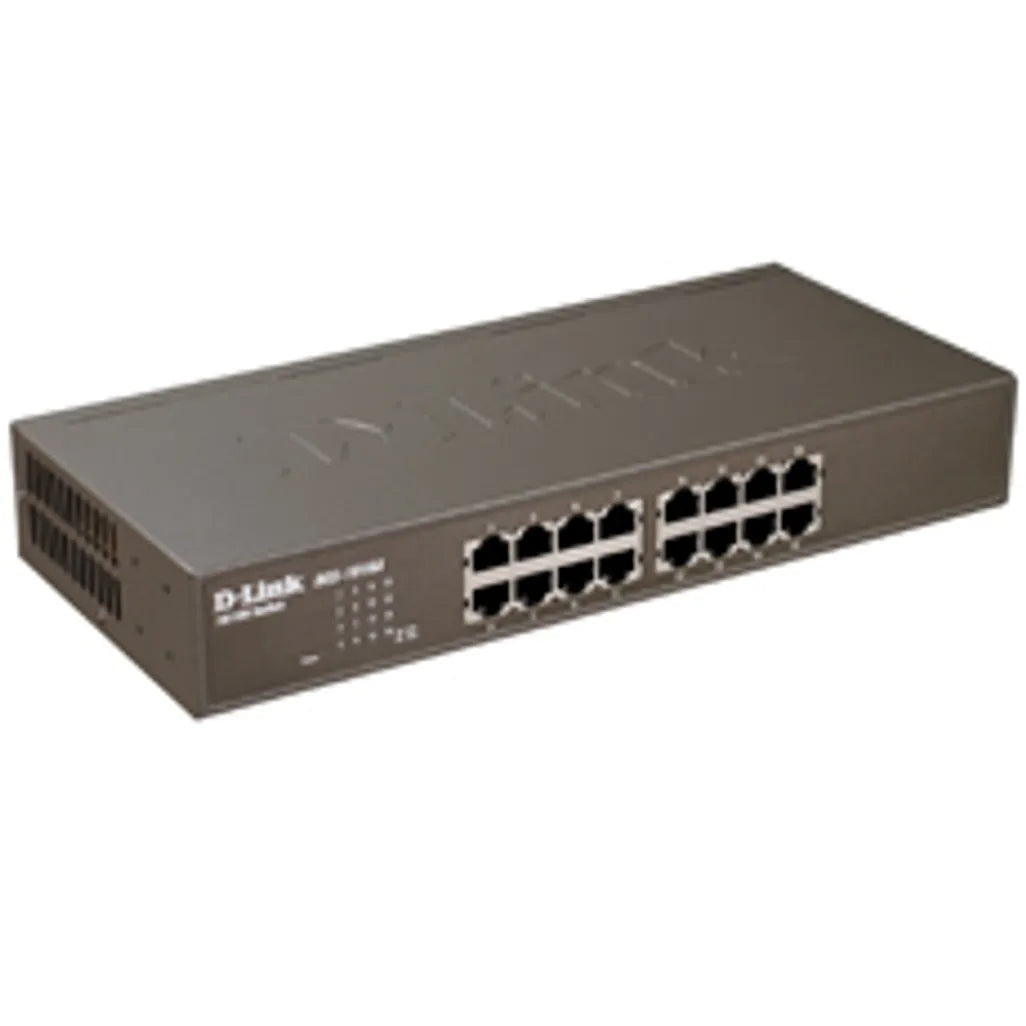

D-Link DES-1016A. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3x. Power connector: DC-in jack
Operational conditions
| Operating temperature (T-T) |
0 - 40 |
| Operating relative humidity (H-H) |
10 - 85 |
| Storage relative humidity (H-H) |
10 - 90 |
| Storage temperature (T-T) |
-10 - 70 |
| Operating temperature (T-T) |
32 - 104 |
Other features
| Input voltage |
100 - 240 |
| Power LED |
Y |
| Wi-Fi |
N |
| Networking features |
Fast Ethernet |
| Input frequency |
50 - 60 |
| Dimensions (WxDxH) |
280 x 125.8 x 44 |
| Connectivity LEDs |
Y |
Power
| Number of power supply units |
1 |
| Power consumption (typical) |
2.3 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Power connector |
DC-in jack |
Network
| 10G support |
N |
| Full duplex |
Y |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Networking standards |
IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
Design
| Rack mounting |
N |
| Stackable |
Y |
| Product colour |
Brown |
| Certification |
FCC, ICES-003, CE, C-Tick, cUL, LVD |
| LED indicators |
Link |
Security
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Data transmission
| MAC address table |
8000 |
| Maximum data transfer rate |
0.1 |
| Supported data transfer rates |
10/100 Mbps |
| Store-and-forward |
Y |
| Packet buffer memory |
2 |
| Switching capacity |
3.2 |
Management features
Performance
| Mean time between failures (MTBF) |
840221 |
Protocols
| Management protocols |
CSMA/CD |
