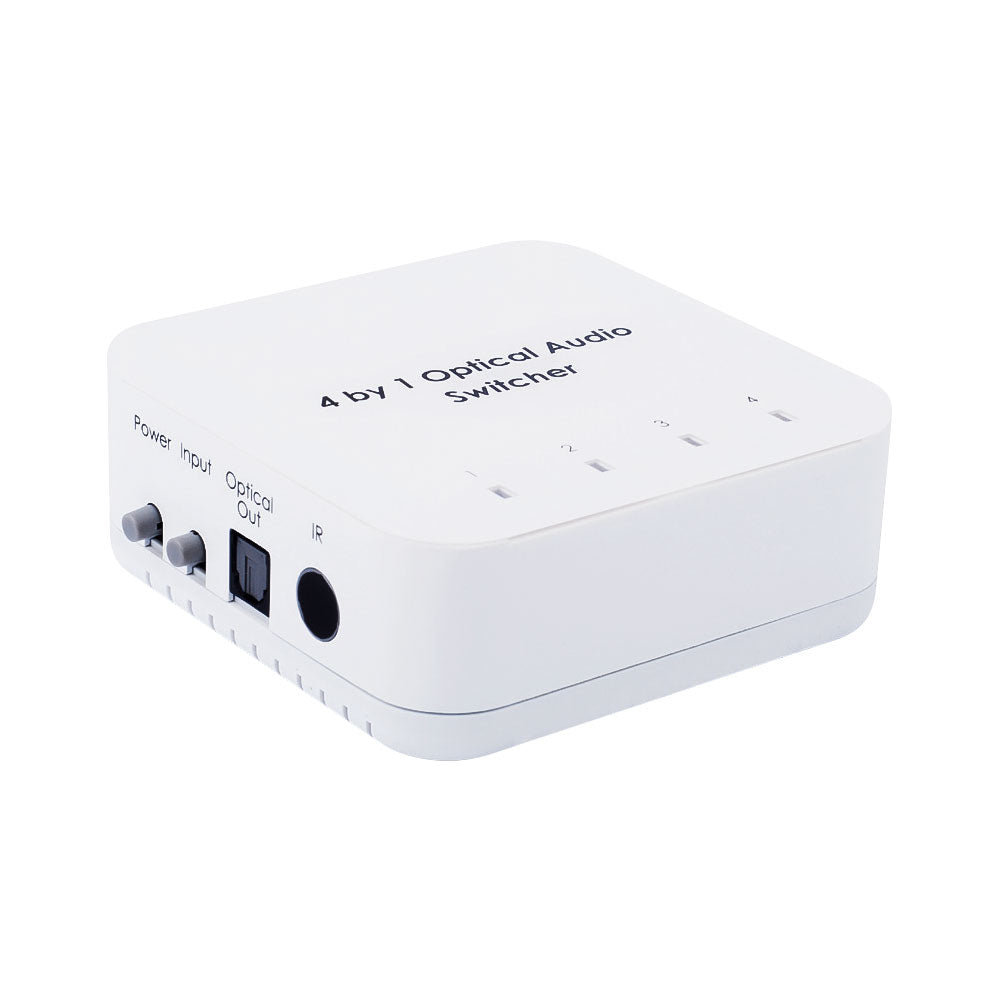

CYP DCT-17 4×1 TOSLINK AUDIO SWITCH

Features

• 4×1 Optical Audio Switching - Connect up to four Toslink audio sources to one output
• Toslink Optical Connectivity - Ideal for digital audio systems and AV equipment
• High Audio Sampling Support - Supports optical sampling rates up to 192kHz
• Dolby and DTS Pass-Through - Compatible with Dolby 5.1 and DTS 5.1 audio
• IR Remote Control Included - Convenient source switching from a distance
• Instant Source Switching - Switch between inputs without noticeable delay
• Last Memory Function - Automatically recalls the previously selected source
• Low Power Consumption - Efficient operation with less than 1W usage

Specifications

• Input Ports: 4× Optical (Toslink)
• Output Port: 1× Optical (Toslink)
• Audio Format Support: PCM2, Dolby 5.1 and DTS 5.1 Pass-Through
• Sampling Rate Support: up to 192kHz
• Power Supply: 5V 1A DC
• IR Remote Control: Included
• ESD Protection: ±8kV Air-Gap Discharge / ±6kV Contact Discharge
• Input Level/Frequency: Optical 0dBFS 1kHz
• Output Level: 0~0.05dBFS
• THD+N: <0.01%
• Frequency Response: ±1dBFs
• SNR: >90dB
• Crosstalk: <-90dB
• Dimensions: 85 × 85 × 35mm
• Weight: 90g
• Chassis Material: Plastic
• Operating Temperature: 0~40°C
• Power Consumption: <1W
• Relative Humidity: 20~90% RH Non-Condensing

Shipping Dimensions

• Weight: 0.20 kg
