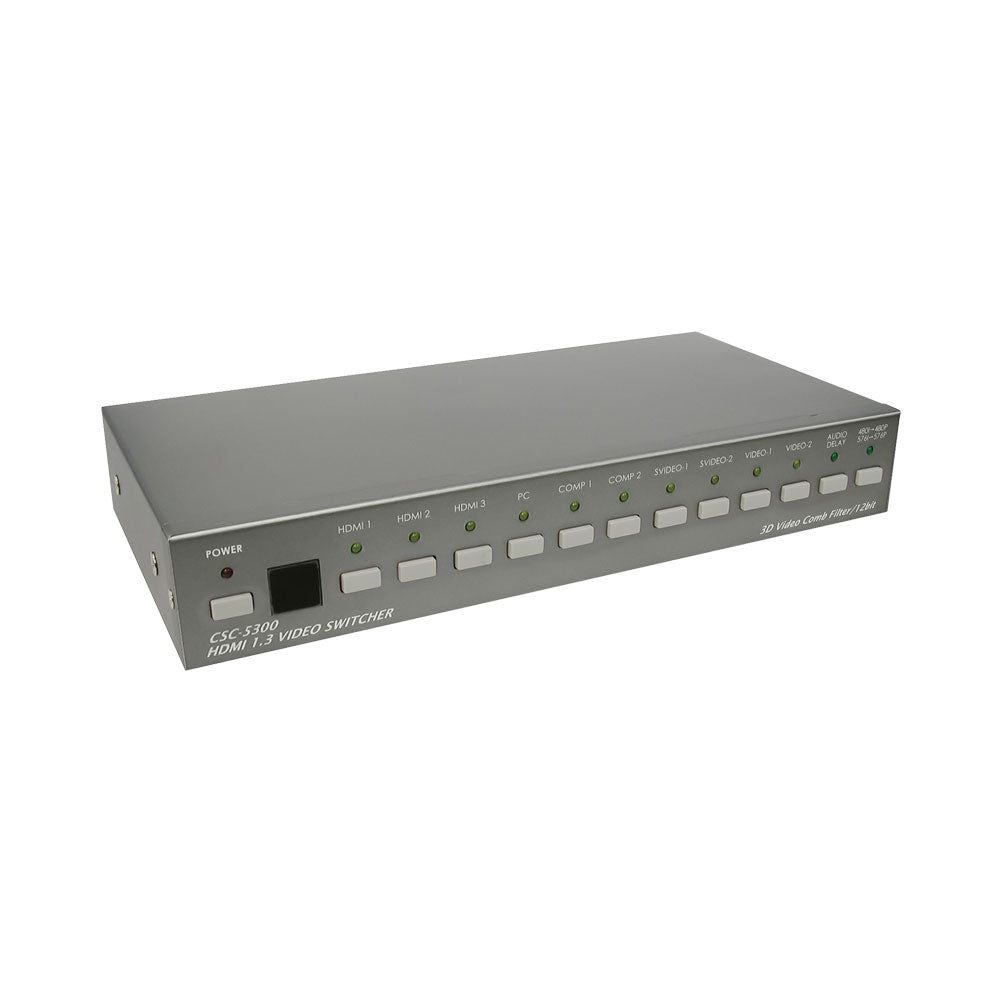

CYP CSC-5300 MULTIPLE INPUTS TO HDMI SCALER

Features

• Multi-Format AV Scaling - Converts analogue and digital video sources to HDMI output
• Multiple Input Support - Supports HDMI, PC, Component, Composite and S-Video sources
• Full HD Output Resolution - Supports up to 1920×1080p and 1920×1200 WUXGA resolutions
• Advanced Video Processing - Includes 3D comb filter and 3D noise reduction
• Interlace to Progressive Conversion - Converts 480i/576i signals to 480p/576p
• Deep Colour Support - Supports up to 12-bit Deep Colour video processing
• HDMI 1.3 Switching - Delivers reliable high quality HDMI signal transmission
• Audio Delay Function - Adjustable 150ms audio delay support
• Flexible Control Options - Supports IR remote and RS232 control
• Professional Metal Chassis - Durable design for commercial AV environments

Specifications

Input Ports

• 3× HDMI Female (Type-A)
• 1× PC Input with Audio
• 2× Component Video (Y/Pb/Pr) with R/L Audio
• 2× Composite Video/S-Video with R/L Audio
• 1× RS232

Output Ports

• 1× HDMI Female

Compliance

• HDMI 1.3
• HDCP 1.1
• DVI 1.0

Maximum Input Resolution

• HDMI: 1920×1080p @60Hz
• PC: 1920×1200 @60Hz
• Component: 1920×1080p @60Hz
• Composite/S-Video: 480i/576i

Maximum Output Resolution

• HDMI: 1920×1080p @60Hz
• PC/WUXGA: 1920×1200 @60Hz

Other

• Frequency Bandwidth: 2.25Gbps (Single Link)
• Audio Delay: 150ms
• Power Supply: 5V DC 2.6A
• Chassis Material: Metal
• Operating Temperature: 0~40°C
• Colour: Grey
• Dimensions: 280 × 147 × 44mm
• Weight: 1.38kg

Shipping Dimensions

• Weight: 2.30 kg
