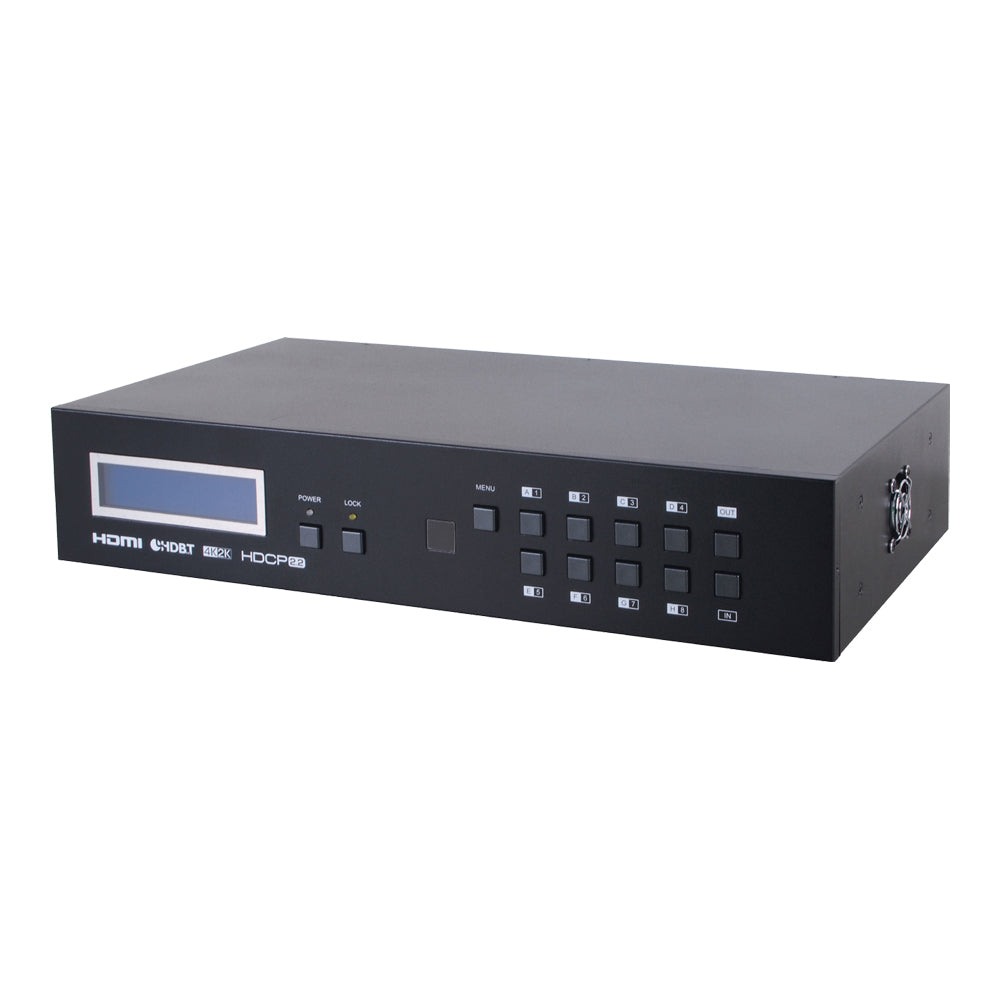

CYP CMPRO-UA8H8CVPL 8×8 HDMI 4K OVER CAT6 MATRIX WITH 24V POC AND HDCP 2.2

Features

• 8×8 HDMI Matrix Switching - Route eight HDMI sources to eight independent displays
• 4K Support - Supports resolutions up to 4K2K with HDCP 2.2 compliance
• Long-Distance Distribution - Supports transmission distances up to 60m
• 24V PoC Support - Powers compatible receivers directly through the LAN cable
• Multi-Channel Audio Support - Compatible with LPCM, Dolby TrueHD and DTS-HD Master Audio
• Flexible Control Options - Supports RS232, Telnet, WebGUI, IR remote and front panel control
• 3D Signal Support - Supports 3D video signal bypass
• Bi-directional IR Control - Enables remote source and display device management
• Network Management - Integrated LAN control for remote system administration

Specifications

• HDMI Inputs: 8× HDMI
• Input Ports: 8× HDMI, 9× IR (3.5mm), 1× RS-232 (9-Pin D-Sub), 1× Control (RJ45), 1× USB (Service only)
• CAT Outputs: 8× CAT5e/6/7 Outputs
• Video Bandwidth: 300MHz / 9Gbps
• Maximum Resolution: 4K 3840×2160 @60Hz (YUV 4:2:0)
• HDCP Support: HDCP 2.2
• Transmission Distance: up to 60m
• Audio Support: LPCM 2/5.1/7.1CH, Dolby Digital, Dolby TrueHD and DTS-HD Master Audio
• IR Frequency: 30~50kHz
• Control Interfaces: RS232, Telnet, WebGUI, IR and Front Panel
• ESD Protection - ±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
• Power Supply: 24V 6.25A DC
• Power Consumption: 89W
• Chassis Material: Metal
• Colour: Black
• Dimensions: 438 × 256.7 × 92mm
• Weight: 4.6g
• Operating Temperature: 0~40°C
• Compatible with CYP CH-1527RXPL HDBaseT Receiver for complete HDMI over CAT distribution systems.

Shipping Dimensions

• Weight: 0
