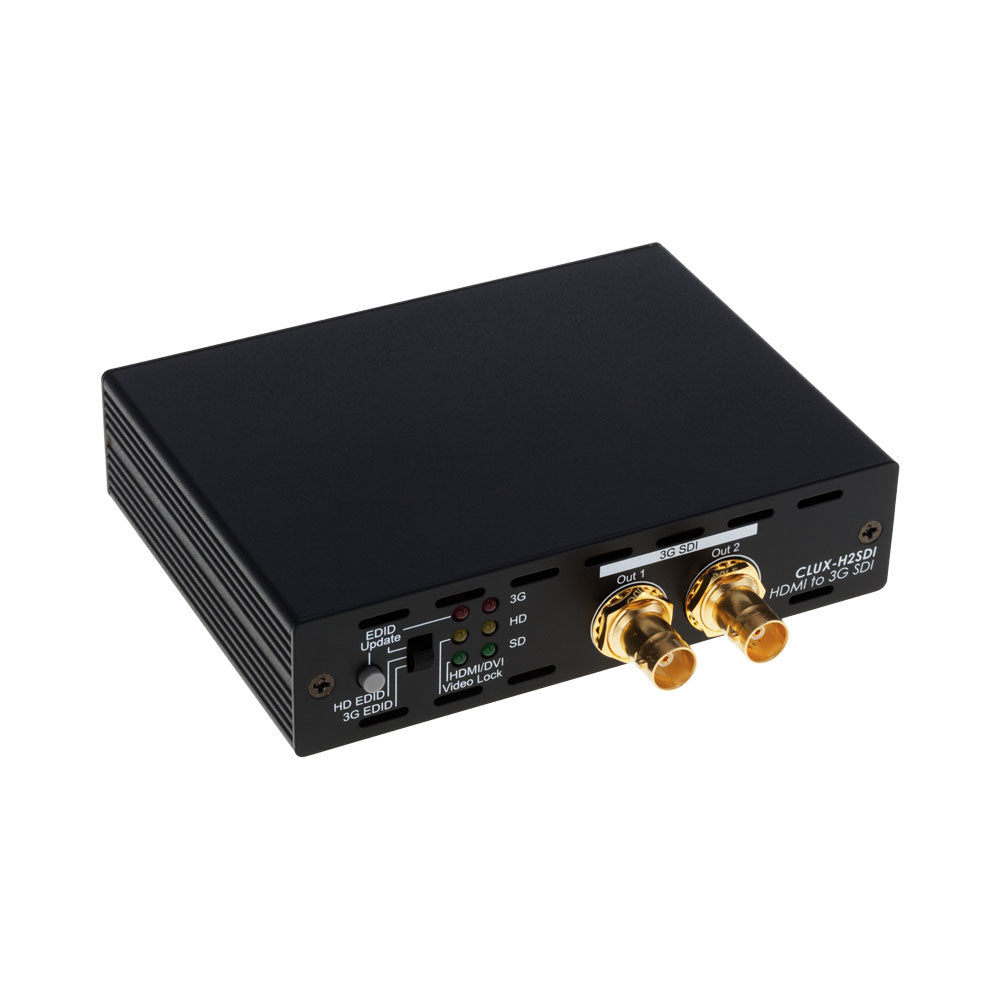

CYP CLUX-H2SDI 1080P HDMI TO 3G-SDI DUAL-OUTPUT CONVERTER

Features

• Dual SDI Outputs - Simultaneously displays one HDMI source on two SDI displays
• Full HD Support - Supports resolutions up to 1080p @60Hz
• 3G-SDI Conversion - Converts HDMI signals to SD-SDI, HD-SDI and 3G-SDI formats
• Long Distance Transmission - Supports SDI output distances up to 300m (SD-SDI) depending on signal format
• Integrated Audio Embedding - Supports up to 8-channel PCM audio over HDMI
• External Audio Input - Allows stereo analogue audio embedding for DVI sources
• Selectable EDID Modes - Includes built-in and recordable EDID functionality for improved compatibility
• Professional Broadcast Standards - Supports SMPTE 259M-C, 292M, 424M and 425M-AB

Specifications

Input

• 1× HDMI
• 1× Stereo Audio (R/L)

Output

• 2× BNC (SD/HD/3G-SDI)

Hdmi Timing Support

• 480i @59.94
• 576i
• 720p @50/59.94/60
• 1080i @50/59.94/60
• 1080p @23.98/24/25/29.97/30/50/59.94/60

Sdi Standards

• SD-SDI: SMPTE 259M-C
• HD-SDI: SMPTE 292M
• 3G-SDI: SMPTE 424M/425M-AB

Sdi Transmission Rates

• 2.970Gbps
• 2.970/1.001Gbps
• 1.485Gbps
• 1.485/1.001Gbps
• 270Mbps

Sdi Cable Distance

• Up to 100m (3G-SDI)
• Up to 200m (HD-SDI)
• Up to 300m (SD-SDI)

Audio Support

• Up to 8CH PCM 48kHz via HDMI
• 2CH Analogue Stereo for DVI Audio Embedding

Other

• Video Bandwidth: 225MHz / 6.75Gbps
• Power Supply: 5V DC 2.6A
• Power Consumption: 5.5W
• ESD Protection: ±8kV Air-Gap Discharge, ±4kV Contact Discharge
• Dimensions: 125 × 115 × 30mm
• Weight: 275g
• Chassis Material: Metal
• Colour: Black
• Operating Temperature: 0~40°C
• Storage Temperature: -20~60°C
• Relative Humidity: 20~90% RH (Non-Condensing)

Shipping Dimensions

• Length: 15 cm
• Width: 14 cm
• Height: 5 cm
• Weight: 0.50 kg
