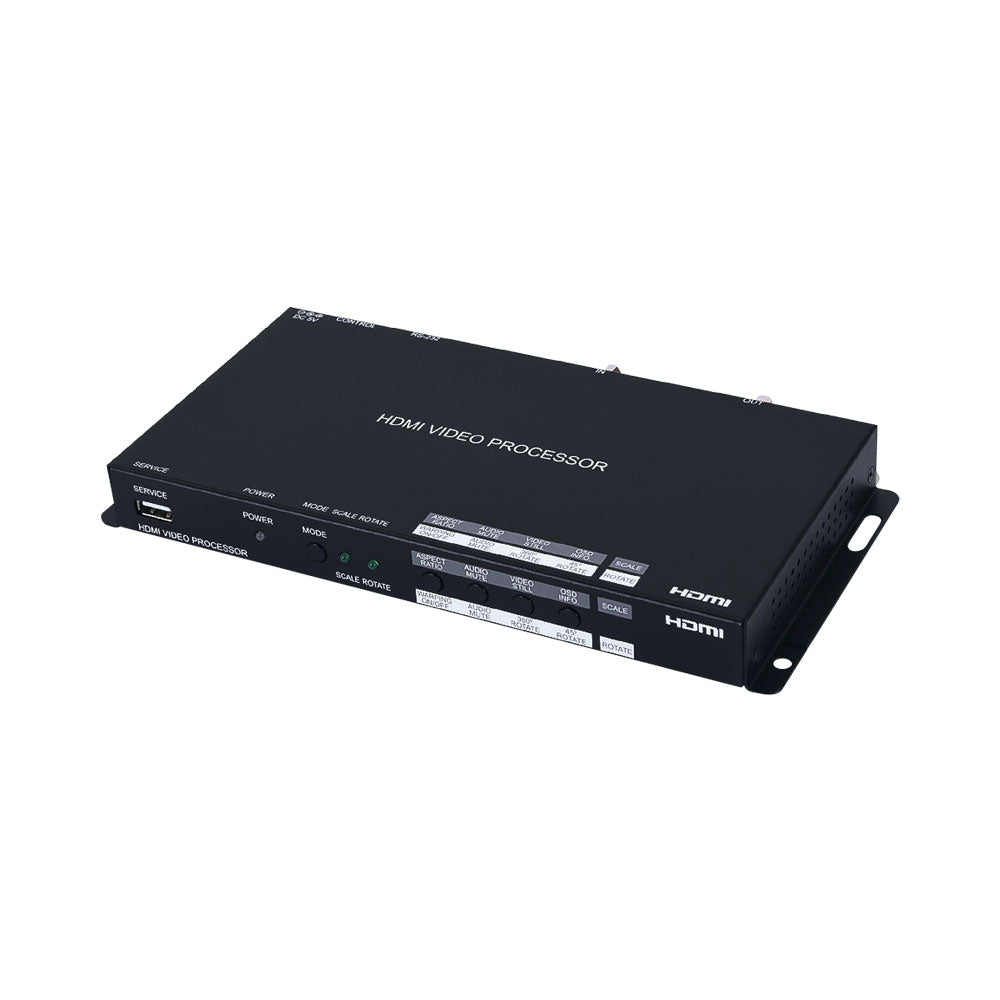

CYP CLUX-1HLR 1080P HDMI VIDEO WALL ROTATION PROCESSOR

Features

• 1080p HDMI Processing - Supports Full HD resolution for clear and detailed video output
• Video Wall Scaling - Splits a single source across multiple displays for large-format viewing
• Rotation Function - Supports 90°, 180° and 270° rotation for flexible display orientation
• Advanced Rotation Mode - Enables horizontal and vertical warping with zoom and full 360° rotation in 1° increments
• Scaler Mode Controls - Supports video mirror, flip and freeze functions
• Audio Pass-Through Support - Supports LPCM 2.0, 5.1 and 7.1, Bitstream and HD Bitstream formats
• Image Adjustment Controls - Fine-tune contrast, brightness, hue, sharpness and aspect ratio
• Custom EDID Management - Ensures optimal compatibility between source and display devices
• Scalable Video Wall Expansion - Combine multiple units via HDMI splitter or matrix for larger installations
• WYSIWYG Software Control - Graphical PC software enables easy visual layout and configuration
• Flexible Control Options - Front panel with OSD, plus Telnet, RS232 and PC software control

Specifications

• Input Port: 1× HDMI
• Output Port: 1× HDMI
• Control I/O: 1× RS232, 1× LAN
• HDMI Compliance: HDMI 1.3
• HDCP Compliance: 1.4
• Input Signal: 1920×1080 @60Hz 12-bit YUV 4:4:4
• Output Signal: 1920×1080 @60Hz 12-bit YUV 4:4:4
• Maximum Input Resolution: 1920×1200 @60Hz
• Maximum Output Resolution: 1920×1200 @60Hz
• Power Supply: 5V 2.6A DC
• Power Consumption: 5.9W
• Chassis Material: Steel
• Colour: Black
• Dimensions: 231.5 × 25 × 117mm
• Weight: 652g
