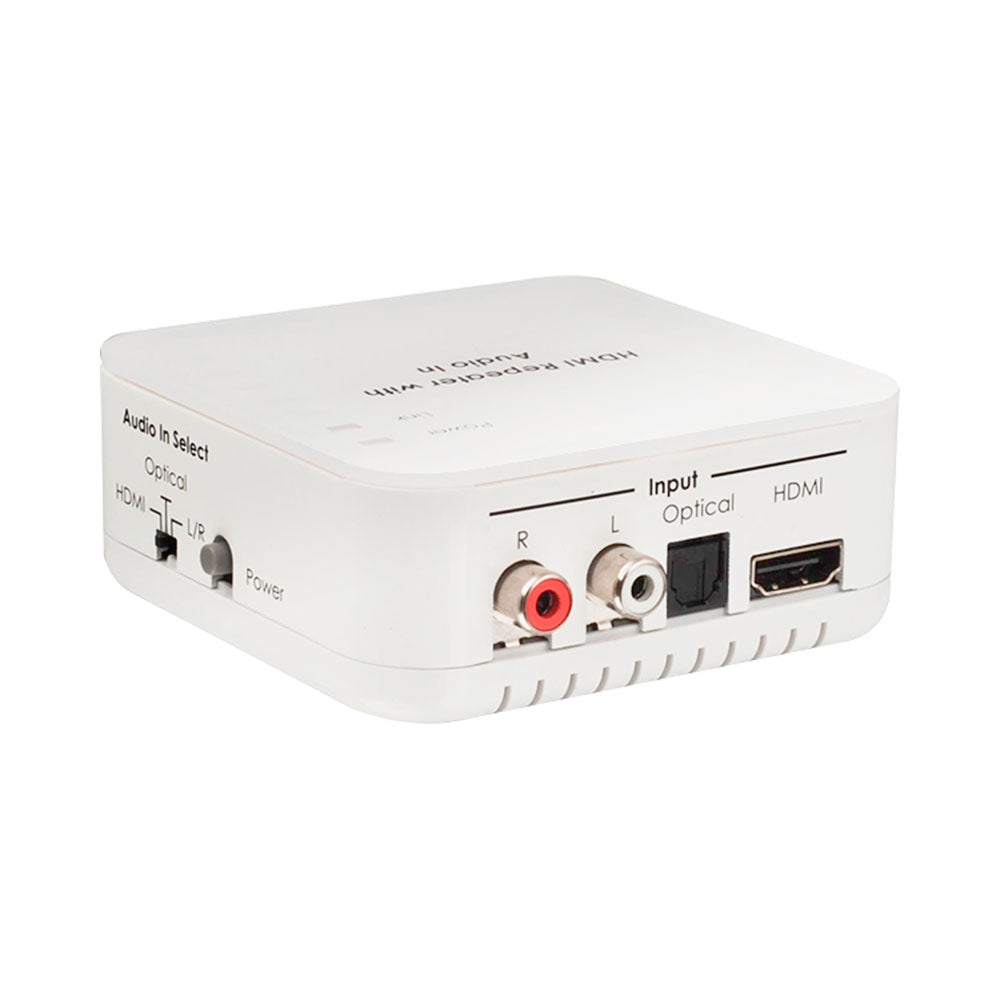

CYP CLUX-11CA HDMI AUDIO INSERTER

Features

• HDMI Audio Insertion - Embeds external audio into HDMI output signals
• Multiple Audio Inputs - Supports analogue stereo and optical digital audio
• Full HD Video Support - Supports resolutions up to 1920×1080p @60Hz (12-bit)
• High Bit Rate Audio Support - Compatible with advanced surround sound formats
• HDMI 1.4a Support - Ensures reliable HDMI and DVI compatibility
• 3D Signal Support - Compatible with 3D HDMI video formats
• Optical Audio Support - Supports LPCM, Dolby Digital and DTS Digital Audio
• Extended HDMI Transmission - Supports up to 15m cable distance at 1080p 8-bit or 10m at 12-bit

Specifications

Input Ports

• 1× HDMI (Max. 1920×1080p @60Hz)
• 1× Optical Digital Audio
• 1× L/R Analogue Audio

Output Port

• 1× HDMI
• HDMI Compliance: HDMI 1.4a (DVI 1.0)
• HDCP Compliance: HDCP 1.4
• Maximum Resolution: 1920×1080p @60Hz

Hdmi Audio Support

• LPCM 2/5.1/7.1
• Dolby 5.1
• DTS 5.1
• Dolby Digital+
• Dolby TrueHD
• DTS-HD Master Audio

Optical Audio Support

• LPCM 2
• Dolby Digital
• DTS Digital Audio 5.1

Audio Sampling Rates

• HDMI up to 192kHz
• Optical S/PDIF up to 48kHz

Other

• TMDS Clock Frequency: up to 225MHz
• HDMI Cable Distance: Up to 15m at 1080p (8-bit), up to 10m at 1080p (12-bit)
• Power Supply: 5V 1A
• Power Consumption: 2.7W
• Chassis Material: Plastic
• Chassis Colour: White
• Dimensions: 90.7 × 34 × 85.8mm
• Weight: 107g

Shipping Dimensions

• Weight: 0.20 kg
