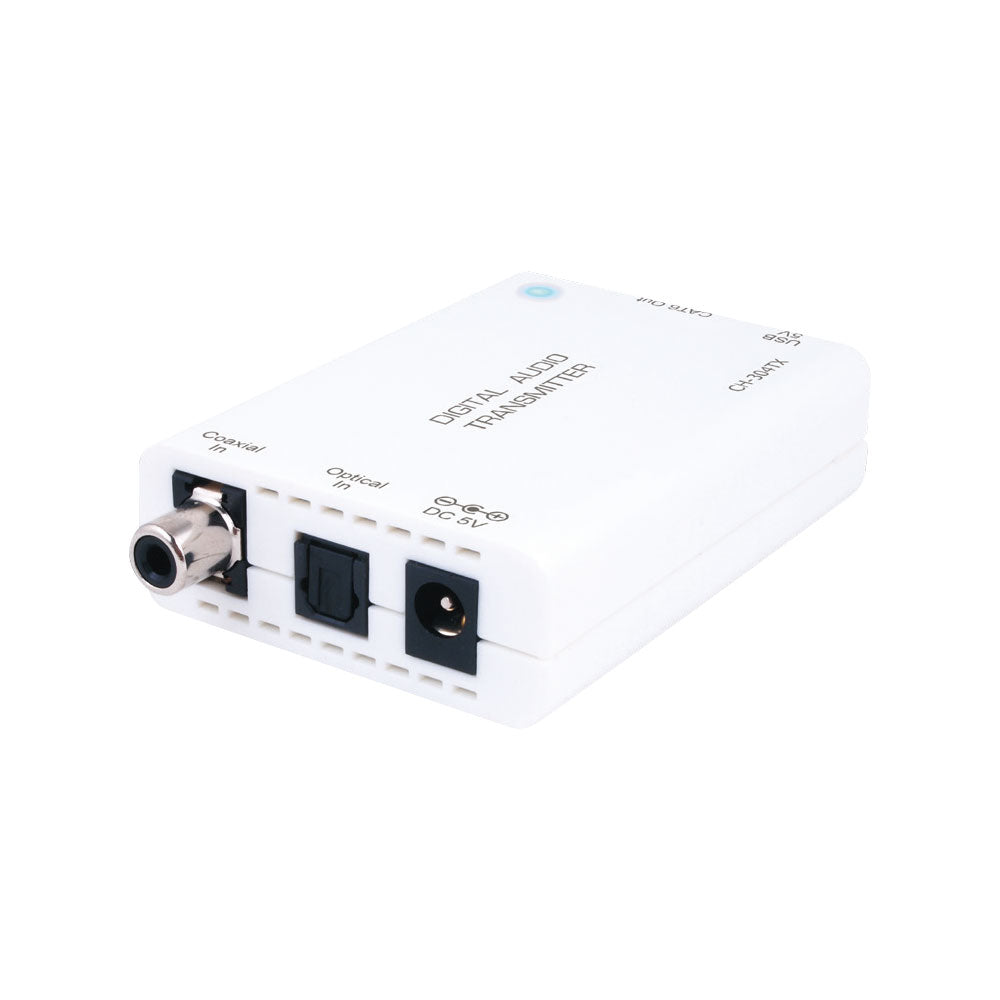

CYP CH-304TX DIGITAL AUDIO OVER CAT5E/6/7 TRANSMITTER

Features

• Long-Distance Audio Extension - Transmits digital audio up to 150m over CAT cable
• Dual Input Support - Accepts both Optical and Coaxial digital audio sources
• High-Quality Audio Formats - Supports LPCM 2CH, Dolby Digital and DTS 5.1
• Wide Sampling Rates - Supports up to 96kHz digital audio
• Flexible Power Options - Powered via USB or DC adaptor
• Single-Side Power Operation - Only one unit requires power for both transmitter and receiver to operate (use either USB or DC power per unit, not both)
• Simple Single Cable Setup - Uses one CAT5e/6/7 cable for transmission

Specifications

• Input Ports: 1x Coaxial, 1x Optical
• Output Port: 1x CAT6
• Max. Distance: 150m over CAT5e/6/7
• Sample Rate: 32 / 44.1 / 48 / 88.2 / 96kHz
• Power Supply: 5V 1A DC or USB Power
• Power Consumption: 2W
• Dimensions: 70 x 50 x 22mm
• Weight: 50g
• Chassis Material: Plastic

Shipping Dimensions

• Length: 10 cm
• Width: 8 cm
• Height: 5 cm
• Weight: 0.10 kg
