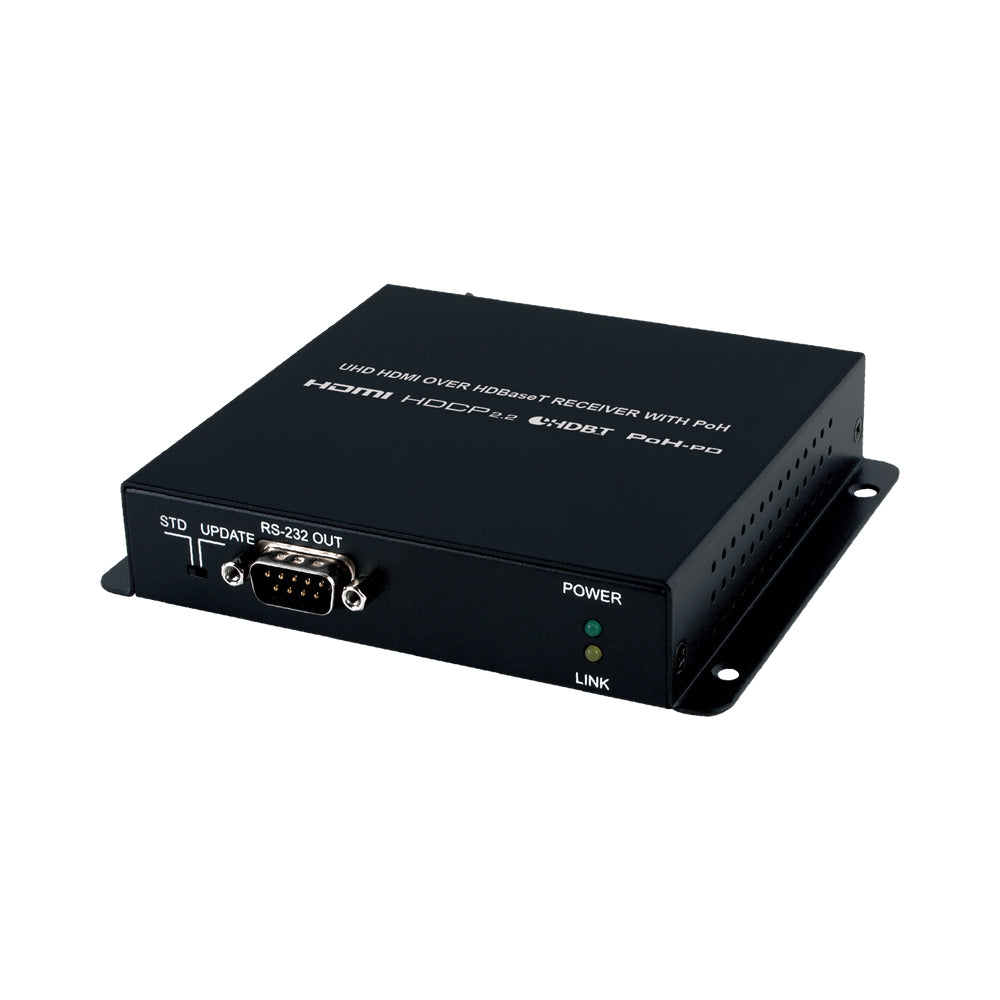

CYP CH-1527RXPL 60M 4K HDMI OVER HDBASET RECEIVER WITH 48V POH

Features

• 4K UHD HDMI Support - Supports resolutions up to 4096 × 2160 @60Hz YUV 4:2:0
• HDBaseT Transmission - Extends HDMI, IR and RS232 over a single CAT6 cable
• Long Distance Extension - Transmits signals up to 60m over CAT6 cable
• 48V PoH Support - Receiver powered directly from compatible transmitter
• HDMI 2.0 and HDCP 2.x Compatible - Ensures reliable UHD content playback
• RS232 Pass-Through - Supports advanced serial control integration up to 115200bps
• IR Control Extension - Supports IR frequencies from 30~50kHz
• CEC Bypass Support - Enables HDMI CEC signal pass-through
• Multi-Channel Audio Support - Supports LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream audio
• Compact Metal Housing - Durable professional-grade design for AV installations
• Firmware Update Support - RS232 field firmware upgrade capability

Specifications

• Model: CH-1527RXPL
• Product Type: HDMI over HDBaseT Receiver
• HDMI Compliance: HDMI 2.0 (DVI 1.0)
• HDCP Compliance: HDCP 2.x
• Maximum Resolution: 4096 × 2160 @60Hz YUV 4:2:0
• Transmission Distance: up to 60m
• Input Interface: 1× HDBaseT (RJ45), 1× IR Extender (3.5mm)
• Output Interface: 1× HDMI, 1× RS232 (DE-9), 1× IR Blaster (3.5mm)
• Supported Audio: LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream
• IR Frequency Range: 30~50kHz
• Power Input: 48V 0.83A DC
• Power Consumption: 13.5W Max.
• Chassis Material: Metal
• Colour: Black
• Dimensions: 108 × 29 × 116mm
• Weight: 366g
• Operating Temperature: 0~40°C
• Pair with CYP CMPRO-UA8H8CVPL 8×8 HDMI 4K over CAT6 Matrix Switch
