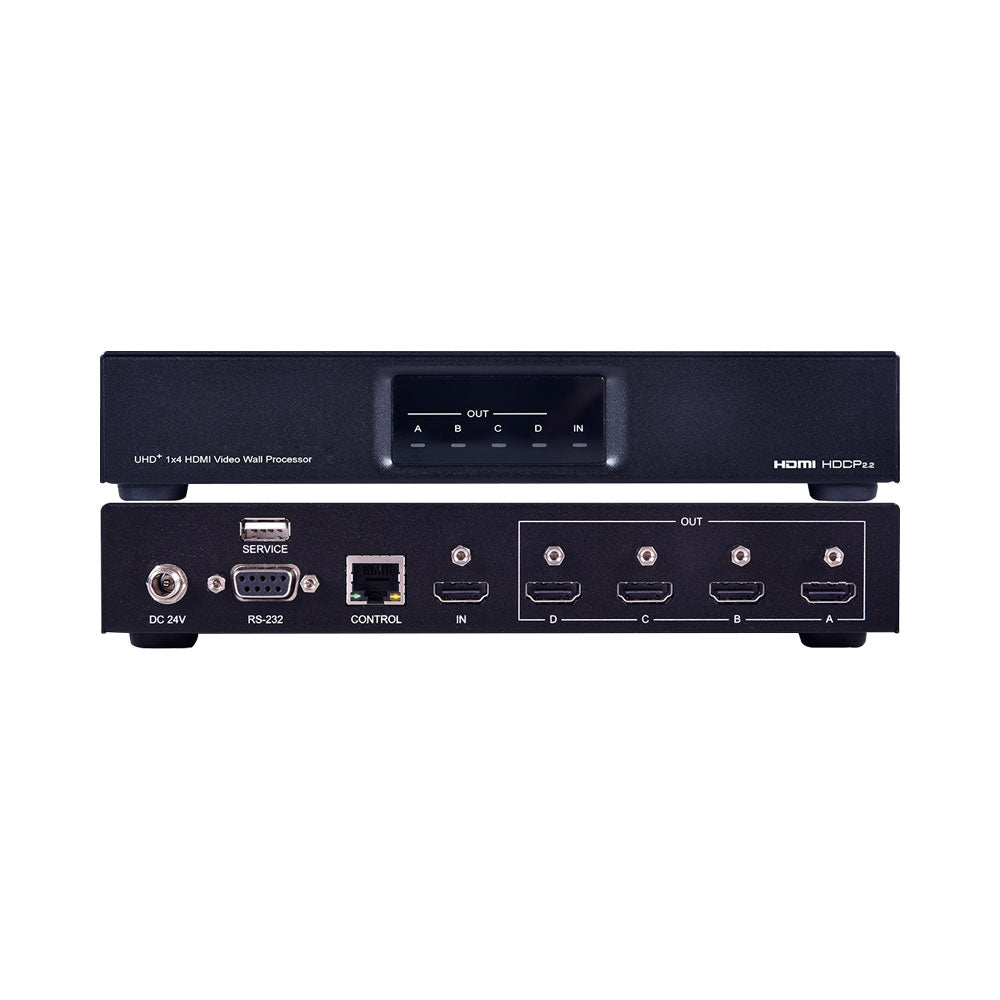

CYP CDPS-4KQ-AD 4K 1x4 HDMI VIDEO WALL PROCESSOR

Features

• 4K HDMI Input Support - Supports up to 18Gbps (600MHz) for high-bandwidth 4K sources
• 2×2 Video Wall Processing - Converts a single HDMI source into four synchronised outputs
• Fixed Full HD Outputs - 4x HDMI outputs fixed at 1080p @60Hz for consistent display performance
• Advanced 4K Compatibility - Supports up to 4096 × 2160 @60Hz (4:4:4, 8-bit) input
• HDR Handling - Supports 4K @24Hz (4:4:4) and 60Hz (YUV 4:2:0) up to 12-bit with automatic HDR to SDR conversion
• Bezel Compensation - Maintains seamless image alignment across multiple displays
• Audio Pass-Through - Supports LPCM 2.0 / 5.1 / 7.1, Bitstream and HD Bitstream formats
• Signal Event Automation - RS-232 control enables event-triggered display control
• Flexible Control Options - OSD, RS-232, Telnet and PC software control
• Dedicated PC Software - Easy configuration and full video wall customisation

Specifications

• Input Port: 1x HDMI
• Output Ports: 4x HDMI
• Control Ports: 1x RJ45 (Control), 1x RS232
• Service Port: 1x USB
• HDMI Compliance: HDMI 2.0 (DVI 1.0)
• HDCP Compliance: 2.x
• Input Signal Type: 4096 × 2160 @60Hz 8-bit YUV 4:4:4
• Output Signal Type: 1920 × 1080 @60Hz 8-bit
• Maximum Input Resolution: 4096 × 2160 @60Hz
• Maximum Output Resolution: 1920 × 1080 @60Hz
• Audio Input: HDMI 2CH / 7.1CH LPCM, Bitstream, HD Bitstream
• Audio Output: HDMI 2CH / 7.1CH LPCM, Bitstream, HD Bitstream
• Chassis Material: Steel
• Colour: Black
• Dimensions (W x H x D): 215 x 47 x 158mm
• Weight: 652g
• Power Supply: 24V 0.75A
• Power Consumption: 9W
• Firmware Update: USB Flash Drive, PC Application

Shipping Dimensions

• Weight: 0.90 kg
