The Cudy LT400 4G LTE N300 300Mbps Wi-Fi Router is a versatile networking solution, designed to provide reliable internet connectivity even in challenging environments. With 4G Cat. 4 support, it delivers download speeds of up to 150 Mbps and upload speeds of 50 Mbps, ideal for tasks like web browsing, video streaming, surveillance, and POS services. The N300 Wi-Fi ensures a strong and stable network, supported by Beamforming technology and two built-in antennas for enhanced coverage.
Setting up the LT400 is as simple as inserting a SIM card and connecting it to the included PoE adapter, allowing for network deployment up to 100 meters from the adapter. For larger areas, you can expand coverage by pairing the LT400 with additional Cudy access points, enabling seamless Wi-Fi connectivity across cafes, homes, or offices. The router also features flexible WAN/LAN port configurations, a USB port for storage and sharing, and SMA connectors for customizable antenna upgrades, providing adaptability to meet your networking needs.
Built with convenience and security in mind, the LT400 supports PPTP/L2TP VPN clients for secure connections and Wi-Fi scheduling for efficient management. Its 4G watchdog feature ensures automatic reconnection in case of network drops, maintaining uninterrupted service. With its robust design, user-friendly setup, and reliable performance, the Cudy LT400 is an excellent choice for a high-performance network.
FEATURES:
- Up to 150Mbps / 50Mbps LTE speed
- Up to 300Mbps Wi-Fi speed
- Support PPTP/L2TP VPN client for security connections
- Support 20+ DDNS for remote management
- USB port for easy storage and sharing
- 4G watchdog can automatically redial when disconnected
- Wi-Fi schedule supports configuration of available Wi-Fi time
- Flexible WAN/LAN port for dual connectivity
SPECIFICATIONS:
- Chipset: MT7628
- CPU Details: 580MHz Single-Core, MIPS24KEC
- Flash/ROM: 8 MB (64 Mbit ) NOR
- DDR/RAM: 64 MB (512 Mbit) DDR2
- Cellular Standards: 4G Cat. 4
- Cellular Antennas: 2× Fixed
- Detachable Cellular Antennas Connector: SMA Female
- SIM Options: 1× Nano SIM Slot
- Suitable Region: Europe, Middle East, Africa
- Max DL Speed: 150Mbps (LTE-FDD), 130Mbps (LTE-TDD)
- Max UL Speed: 50Mbps (LTE-FDD), 30Mbps (LTE-TDD)
- Advanced: DL 2×2 MIMO
- Cellular Bands:
- LTE-FDD: B1/3/5/7/8/20/28
- LTE-TDD: B38/40/41
- WCDMA: B1/5/8
- 2.4 GHz Wi-Fi Speed: 300Mbps
- 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
- Wi-Fi Antennas: 2× Internal
- Beamforming: True
- Range Performance:
- Max: 130 m (427 ft)
- Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
- Wall Performance:
- One wooden walls with thickness < 10 cm (4'')
- One concrete wall with thickness < 10 cm (4'')
- Physical Buttons: Reset Button

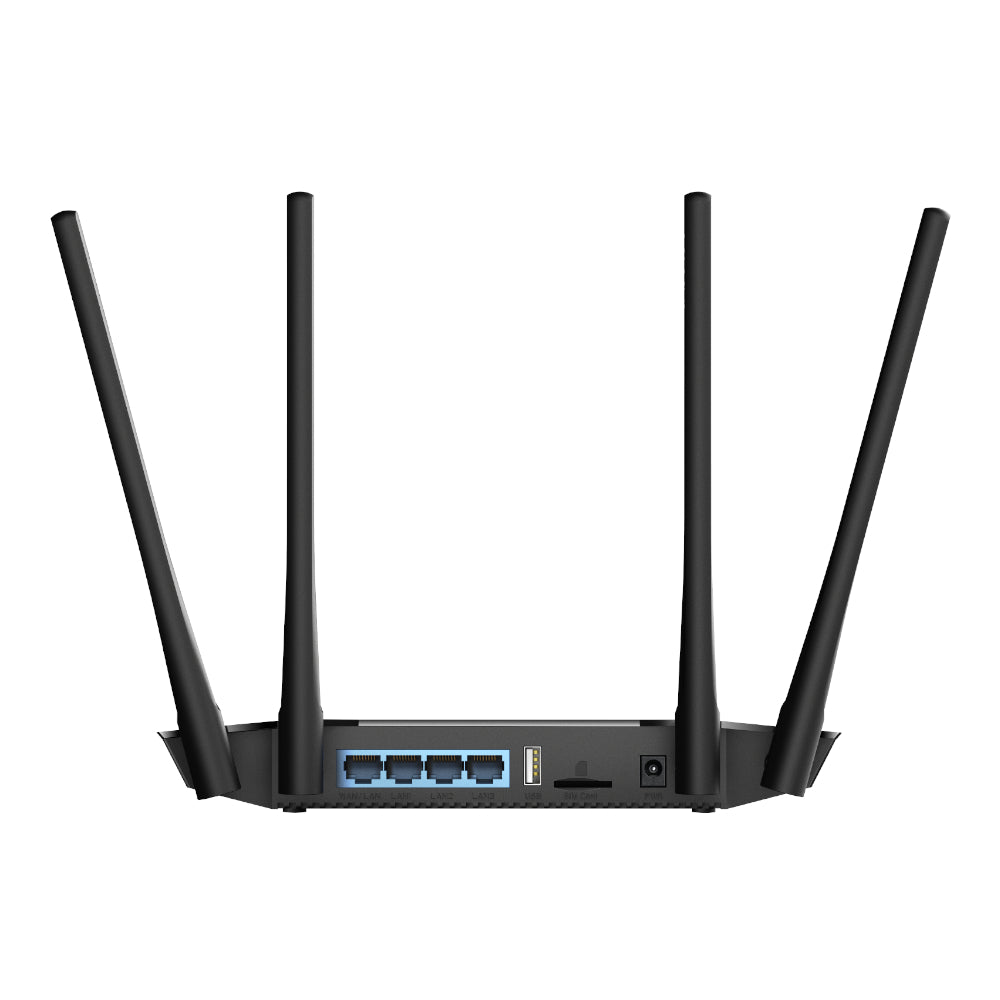

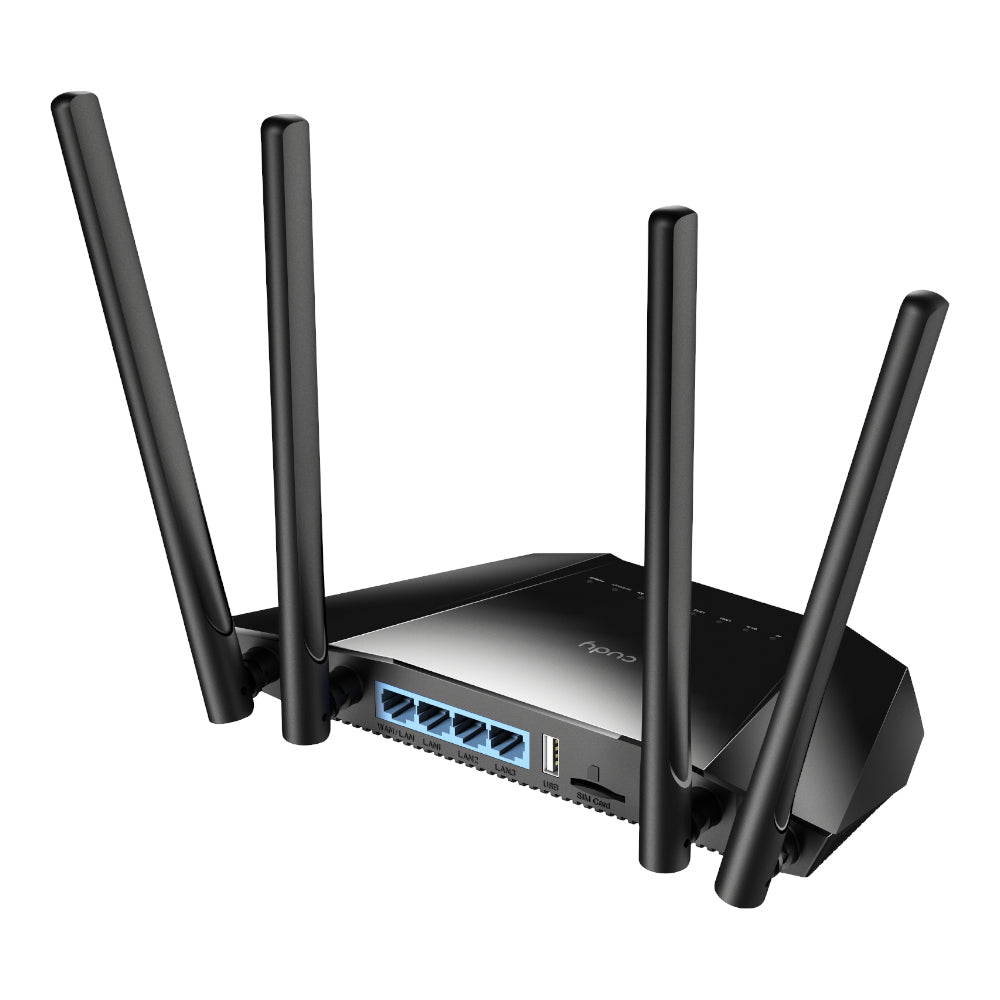

- 10/100Mbps RJ45 Ports: 4
- Ethernet Notes: One port supports WAN/LAN configuration, and the rest are LAN ports
- USB Ports: 1× USB 2.0
- LED: System
- Power Input: DC Jack
- Power Methods: DC
- DC: 12V 1A
- Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC | Output: 12V 1A DC
- ESD Contact Protection: 4kV
- ESD Air Protection: 8kV
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
- Product Dimensions: 22.9 x 12.3 x 3.2 cm

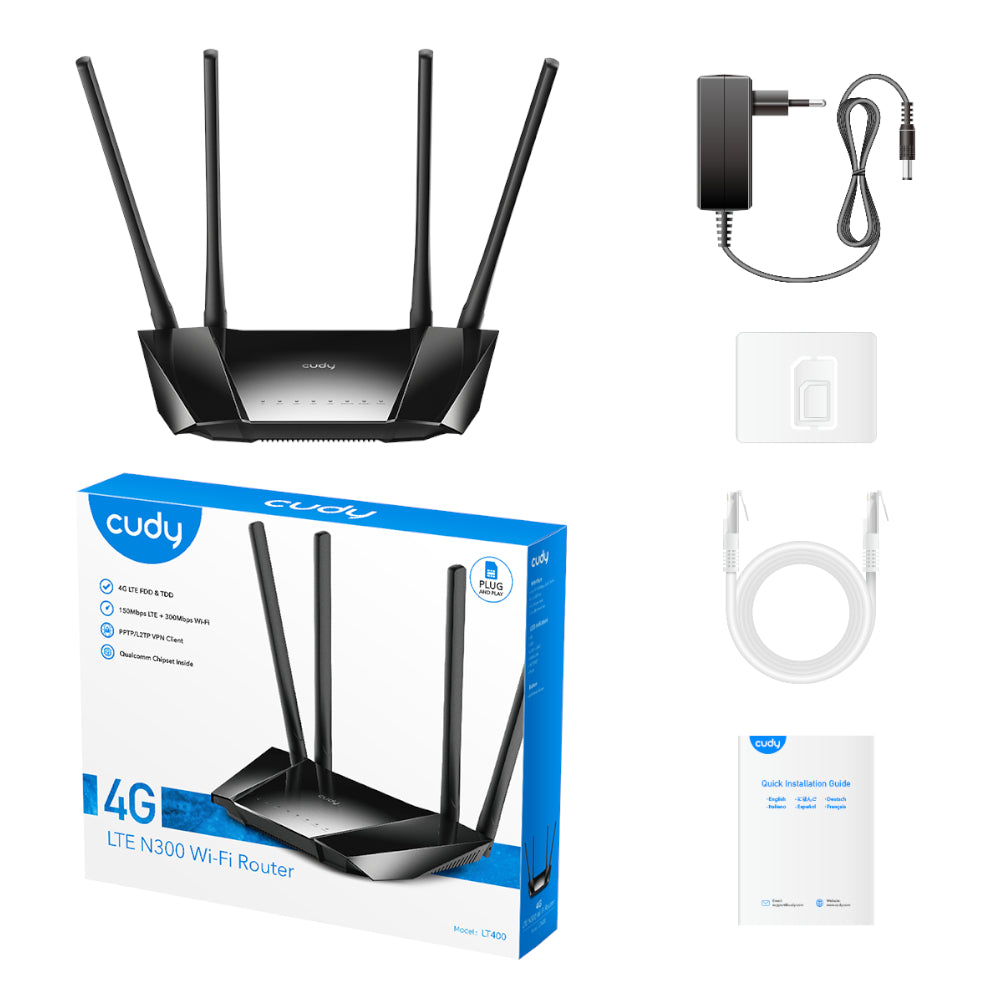

WHAT'S IN THE BOX:
- Cudy LT400 4G LTE N300 300Mbps Wi-Fi Router - Black x1
- Power Adapter x1
- RJ45 Ethernet Cable x1
- Quick Installation Guide x1
- Length: 33.5 cm
- Width: 6.5 cm
- Height: 28.5 cm
- Weight: 0.773 kg
