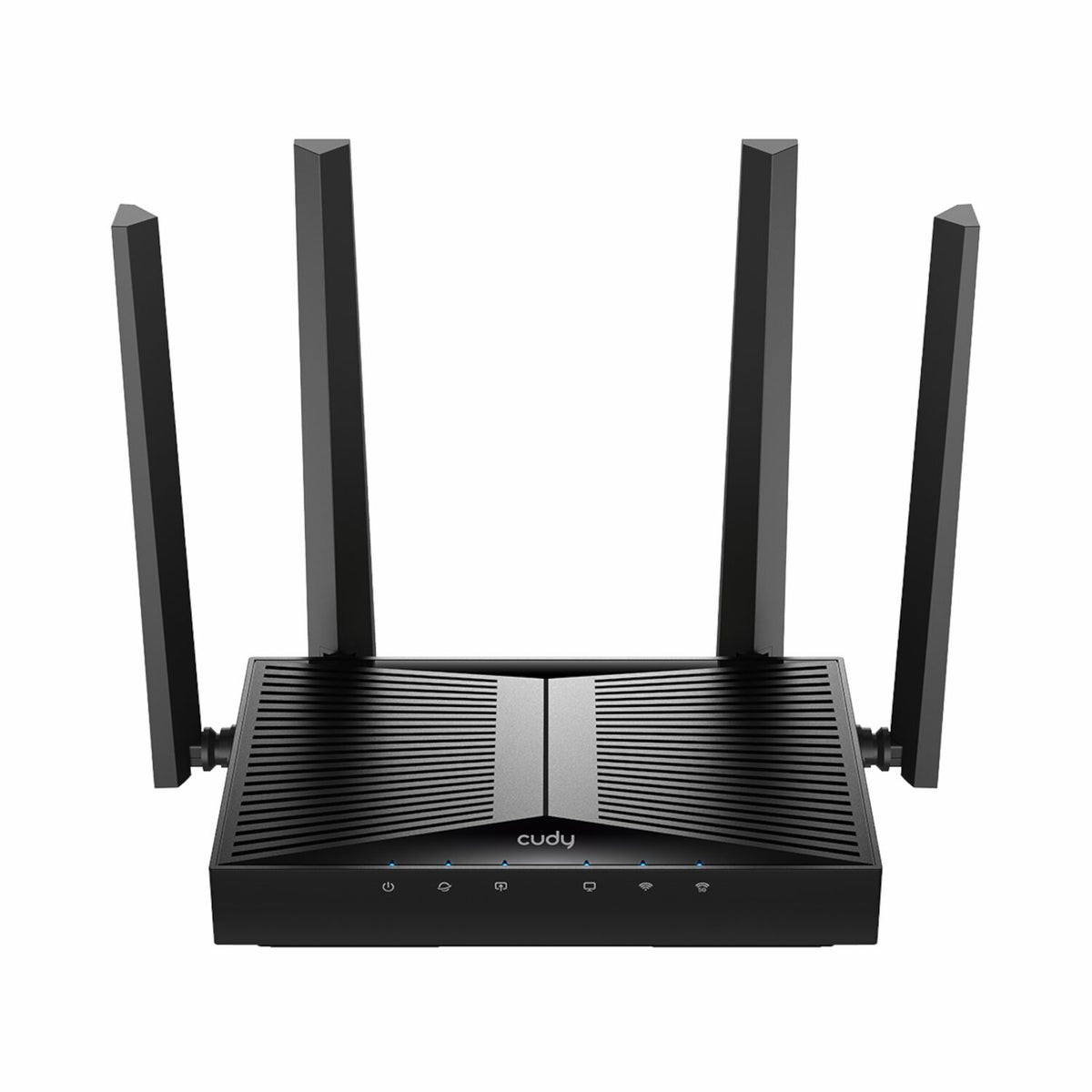

The Cudy BE3600 Gigabit Wi-Fi 7 Router marks a bold leap into the future of wireless networking. Engineered for modern digital demands, this high-performance router delivers blazing-fast speeds, unparalleled device capacity, and next-gen efficiency—all within a sleek, dual-purpose form factor suitable for both desktop and wall-mounted installations.
Harnessing the power of Wi-Fi 7 (802.11be), the Cudy BE3600 Gigabit Wi-Fi 7 Router pushes throughput up to 3570 Mbps, powered by advanced features like Multi-Link Operation (MLO), 160 MHz channel width, and 4K-QAM modulation. Whether streaming in 4K, dominating online multiplayer games, or managing a fully connected smart home, the Cudy BE3600 Gigabit Wi-Fi 7 Router ensures low latency, consistent bandwidth, and rock-solid connectivity.
At its core is a robust 2.0 GHz quad-core Broadcom ARM Cortex-A7 CPU, paired with 512 MB RAM and 128 MB flash memory, providing the muscle needed for simultaneous high-load tasks. With support for up to 512 devices, it's built for the bandwidth-hungry home or office.
The Cudy BE3600 Gigabit Wi-Fi 7 Router also goes beyond performance. It’s a comprehensive network management hub with QoS, guest networks, VPN server/client options, and powerful parental controls. Advanced diagnostics, secure remote access, and compatibility with leading DNS providers give you full control from anywhere.
In short, this is not just another wireless router. The Cudy BE3600 Gigabit Wi-Fi 7 Router is your home’s digital command centre—future-ready, gamer-approved, and streaming-optimised.
FEATURES:
- Wi-Fi 7 speeds up to 3570 Mbps with 160 MHz channels
- Multi-Link Operation (MLO) for ultra-low latency and seamless handoffs
- 2.0 GHz quad-core processor ensures fast, stable performance
- Connect up to 512 devices across dual bands
- MU-MIMO and OFDMA for efficient multi-user throughput
- Active beamforming with high-gain fixed antennas for wider coverage
- Full suite of VPN protocols, including WireGuard and OpenVPN
- WPA3 security and guest network options enhance data protection
- Gigabit Ethernet ports (1 WAN + 4 LAN) for wired flexibility
- Desktop and wall-mountable design with intuitive app and web UI
SPECIFICATIONS:
Performance
- Wi-Fi Standard: IEEE 802.11be (Wi-Fi 7)
- Total Bandwidth: Up to 3570 Mbps
- 5 GHz: 2882 Mbps
- 2.4 GHz: 688 Mbps
- Coverage: Up to 130 m²
- Maximum Range: 220 m
- Max Devices: 512 (Recommended: up to 200)
Hardware
- CPU: 2.0 GHz Quad-Core Broadcom ARM Cortex-A7
- RAM: 512 MB DDR3L
- Flash: 128 MB NAND
- Antennas: 4× Fixed High-Gain Antennas
- 5 GHz: Max 5.5 dBi
- 2.4 GHz: Max 5.4 dBi
Connectivity & Ports

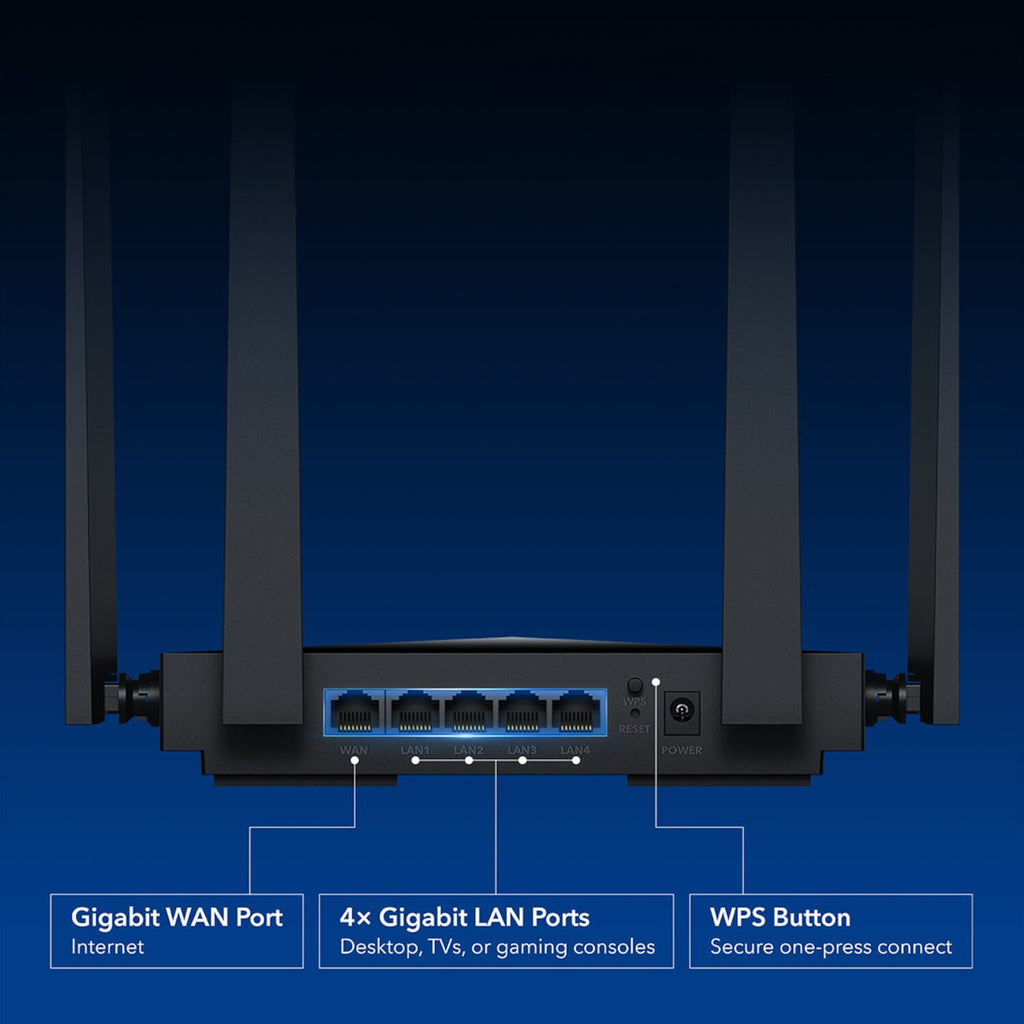

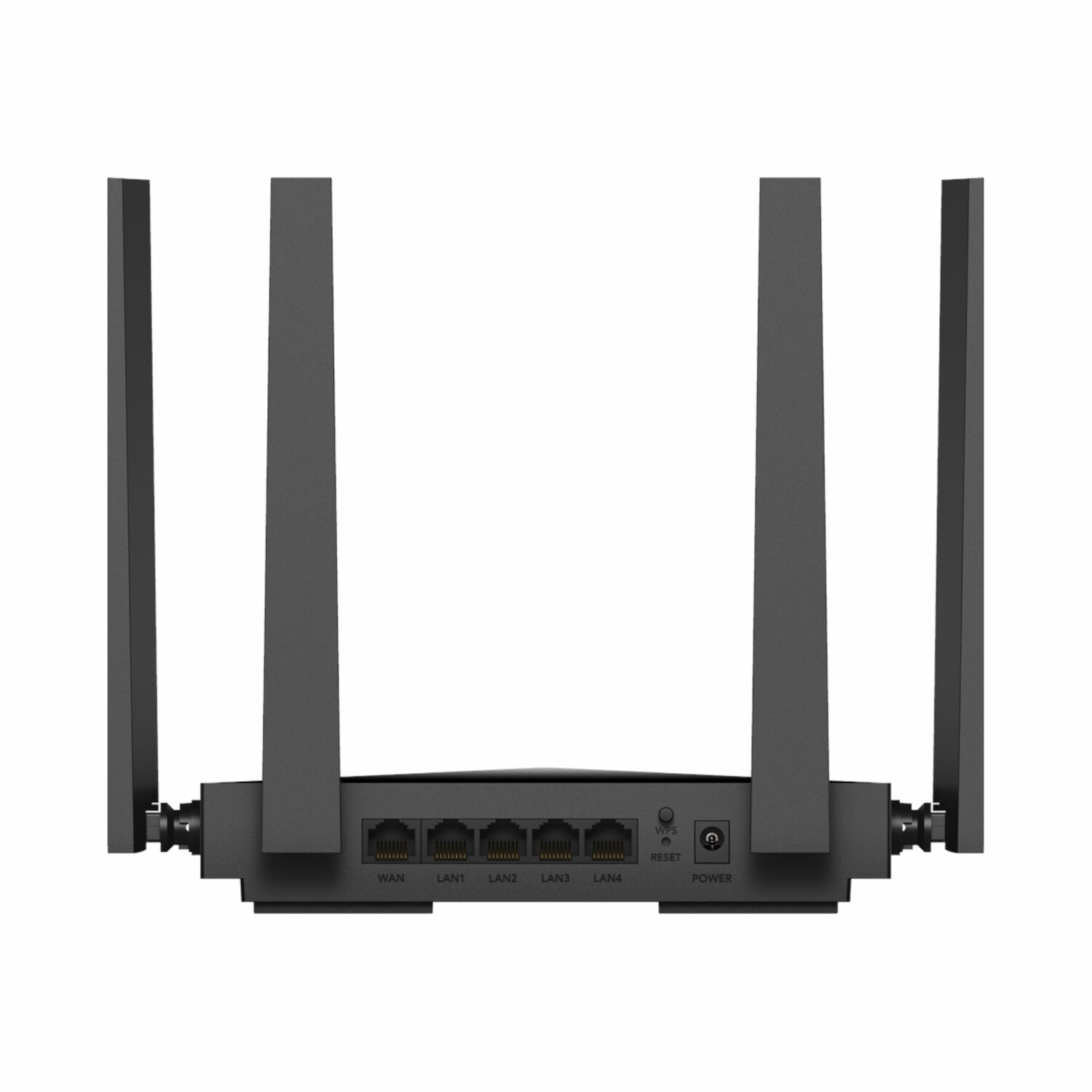

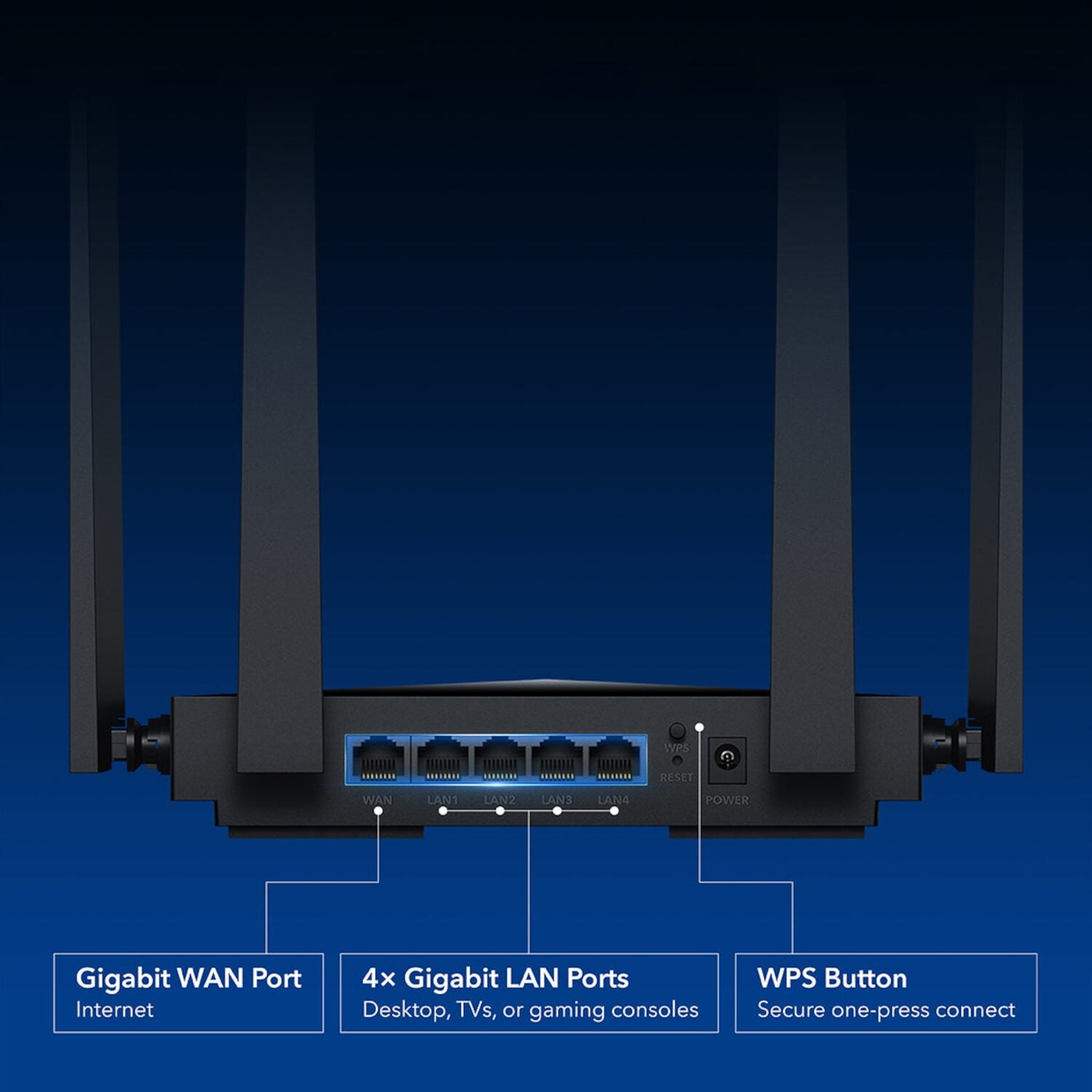

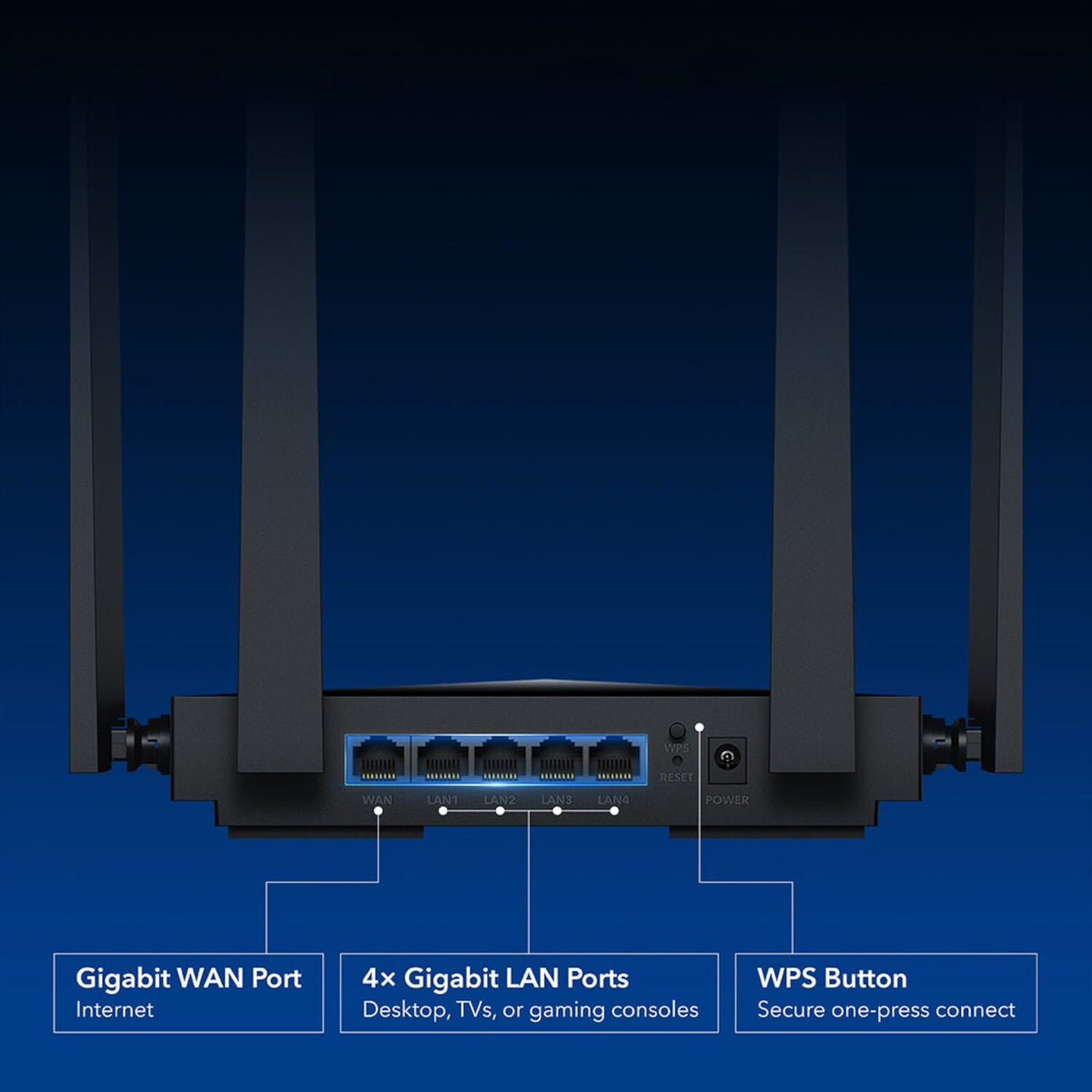

- RJ45 Gigabit Ports: 5 (1 WAN + 4 LAN)
- Power Supply: 12V/1A DC
- Max Power: 9W
- Buttons: WPS, Reset
- LED Indicators: Power, Internet, WAN, LAN, 2.4 GHz, 5 GHz
Wireless & Network Features
- Wi-Fi Efficiency: MU-MIMO, OFDMA, BSS Colour, Preamble Puncturing
- Security: WPA/WPA2/WPA3
- VPN Support: WireGuard, OpenVPN, IPsec, PPTP, L2TP, Zerotier
- Guest Network: Separate 2.4 GHz & 5 GHz
- Operation Modes: Router, Access Point (future: Extender, WISP, Client)
- QoS: Per-user rate limiting
- IP Versions: IPv4/IPv6 Support
- VLAN, IPTV, IGMP, Port Forwarding, DMZ
- Application Layer Gateway: IPSec, FTP, SIP, etc.
Management
- Local Control Method: Cudy App & Web Interface (Local & Remote)
- Firmware Updates: OTA, Web UI
- Diagnostics: Ping, Traceroute, NSLookup
- Parental Controls: Domain/IP Filtering, Time Scheduling
- DNS Options: DNS over TLS, Rebind Protection
- Supported Providers: Cloudflare, Google, Quad9
Physical & Environmental
- Dimensions: 18.33 × 10.9 × 3.8 cm
- Antenna Length: 17.5 cm
- Weight: 333.5 g
- Install: Desktop / Wall-mount
- Operating Temp: 0 ℃ to 40 ℃
- Storage Temp: -40 ℃ to 70 ℃
- Humidity: 10%–90% operating, 5%–95% storage
- Certifications: FCC, CE

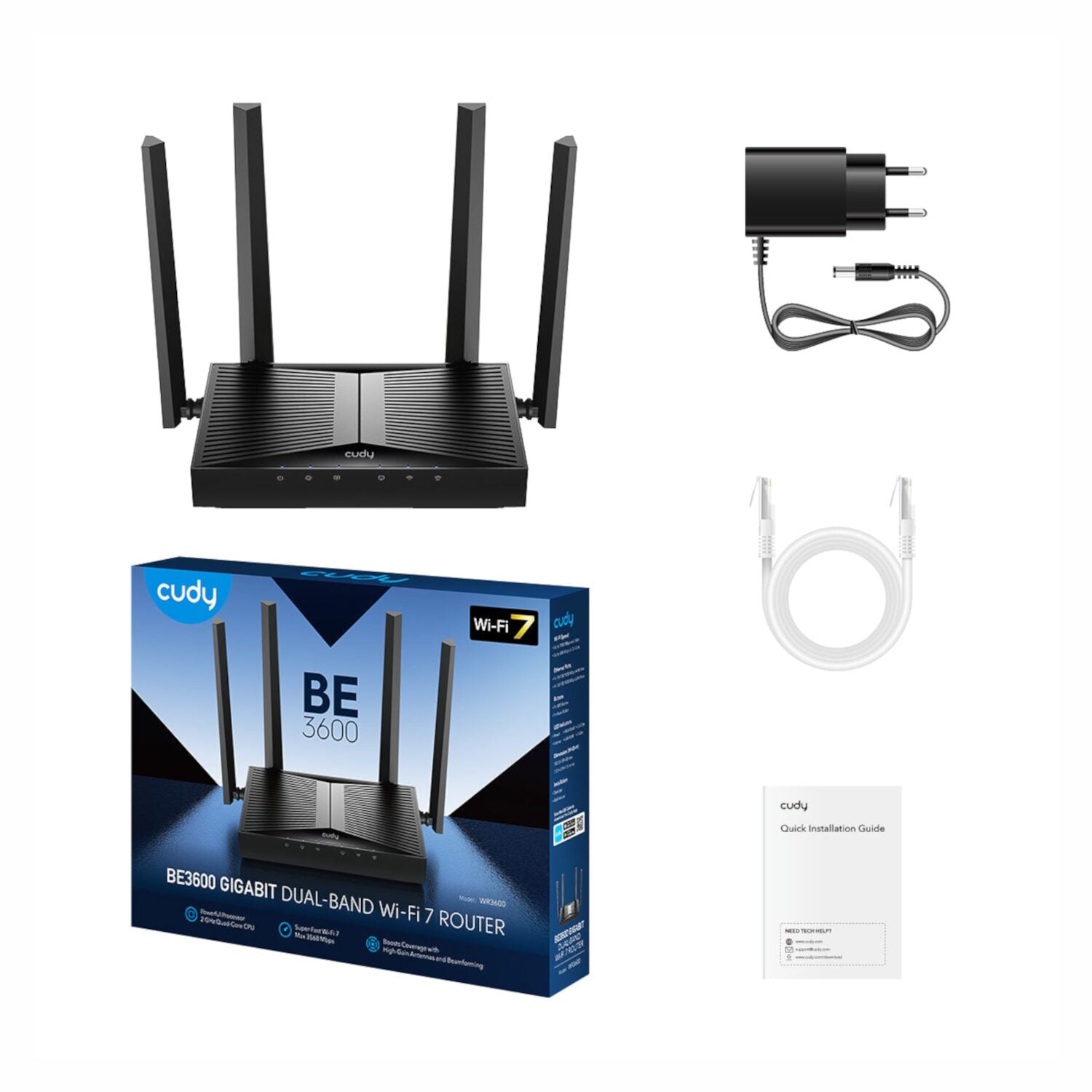

WHAT'S IN THE BOX:
- Cudy BE3600 Gigabit Wi-Fi 7 Router (WR3600) x1
- Power Adapter (12V/1A DC) x1
- RJ45 Ethernet Cable x1
- Quick Installation Guide x1
- Length: 52.8 cm
- Width: 31.7 cm
- Height: 34.7 cm
- Weight: 0.333 kg
