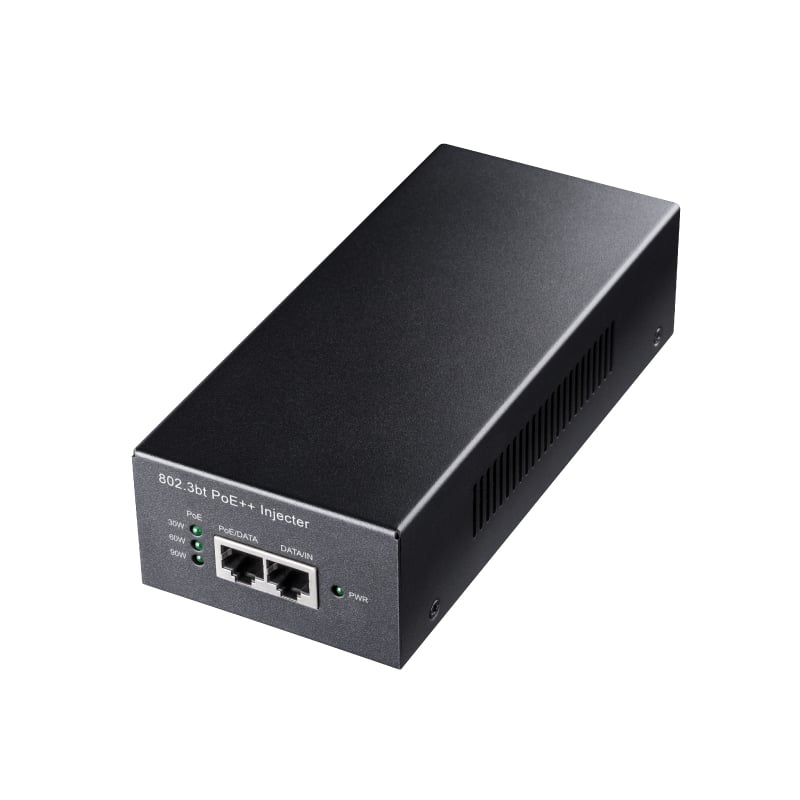

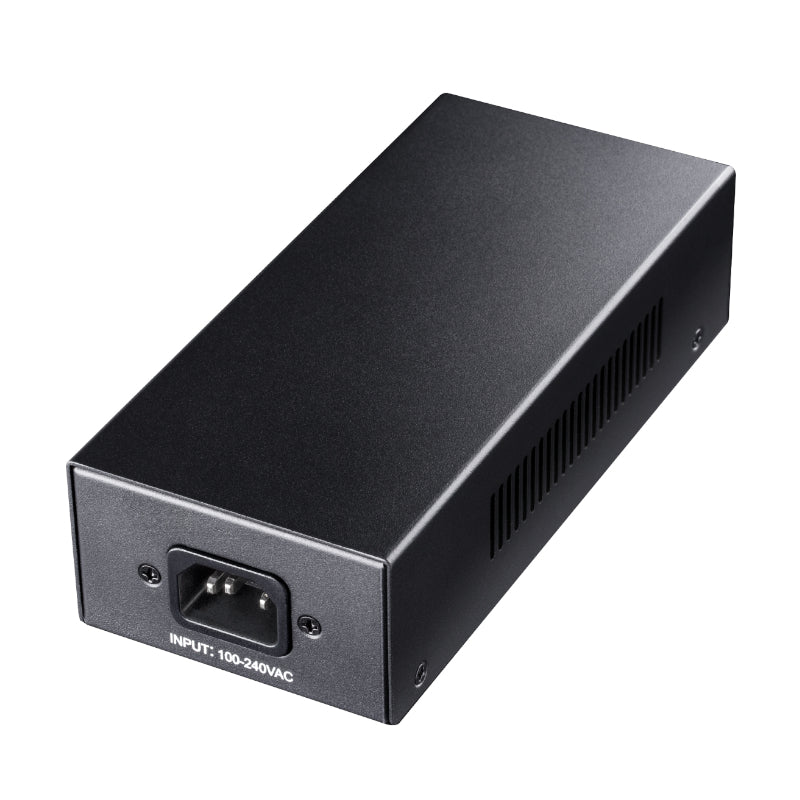

The Cudy POE400 90W Gigabit PoE/PoE+/PoE++ Injector is a great way to provide power over ethernet to all your compatible network and IP devices. It works well with various devices including IP cameras for home, office and small businesses, VOIP phones for business conferences, and WiFi Access Points for office and business. The POE400 is very versatile and can be easily mounted on the wall.
FEATURES:
- Full IEEE 802.3af IEEE 802.3at, IEEE802.3bt Compliant
- Up to 90W of Power on 4-pairs
- Auto-detect of POE IEEE 802.3af IEEE 802.3at, IEEE802.3bt equipment
- Supports 10/100/1000Base-T applications
- LED indicators power input indication
- Distance up to 100 meters
- Internal AC/DC converter – no need for external power modules
- Easy plug-and-play installation
- Surge protection
SPECIFICATIONS:
- No. of channels: 1
- Pass-Through Data Rates: 10/100/1000Mbps
- Power over Ethernet Output:
- Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-),
- Output Power Voltage: 56Vdc
- User Port Power: 90W
- Input Power Requirements:

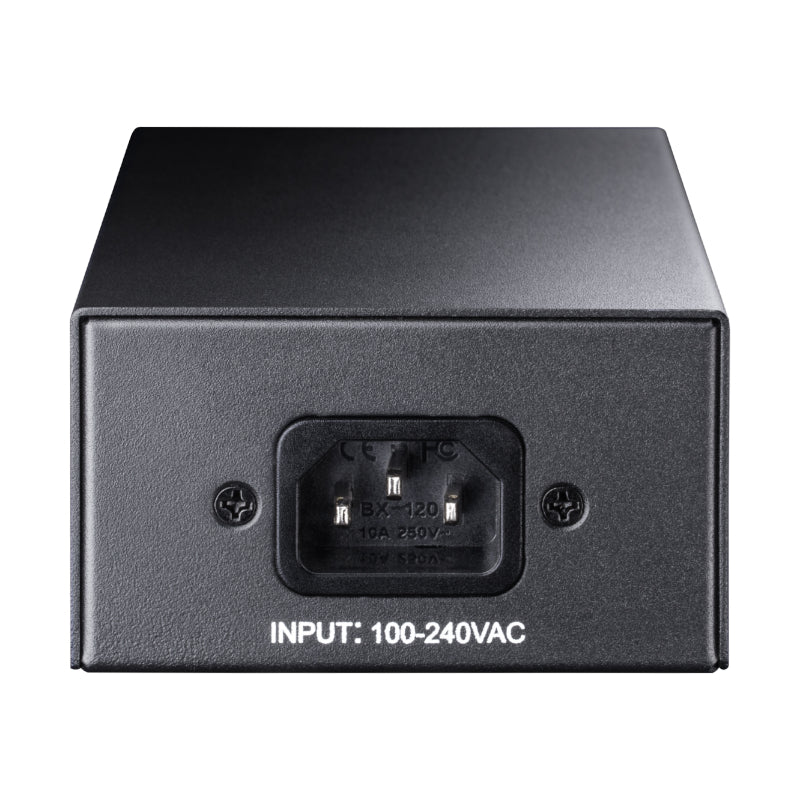

- AC Input Voltage: 100 to 240 VAC
- AC Input Current: 1A 100-240 VAC
- AC Frequency: 50 to 60 Hz

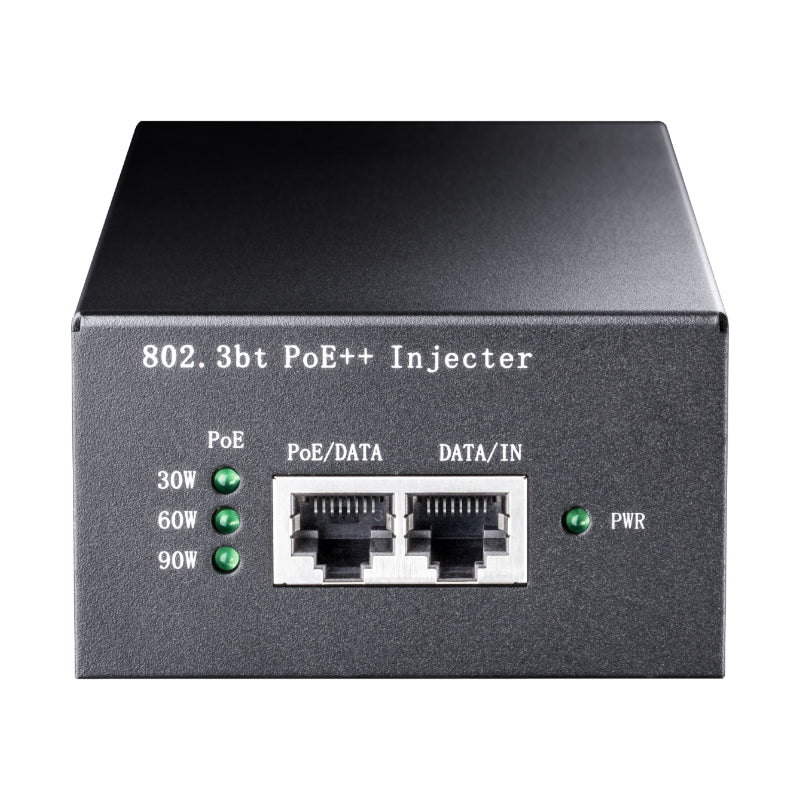

- Indicators:
- System Indicator: AC Power
- User Indicator: Channel Power
- Connectors: Shielded RJ-45, EIA 568A and 568B
- Protection:
- Over-current protection
- Over-load protection
- Over-voltage protection
- Anti-interference protection
- Regulatory Compliance:
- IEEE 802.3af (15.4W)
- IEEE 802.3at (30W)
- IEEE802.3bt (90W)
- Environmental Conditions
- Operating Ambient Temperature:0 to 45℃
- Operating Humidity: Maximum 80%, Non-condensing
- Storage Temperature:-20 to 70℃
- Storage Humidity: Maximum 80%, Non-condensing
- Product Dimensions: 17.8 x 8 x 4.6 cm

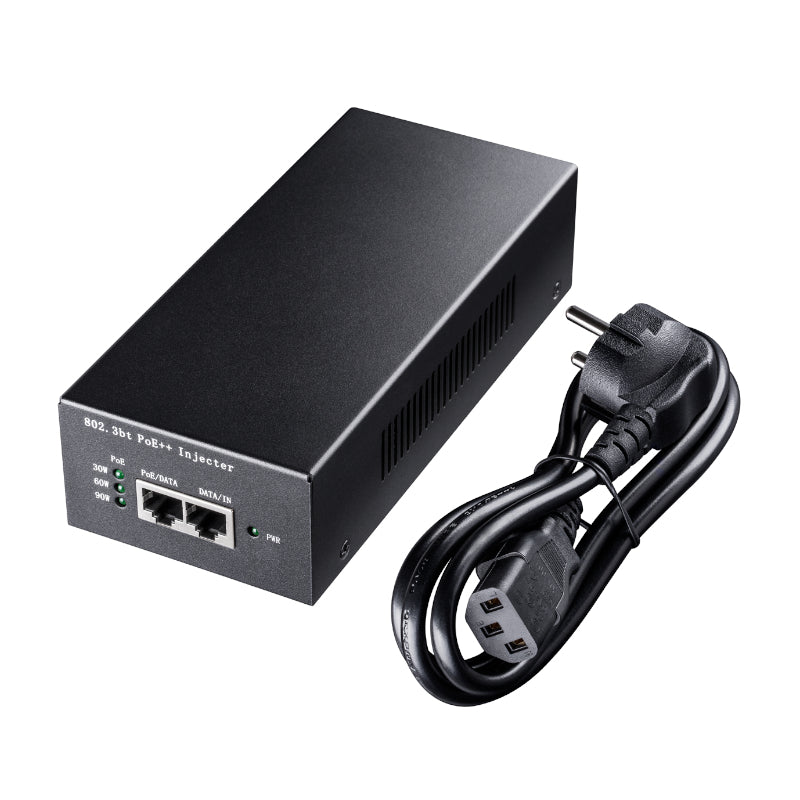

WHAT'S IN THE BOX:
- Cudy POE400 90W Gigabit PoE/PoE+/PoE++ Injector - Black x1
- Length: 19.0 cm
- Width: 6.0 cm
- Height: 14.0 cm
- Weight: 0.898 kg
