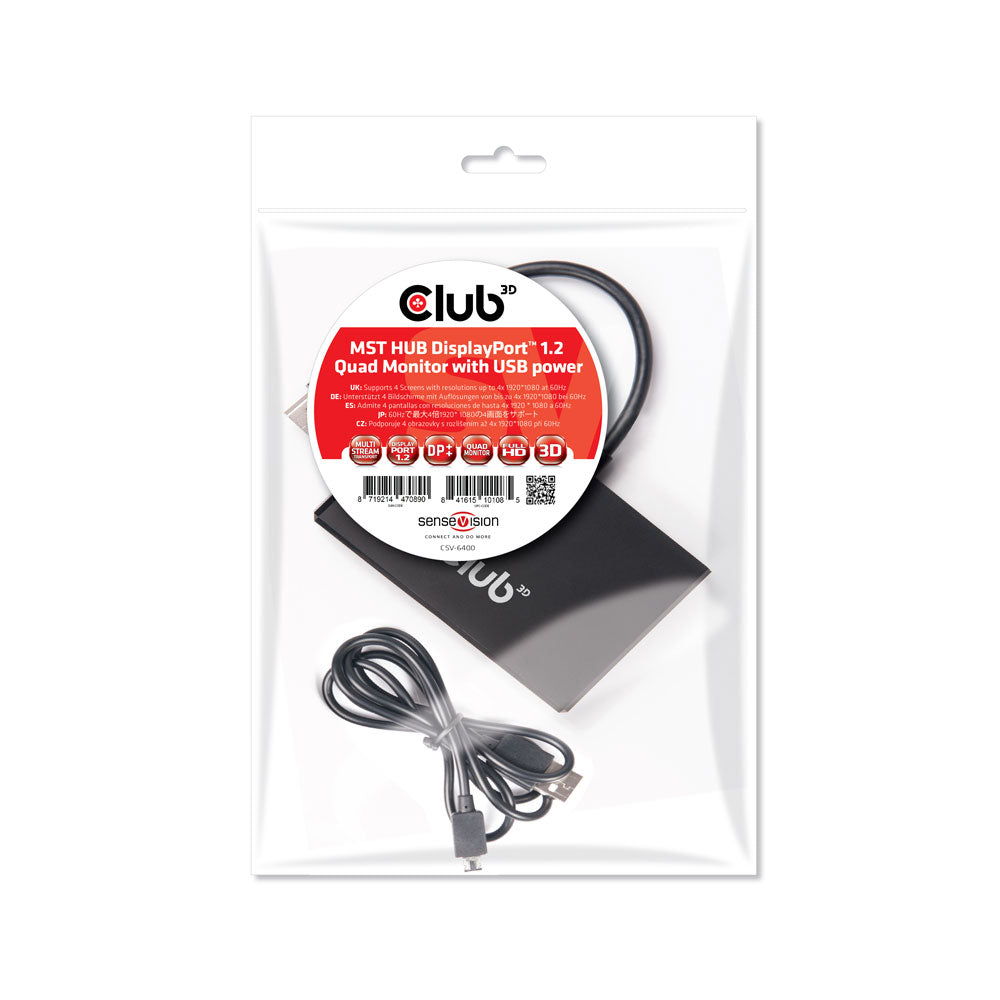

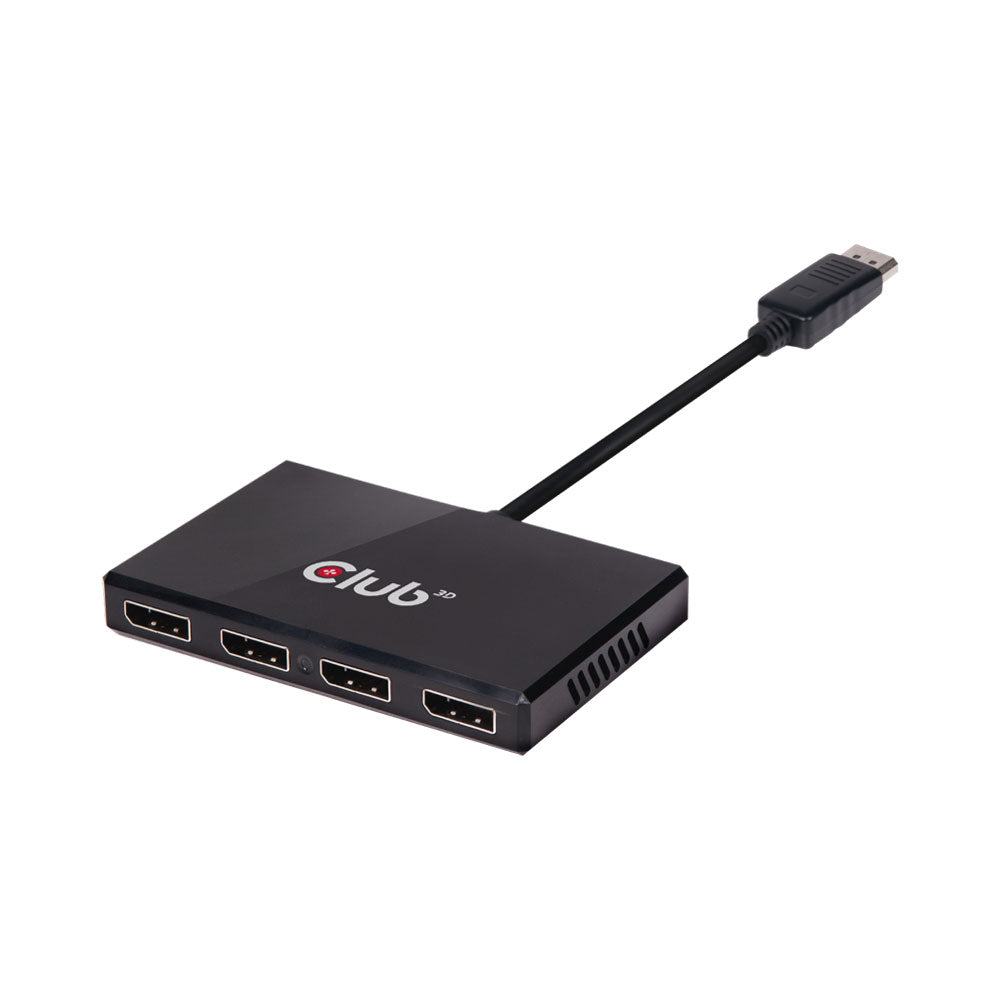

Club3D Multi Stream Transport (MST) Hub DisplayPort to Quad DisplayPort 1.2 Monitor with USB Power (CSV-6400)
The Club3D SenseVision CSV-6400 MST Hubs utilize Multi Stream Transport, a unique DisplayPort 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming. This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected screens.The Club3D MST Hubs do not increase the bandwidth of DisplayPort 1.2 outputs, but it enbales the optimal use of it.
Features
- Compliant with: DisplayPort v1.2a, DisplayPort v1.1a, VESA DDM Standard, HDCP V2.0,Display Id,and EDID V1.4
- Supports main link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) from source
- Outputs support DisplayPort Dual Mode (DP++)
- Input pixel data depth 6/8/10/12 bits and supports output pixel format RGB444
- Supports Advanced Wide EyeTM SerDes technology enables high Jitter performance
- Supported output resolutions
- for Dual Monitor setup: up to 2x 2560X1600p @ 60Hz
- for Tripple Monitor setup: up to 3x 1920x1080p @ 60Hz
- for Quad Monitor setup: up to 4x 1920x1080 @ 60Hz
- Supports AMD Eyefinity
- Compatible with Microsoft Surface Pro and Intel NUC platforms
- Works with AMD, Nvidia and Intel Graphics solutions
