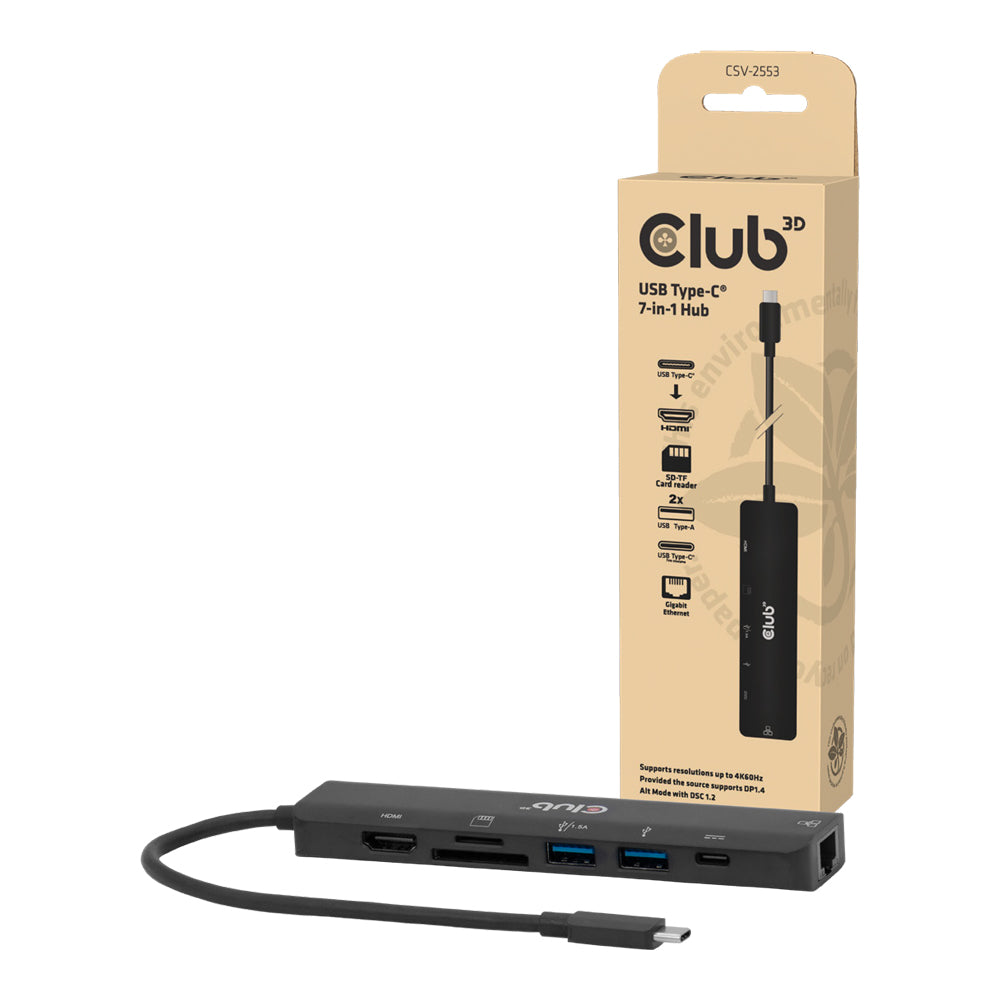

Club3D CSV-2553 USB Type-C 7-in-1 Port Replicator with 4K @60Hz HDMI and Gigabit Ethernet
Expand One USB Type-C Port Into Essential Everyday Connectivity.
The Club3D CSV-2553 is a compact 7-in-1 USB Type-C Port Replicator designed to expand a compatible USB Type-C or Thunderbolt host with display, network, storage and peripheral connectivity. It provides HDMI output up to 4K @60Hz through DisplayPort 1.4 Alternate Mode, two USB Type-A ports with 5Gbps data transfer, Gigabit Ethernet, simultaneous SD and MicroSD card access and USB Type-C Power Delivery pass-through up to 100W. Its slim 71g design makes it ideal for mobile professionals, hybrid workers and laptop users who need a single-cable connection for displays, accessories, wired networking and charging.
Features
- 7-in-1 Connectivity - Expands one USB Type-C port into HDMI, USB, Ethernet, card reader and charging connections
- 4K @60Hz HDMI Output - Supports resolutions up to 3840 × 2160 @60Hz with a compatible DP1.4 host
- DisplayPort 1.4 Alternate Mode - Provides high-resolution video output through the host USB Type-C connection
- HDR Support - Supports 8-Bit, 10-Bit and 12-Bit colour depth output with compatible equipment
- Dual USB Type-A Ports - Provides up to 5Gbps data transfer for compatible peripherals
- Gigabit Ethernet - Adds reliable 10Mbps, 100Mbps and 1000Mbps wired networking
- Dual Card Reader - Supports simultaneous SD and MicroSD card access at up to 104MBps
- 100W Power Delivery - Supports USB Type-C PD3.0 input for compatible host charging
- Fast Role Swap - Helps maintain connected devices when the PD adapter is disconnected
- Bus-Powered Operation - Operates from the host system or through an external USB Type-C power adapter
- Plug-and-Play - Requires no additional drivers on supported systems
Specifications
- Host Connection: 1× USB Type-C Male
- Display Mode: DisplayPort 1.4 Alternate Mode
- HDMI Output: 1× HDMI 2.0
- Maximum HDMI Resolution: 3840 × 2160 @60Hz
- HDCP Support: HDCP 2.2 And HDCP 1.4
- Colour Depth Support: 8-Bit, 10-Bit and 12-Bit
- HDR Support: Yes
- USB Type-A Ports: 2× USB3.2 Gen1 Type-A
- USB Data Transfer Rate: up to 5Gbps
- Total USB Type-A Power Output: up to 12W
- USB Type-A Port 1 Output: up to 5V 1.5A
- USB Type-A Port 2 Output: up to 900mA
- USB Type-C PD Port: 1× USB Type-C Power Delivery Input
- Power Delivery Standard: PD3.0
- Maximum Power Delivery Input: 100W
- Ethernet Port: 1× RJ45 Gigabit Ethernet
- Card Reader: 1× SD and 1× MicroSD
- Maximum Card Reader Speed: up to 104MBps
- Simultaneous Card Access: Supported
- Thunderbolt Compatibility: Supported with Compatible Hosts
- Supported Operating Systems: Windows And macOS
- Device Dimensions: 136.1 × 34 × 14mm
- Cable Length: Approximately 17cm
- Device Weight: 71g
- Certifications and Compliance: CE, FCC and RoHS
