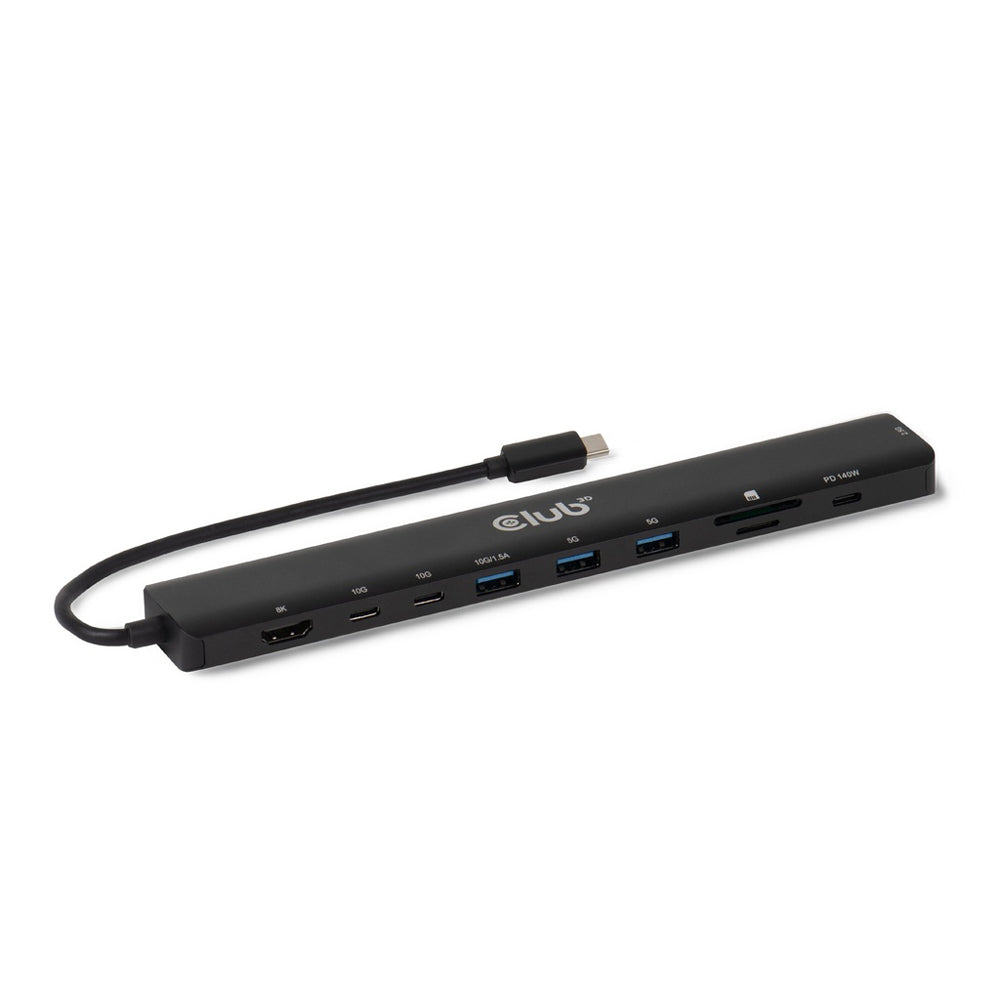

Club3D CSV-2550 USB Type-C 10-in-1 Port Replicator with 8K @30Hz HDMI and PD3.1 Max. 140W
One Dock. Total Connectivity.
Transform your laptop into a full workstation with the Club3D CSV-2550 USB Type-C 10-in-1 Port Replicator. Expand a single USB Type-C port into ultra-high resolution video, high-speed data, wired networking and powerful charging - all through one compact solution. Enjoy crisp visuals up to 8K @30Hz or 4K @120Hz, ultra-fast 2.5Gbps Ethernet and multiple USB ports delivering up to 10Gbps performance. With Power Delivery 3.1 up to 140W, your device stays charged while powering your entire setup.
Features
- 8K HDMI Output - up to 8K @30Hz or 4K @120Hz for ultra-sharp visuals
- 140W Power Delivery 3.1 - Charge your laptop while powering your setup
- 2.5Gbps Ethernet - Ultra-fast, stable wired network connection
- High-Speed USB Ports - up to 10Gbps for fast data transfer and device connectivity
- SD and MicroSD Slots - Simultaneous card access for quick file transfers
- Plug-and-Play - Driverless setup for instant productivity

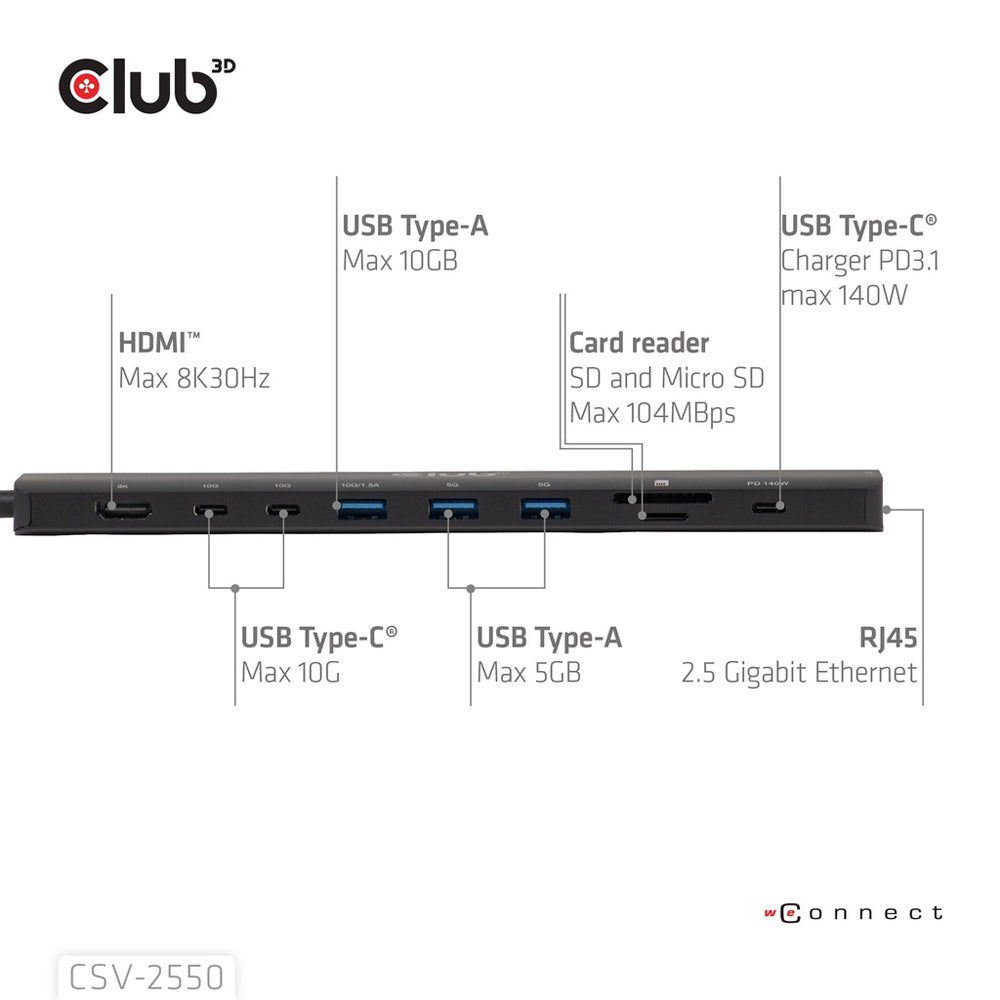

Specifications
- Input:
- 1× USB Type-C (10Gbps, Host)
- Output:
- 1× Hdmi 2.1
- 1× RJ45 Ethernet (10/100/1000/2.5Gbps)
- 1× USB Type-C PD 3.1
- 2× USB Type-C (10Gbps)
- 1× USB Type-A (10Gbps)
- 2× USB Type-A (5Gbps)
- 1× SD Card Slot
- 1× MicroSD Card Slot
- Video Support:
- up to 8K @30Hz or 4K @120Hz
- DisplayPort 1.4 Alt Mode
- 8-bit / 10-bit / 12-bit Colour Depth
- HDCP 2.3 and HDCP 1.4
- Data Transfer:
- USB3.2 Gen2 (up to 10Gbps)
- USB3.2 Gen1 (up to 5Gbps)
- Power Delivery:
- PD 3.1 up to 140W Input
- up to 125W Pass-Through to Host
- 15W Reserved for Dock Operation
- Fast Role Swap Support
- Networking:
- 2.5 Gigabit Ethernet
- Supports Wake-on-LAN
- Card Reader:
- SD and MicroSD (UHS-I, up to 104MB/s)
- Supports Simultaneous Use
- Downstream Charging: up to 7.5W per Port (USB Type-C and USB Type-A)
- Compatibility:
- OS: Windows 10 and Above, macOS
- Supports USB Type-C Devices with DP Alt Mode

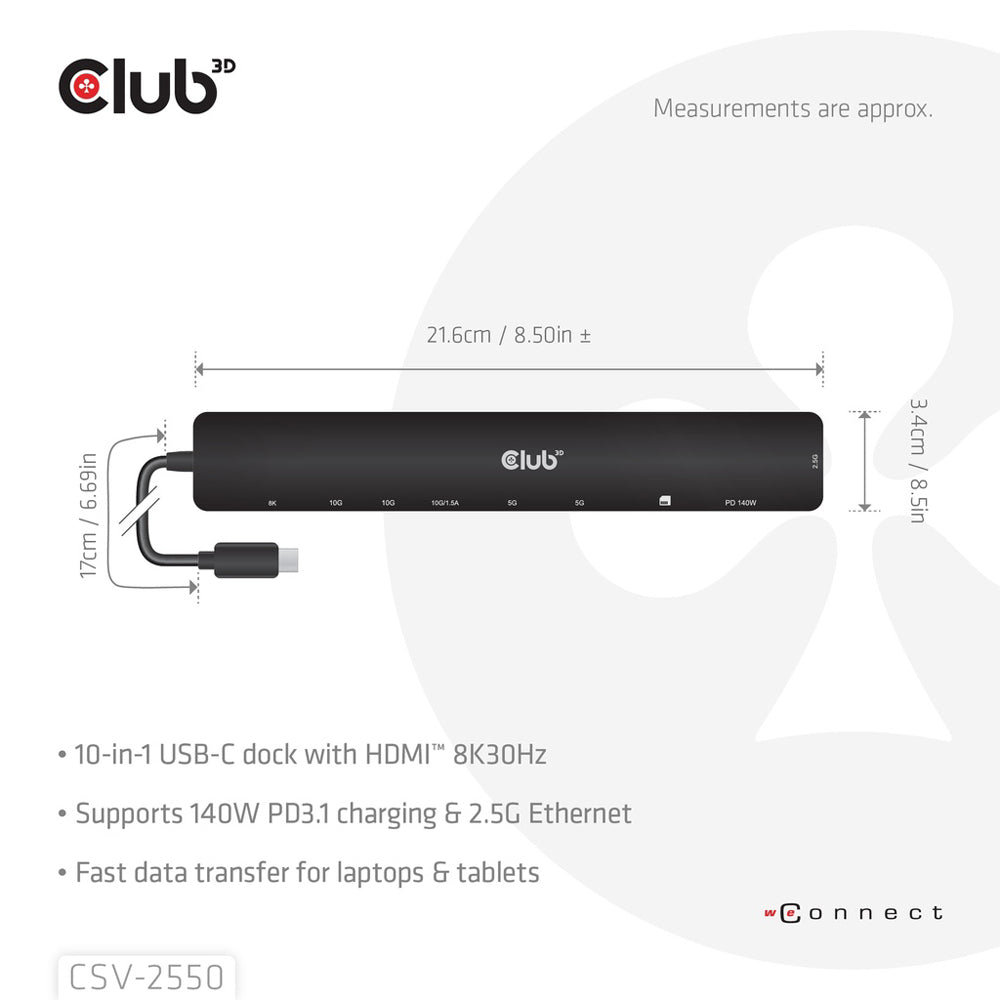

- Cable Length: Approx. 19cm
- Connector Dimensions (USB Type-C): 3.62 × 1.2 × 0.63cm
- Box Dimensions: 7 × 3.2 × 3.5cm
- Device Weight: 109g
- Total Weight: 154g
- Meets ROHS, FCC and CE EMI Requirements
