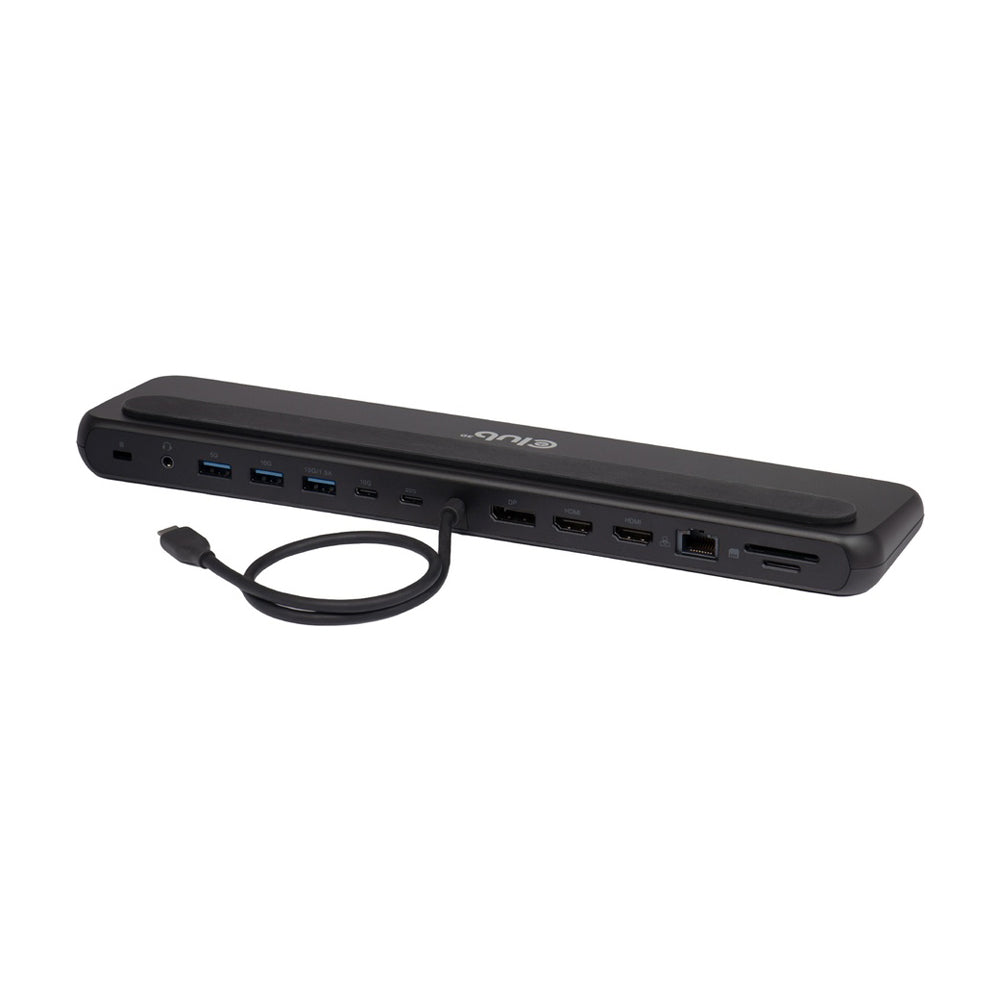

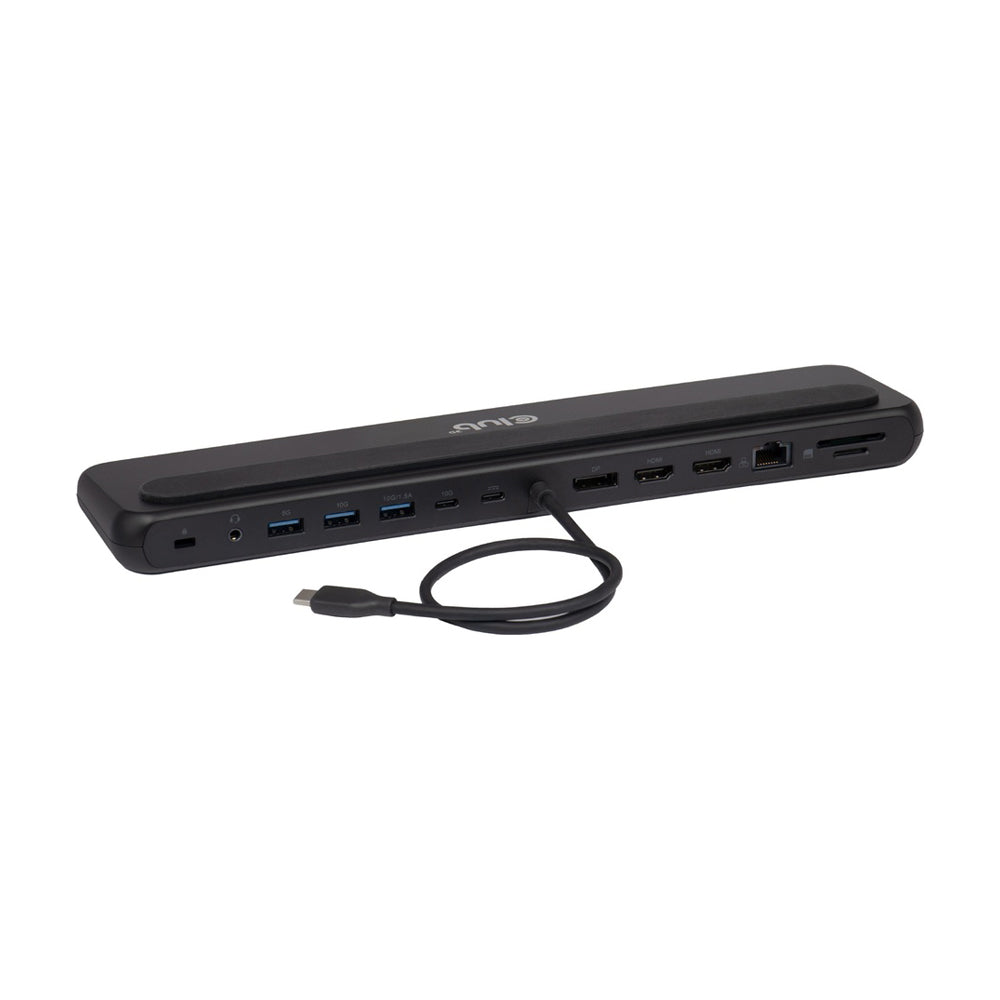

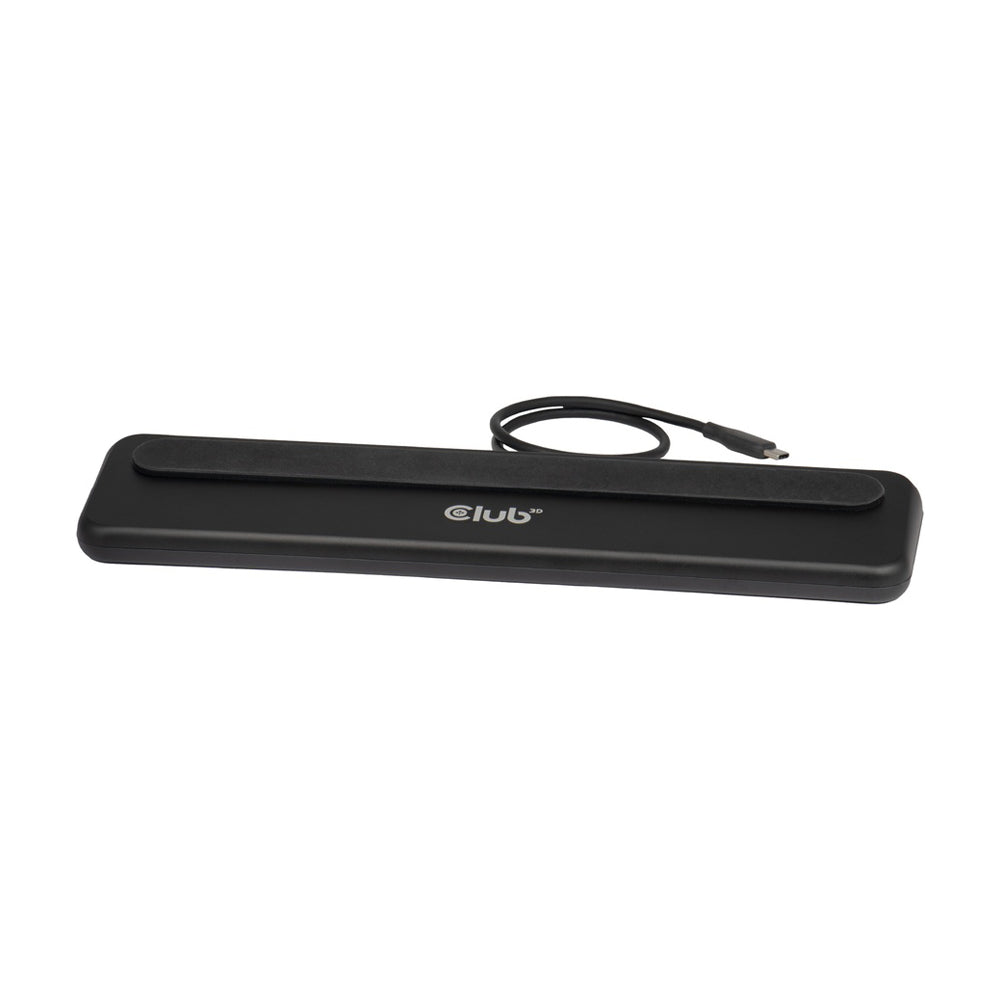

Club3D CSV-2541 USB Type-C 12-in-1 Triple Display Port Replicator with 8K @30Hz HDMI and PD3.0 Max. 100W
One Dock. Triple Display Performance.
Upgrade your workspace with the Club3D CSV-2541 USB Type-C 12-in-1 Triple Display Port Replicator. Designed for productivity and clean desk setups, it combines powerful connectivity, charging and display expansion into one streamlined solution. Drive up to three displays with support for 8K @30Hz or dual 4K @60Hz, while enjoying reliable Gigabit Ethernet and multiple USB ports for everyday connectivity. With Power Delivery 3.0 up to 100W, your laptop stays charged while powering your entire setup. Built with an ergonomic design for improved airflow and cable management, this dock is ideal for modern workspaces, home offices and professional environments.
Features
- Triple Display Support - Drive up to three displays from one connection (1× 4K @60Hz plus 2× 4K @30Hz)
- 8K and Dual 4K Output - Supports 8K @30Hz or dual 4K @60Hz
- Power Delivery 3.0 - up to 100W charging for laptop and devices
- Multiple Video Outputs - 2× HDMI and 1× DisplayPort for flexible display setups
- High-Speed USB Ports - USB Type-A and USB Type-C for everyday connectivity
- Gigabit Ethernet - Stable wired network up to 1Gbps
- SD and MicroSD Card Slots - Simultaneous access for fast file transfers
- Fast Role Swap - Prevents disconnection when unplugging power
- Ergonomic Design - Improves airflow and cable management for cleaner setups
Specifications

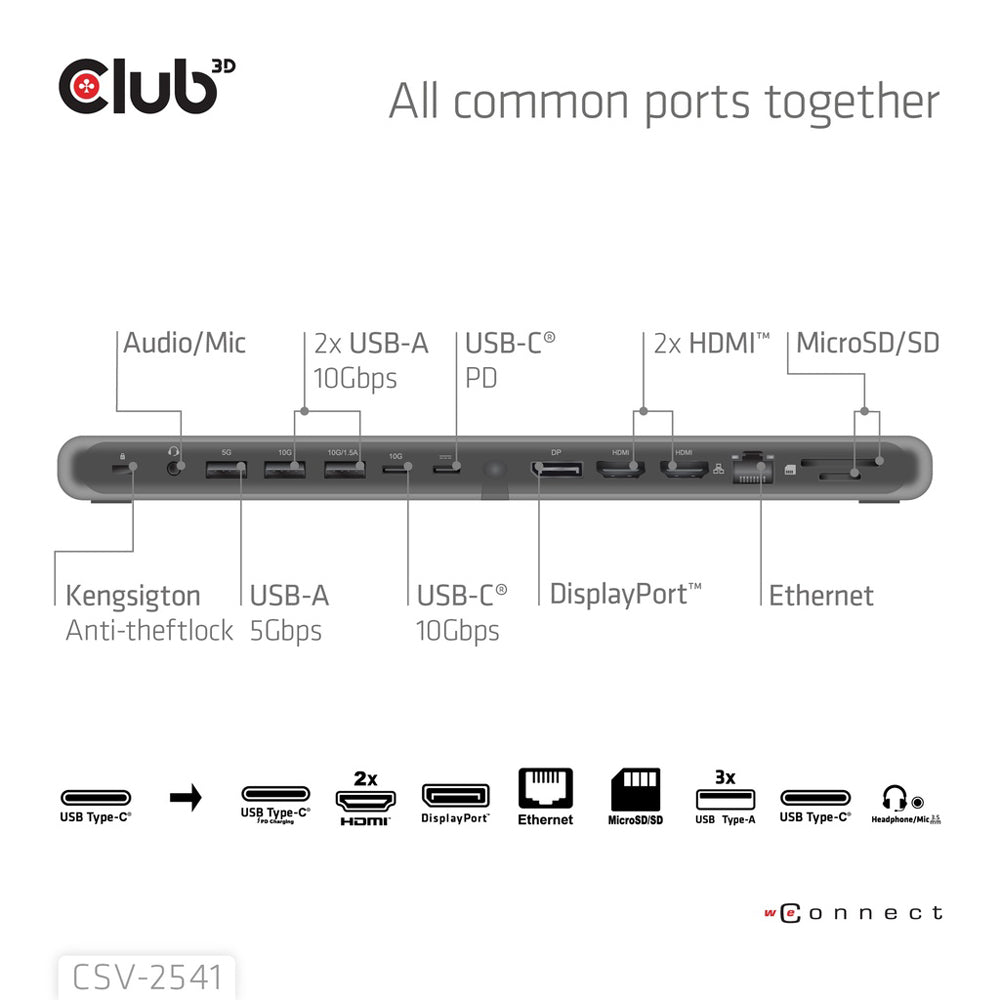

- Input:
- 1× USB Type-C (Host, DP 1.4 Alt Mode)
- Output:
- 2× Hdmi
- 1× DisplayPort 1.4
- 1× USB Type-C PD
- 3× USB Type-A (5Gbps)
- 1× RJ45 Ethernet (10/100/1000Mbps)
- 1× SD Card Slot
- 1× MicroSD Card Slot
- 1× 3.5mm Audio Jack
- Video Support:
- up to 8K @30Hz
- Dual 4K @60Hz
- Triple Display: 4K @60Hz + 2× 4K @30Hz
- DisplayPort 1.4 Alt Mode with DSC
- HDR Support
- HDCP 2.3 and HDCP 1.4
- RGB and YCbCr Colour Formats (4:4:4 / 4:2:2 / 4:2:0)
- 8-bit / 10-bit / 12-bit Colour Depth
- Data Transfer: USB3.2 Gen1 (5Gbps)
- Power Delivery:
- PD 3.0 up to 100W
- Fast Role Swap Support
- Total USB Output up to 12W (5V 2.4A)
- Networking: Gigabit Ethernet (10/100/1000Mbps)
- Card Reader: SD and MicroSD (UHS-I, up to 104MB/s) Simultaneous Use
- OS Support: Windows 10 and Above

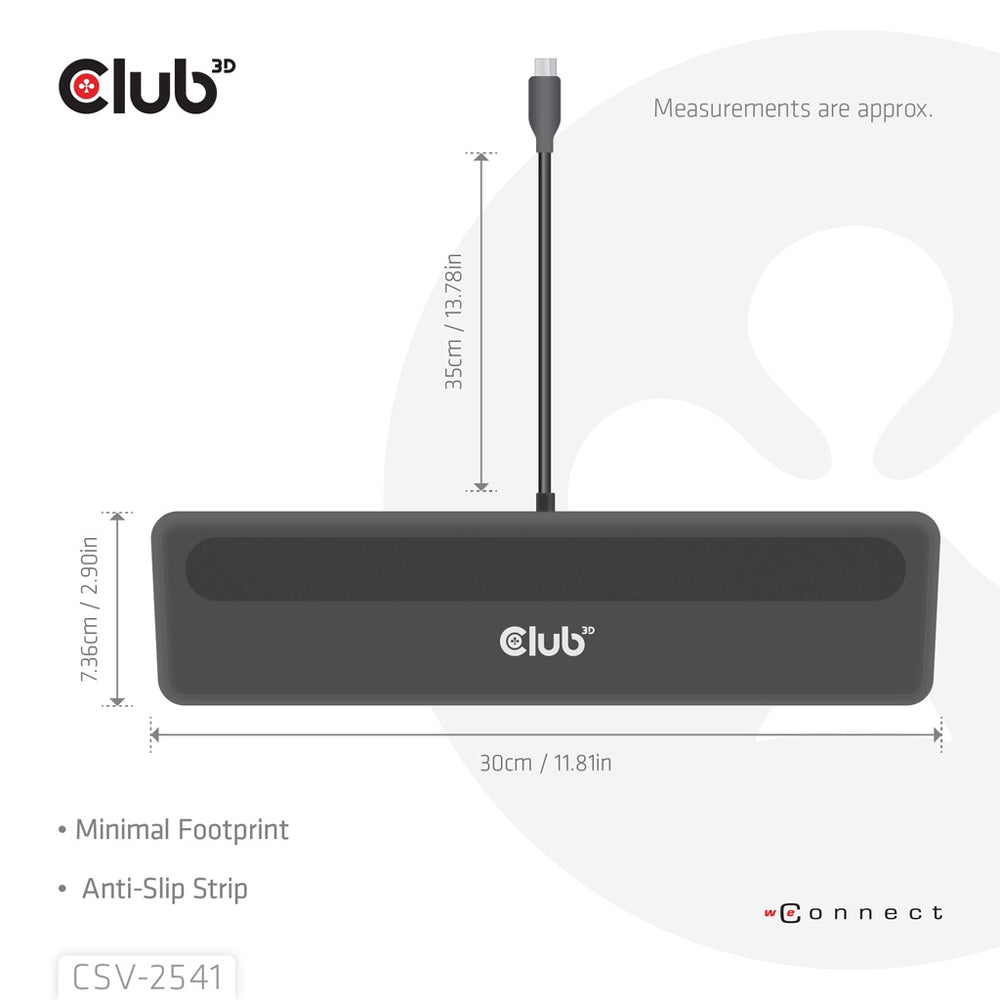

- Connector Dimensions (USB Type-C): 3.62 × 1.2 × 0.63cm
- Box Dimensions: 36.8 × 10.6 × 7.5cm
- Device Weight: 438g
- Total Weight: 950g
- Meets ROHS, FCC and CE EMI Requirements
