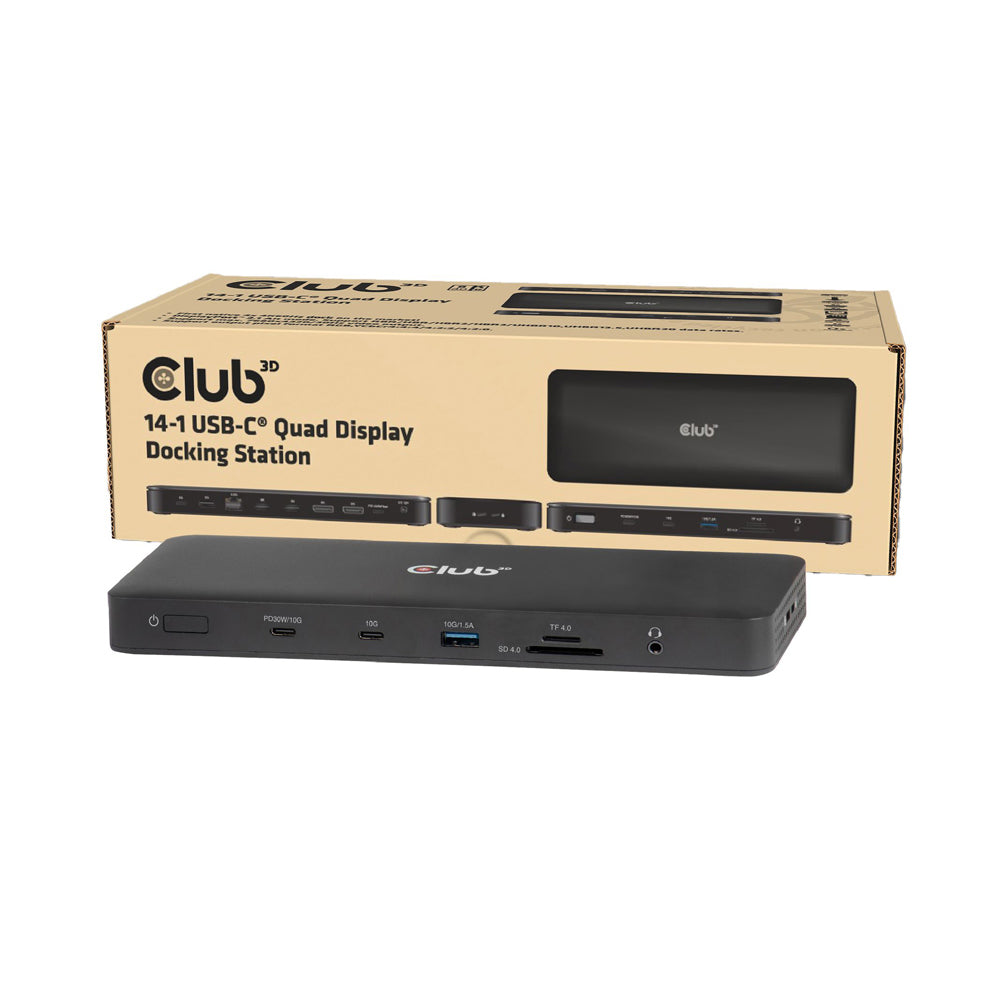

Club3D CSV-2540 USB Type-C 14-in-1 Port Replicator with Quad-Display and 2.5GbE Ethernet
Powerful Quad-Display Connectivity from One USB Type-C Port.
The Club3D CSV-2540 is a high-performance 14-in-1 USB Type-C Port Replicator designed for advanced multi-display workstations. DisplayPort 2.1 Alternate Mode supports up to four external displays through 2× HDMI and 2× DisplayPort outputs, with resolutions up to 8K @30Hz or 4× 4K @60Hz when used with a compatible host. It also provides 2.5GbE networking, five high-speed USB ports, simultaneous SD and MicroSD UHS-II card access, headset connectivity and up to 100W Power Delivery to the connected laptop. The included 150W power supply also supports up to 30W downstream USB Type-C charging, making the CSV-2540 ideal for professional content creation, financial workstations and productivity-focused desk setups.
Features
- Quad Display Support - Connects up to four external displays through 2× HDMI and 2× DisplayPort outputs
- DisplayPort 2.1 Alternate Mode - Supports RBR, HBR, HBR2, HBR3, UHBR10, UHBR13.5 and UHBR20 data rates
- Up to 8K @30Hz - Drives one compatible display at resolutions up to 7680 × 4320 @30Hz
- Up to 4× 4K @60Hz - Supports four 4K displays simultaneously with a compatible host system
- Flexible Display Configurations - Supports HDMI and DisplayPort outputs in multiple single, dual, triple and quad-display combinations
- 2.5GbE Ethernet - Provides wired network speeds up to 2500Mbps

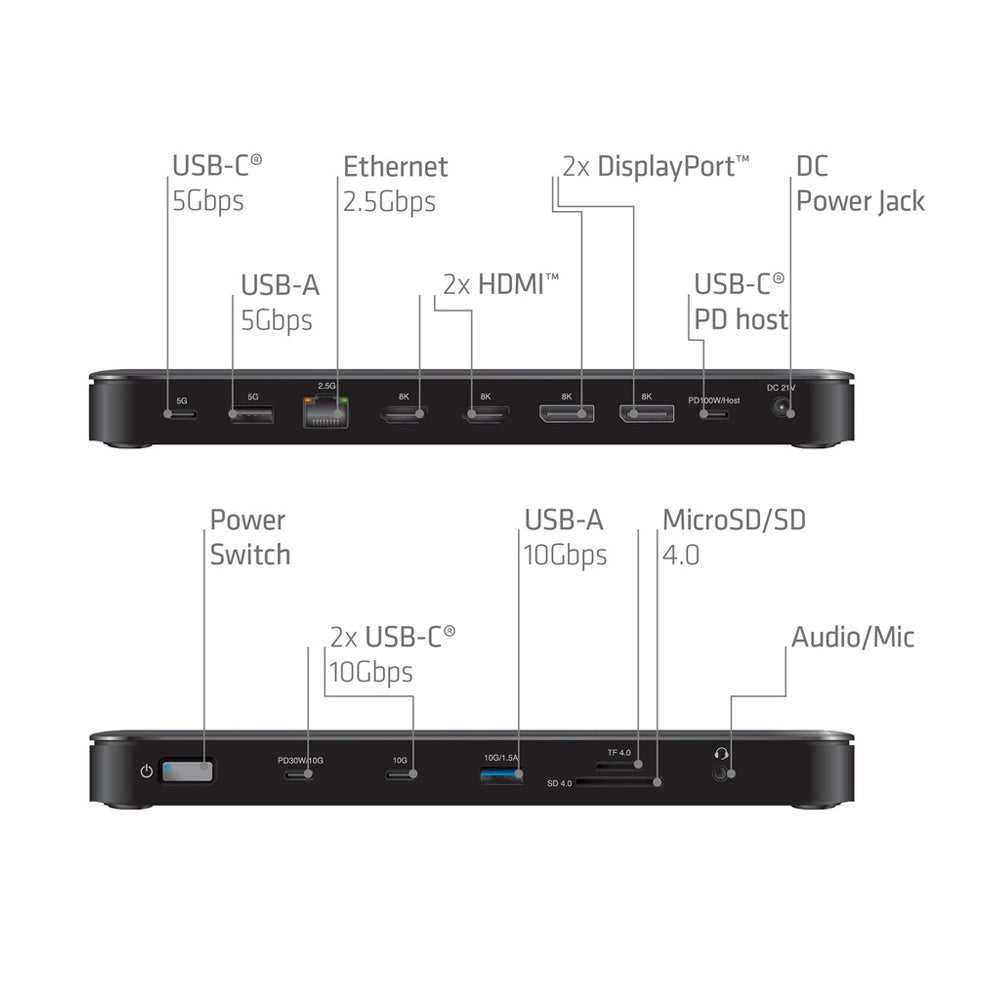

- Five USB Data Ports - Includes 2× USB Type-A and 3× USB Type-C connections
- 10Gbps USB Connectivity - Provides high-speed data transfer through selected USB Type-A and USB Type-C ports
- 100W Host Charging - Charges a compatible laptop through USB Type-C Power Delivery
- 30W Device Charging - Dedicated front USB Type-C port supports up to 30W charging for compatible devices
- SD4.0 Card Readers - SD and MicroSD UHS-II slots support transfer speeds up to 312MBps
- Simultaneous Card Access - Reads SD and MicroSD cards at the same time
- DP++ Support - Allows compatible passive DisplayPort to HDMI adapters to be used
- HDR10+ Support - Delivers compatible high-dynamic-range video content
- Headset Connection - Provides a 3.5mm audio and microphone port
- Powered Desktop Design - Includes a 150W external power supply for stable workstation operation
Specifications
- Host Connection: 1× USB Type-C
- Display Interface: DisplayPort 2.1 Alternate Mode
- HDMI Outputs: 2× HDMI
- DisplayPort Outputs: 2× DisplayPort

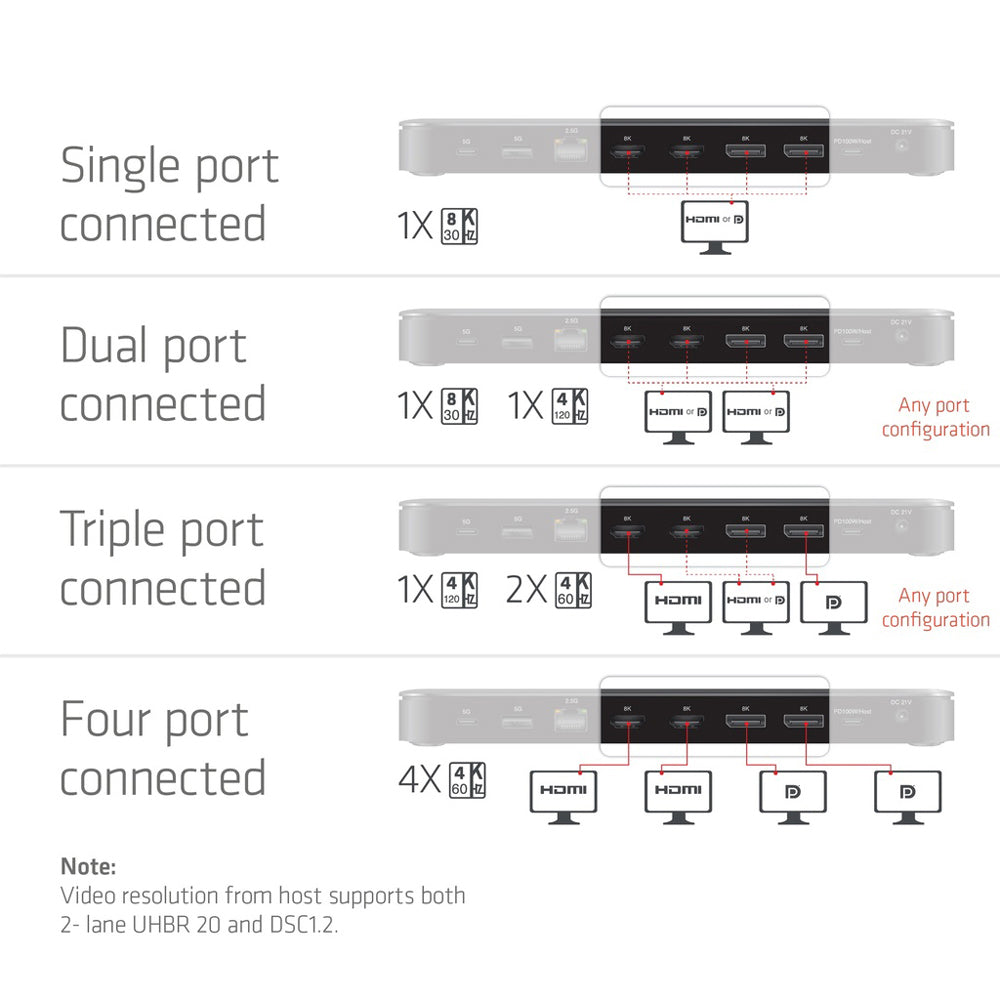

- Maximum Single Display Resolution: 7680 × 4320 @30Hz
- Maximum Quad Display Resolution: 4× 3840 × 2160 @60Hz
- Maximum Dual Display Configuration: 1× 8K @30Hz and 1× 4K @120Hz
- Maximum Triple Display Configuration: 1× 4K @120Hz and 2× 4K @60Hz
- Supported Display Data Rates: RBR, HBR, HBR2, HBR3, UHBR10, UHBR13.5 and UHBR20
- Display Compression: DSC 1.2
- Pixel Formats: RGB, YCbCr 4:4:4, 4:2:2 and 4:2:0
- HDR Support: HDR10+
- HDCP Support: HDCP 1.4 and HDCP 2.3
- DisplayPort Dual-Mode: DP++
- Ethernet Port: 1× RJ45 2.5GbE
- Ethernet Speeds: 10Mbps, 100Mbps, 1000Mbps and 2500Mbps
- USB Type-A Ports: 2×
- USB Type-C Data Ports: 2×
- USB Type-C Charging Port: 1×
- USB Type-A Data Rates: up to 5Gbps and 10Gbps
- USB Type-C Data Rate: up to 10Gbps
- USB Type-C Device Charging: up to 30W
- Host Power Delivery: up to 100W
- Power Delivery Standard: PD3.0
- SD Card Reader: SD4.0 UHS-II
- MicroSD Card Reader: MicroSD 4.0 UHS-II
- Maximum Card Reader Speed: up to 312MBps
- Simultaneous Card Access: Supported
- Audio Connection: 1× 3.5mm Headset and Microphone Port
- Power Input: DC 21V

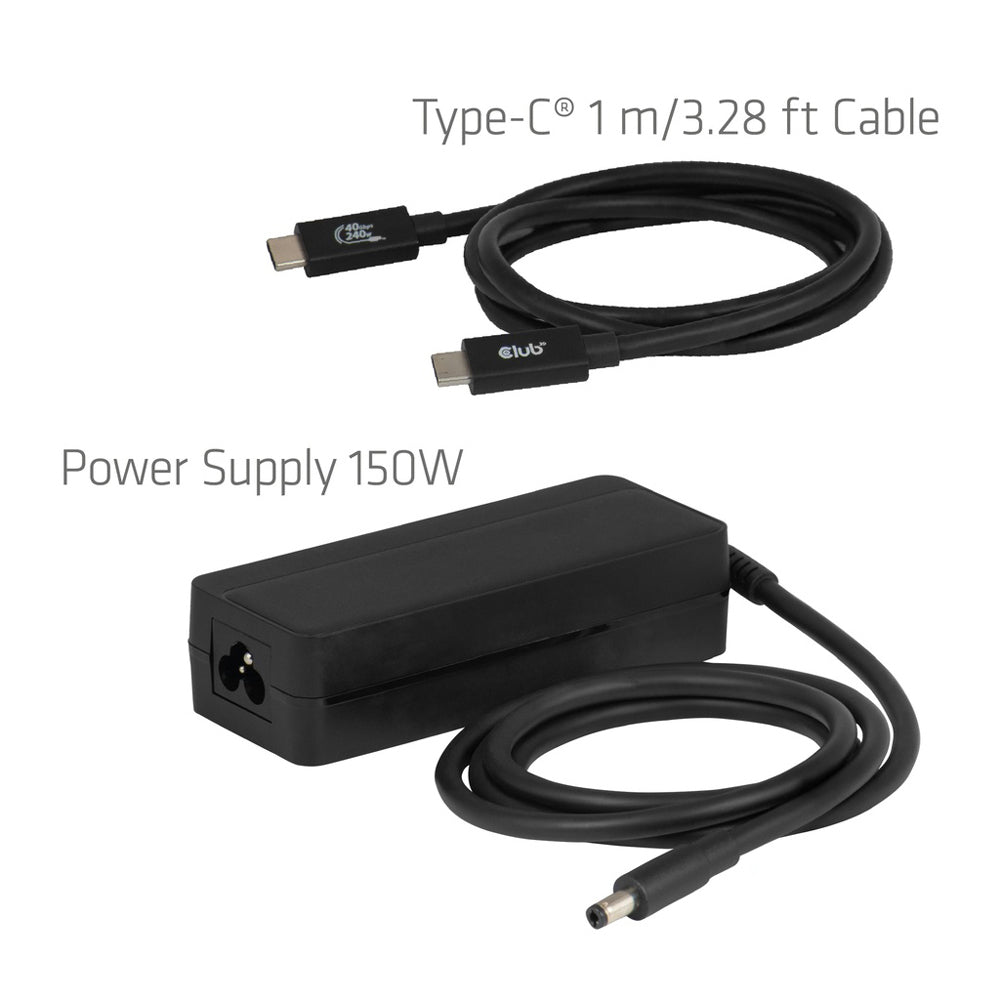

- External Power Supply: 150W
- Host Cable: USB Type-C to USB Type-C
- Host Cable Length: 1m
- Device Dimensions: 225 × 85 × 20mm
- Device Weight: 361g
- Supported Operating Systems: Windows 11 and macOS 15
- Compatibility: Full-Featured USB Type-C And Thunderbolt Hosts
- Certifications and Compliance: CE, FCC and RoHS
Notes
- Maximum display configurations require a compatible host supporting 2-Lane UHBR20 and DSC 1.2
- Actual display resolution, refresh rate and number of extended screens depend on the host GPU, USB Type-C capabilities and operating system
- macOS display behaviour may differ from Windows and can limit independent extended displays
- The connected laptop can receive up to 100W after power reserved for the Port Replicator and connected devices is deducted
- The dedicated 30W USB Type-C charging port supports 5V 3A, 9V 3A, 15V 2A and 20V 1.5A
