Club3D CSV-2511 USB Type-C Bi-Directional 8K @60Hz Video, 10Gbps Data and 100W Power Delivery Switch
One Switch. Total Control.

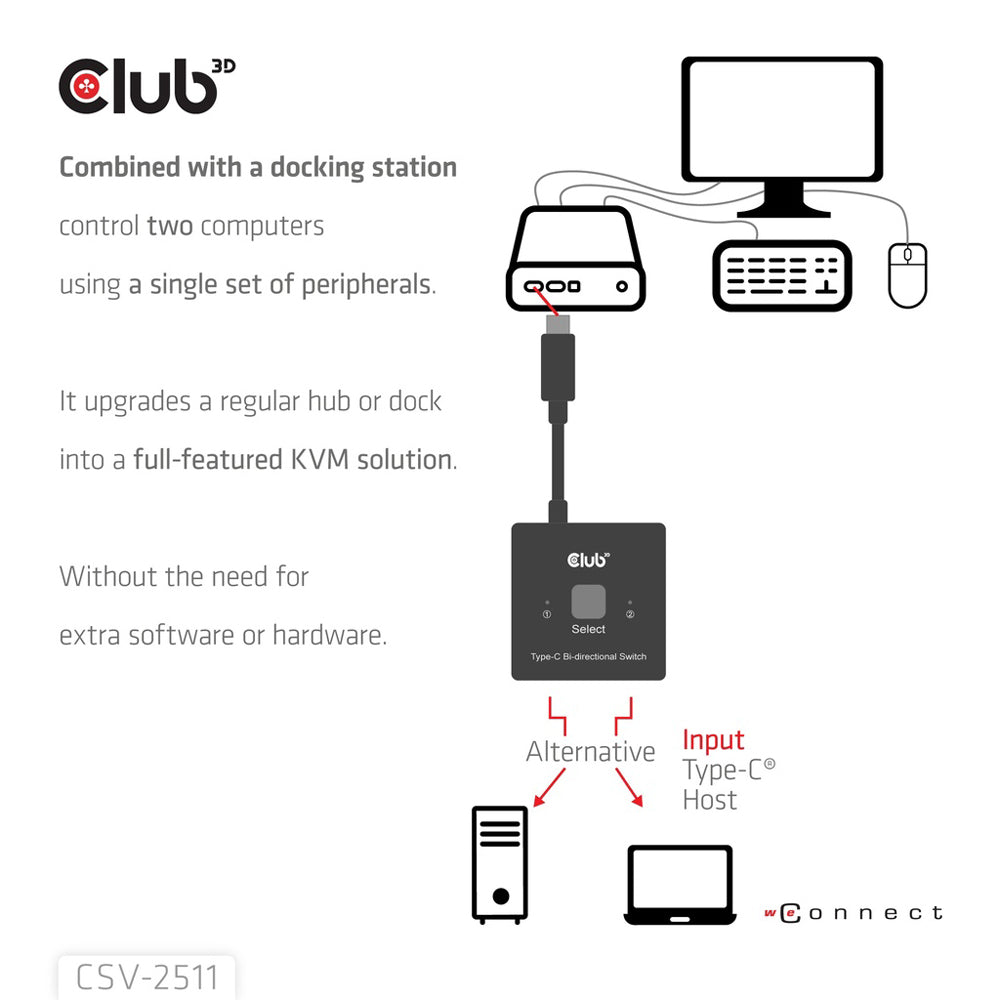

Simplify your workspace with the Club3D CSV-2511 USB Type-C Bi-Directional Video, Data and Power Delivery Switch. Seamlessly switch between devices or displays with a single button while maintaining ultra-high resolution performance up to 8K @60Hz or 4K @120Hz. With full USB Type-C functionality, fast data transfer and power delivery support, it’s the perfect solution for modern workstations, hybrid setups and KVM-style environments.
Features
- USB Type-C Bi-Directional Switch - Switch between two sources or two displays with one device
- 8K @60Hz and 4K @120Hz Support - Ultra-high resolution with smooth visual performance
- DisplayPort 1.4 Support - up to 32.4Gbps bandwidth for high-performance video
- USB3.2 Gen2 - up to 10Gbps data transfer for fast connectivity
- Power Delivery 3.0 - up to 100W charging with pass-through support

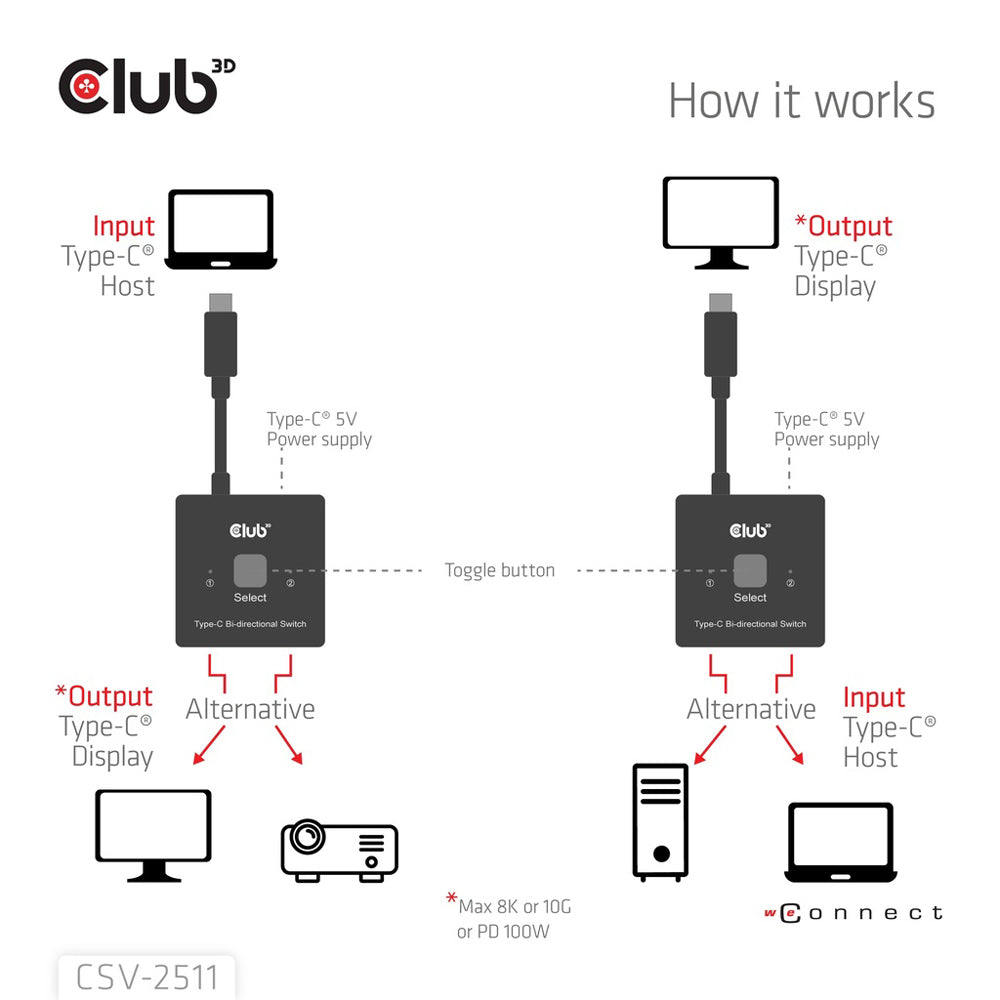

- Dual Switching Modes - One source to two displays or two sources to one display
- One-Button Switching - Quick toggle with LED indicators for active port status
- HDCP Pass-Through - Secure content transmission across connected devices
- USB Type-C Powered - Requires 5V input for operation with low power consumption
- Wide Compatibility - Supports USB Type-C and Thunderbolt devices across all operating systems
Specifications
- Input:
- 1× USB Type-C (Host)

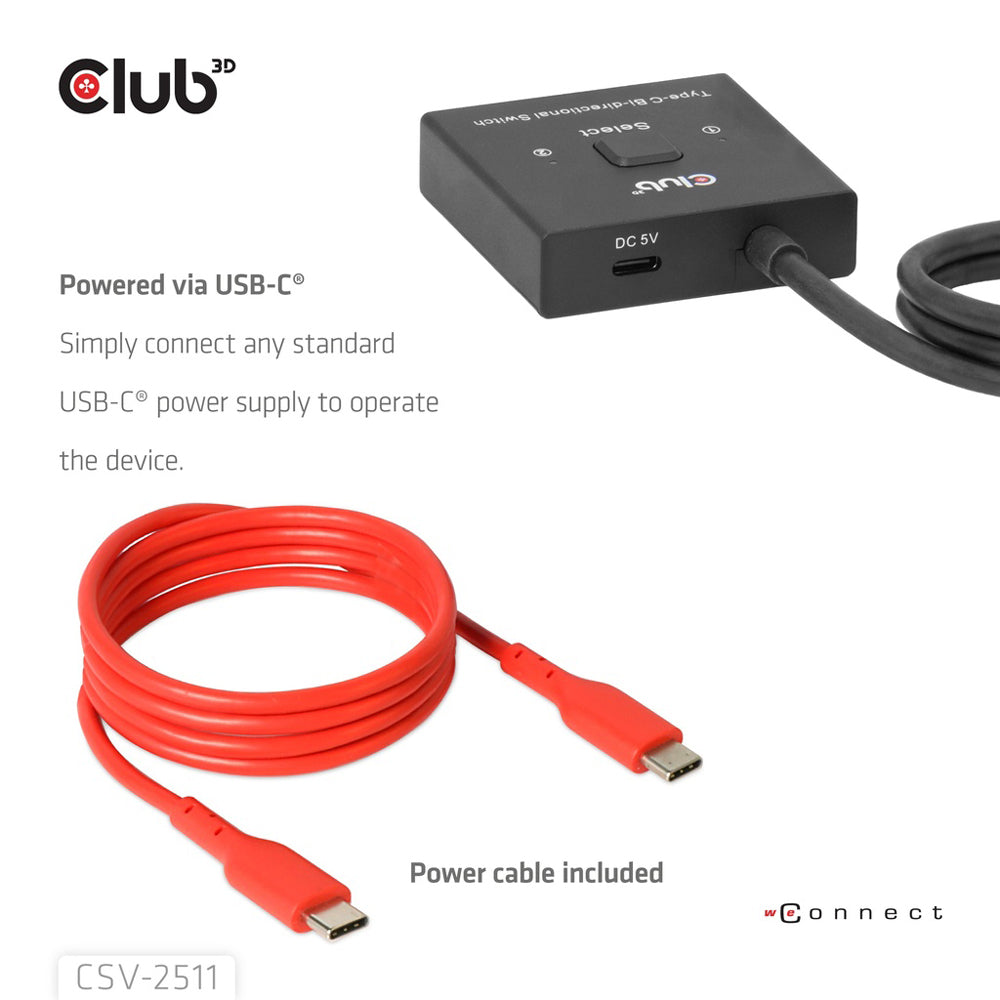

- 1× USB Type-C (5V Power Input)

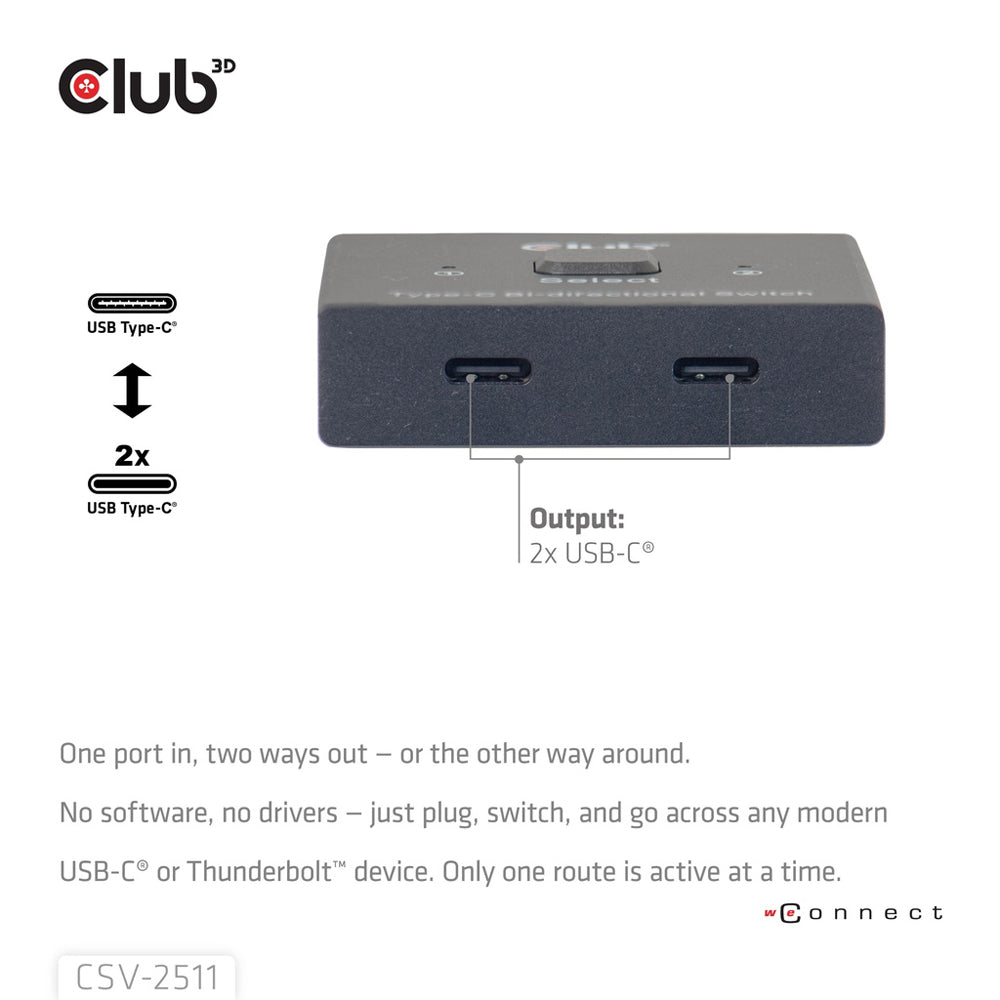

- Output:
- 2× USB Type-C
- Video Support:
- up To 8K @60Hz or 4K @120Hz
- DisplayPort 1.4 (32.4Gbps Bandwidth)
- Data Transfer:
- USB3.2 Gen2
- up to 10Gbps
- Power Delivery:
- PD 3.0 up to 100W
- Requires 5V USB Type-C Power Input
- Low Power Consumption (Approx. 0.1W)
- Functionality:
- Bi-Directional Switching (2 Sources to 1 Display or 1 Source to 2 Displays)
- One-Button Switching with LED Status Indicators
- HDCP Pass-Through
- Compatibility:
- OS: All Major Operating Systems
- Supports USB Type-C and Thunderbolt Devices
- Cable Length: Approx. 0.5m

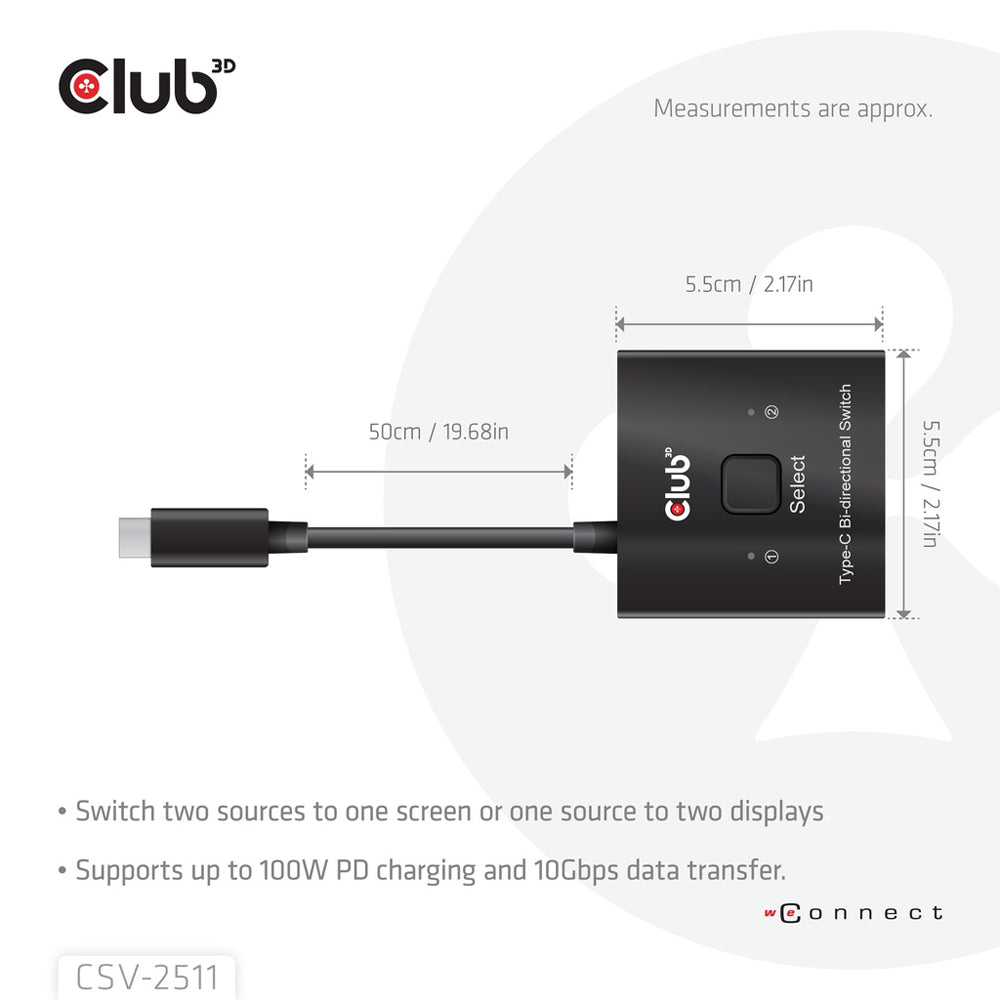

- Device Dimensions: 5.5 × 5.5 × 1.5cm
- Connector Dimensions (USB Type-C): 3.62 × 1.2 × 0.63cm
- Box Dimensions: 14.5 × 14.5 × 4.5cm
- Device Weight: 61g
- Total Weight: 110g
- Meets ROHS, FCC and CE EMI Requirements
