Club3D CSV-1599 USB4.0 Gen3x2 6-in-1 Port Replicator
One Hub. Total Connectivity.
Transform a single USB Type-C port into a complete high-performance workstation with the Club 3D CSV-1599 USB4.0 Gen3x2 6-in-1 Port Replicator. Designed for modern laptops and professionals on the move, it delivers ultra-fast 40Gbps data transfer, stunning 8K video output, 2.5GbE networking and powerful 100W charging in one compact solution. Whether you're working, streaming or creating, this hub provides seamless connectivity for video, data, power and network all through a single connection. Built for USB4.0, Thunderbolt and DisplayPort Alt Mode devices, it ensures maximum compatibility and future-ready performance.
Features

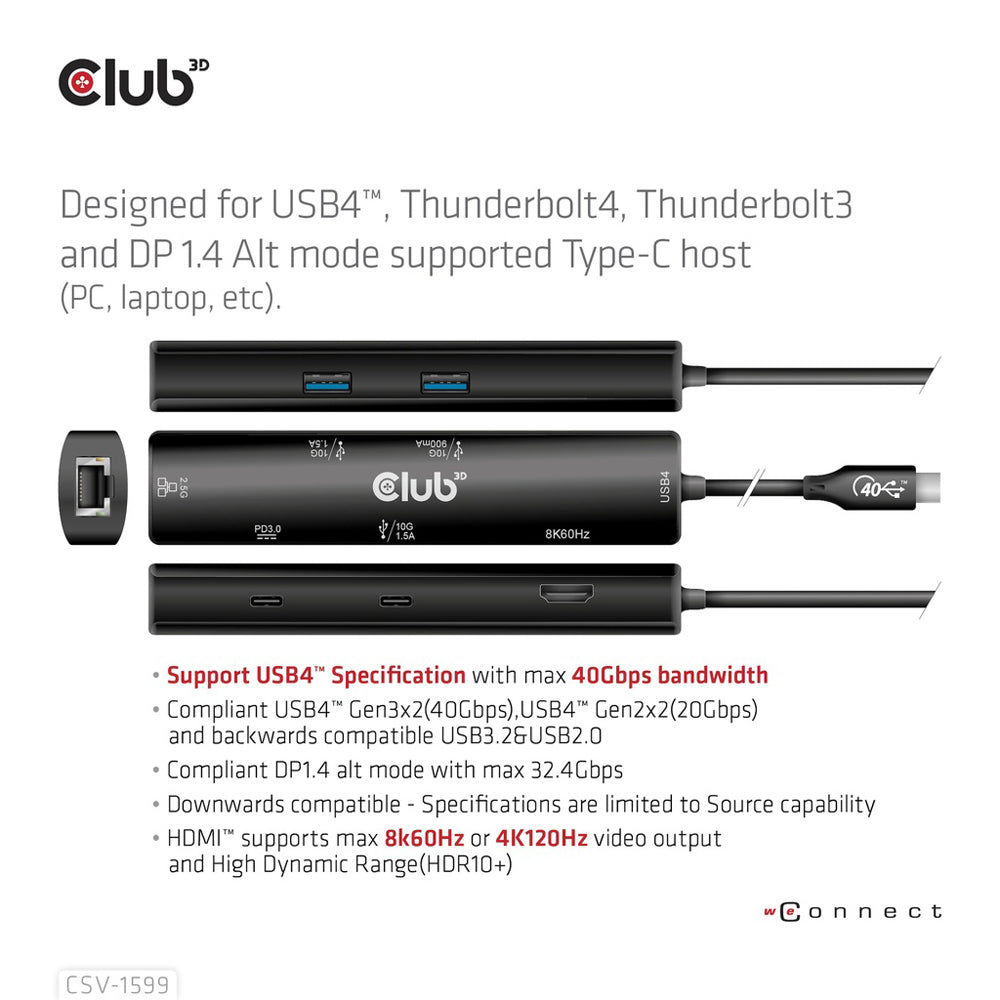

- USB4.0 Gen3x2 Performance - Up to 40Gbps bandwidth for ultra-fast data transfer

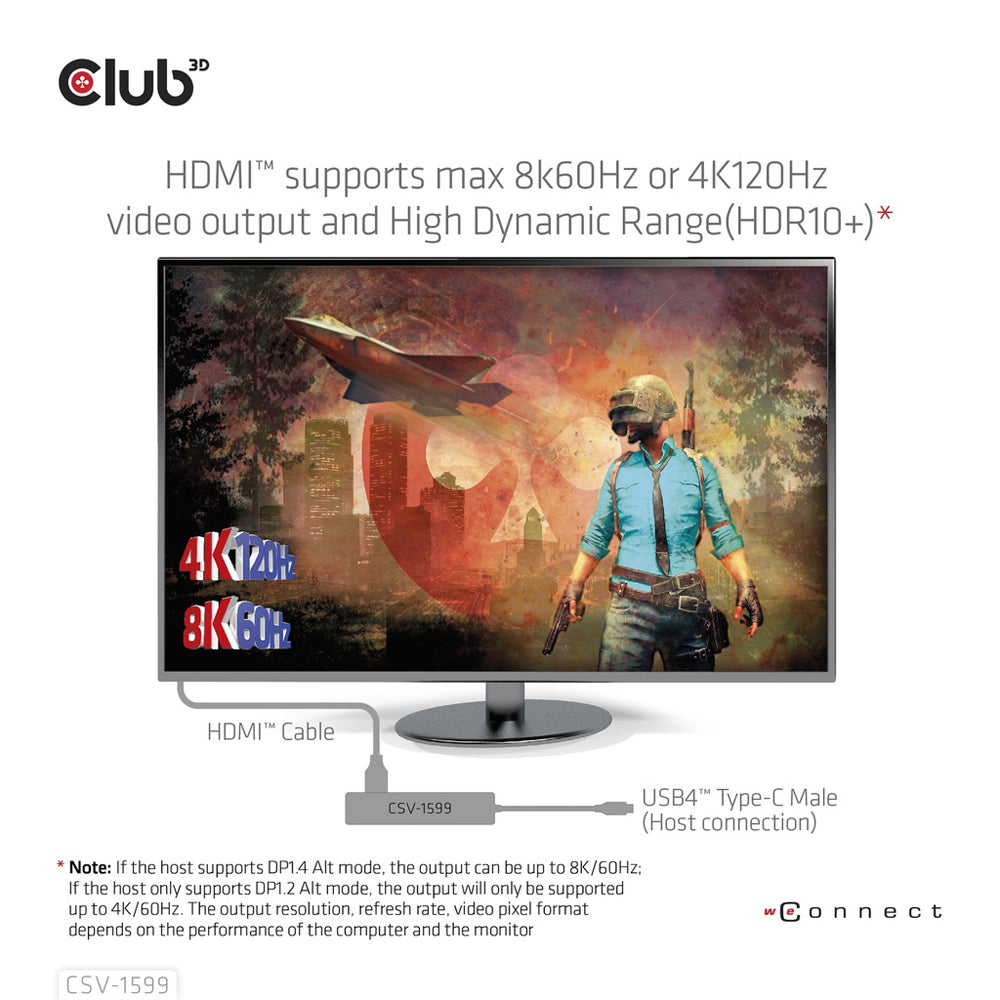

- 8K HDMI Output - Supports 8K at 60Hz or 4K at 120Hz with HDR10+

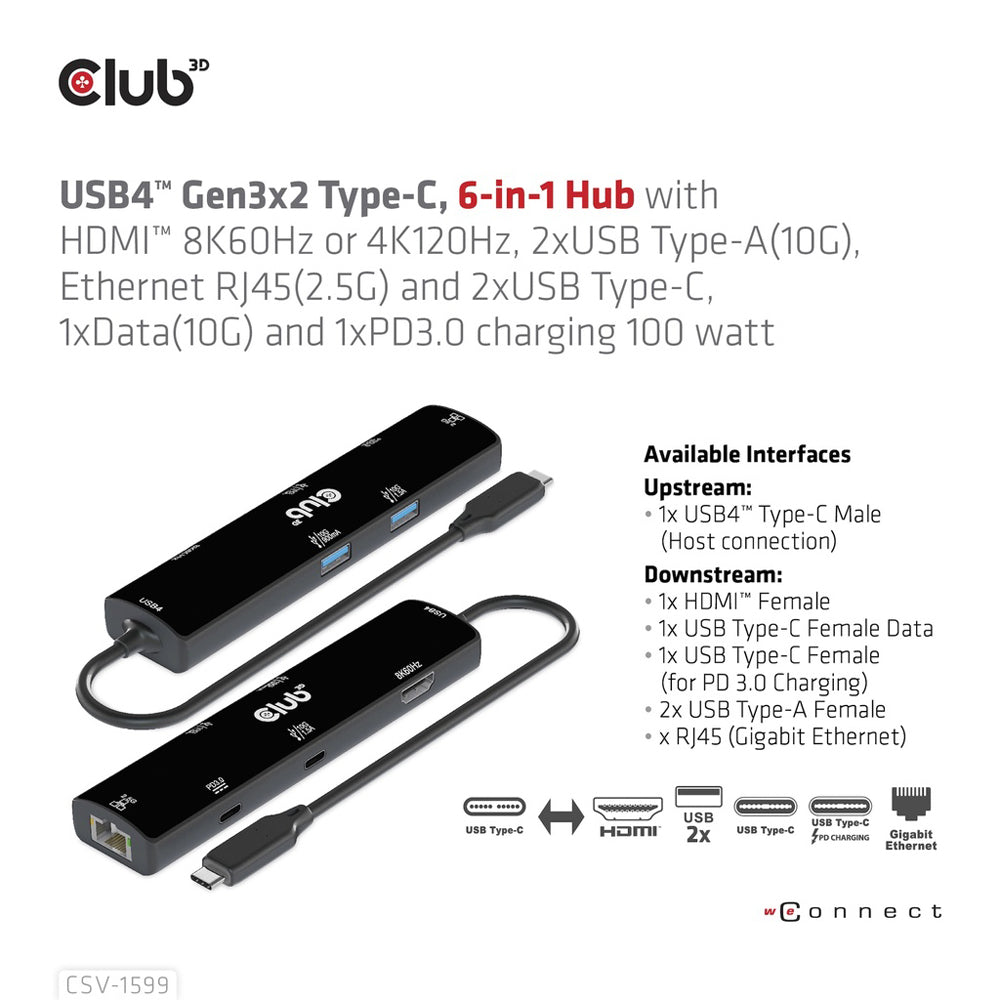

- 6-in-1 Connectivity - HDMI, 2× USB Type-A, 1× USB Type-C data, 1× USB Type-C PD, 1× RJ45
- 2.5GbE Ethernet - High-speed wired network up to 2.5Gbps
- 100W Power Delivery - PD3.0 charging with up to 85W pass-through to host
- USB3.2 Gen2 Ports - 10Gbps data transfer on USB Type-A and Type-C ports

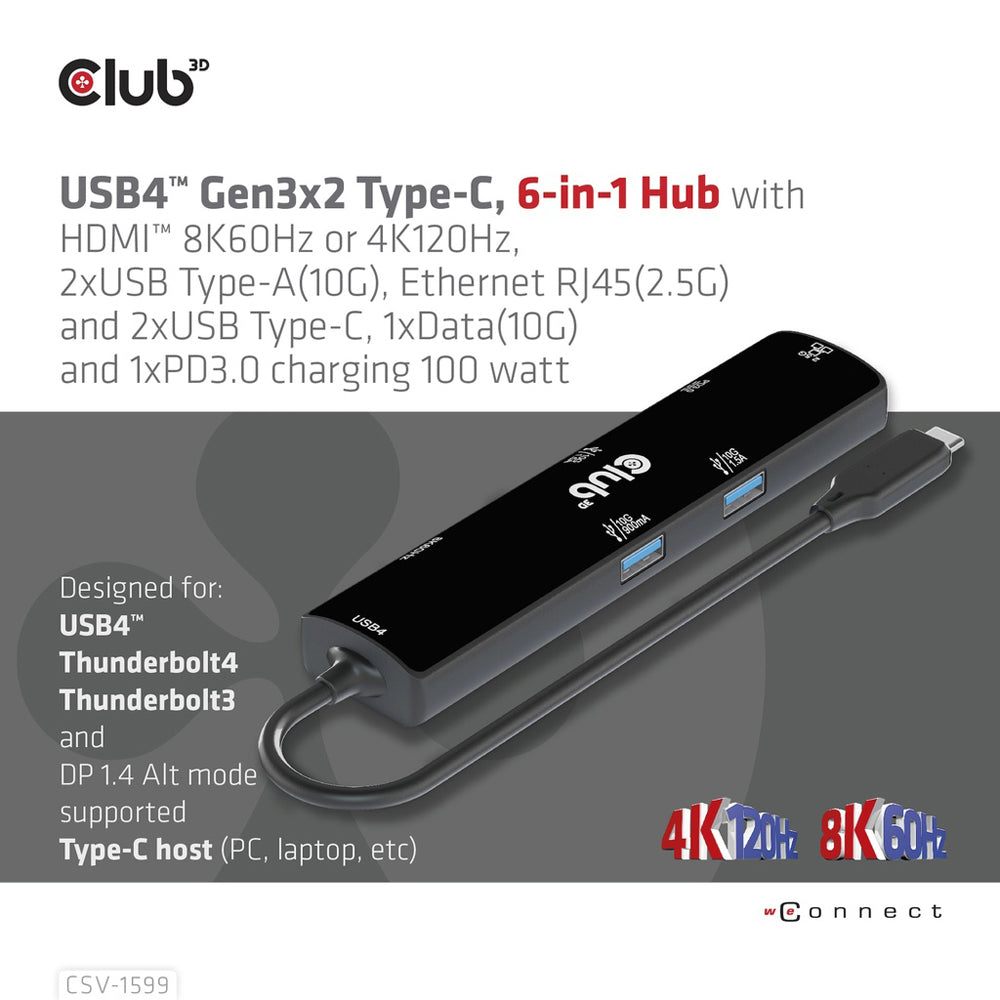

- Multi-Platform Support - Works with USB4.0, Thunderbolt 4, Thunderbolt 3 and DP Alt Mode
- Smart Power Distribution - Dedicated power for hub operation with stable device charging
- Advanced Protection - Over-current, over-voltage and short-circuit protection
Specifications
- Cable Length: 2m
- Input: 1× USB Type-C (USB4.0, Host Connection)
- Video Output: 1× HDMI
- up to 8K @60Hz or 4K @120Hz
- HDR10+ Support
- HDCP 2.3 and HDCP 1.4
- RGB and YCbCr Colour Formats (4:4:4 / 4:2:2 / 4:2:0)
- 8-bit / 10-bit / 12-bit Colour Depth

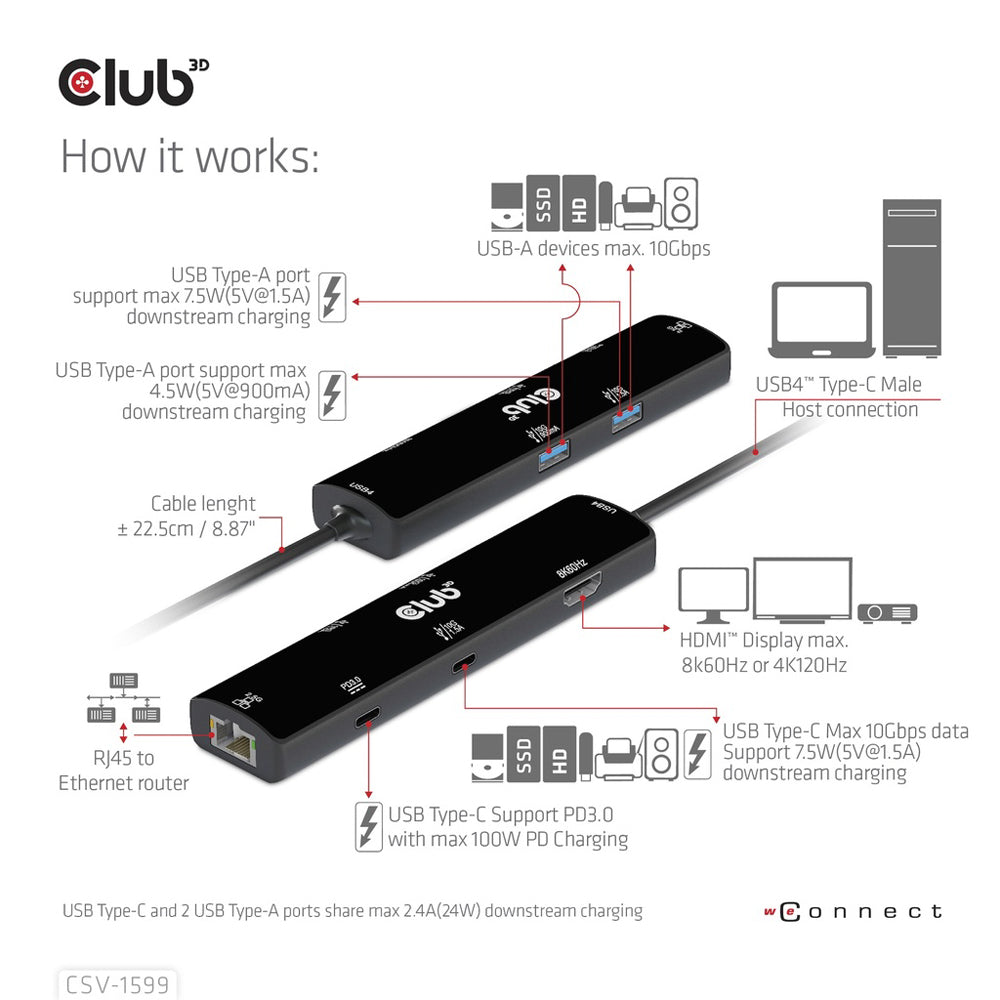

- USB Ports:
- 2× USB Type-A (10Gbps)
- 1× USB Type-C Data (10Gbps)
- Downstream Charging up to 7.5W (Type-C and One Type-A)
- Shared Charging up to 24W Across USB Ports
- Power Delivery:
- 1× USB Type-C PD 3.0 Input
- up to 100W input, 85W Pass-Through to Host
- Fast Role Swap Support
- Networking:
- 1× RJ45 Ethernet (10/100/1000/2.5Gbps)
- Auto-Negotiation and Wake-on-LAN Support
- Compatibility: USB4.0, Thunderbolt 4, Thunderbolt 3, DP Alt Mode
- Protection: Over-current, Over-Voltage and Short-Circuit Protection

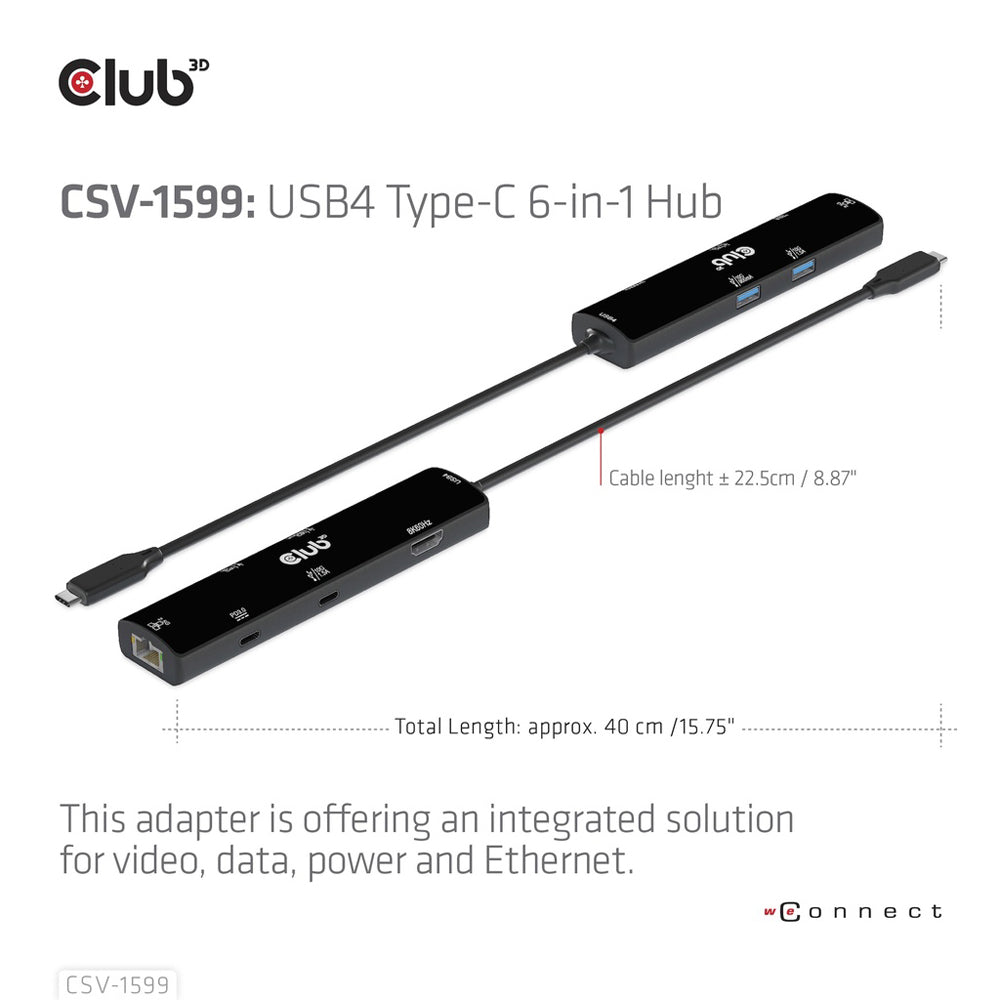

- Total Length: Approx. 40cm

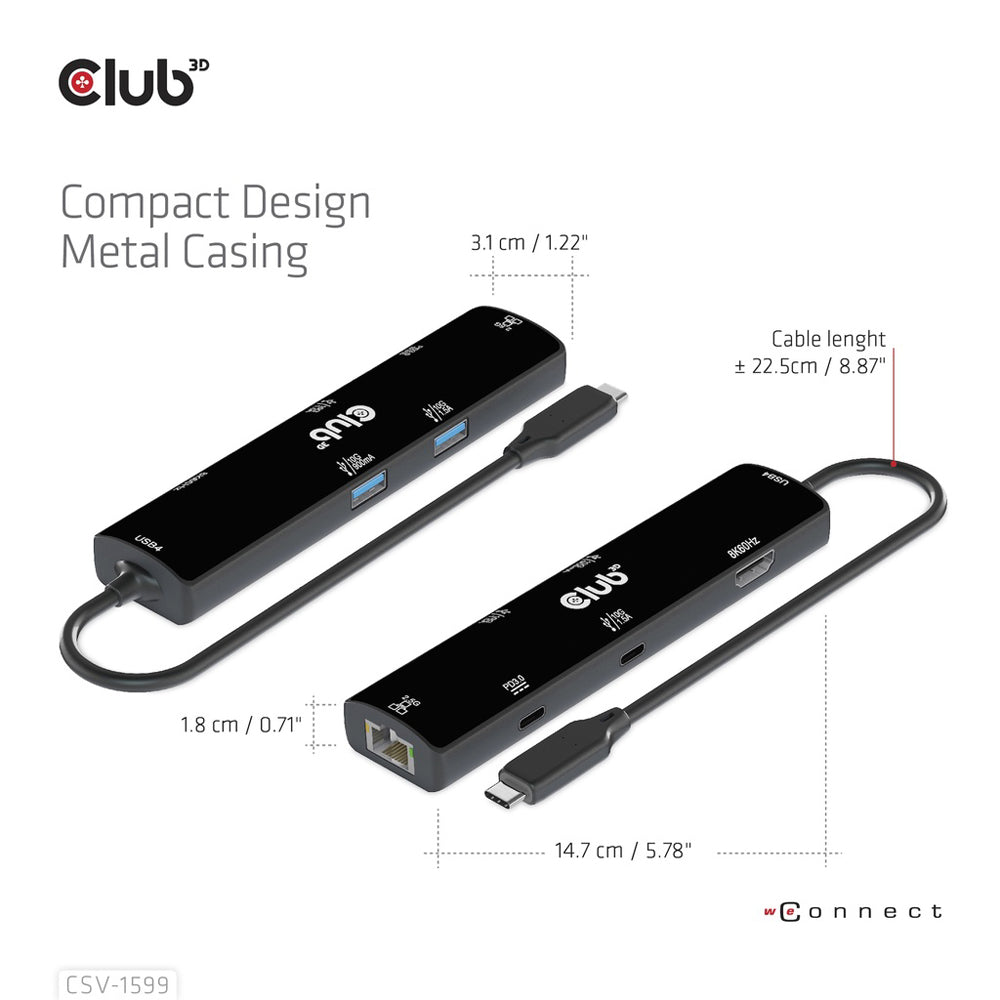

- Device Dimensions: 14.7 × 3.1 × 1.8cm
- Box Dimensions: 6 × 24 × 3.5cm
- Device Weight: 92g
- Total Weight: 136g
- Meets RoHS, FCC and CE EMI Requirements
- OS Support: Windows, Apple OS, Chrome OS
