Club3D CSV1597USB Type-C 8-in-1 Dual 4K @60hz MST Port ReplicatorThe Club3D CSV-1597 USB Gen1 Type-C 8-in-1 Dual 4K @60Hz MST Port Replicator with HDMI 8K @30Hz (HDR), DisplayPort 8K @30Hz, 2× USB Gen1 Type-A, BC1.2, RJ45, SD/Micro SD card slots and USB Gen1 Type-C PD3.0 Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network or connect to headset to enjoy fantastic music. It also provides PD3.0 charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP1.4 Alt mode supported USB Gen1 Type-C hosts.
Features
- DP1.4 Alt mode max
- 8K @30Hz (with DSC1.2)
- HDMI max
- 8K @30Hz (with DSC1.2)

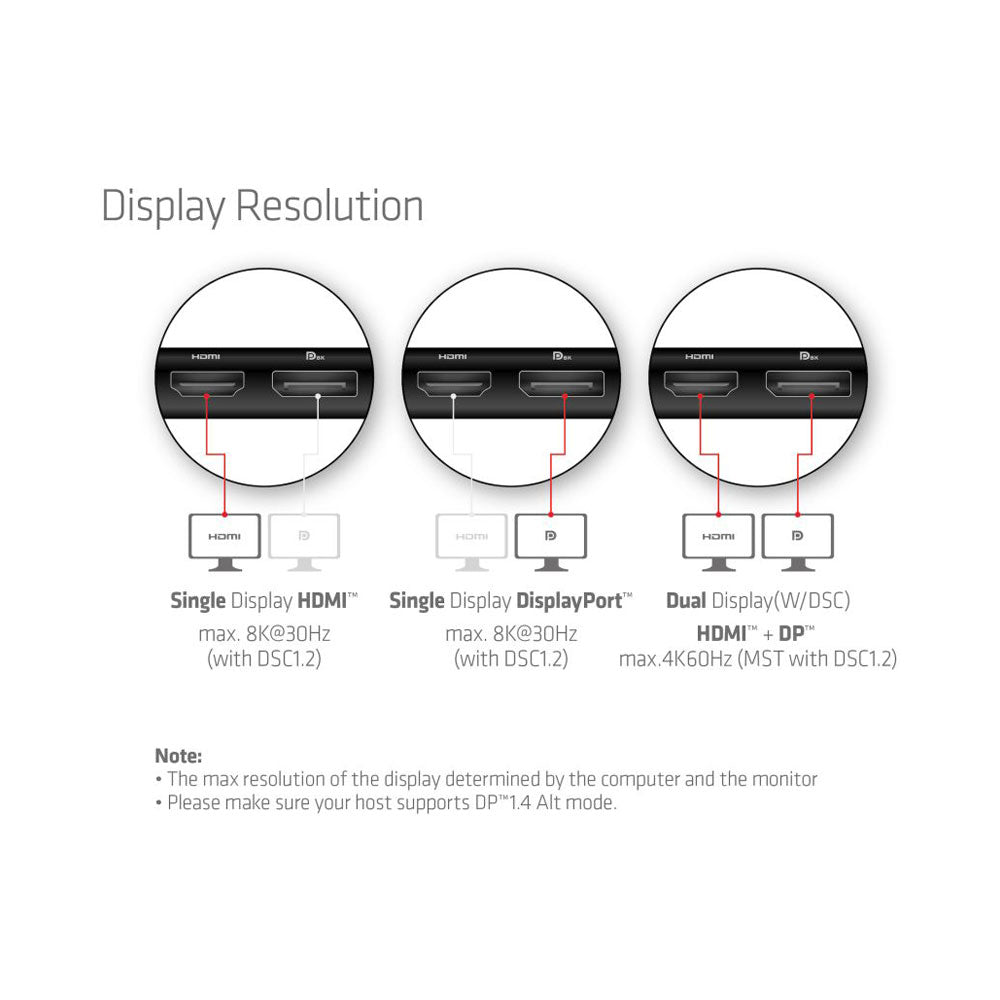

- Dual display HDMI plus DisplayPort max
- 4K @60Hz (MST with DSC1.2)
- Max 5Gbps data transmission per USB Gen 1 Type-A port
- Max 7.5W (5V 1.5A) downstream charging, 2× USB Gen1 Type-A share max 2.5A (12.5W) output
- Gigabit Ethernet
- SD3.0 UHS-I up to 832Mbps/104MB/s data rate, allowing 2× card slots to work simultaneously
- PD3.0 with max
- 100W PD charging
- NOTE: Please make sure your host supports DP1.4 Alt mode
Specifications
- INPUT:1× USB Gen1 Type-C Male (Connect to host)Supports DP1.4 Alt modeNote: To get max. bandwidth, the host should support DP1.4 Alt mode
- OUTPUTS:1× HDMI (Supports max. 8K @30Hz)1× DisplayPort (Supports max. 8K @30Hz)Supports Dual display HDMI plus DisplayPort max. 4K @60Hz (MST with DSC1.2)
