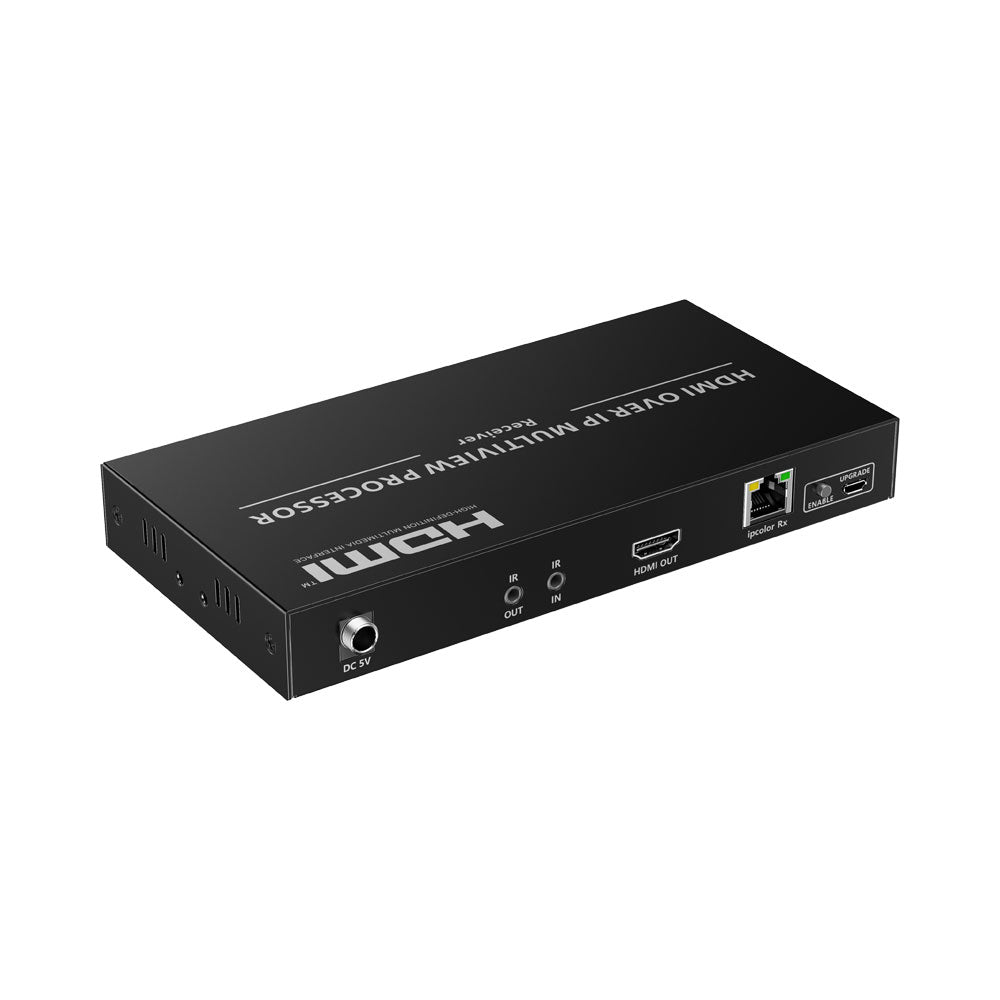

LENKENG iMCS-RX-Multiview 4K @60Hz HDMI over 1G IP Multiview Processor with PoE
Transform Your Network into a 4K Multiview Powerhouse.
The Lenkeng iMCS-RX-Multiview Processor brings next-level visibility and control to your AV network. Designed for the ipcolor iMCS ecosystem, it receives and processes multiple 4K @60Hz signals simultaneously through a standard IGMP switch, delivering ultra-clear, low-latency multiview layouts right to your display. With PoE, RS232/RS485, I/O control, IR learning, audio separation and full control via the iMCS APP, this unit gives you total command of every screen. Ideal for security, command centers, operations rooms and any setup that demands smarter, faster, scalable visual monitoring.

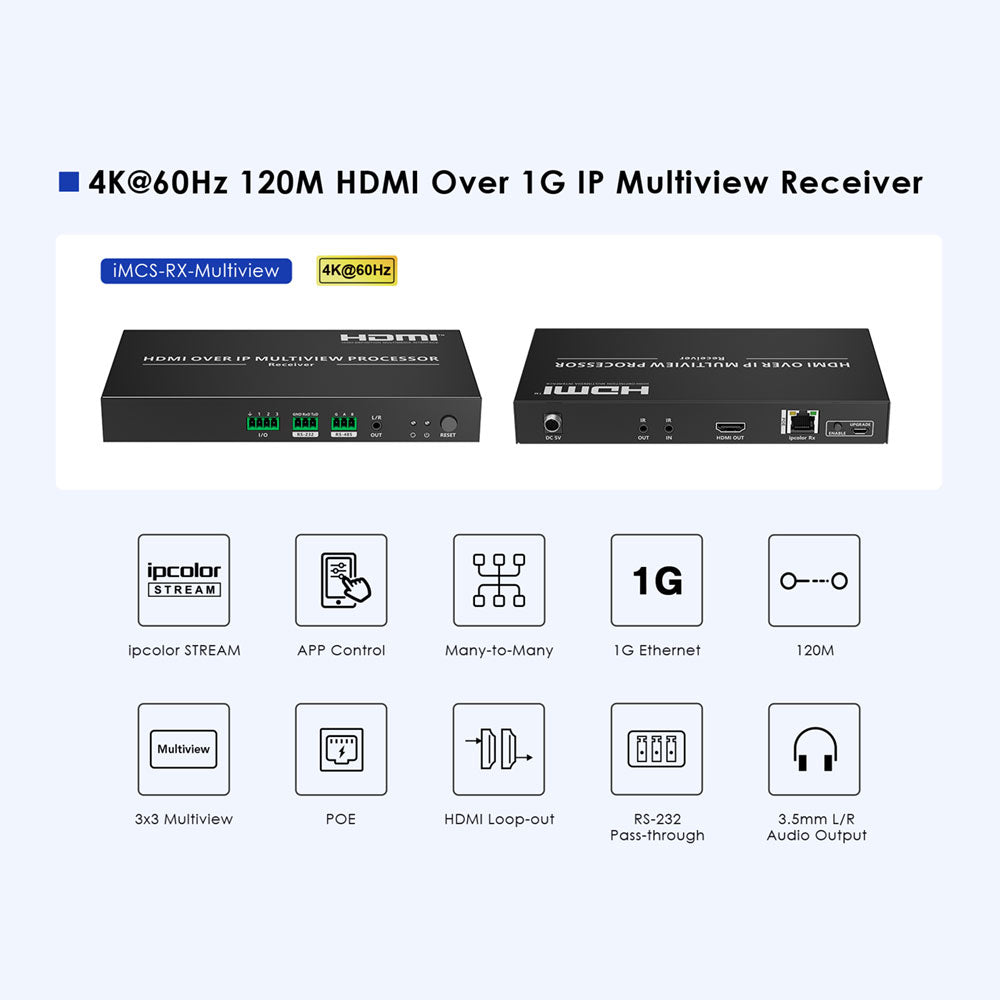

Features
- Built on ipcolor STREAM technology to deliver high-definition and low-latency transmission
- Supports up to 3840×2160 @60Hz resolution
- Compatible with Cat5e/6 or higher-level networking cables, transmission distance of CAT6 cable is 120m
- The actual distance may vary slightly due to different switch performances
- Supports switch cascading
- Supports RS232 / RS485 Control
- Supports IR learning remote and control device by APP (20~60KHz)
- Supports I/O interface control
- Supports POE (Power over Ethernet)
- Supports 3.5mm L/R channel audio separation
- After connecting to the iMCS over IP matrix, it supports receiving and processing multiple signals simultaneously

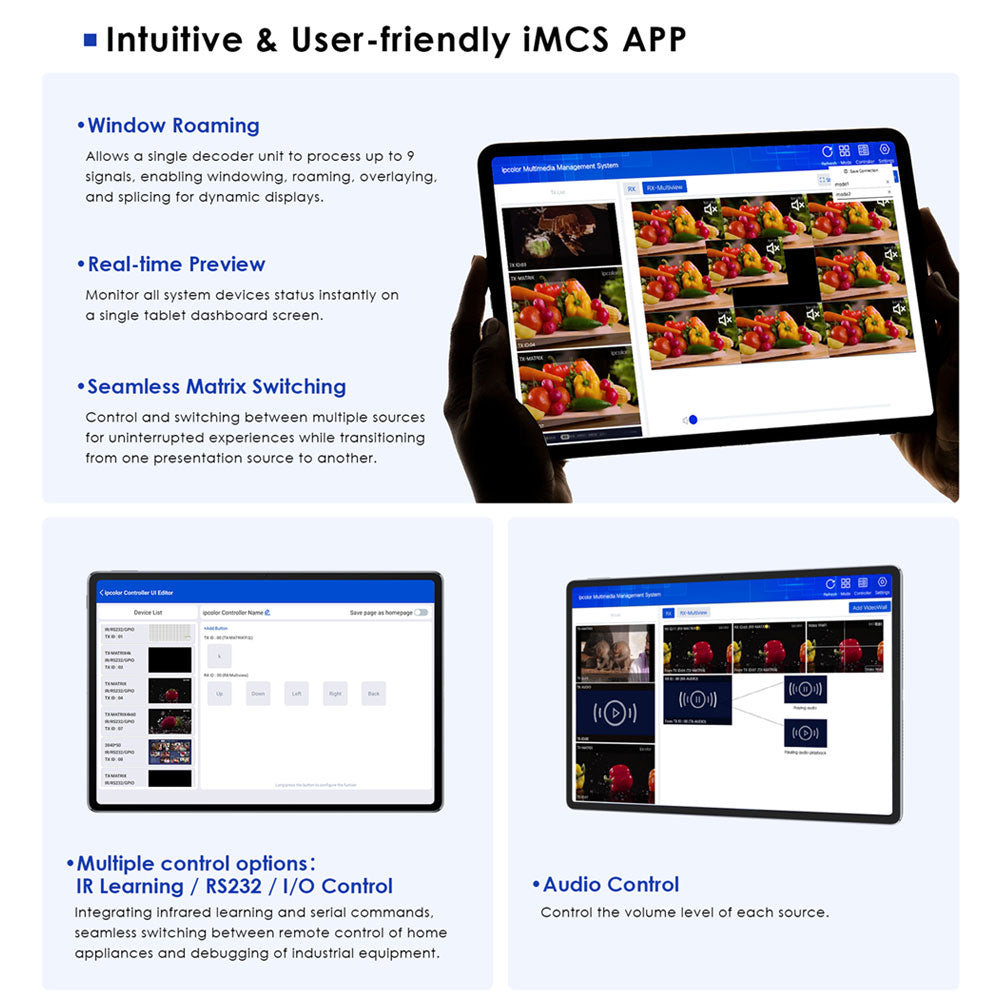

- Paired with the iMCS APP, allowing remote control of the screen display view, providing four-panel and nine-panel screen view, also allowing for the adjusting of the view size and position
- Firmware upgrading
Specifications
- Input Interface: 1× RJ45
- Output Interface: 1× HDMI
- Max. HDMI Length: ≤5m
- Max. Transfer Rate: 18Gbps
- Compatibility: HDMI 2.0, HDCP 1.4 / HDCP 2.2
- Supported Resolutions: 4096×2160 @24/30Hz, 3840×2160 @24/30/50/60Hz, 1080p @50/60Hz, 720p @50/60Hz, 1920×1200 @60Hz, 2560×1440 @60Hz

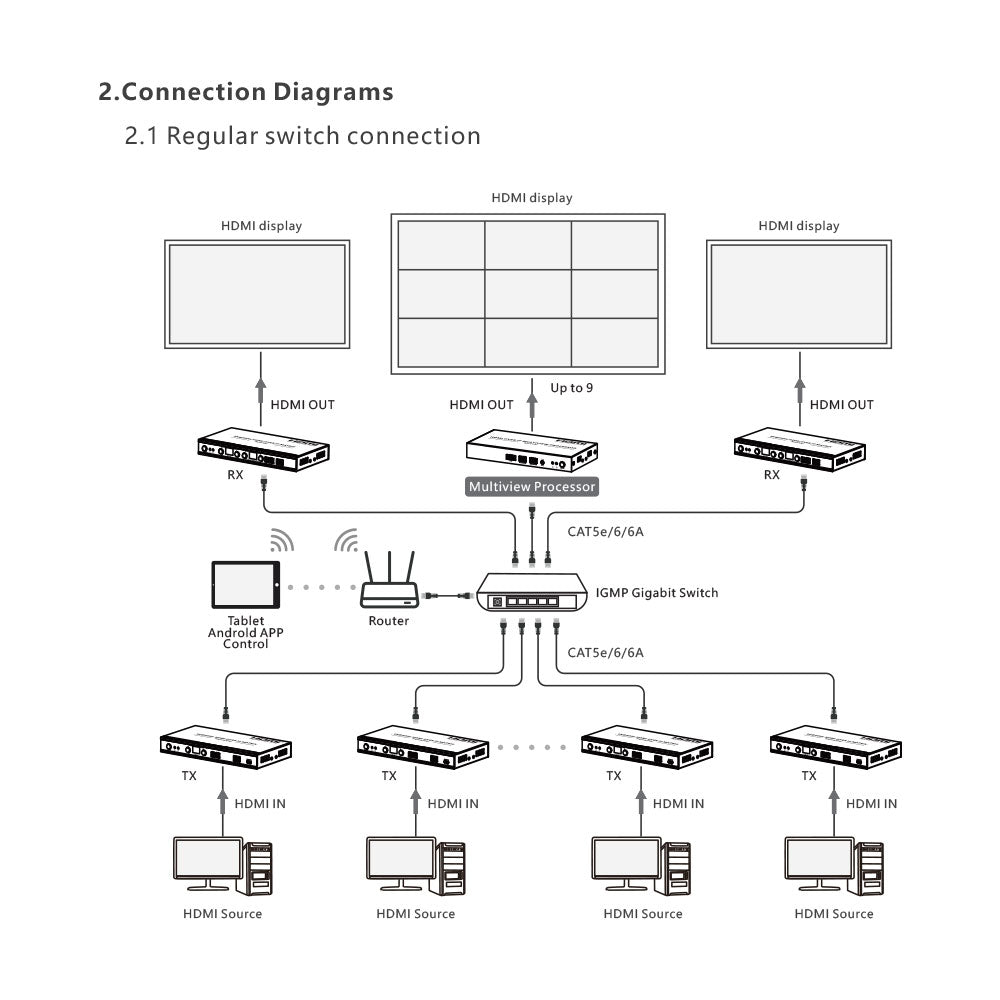

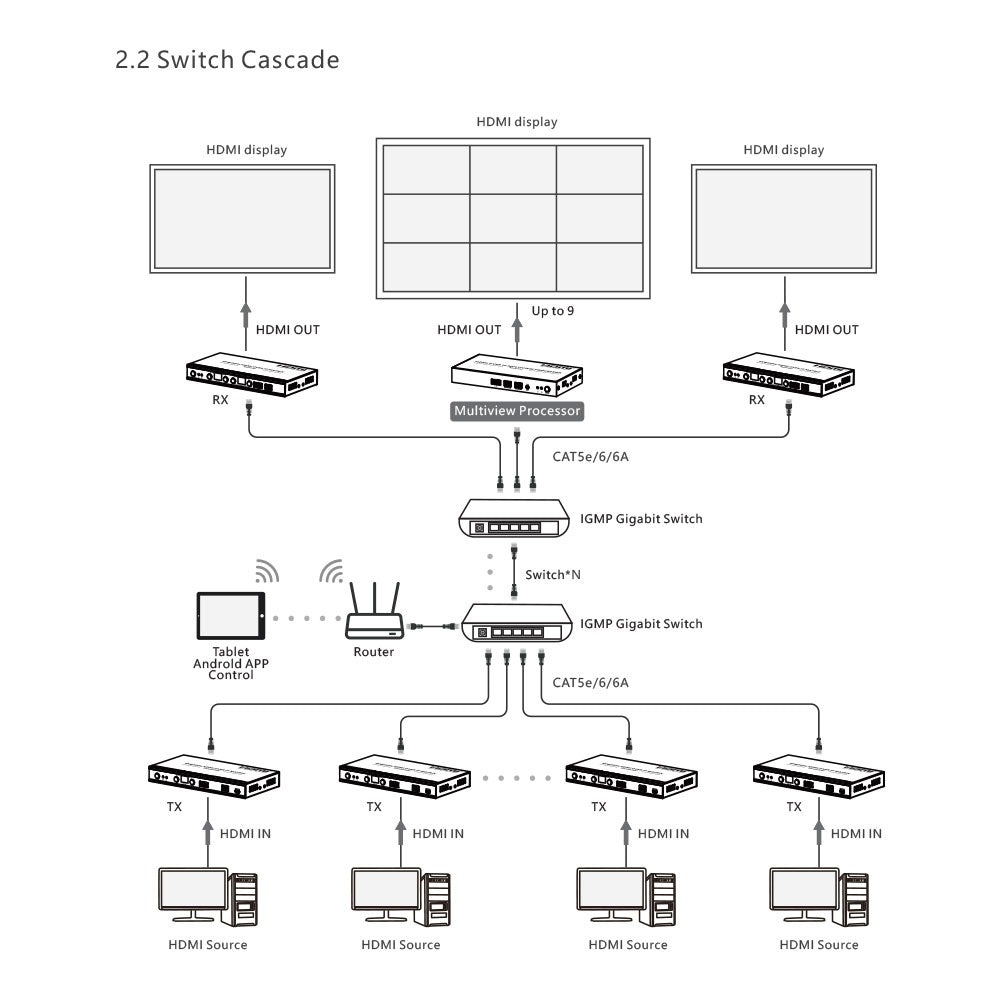

- Connection Types: Regular Switch Connection, Switch Cascade
- Transmission Distance: CAT6 / CAT6A / CAT7 ≤120m
- Transmission Latency: 180~250ms
- HDMI Output: LPCM 2.0
- 3.5mm Audio Format: LPCM 2.0
- IR Frequency: 20~60kHz
- RS232 / RS485 Baud Rates: 2400 to 115200 (Default 115200)
- I/O: Output Control Instructions Supported
- Power Supply: DC 5V 2A
- Power Consumption: ≤8W
- Working Temperature: -20~60°C
- Storage Temperature: -30~70°C
- Humidity: 0~90% RH (Non-Condensing)
- Housing: Metal
- Dimensions (L × W × H): 191 × 96 × 25mm
- Weight: 518g
- Color: Black
- Protection: ESD Protection, Lightning Protection, Surge Protection (Contact Discharge Level 2, Air Discharge Level 3,
IEC61000-4-2 Standard)
