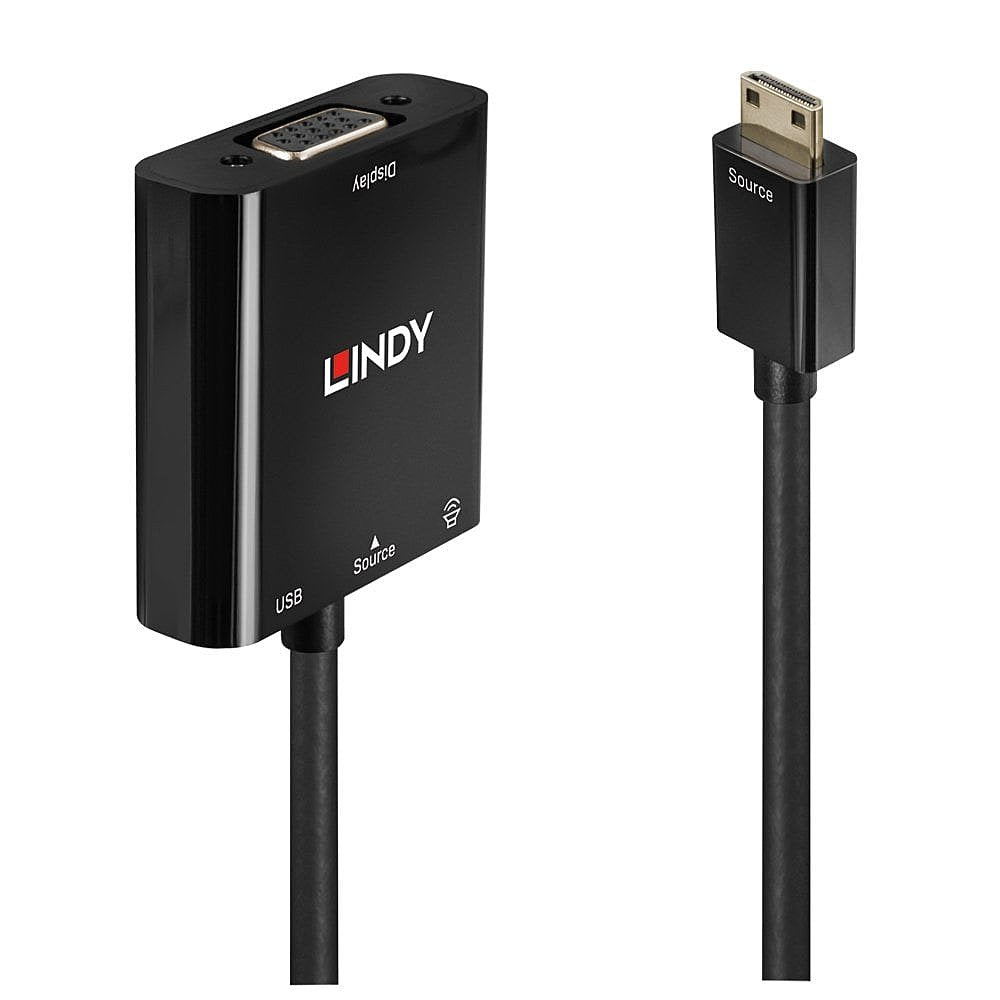

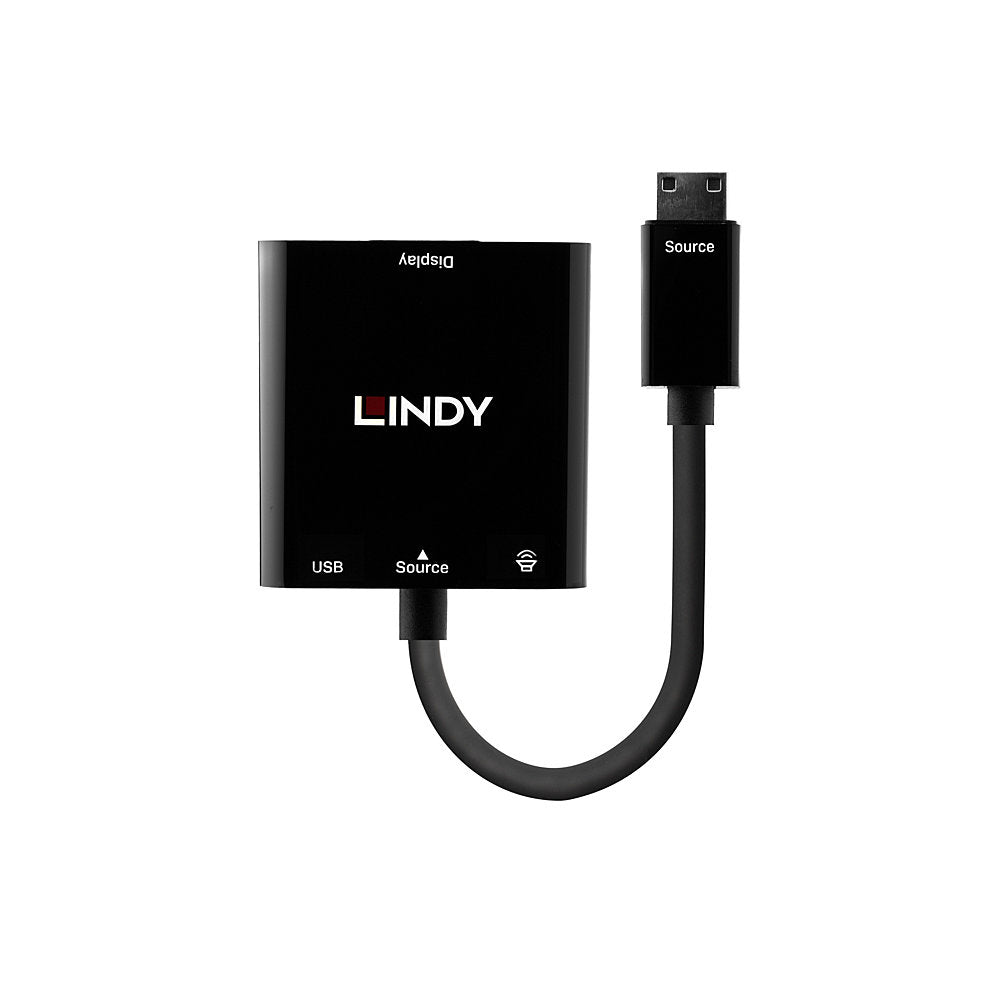

Lindy Mini HDMI to VGA Converter (38286)
Connects a Mini HDMI source to a VGA display and audio device
Features
- Connects an Mini HDMI equipped device to a VGA display and analogue speakers
- Supports resolutions up to 1920×1200 including 1080p
- Direct signal conversion, without scaling
- Compact dimensions for easy installation and use
Specifications
- AV Interface: HDMI to VGA and 3.5mm Stereo Audio
- Interface Standard: HDMI 1.3, VGA
- Supported Bandwidth: 180MHz
- Maximum Input Resolution: 1920×1200
- Maximum Output Resolution: 1920×1200 @60Hz
- Chipset: Algoltek AG6200A
- Supported Audio: Pass-Through
- Separate Audio Ports: 3.5mm Stereo Audio Socket
- Special Features: USB Micro-B Socket for Power
Connectors
- Input: Mini HDMI Type-C Male, USB Micro-B Female (Power)
- Output: VGA Female, 3.5mm Stereo Audio Female
Physical Properties
- Dimensions (Approx.) W × D × H: VGA: 45 × 43 × 14.5mm, Mini HDMI: 21 × 14 × 7.8mm
- Cable Length: 100mm
- Housing Material: ABS
- Jacket Material: PVC
- Jacket Diameter: 4.8mm
- Net Weight: 0.029kg
- Operating Temperature: 0~70°C
- Storage Temperature: -10~80°C
- Humidity: 5~95% RH (Non-Condensing)
- Colour: Black
Miscellaneous
- Packaging Type: Polybag
- Packaging Dimensions: 160 × 160 × 20mm
- Gross Weight: 0.039kg
- Product Compliance: CE, FCC, RoHS and REACH
