LENKENG LKV862 1×4 8K HDMI 2.1 VRR Splitter with Dolby Vision
Elevate Your AV Game - 8K, 4K, VRR and Dolby Vision in One Sleek Box.

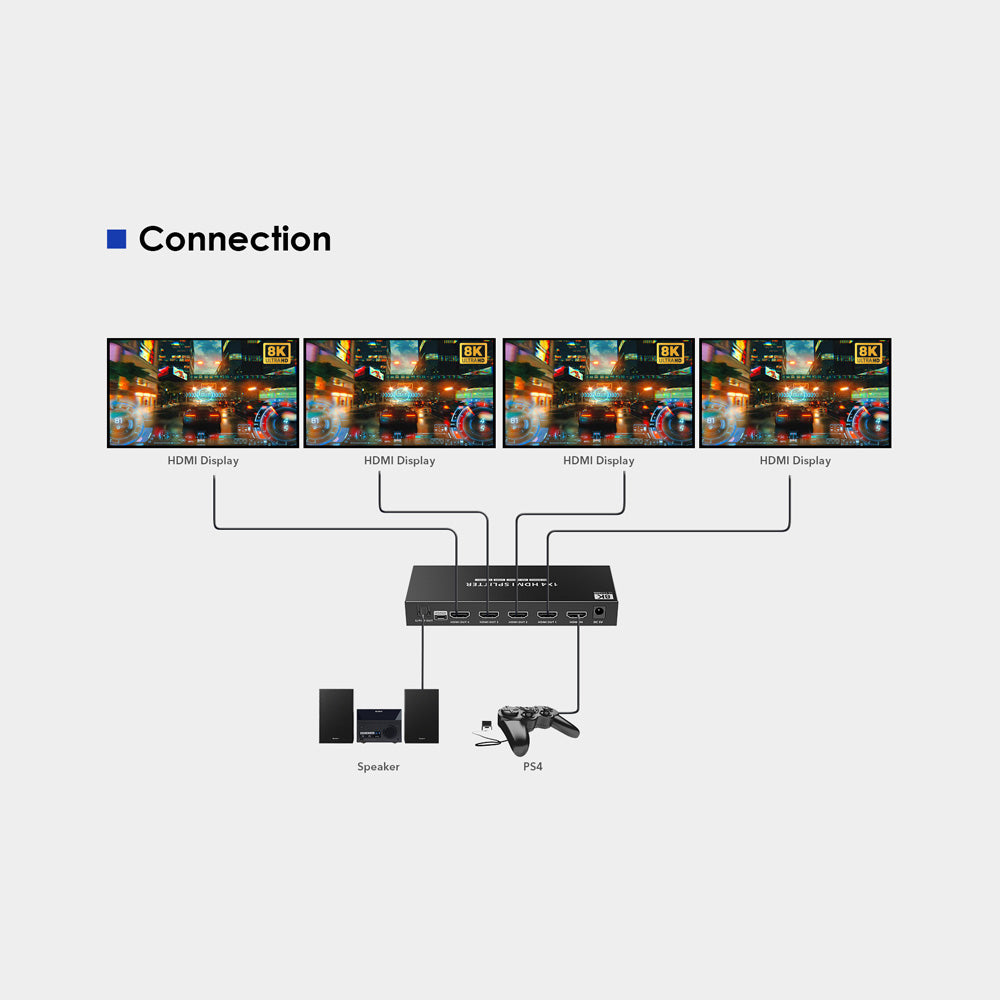

This splitter delivers stunning 8K @60Hz or 4K @120Hz, with full support for VRR (FreeSync and G‑Sync) and Dolby Vision / HDR10+ for crystal‑clear motion, deep contrast and vibrant colours. Duplicate that premium signal instantly - send one source to four displays with zero compromise on quality. Ready for gaming, home theatre or high‑end streaming setups, it’s the plug‑and‑play hero every modern AV system needs.
Features
- 8K @60Hz and 4K @120Hz
- Free Sync and G-Sync VRR (Variable Refresh Rate)
- HDR10+
- S/PDIF Out
- IR Passback Function
- EDID Management
Specifications

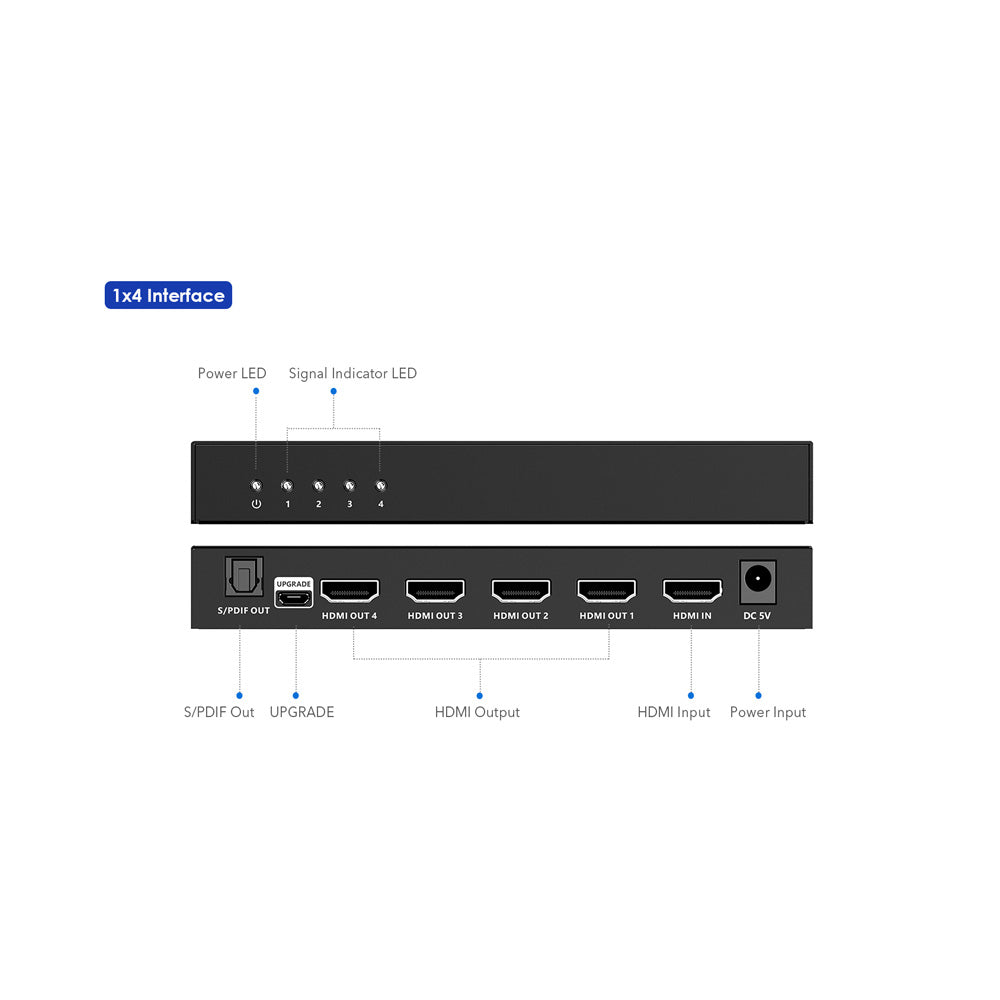

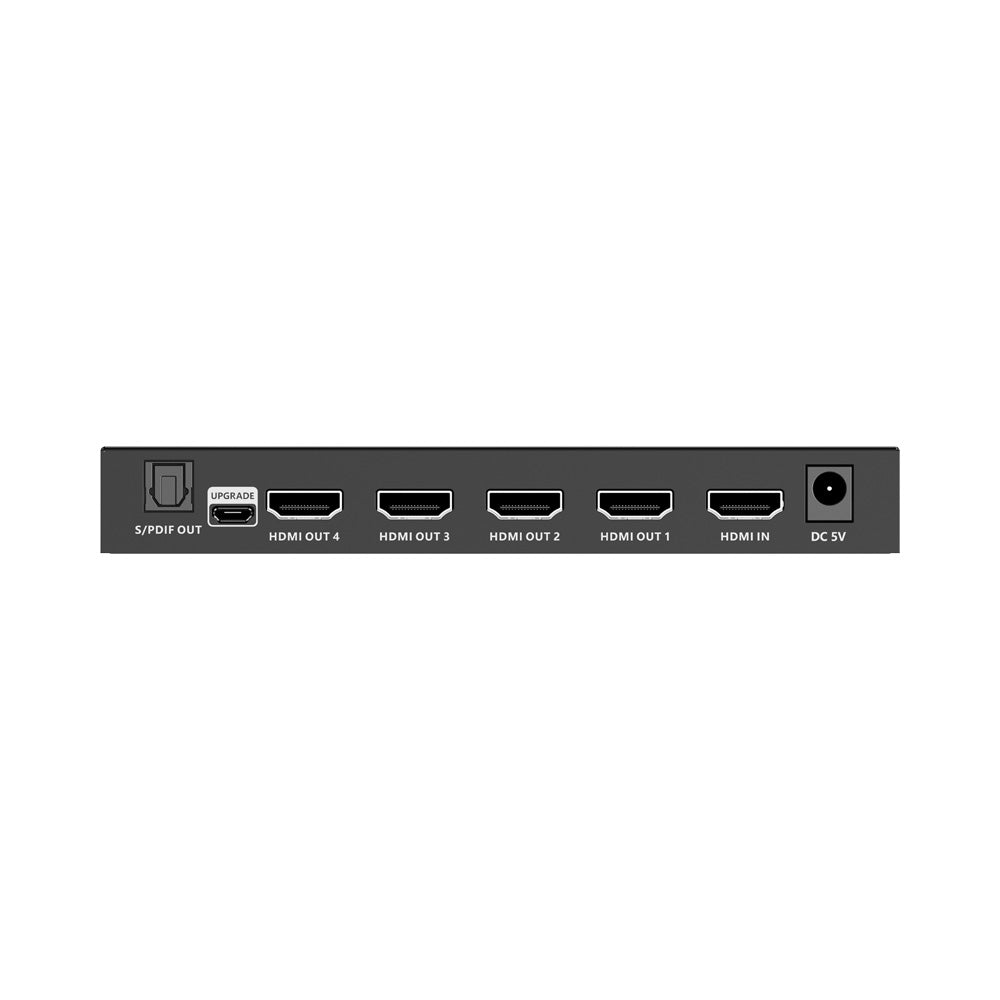

- HDMI Input: 1× HDMI
- HDMI Output: 4× HDMI
- Compatibility: HDMI 2.1, HDMI 2.0, HDMI 1.4; HDCP 2.3, HDCP 2.2, HDCP 1.4
- Maximum Transmission Rate: 48Gbps
- Supported Resolutions: 7680×4320 @24/25/30/50/60Hz, 3840×2160 @24/25/30/50/60/120Hz, 1080p @24/25/30/50/60/120Hz, 720p @50/60/100/120Hz
- Video Signal Features: EDID Passthrough, Auto Downscaling, HDR10 / HDR10+ / Dolby Vision, HDMI 3D, HDMI CEC, VRR (FreeSync / G‑Sync)
- Audio Output: S/PDIF Output and HDMI Output - Supports Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD, LPCM 7.1CH, Dolby Digital 7.1CH, etc.
- Power Supply: DC 5V 2A
- Power Consumption: <6W
- Operating Temperature: –20~60°C
- Storage Temperature: –30~70°C
- Humidity Range: 0~90% RH (Non‑Condensing)
- Housing Material: Metal
- Colour: Black
- Dimensions (L × W × H): 160 × 58 × 16.5mm
- Weight: 252g
- Protection: ESD Protection (Contact Discharge ±4kV, Air Discharge ±8kV, Implementation of the Standard IEC 61000‑4-2), Lightning Protection, Surge Protection
