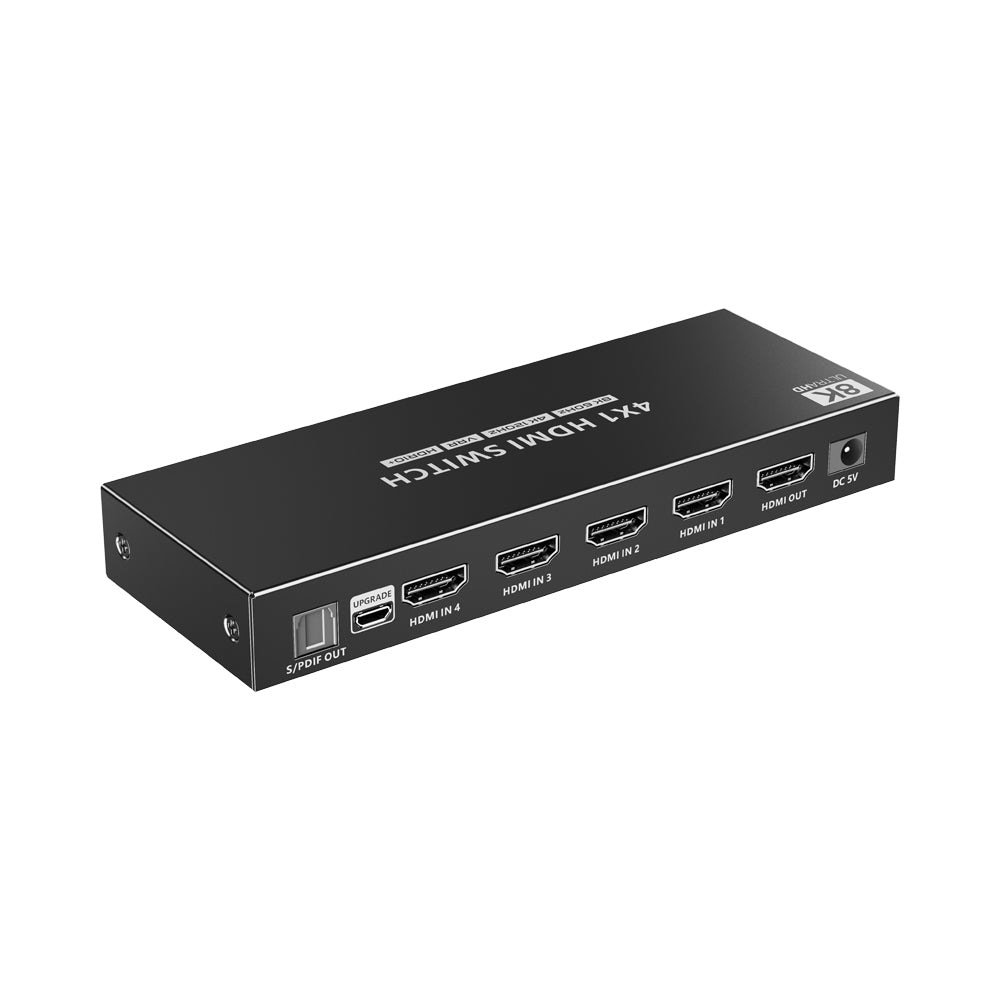

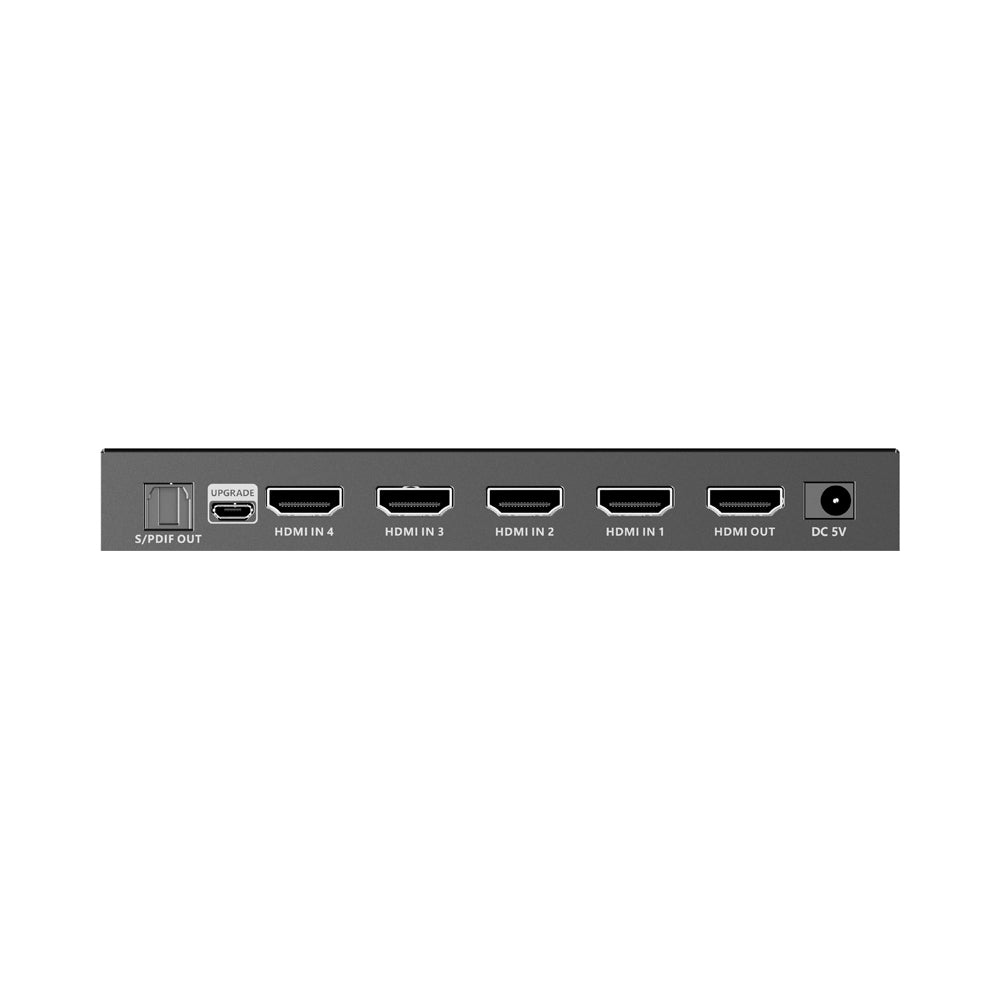

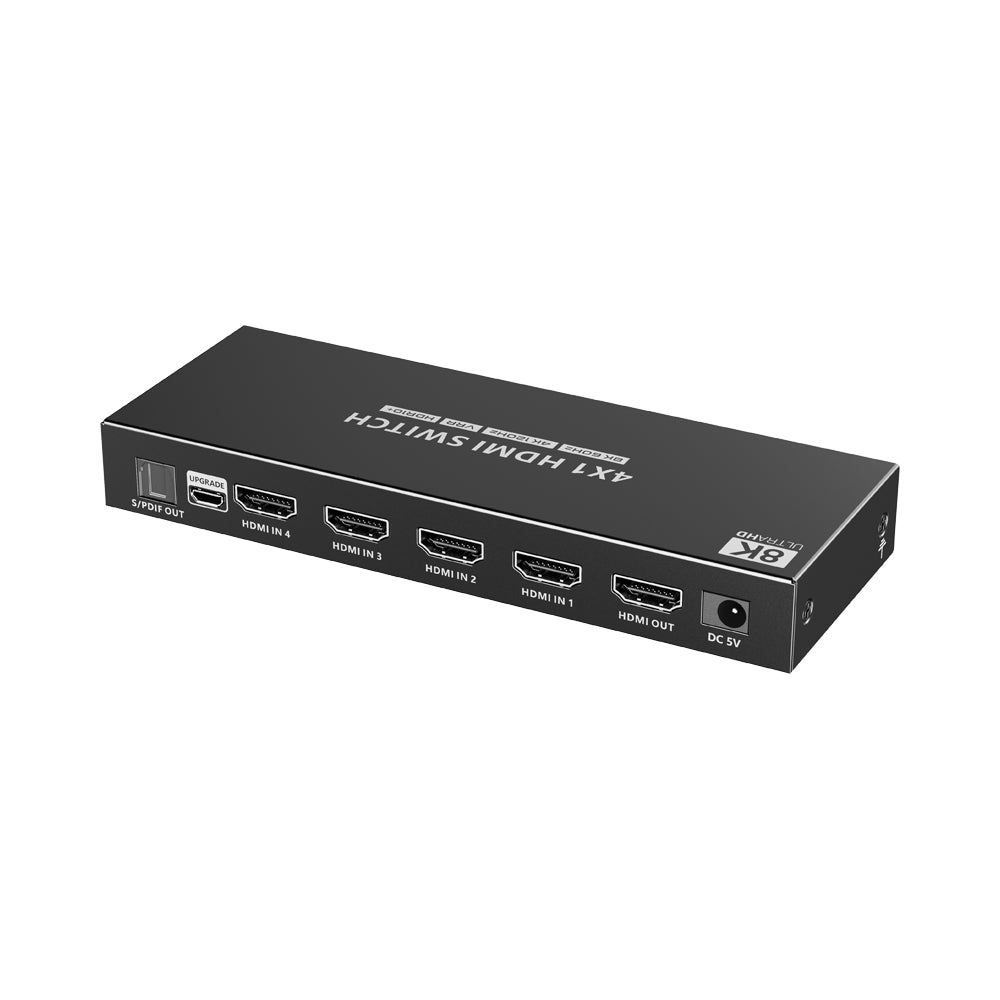

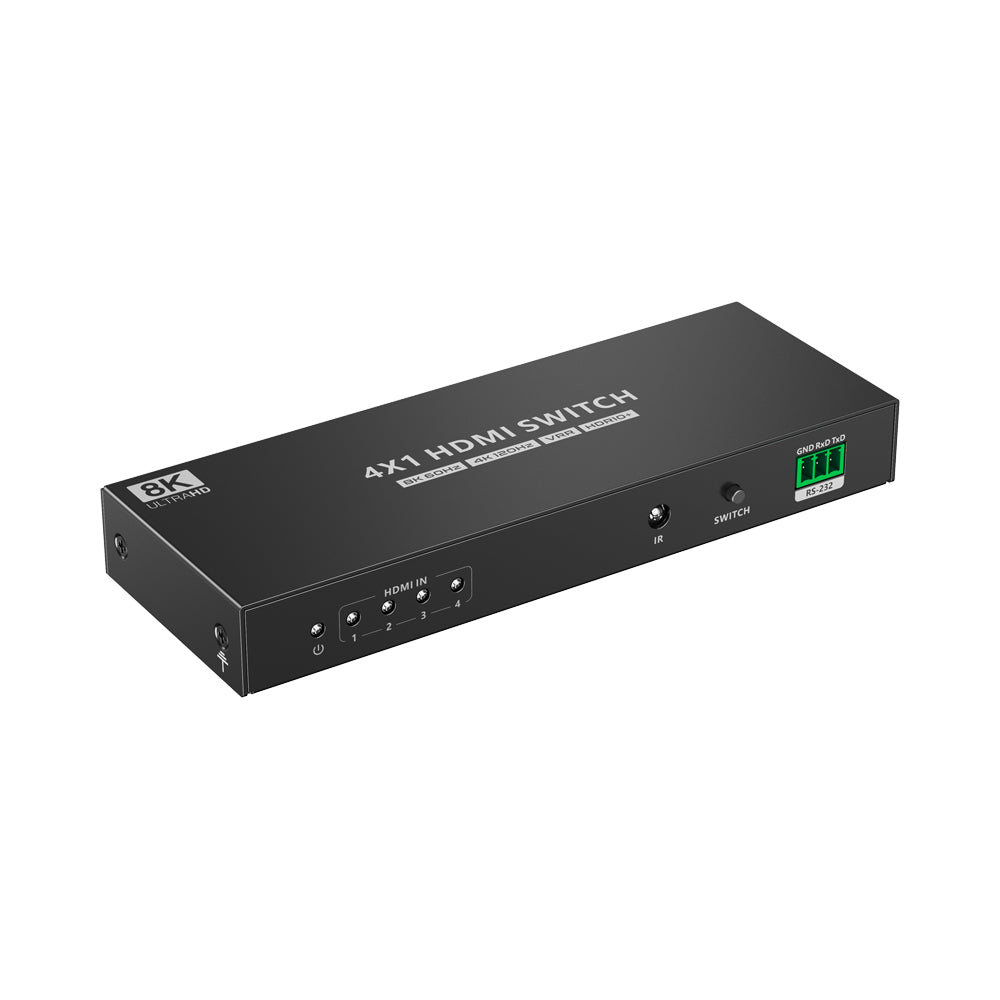

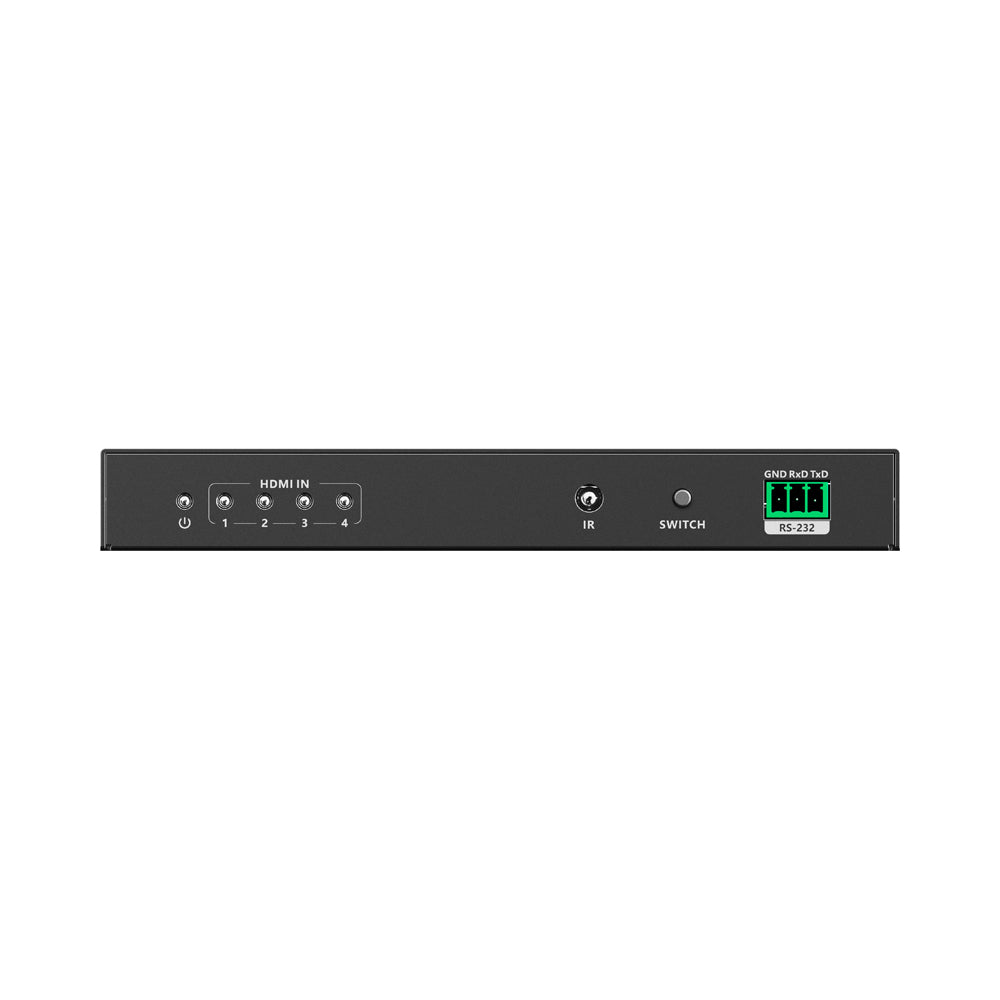

Lenkeng LKV841 8K @60Hz 4X1 HDMI Switch

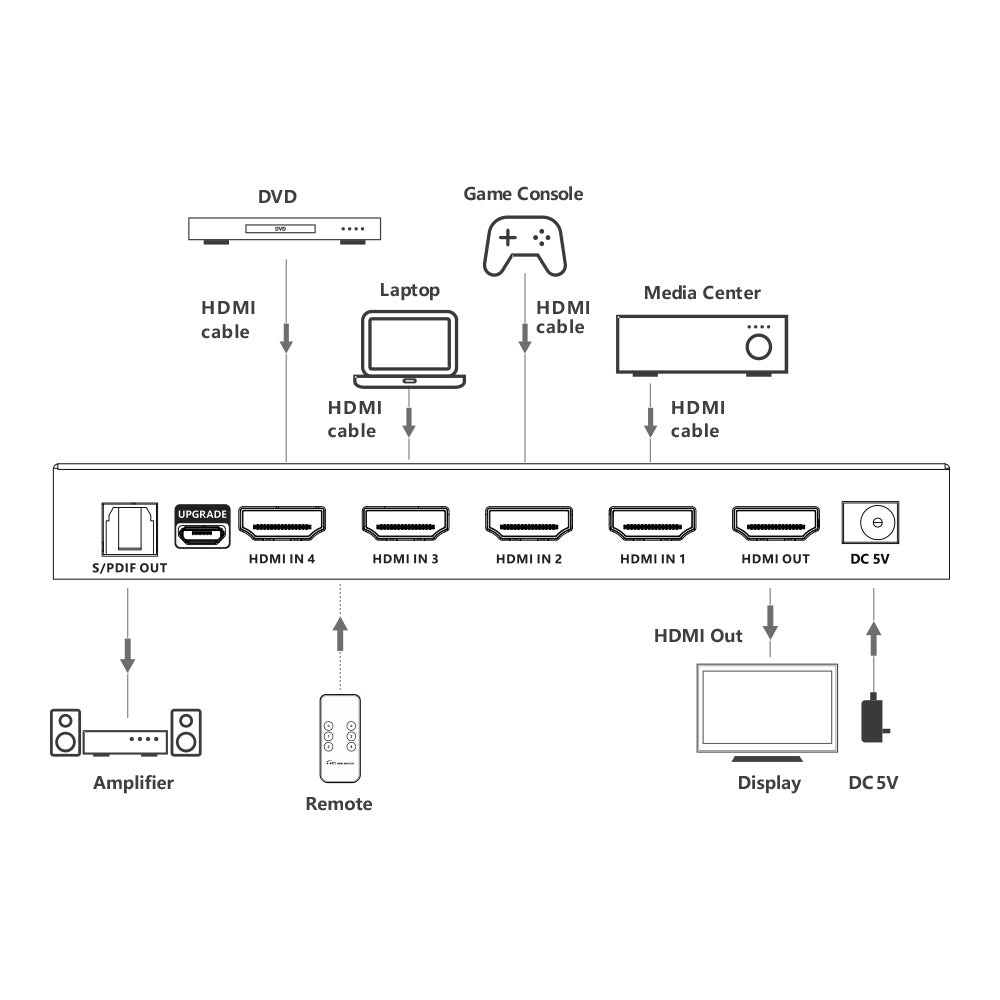

This is a 4-in-1-out 8K switch. It supports 4 HDMI signal inputs and 1 HDMI signal output, the highest resolution is 8K @60Hz and is backward compatible. A variety of control methods (IR remote control and RS-232 switch) can easily switch the content of the 4 HDMI signal sources to the display. The product is widely used in security monitoring, media entertainment, broadcasting, command centers, etc
Specifications
- HDMI Version: Support HDMI 2.1 (Backward Compatible), Support HDCP 2.3 (Backward Compatible)
- HDMI Ports: 4x HDMI Input and x1 HDMI Output
- Transmission Speed: 48Gbps
- Video Bandwidth: 1200MHz
- HDMI Resolution: 7680x4320@24/25/30/50/60Hz, 4096x2160@24/25/30/50/60/100/120Hz, 3840x2160@24/25/30/50/60/100/120Hz, 3440x1600@60Hz, 3440x1440@60Hz, 2560x1600@60Hz, 2560x1440@60/100/120Hz, 2560x1080@60Hz, 2048x1080@60Hz, 1920x1440@60/100/120Hz, 1080p@50/60/100/120Hz, 1080i@50/60Hz, 720p@50/60Hz
- S/PDIF Output: Dolby Atmos, Dolby True HD, DTS:X, DTS-HD, etc.
- HDMI Output: Dolby Atmos, Dolby Digital 7.1CH, Dolby True HD, DTS:X, DTS-HD, LPCM 7.1CH
- RS-232: 3-Pin (GND/RxD/TxD) , Baud Rate 9600
- Voltage/Current: DC5V/1A
- Power consumption: < 2.0W
- Working Temperature: -20°C~60°C
- Storage Temperature: -30°C~70°C
- Humidity (No Condensation): 0~90%RH
- Housing: Metal
- Colour: Black
- Weight: 275g
- Dimension (L x W x H): 160.0 x 58.0 x 20.6mm
- Protection: ESD Protection, 1a Contact Discharge level 2, 1b Air Discharge level 3 Implementation of the standard: IEC61000-4-2, Lightning protection, Surge protection
