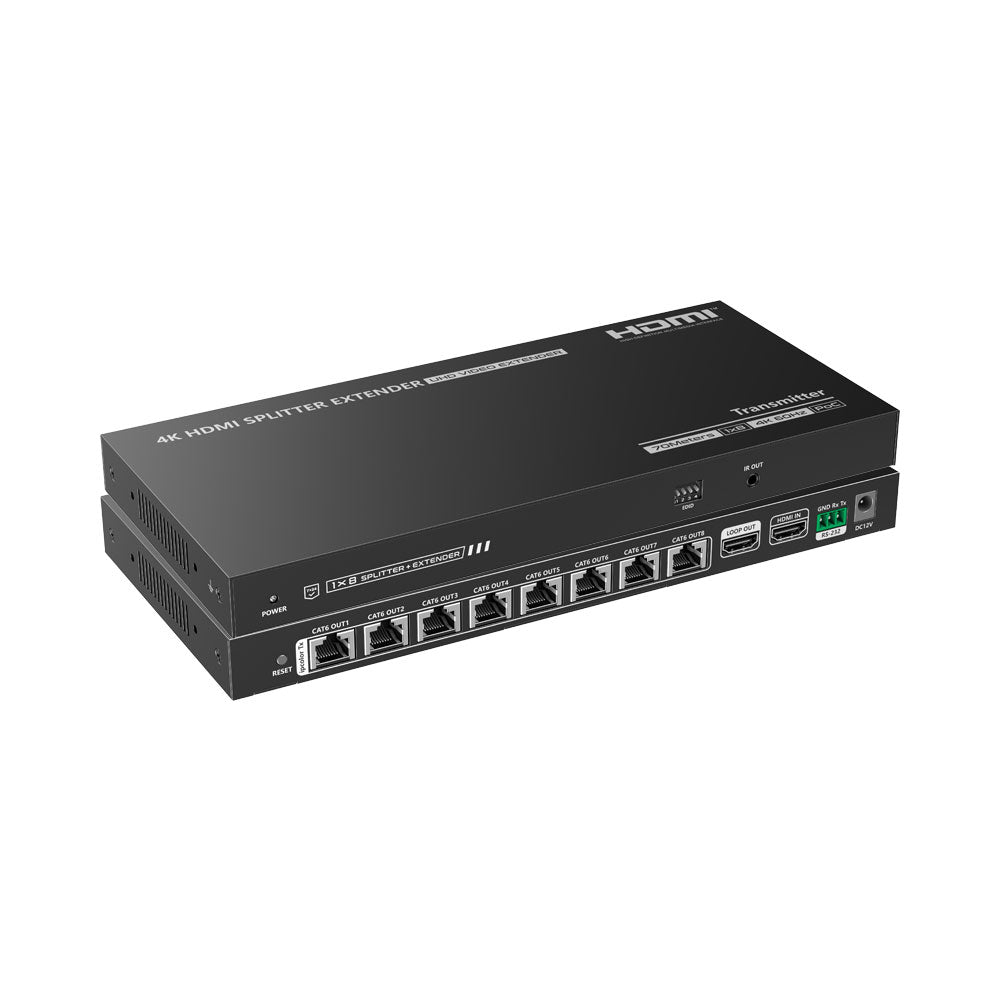

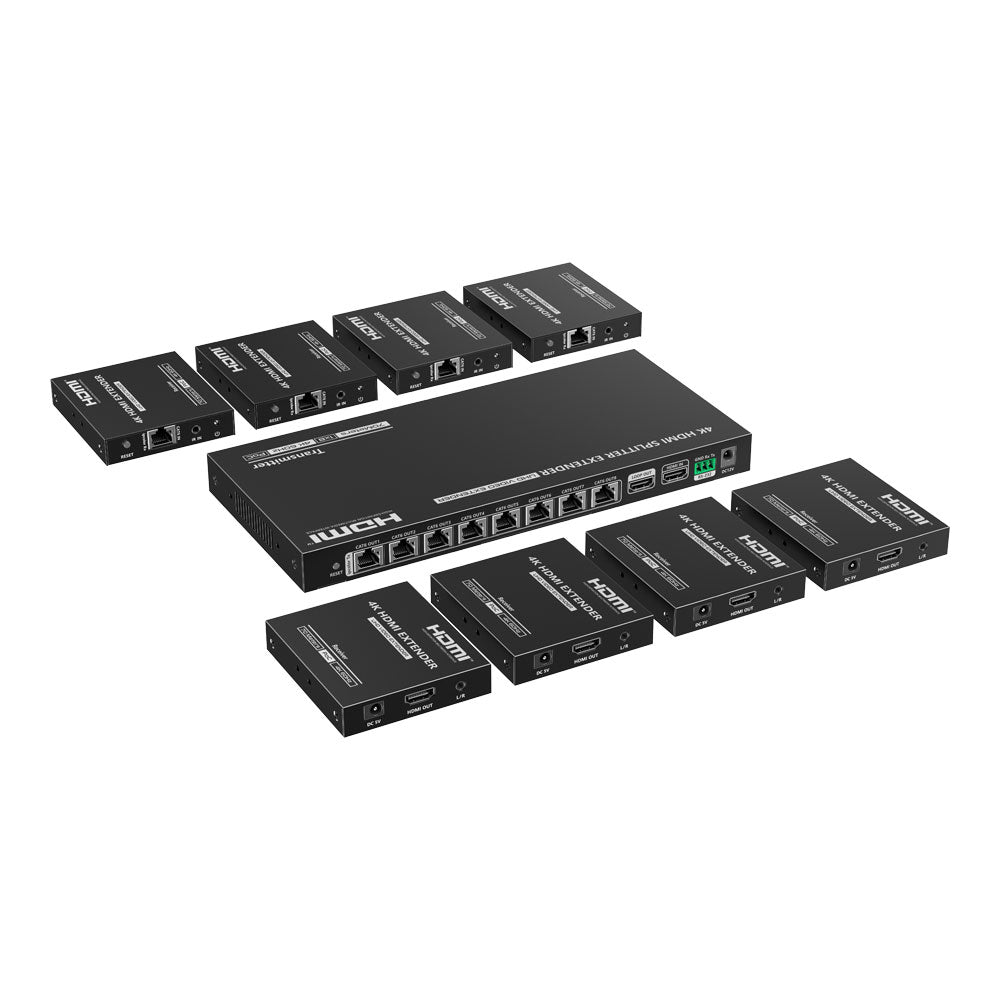

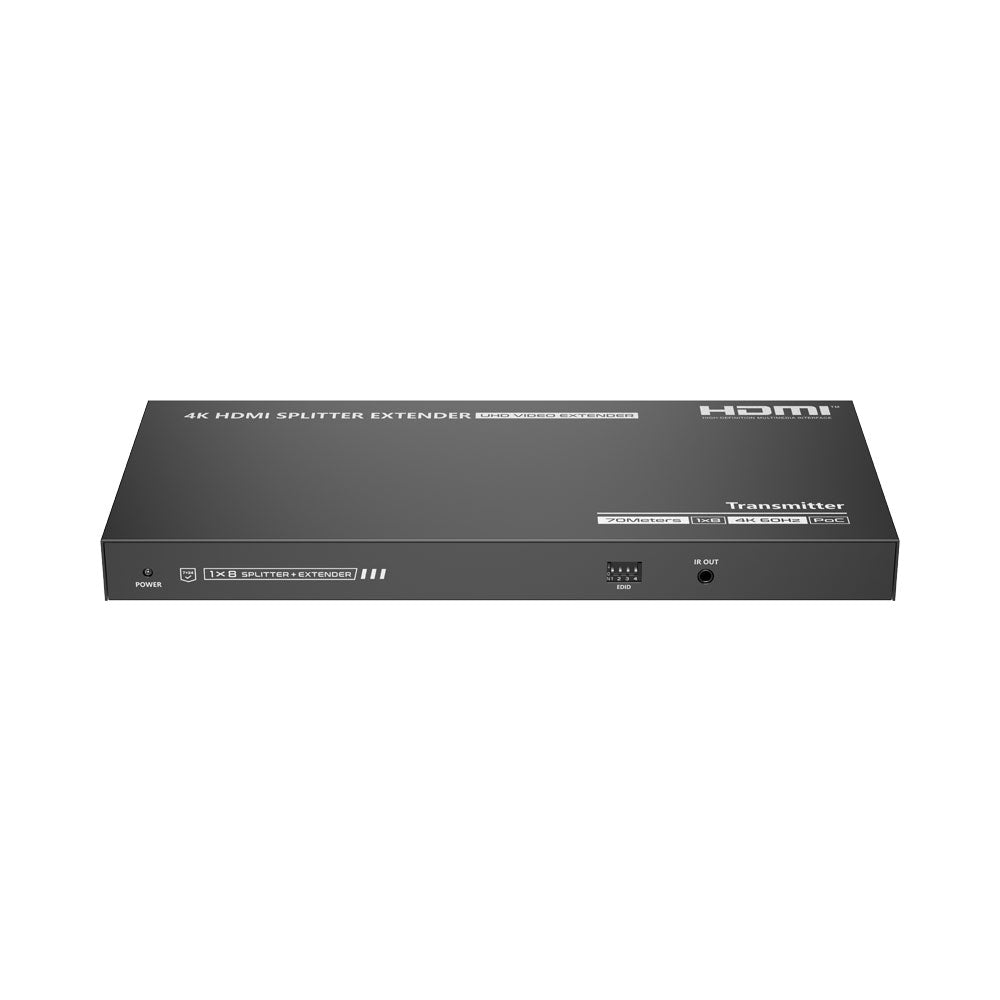

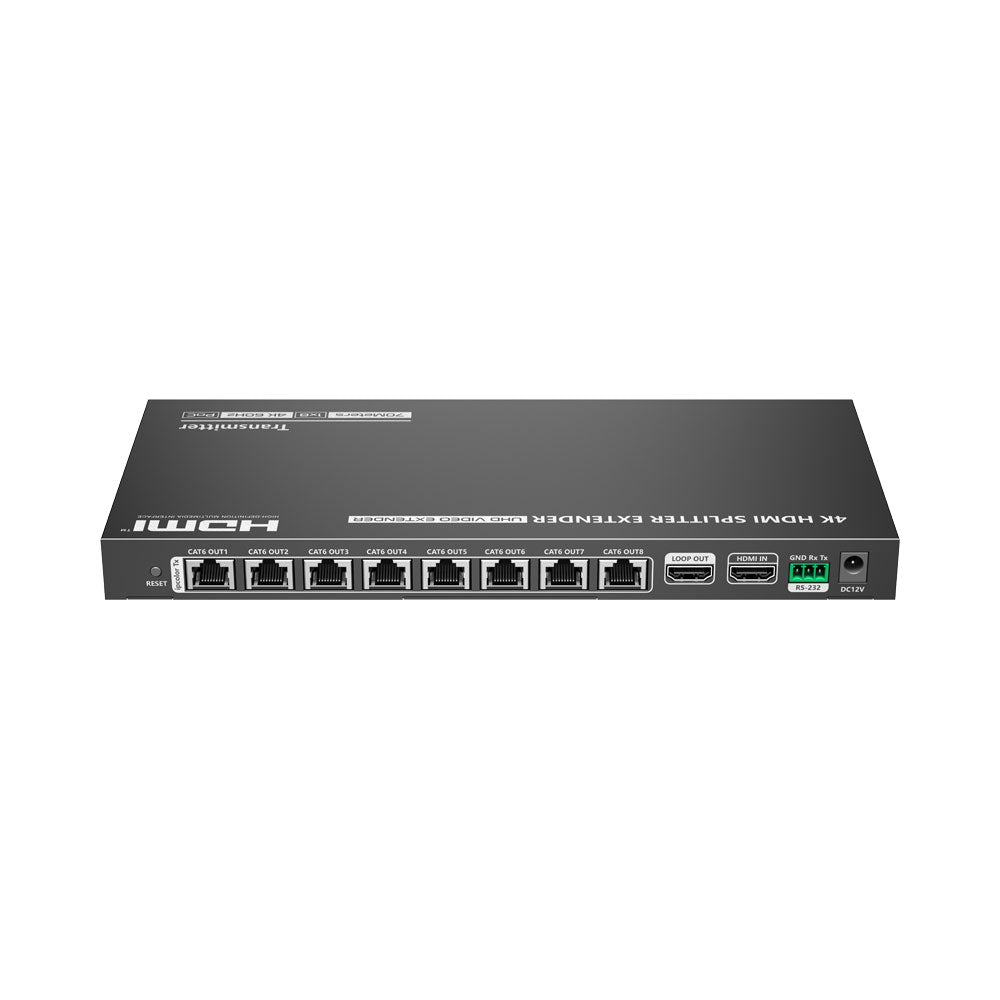

LENKENG LKV828P-N 70m 4K @60Hz HDMI 1×8 Splitter Extender
One Input. Eight Displays. Zero Compromise.
The LENKENG LKV828P-N turns one HDMI source into eight identical 4K @60Hz streams, extending them to up to 70m over a single CAT6/6A/7 cable with zero-latency transmission. With features like IR passback, HDMI loop-out, RS232 control, EDID switching, and PoC power, it’s the powerhouse solution for digital signage, classrooms, security centers and AV command setups. Built tough with surge, lightning and ESD protection and ready for 24/7 operation - distribute like a pro.
Features
- Zero Latency Transmission

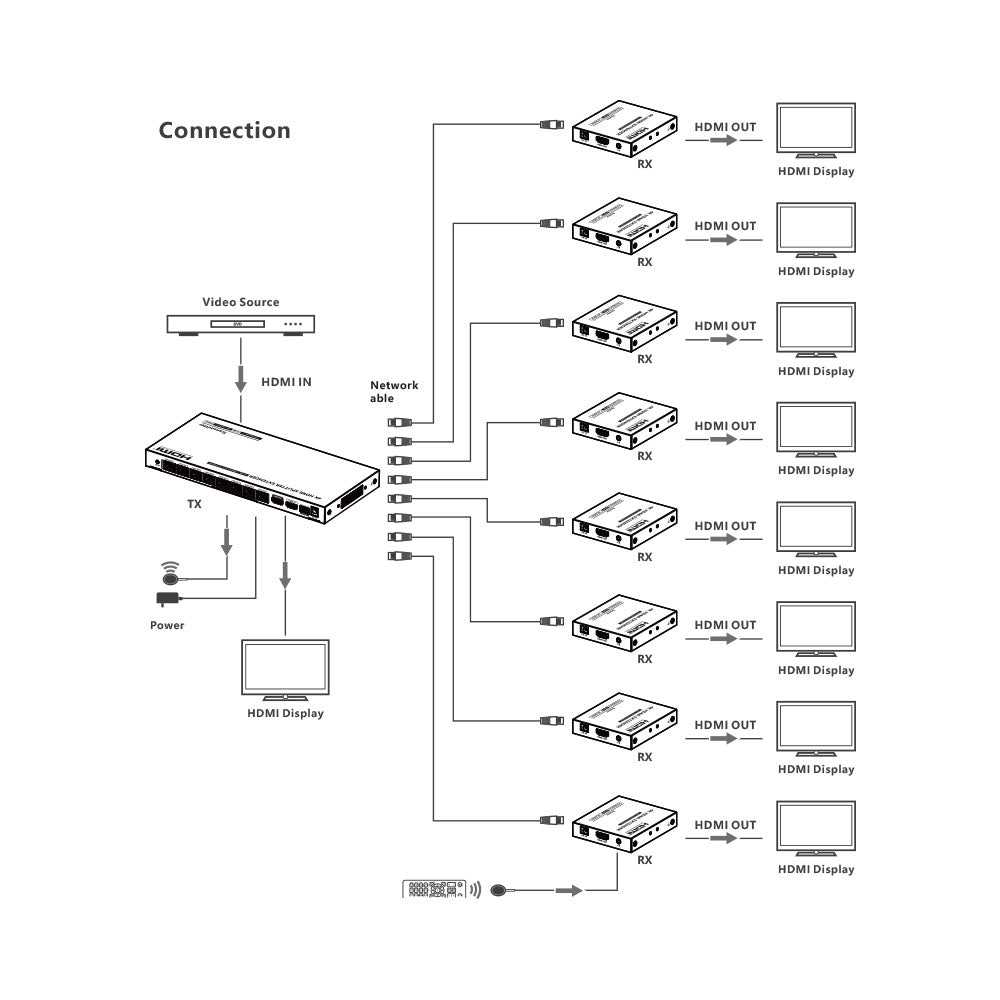

- Split and Extend One HDMI Input Signal to Eight Identical Network Output Signals
- Supports up to 4K @60Hz Resolution
- Transmission Distance up to 70m over CAT6/6A/7 Cables
- Supports IR Passback (20~60kHz)

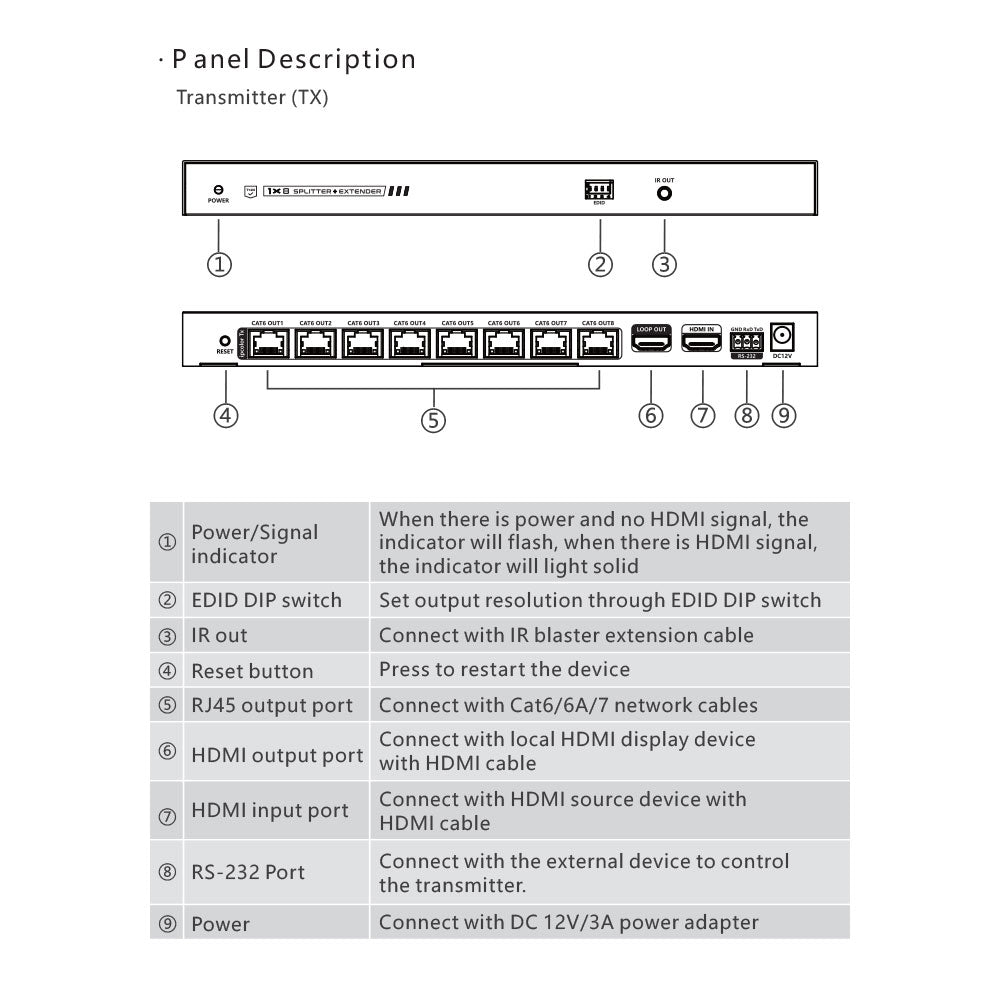

- The Transmitter Supports HDMI Loop-Out

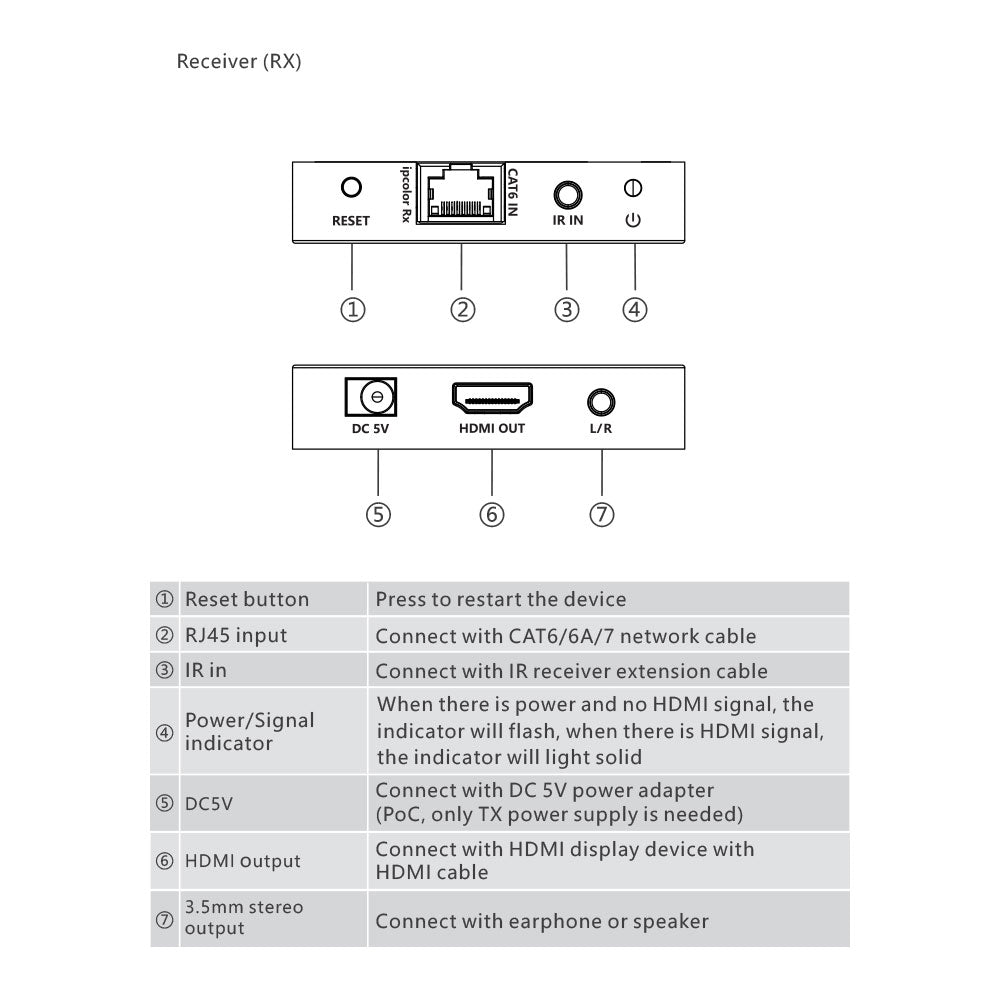

- The Receiver Supports 3.5mm Stereo Output
- EDID Switch for Setting
- RS232 Command Control
- Surge, Lightning and ESD Protection
- Equipped With Rack Mount Ears
- Supports PoC, Only the Transmitter is Required to Supply Power
Specifications
- Transmission Protocol: ipcolor
- Distribution Mode: 1-In and 8-Out
- Transmission Distance: up to 70m via CAT6/6A/7 Cable
- HDMI Signal: HDMI 2.0, HDCP 2.2
- Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz,
1280×960, 1280×800, 1280×1024, 1680×1050, 1600×1200, 1600×900, 1024×768, 800×600, 1920×1200, 3840×2160 @24/25/30/50/60Hz,
4096×2160 @24/25/30Hz
- Audio Formats: LPCM, DTS, Dolby Digital 5.1 (4K) and Extended Formats for 1080p
- IR Support: IR Passback Function (20~60kHz)
- RS232 Control: 3-Pin (TxD, RxD, GND), Follows RS-232 Levels
- Working Temperature: -20~60°C
- Storage Temperature: -30~70°C
- Humidity: 0~90% RH (Non-Condensing)
- Protection: ESD Protection, Lightning Protection, Surge Protection
- Power Supply: Transmitter DC 12V 3A
- Power Consumption: Transmitter and Receiver <24W
- Material: Metal
- Colour: Black
- Weight: Transmitter 778g, Receiver 145g
- Dimensions: Transmitter 265 × 120 × 23mm, Receiver 85 × 75.5 × 16.5mm
