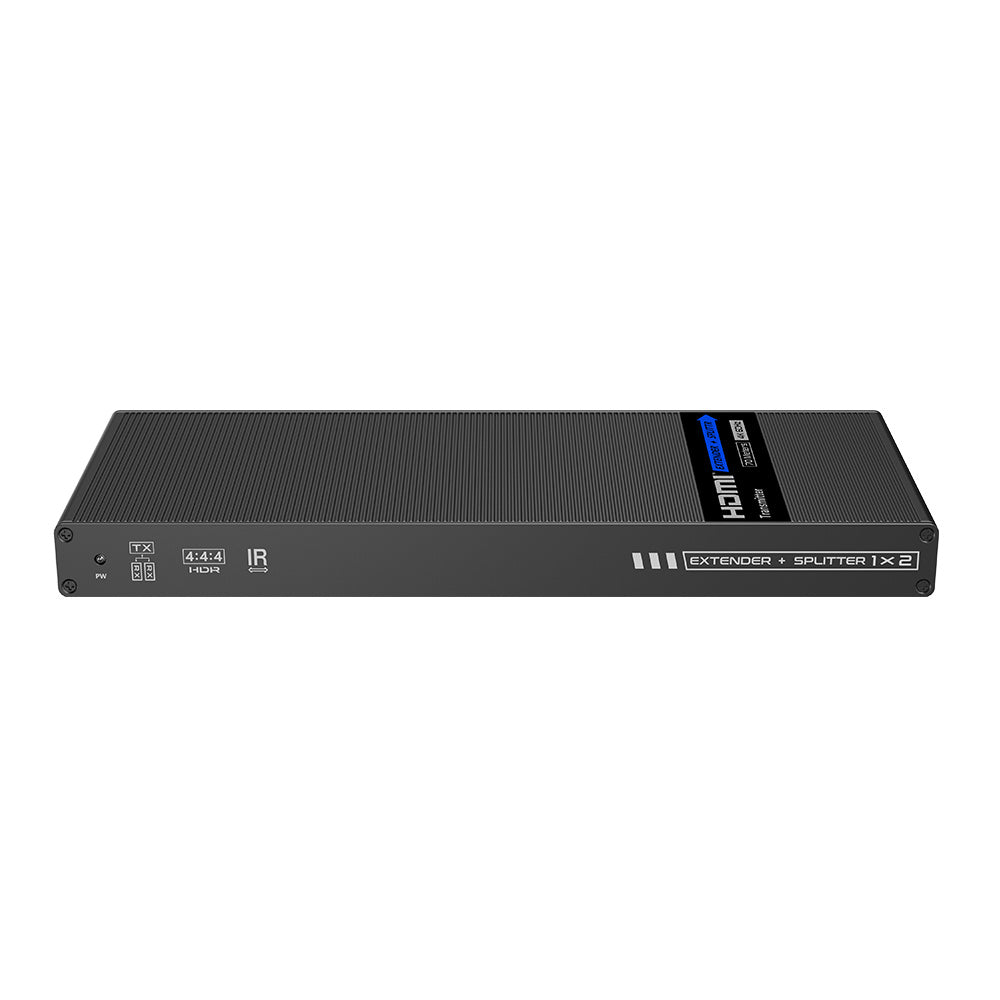

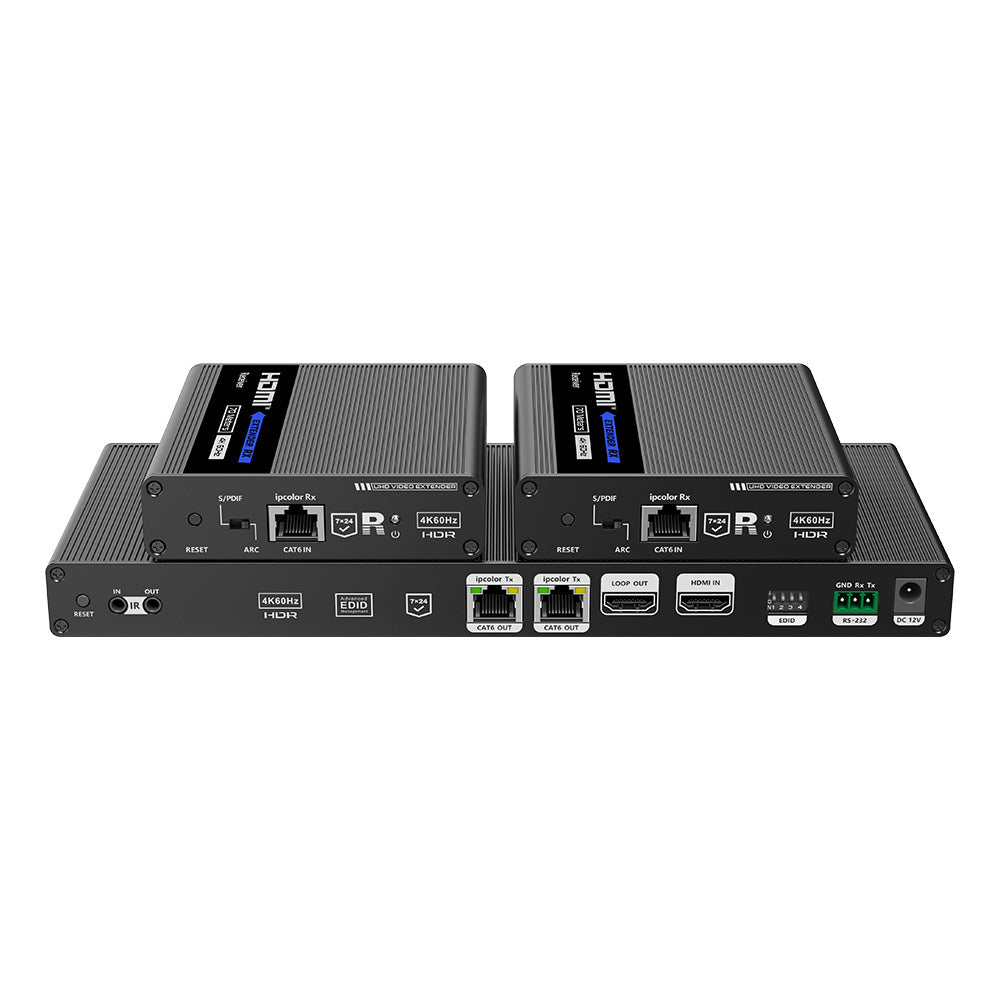

LENKENG LKV822 70m 4K HDMI HDR 1×2 Splitter Extender over CAT6 Cable with EDID and ipcolor PIXEL
Multiply and extend your signal - without compromise.
This 1×2 HDMI Splitter Extender turns a single HDMI source into two Full HD (up to 4K) streams over a single CAT6/6A/7 cable, sending crisp audio/video up to 70m away. Perfect for display walls, classrooms, boardrooms or signage setups, it offers zero‑latency, plug‑and‑play performance, IR / RS232 control and EDID plus HDR support - delivering reliable, seamless viewing where you need it.
Features
- 1-In and 2-Out
- Zero-Latency
- Distance up to 70m - 4K @60Hz HDR
- HDMI Loop-Out
- RS232 Control
- Bi-Directional IR Passback Function
- S/PDIF
Specifications
- Transmission Protocol: ipcolor
- Distribution Mode: 1-In, 2-Out
- Transmission Distance: CAT6/6A/7 ≤70m
- HDMI Signal: HDMI 2.0, HDCP 2.2
- HDMI Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3840x2160 @24/25/30/50/60Hz, 4096x2160 @24/25Hz
- Audio Formats: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1
- IR: Bi-Directional IR Passback (20~60khz)
- RS232: 3-Pin (GND-RxD-TxD) Follows RS232 Levels
- Working Temperature: -20~60°C
- Storage Temperature: -30~70°C
- Humidity (No Condensation): 0~90% RH
- Protection: ESD Protection, 1a Contact Discharge Level 3, 1b Air Discharge Level 3, Implementation of the standard IEC61000-4-2, Lightning Protection, Surge Protection
- Power Supply: TX DC 12V 2A, RX DC 5V 2A
- Power Consumption: TX <9W, RX <4W
- Material: Aluminium-Alloy Material plus Crystal Panel
- Colour: Black
- Weight: TX 640g, RX210g
- Dimensions (L × W × H): TX 264 × 104 × 23.50mm, RX 106 × 99 × 26.2mm
