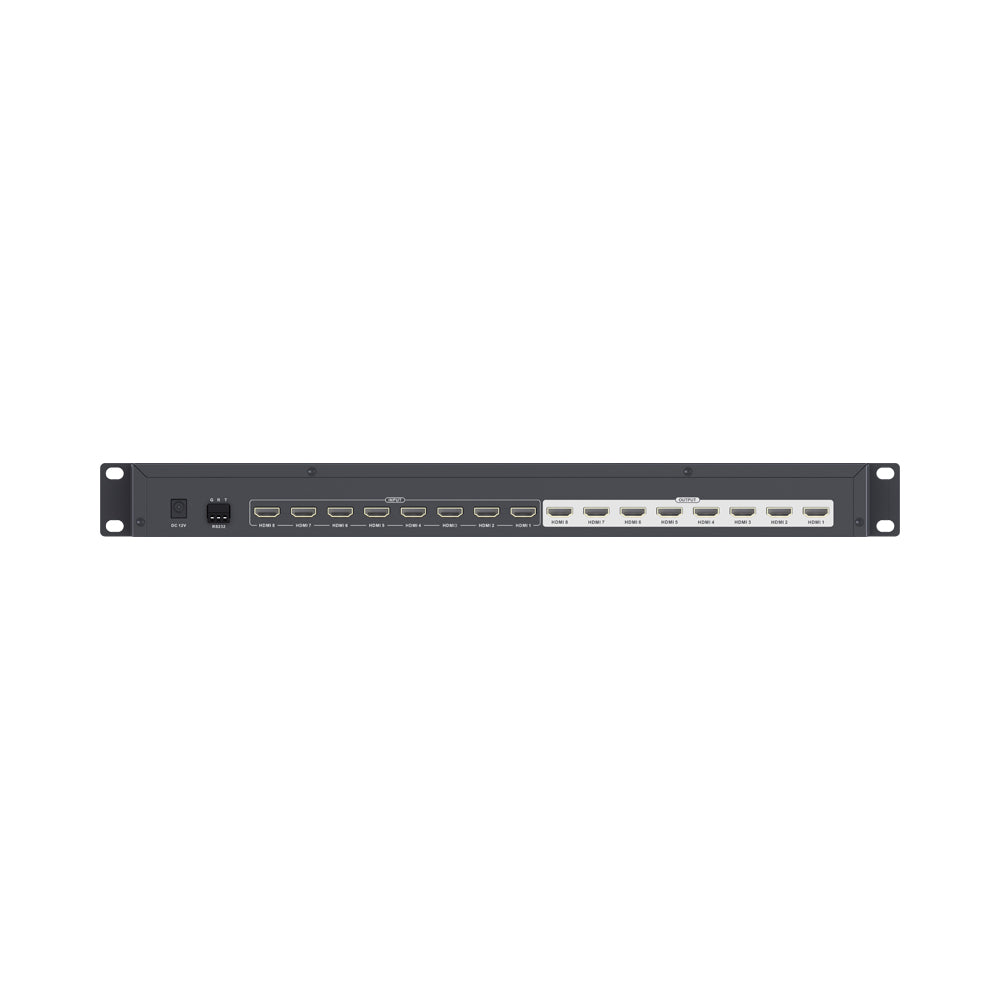

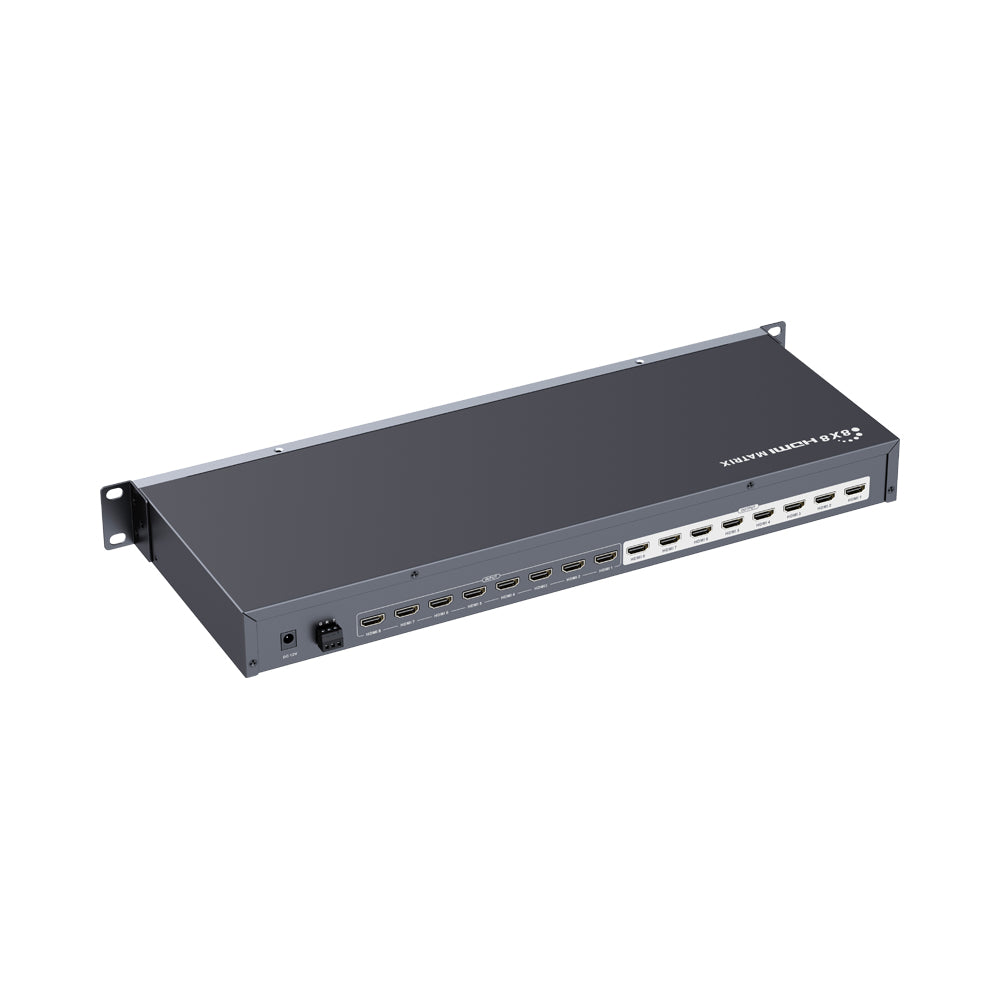

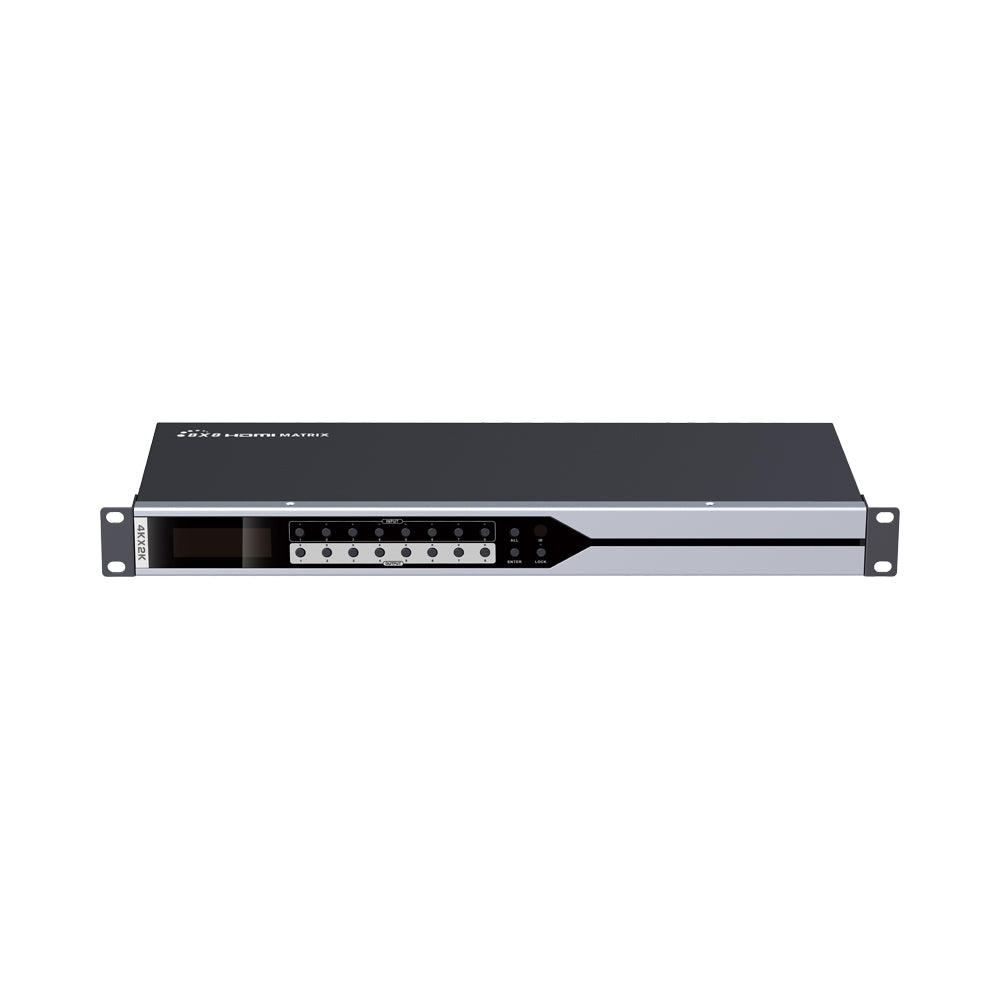

LENKENG LKV818 8×8 4K @30Hz HDMI Matrix Switch
Take control of your AV world.
This 8×8 HDMI Matrix Switch lets you connect up to 8× HD sources and send them to 8× displays simultaneously. Supporting 4K @30Hz, 3D, IR remote, RS232 and button control, it’s a plug‑and‑play powerhouse perfect for security systems, digital monitoring, schools, exhibitions, conferences and command centers. Pure hardware design ensures fast, reliable switching with zero hassle.
Features
- Connect up to 8× HDMI Sources and Output to 8× Displays Simultaneously
- Crystal-Clear 4K @30Hz Resolution
- Ultra-Fast 10.2Gbps Transmission Data Rate
- Easy IR Remote Control for Seamless Switching
- RS232 Control for Advanced Integration
- 3D Ready for Immersive Viewing
- Pure Hardware, Plug-and-Play Design - No Software Needed
- Quick Button Control for Effortless Input/Output Switching
Specifications
- HDMI Signal: HDMI 1.4, Fully Compatible with HDCP1.4
- Inputs: 8× HDMI
- Outputs: 8× HDMI
- Transmission Rate: 10.2Gbps
- Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60 Hz, 1080i @50/60Hz, 1080p @50/60 Hz, 4K @25/30Hz
- Supported Audio Formats: DTS-HD / Dolby-true HD / LPCM7.l / DTS / Dolby-AC3 / DSD
- YUV: 4:2:2
- Video Signal: 0.5~1.5Vp-p (TMDS)
- DDC Signal: 5Vp-p (TTL)
- Video Bandwidth: 340MHz
- HDMI Port: Type-A 19-pin, Female
- RS232: Serial Control
- Working Temperature: 0~60°C
- Working Humidity: 0~90% (No Condensation)
- Power Supply: DC12V 3A
- Power Consumption: 27W (Max.)
- Dimensions (L × W × H): 482.45 × 179.60 × 44.40mm
- Weight: 2.07kg
- Colour: Black
