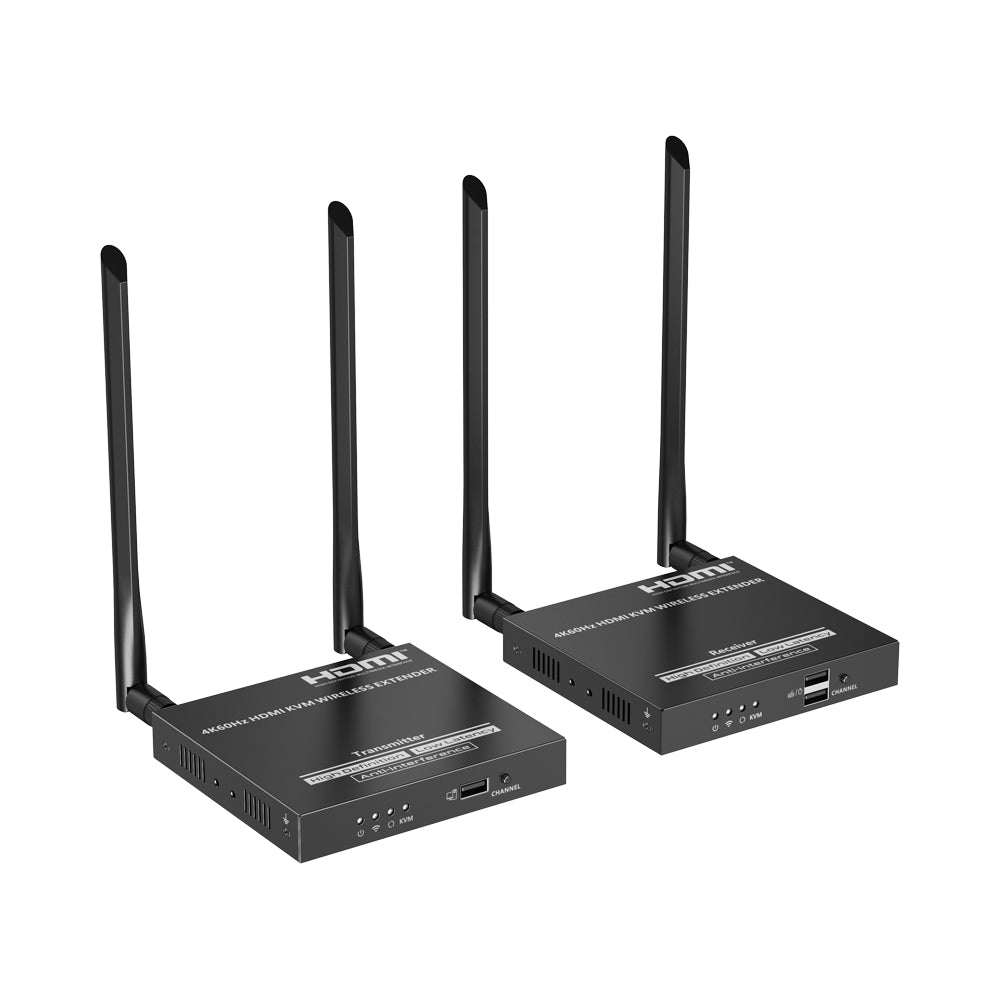

Lenkeng LKV699KVM-V 4K @60Hz Wireless HDMI Extender with KVM Support
Deliver ultra-clear 4K video and full KVM control - without cables. Powered by ipcolor STREAM technology, the LKV699KVM-V enables low-latency, high-definition wireless HDMI transmission with keyboard and mouse passback for true remote control. Supporting flexible 1-to-4 wireless distribution, HDMI loop-out for local monitoring, IR passback, and stable 5.0GHz performance, it’s built for professional AV, control rooms and interactive display environments that demand reliability, clarity and 24/7 operation.
Features
- ipcolor STREAM Technology - Enables high-definition, low-latency wireless video transmission
- Ultra HD Resolution Support - Supports up to 4096×2160 @60Hz with backward compatibility

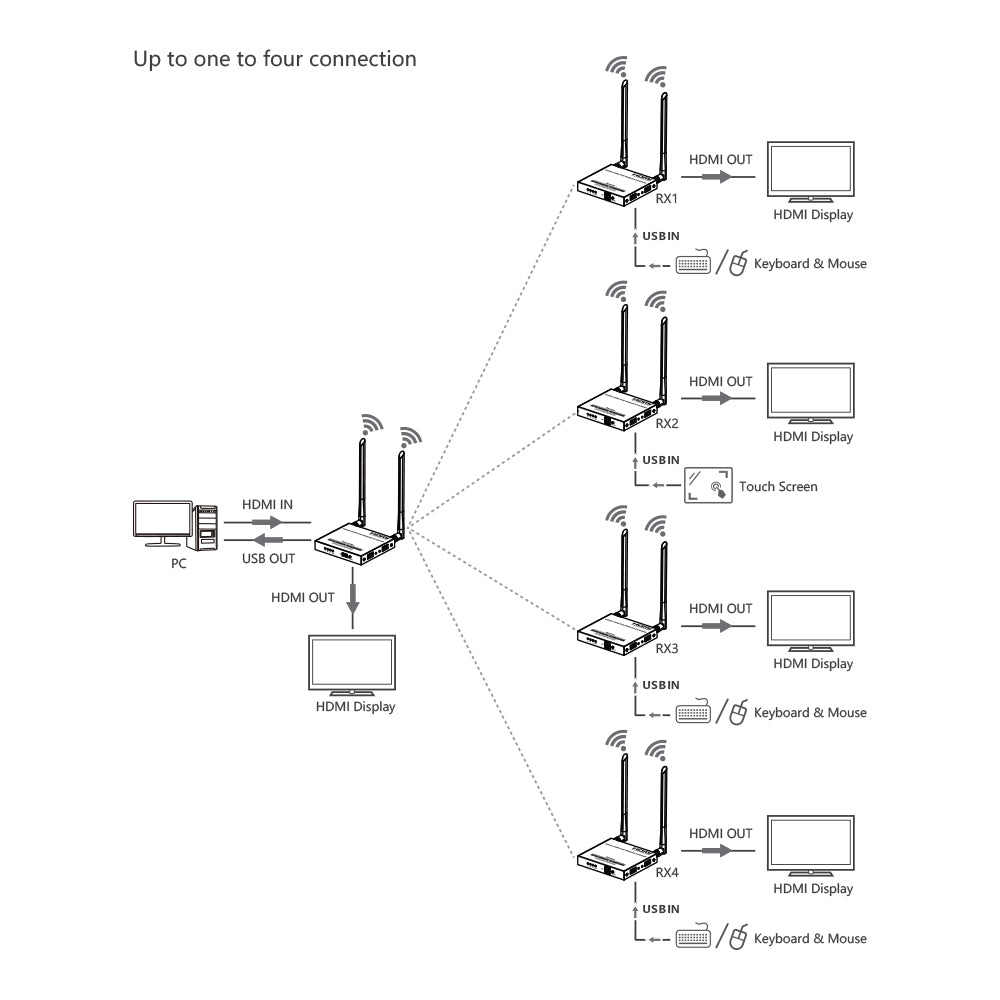

- Flexible Wireless Distribution - Supports 1-to-4 wireless transmission with up to 50m line-of-sight range in 1-to-1 mode
- HDMI Loop-Out on Transmitter - Allows local display monitoring while transmitting wirelessly
- SSID Pairing and Channel Switching - Prevents interference when multiple systems operate in the same area
- IR Passback Support - Enables remote control of source devices from the display location
- 5.0GHz Wireless Band - Delivers strong anti-interference performance and stable transmission
- KVM Control Signal Passback - Supports keyboard and mouse control at the receiver end
- Touch Screen Support - Enables interactive display applications
- Firmware Upgrade via Micro USB - Allows easy updates and feature enhancements
- Designed for 24/7 Operation - Built for stable continuous professional use
Specifications
- Voltage/Current: DC 5V 2A
- Power Consumption: TX ≤5W, RX ≤4W
- HDMI Version: HDMI 2.0
- HDCP Version: HDCP 1.4, HDCP 2.2
- Maximum Transfer Rate: 18Gbps
- Resolution Supported: 4096×2160 @24/30/50/60Hz, 3840×2160 @24/30/50/60Hz, 1080p @50/60Hz, 720p @50/60Hz, 1920×1200
- Input and Output TMDS Signal: 0.7~1.2Vp-p (TMDS)
- Input and Output DDC Signal: 5Vp-p (TTL)
- Wi-Fi Frequency Bands: 5.18~5.24GHz
- Transmission Distance: One-to-One ≤50m, One-to-Two ≤30m, One-to-Three ≤20m, One-to-Four ≤15m
- Latency: 4K @60Hz: 120~180ms, 1080p @60Hz: 70~120ms (For reference only, delays may vary depending on the resolution, transmission distance and connection capacity)

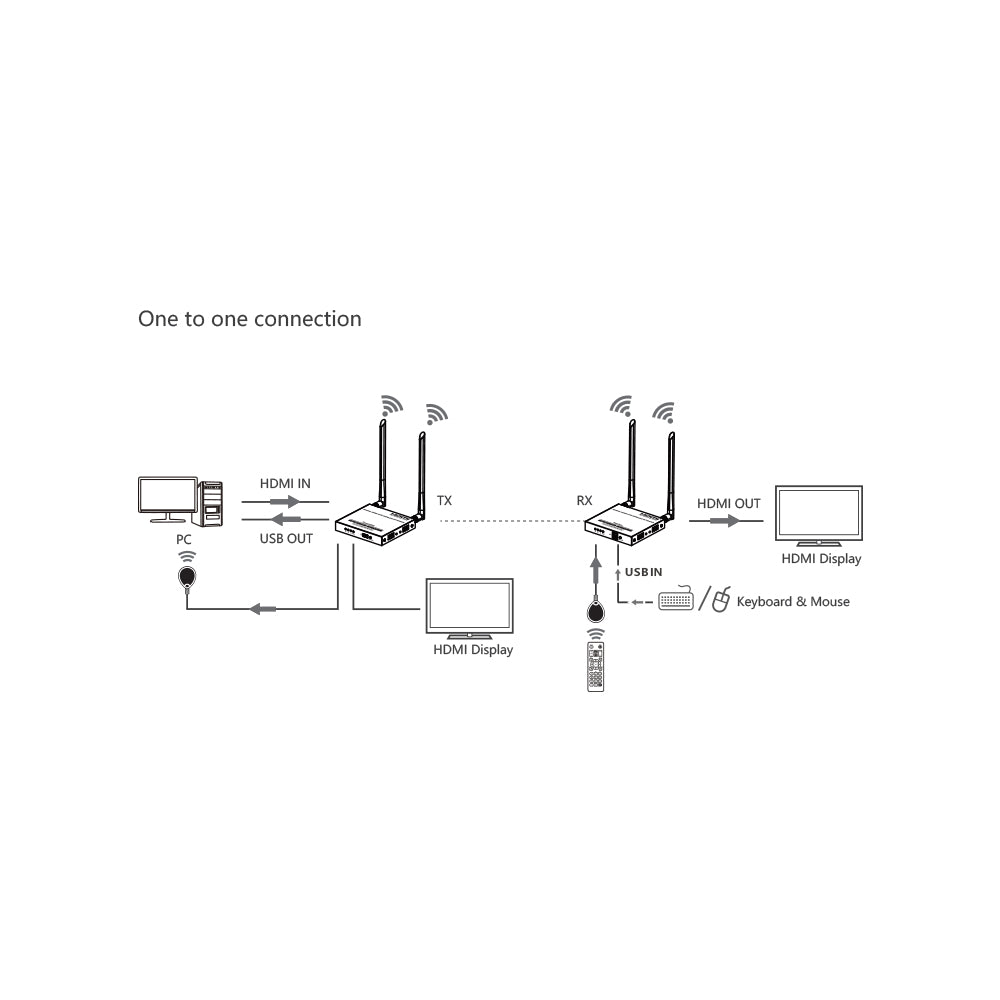

- Connection Types: One-to-One, One-to-Two, One-to-Three, One-to-Four
- SSID Pairing: Supported
- ESD Protection: 1a Contact discharge Level 3, 1b Air discharge Level 3 (IEC61000-4-2), Lightning and Surge Protection
- Infrared Frequency: 20~60kHz
- Receiving Range: ≤5m
- Working Temperature: -20~60°C
- Storage Temperature: -30~70°C
- Humidity (No Condensation): 0~90% RH
- Dimensions (W × L × H): TX 115 × 125 × 20.6mm, RX 115 × 125 × 20.6mm
- Colour: Black
- Material: Metal
- Net Weight: TX 349g, RX 326g
