LENKENG LKV676Cascade 70m 4K @60Hz HDR Point-to-Point Extender Over CAT6 with HDMI Loop Out and IR Passback - Kit
Push your video further with zero lag.
The LENKENG LKV676Cascade delivers stunning 4K @60Hz HDR transmission over a single CAT6/6A/7 cable up to 70m, complete with HDMI loop-out and bi-directional IR passback. Ideal for multi-screen cascades in classrooms, boardrooms or home theatres, it supports up to 10× receivers and even powers the first receiver via the network cable. With Dolby audio support, EDID passback and robust surge and static protection, this extender brings pro-level AV distribution to any setup.
Features
- Zero Latency
- 4K @60Hz HDMI Signal Can be Transmitted 70m Through a CAT6/6A/7 Network Cable

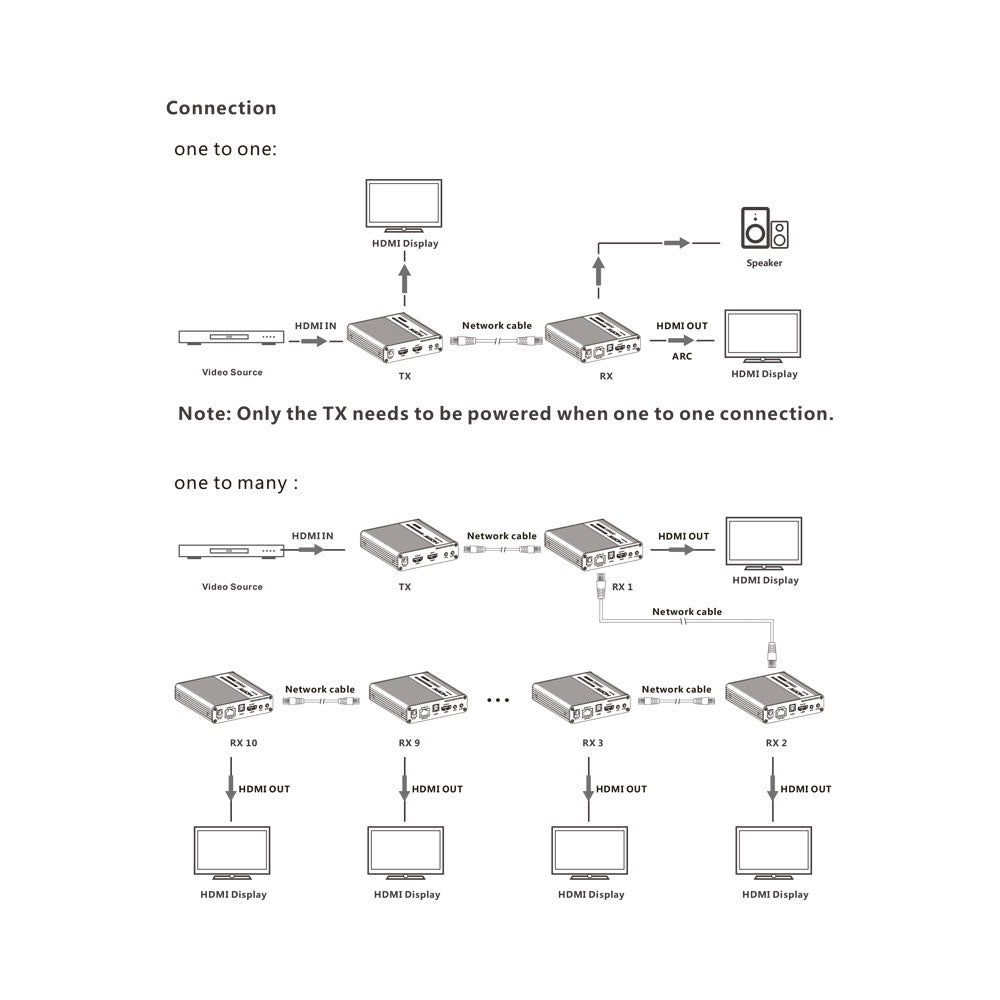

- Supports up to 10× Receivers in Cascade, Auto Adapt to Display Resolution
- Receiver Can Extract the Digital Audio from the Transmitter Through the S/PDIF Port
- Supports Dolby Audio (Dolby TrueHD 7.1CH / Dolby Digital 5.1CH)
- Supports HDR (YUV4:4:4), EDID Passback
- Transmitter Supports One HDMI Loop-Out
- Supports Bi-Directional IR Passback Function (20–60KHz), Cascade When 10× Receivers Are Available
- One Receiver Can Be Powered by the Transmitter via Network Cable, Only on the First Receiver
- Anti-Lightning, Anti-Surge, Anti-Static Protection
Specifications
- Voltage/Current: DC5V 2A
- Power Consumption: TX <4W, RX <4W
- HDMI Compliance: HDMI 2.0
- HDCP Compliance: HDCP 2.2
- HDMI Resolution: 3840×2160 @24/25/30/50/60Hz
- Supports Audio Formats: LPCM / DTS-HD / DTS-Audio /Dolby TrueHD 7.1CH / Dolby Digital 5.1CH
- Input and Output DDC Signal: 0.7~1.2Vp-p (TMDS)
- Input and Output DDC Signal: 5Vp-p (TTL)
- Input Cable Length: ≤8m (AWG24)
- Output Cable Length: ≤8m (AWG24)
- CAT6/6A/7: ≤70m
- Electrostatic Protection: 1a Contact Discharge level 3, 1b Air Discharge Level 3, Implementation of the Standard: IEC61000-4-2
- Working Temperature: -20~60°C
- Storage Temperature: -30~ 70°C
- Humidity (No Condensation): 0~90% RH
- Dimensions (L × W × H): 106 × 99 × 26.2mm
- Material: Aluminium-Alloy and Crystal Panel
- Colour: Black
- Weight: TX 210g, RX 210g
