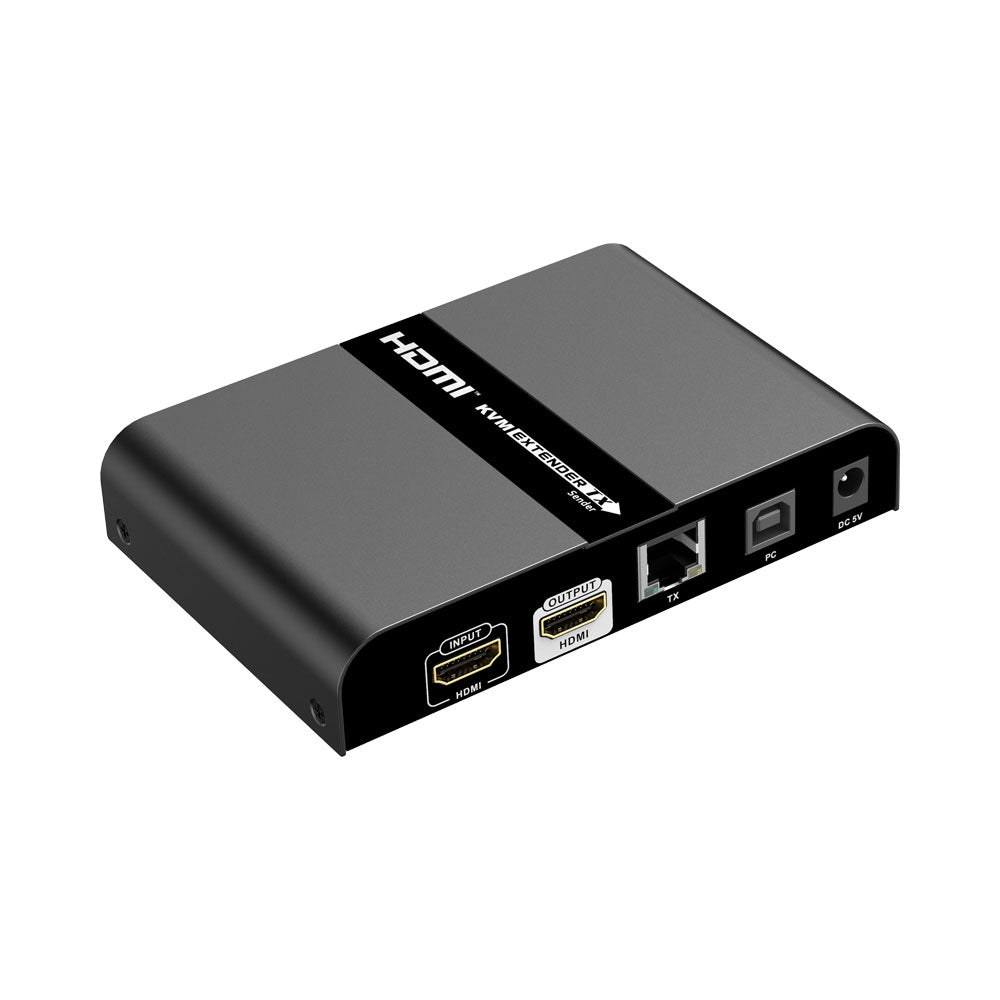

LENKENG LKV671KVM 100m 4K @30Hz HDMI KVM Extender Over CAT6/6A/7 Cable- Transmitter
Extend your reach - not your lag.
The LENKENG LKV671KVM delivers crisp 4K video and full KVM control up to 100m over a single CAT6/6A/7 cable with near-zero latency. Perfect for command centres, classrooms or home setups, it lets you drive a remote PC with keyboard and mouse while streaming HDMI video flawlessly. With HDCP 2.2 support, EDID passback and One-to-Many scalability, it’s a powerful, plug-and-play solution for professional-grade long-distance AV and control.
Features
- Point-to-Point and One-to-Many
- Near Zero Latency
- Distance up to 100m - 4K @30Hz
- HDCP2.2
- HDMI Loop-Out
- Supports EDID Passback
- Supports KVM Function
Specifications
- Power Supply: DC5V 1A
- Power Consumption: TX <3W, RX <2W
- HDMI Compliance: HDMI 1.4
- HDCP Compliance: HDCP 2.2
- Supported Resolutions: 800×600 @60Hz, 1024×768 @60Hz, 1280×720 @60Hz, 1280×800 @60Hz, 1280×1024 @60Hz, 1440×900 @60Hz, 1680×1050 @60Hz, 1920×1080 @60Hz, 2560×1080 @60Hz, 3840×2160 @30Hz, And 4096×2160 @30Hz
- Supported Audio Formats: PCM, LPCM, Dolby, DTS
- Max. Transfer Rate: 10.2Gbps
- Input and Output TMDS Signal: 0.7~1.2Vp-p (TMDS)
- Input and Output DDC Signal: 5Vp-p (TTL)
- Supported Input Cable Length: ≤5m (AWG24)
- Supported Output Cable Length: ≤5m (AWG24)
- Transmission Length Over CAT6/6A/7: 100m
- Electrostatic Protection: Contact Discharge Level 3 And Air Discharge Level 3 (IEC61000-4-2 Standard)
- Working Temperature: 0~60°C
- Storage Temperature: -10~70°C
- Humidity Tolerance (No Condensation): 0~90%
- Dimensions (L×W×H): 132.37×89.70×24.90mm
- Material: Metal-Alloy with a Crystal Panel
- Surface Finish: Powder Coating
- Colour: Black
- Weight: TX 320g, RX 310g
