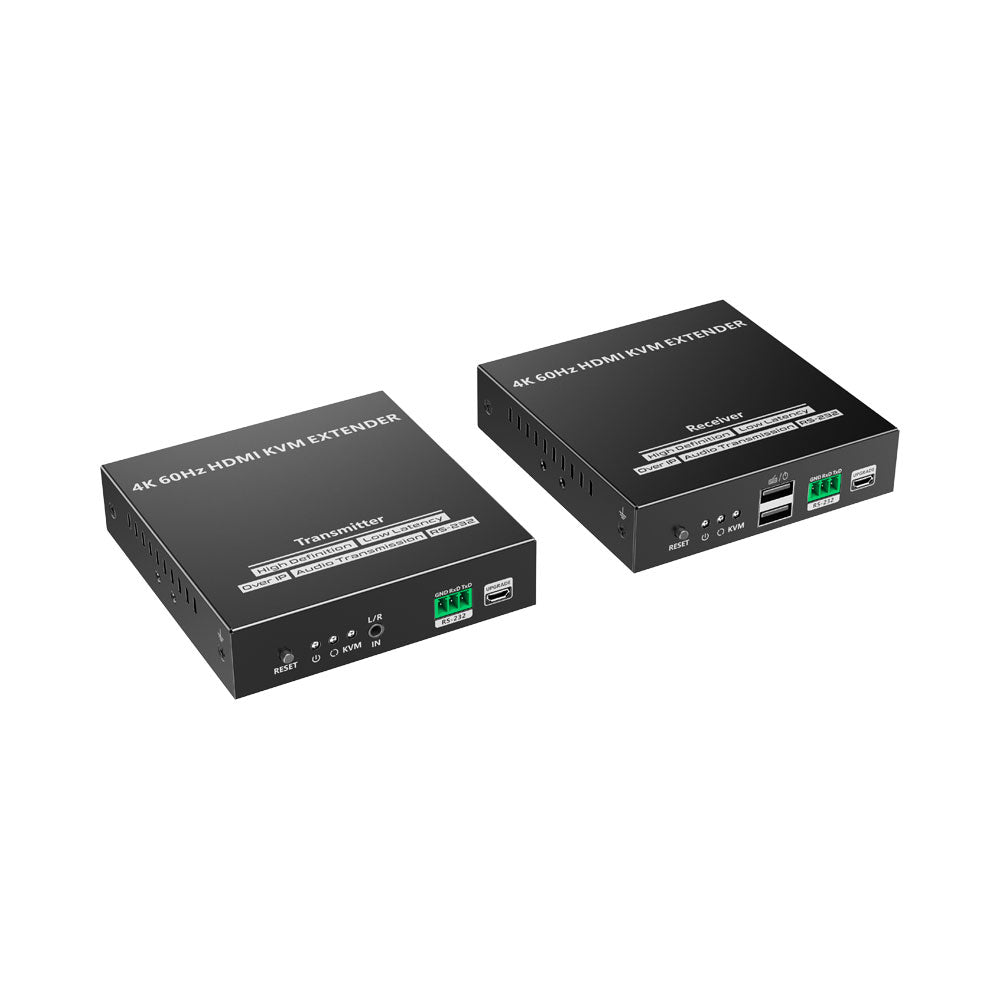

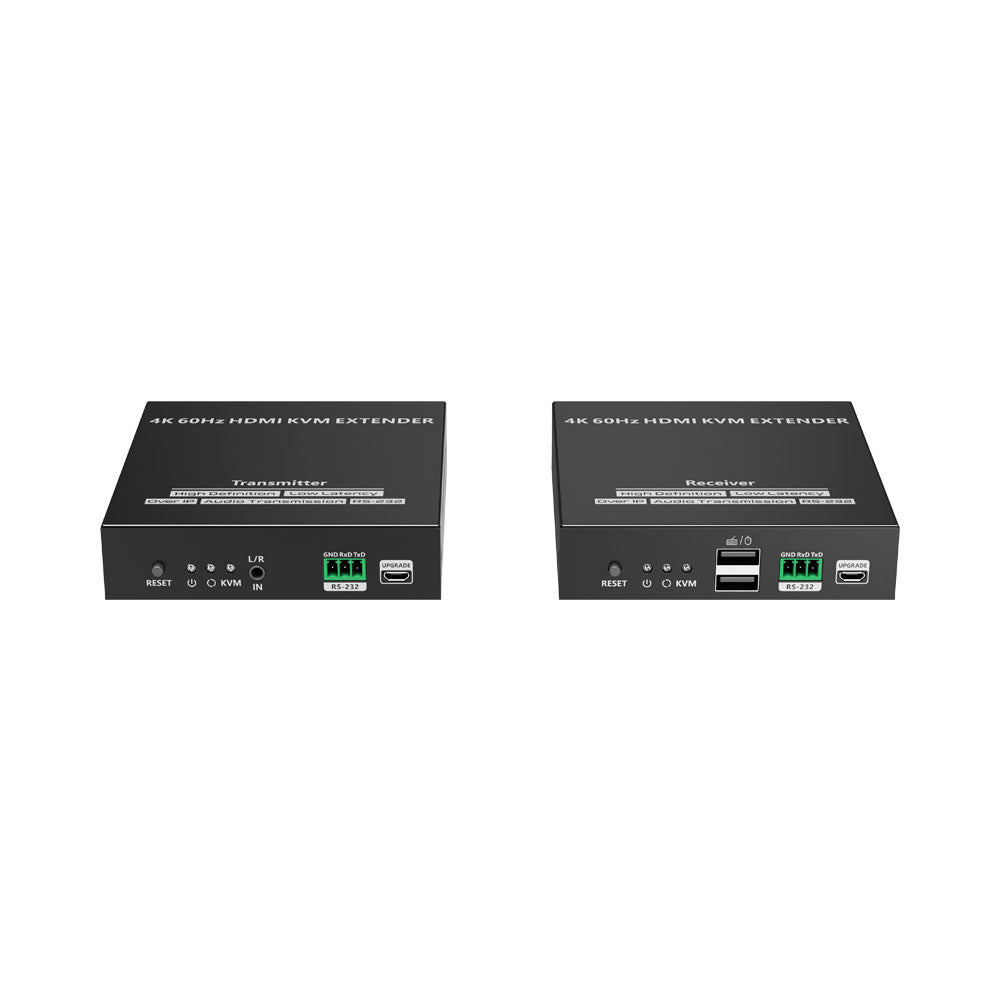

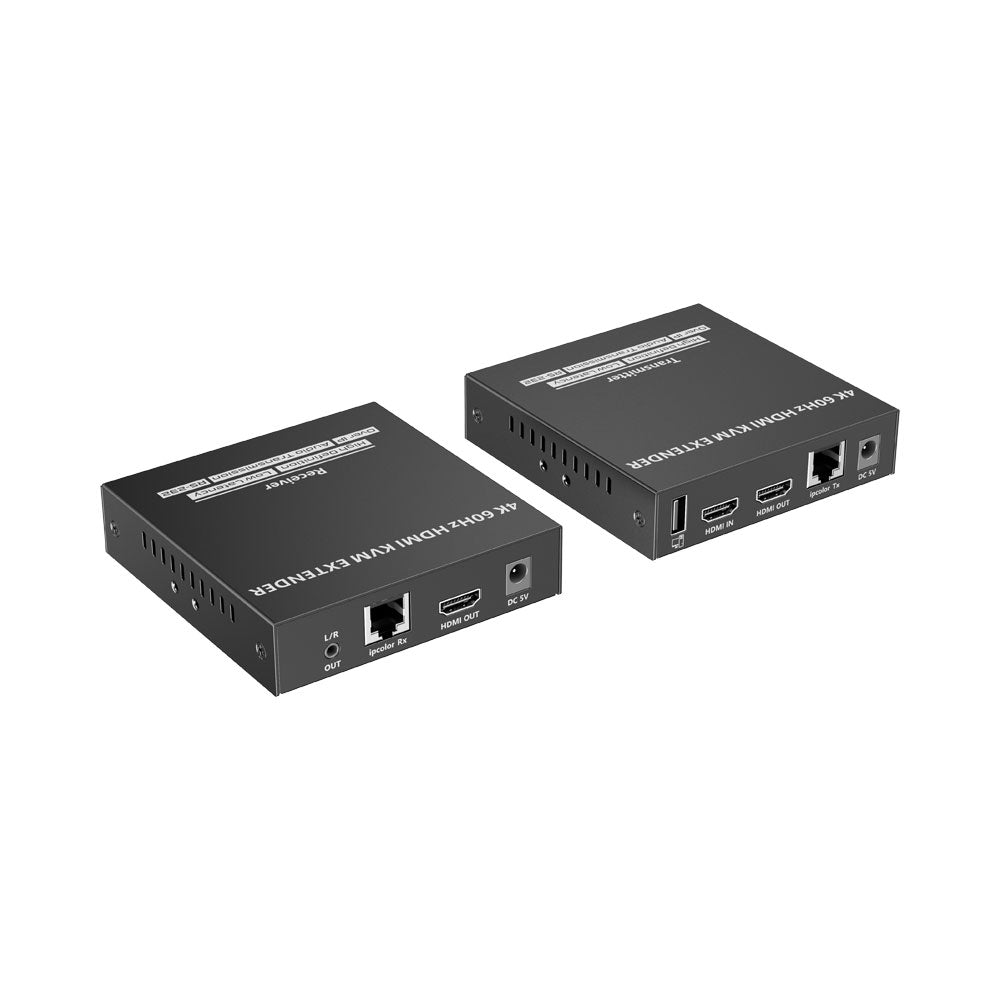

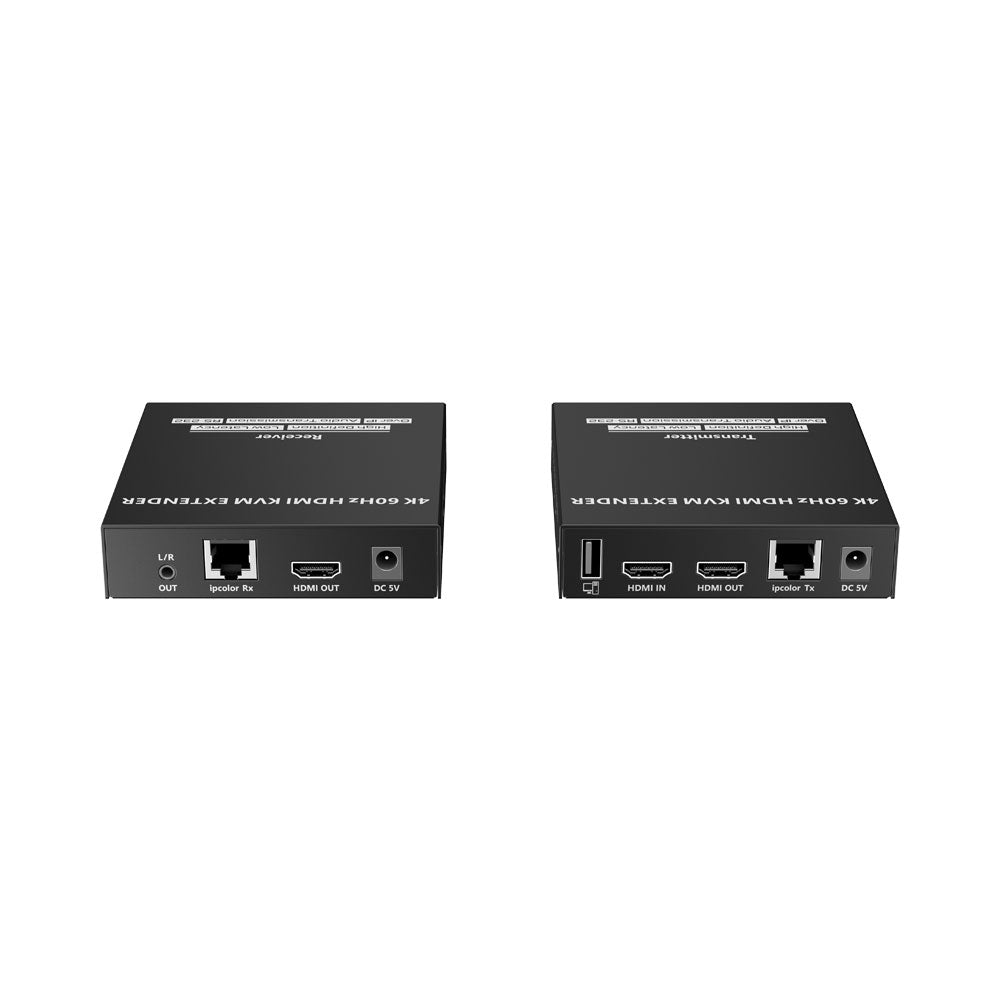

LENKENG LKV582KVM 120m 4K @60Hz HDMI Over IP KVM Extender
Push Your Signal Past the Limits
Take control - even from a distance. The LENKENG LKV582KVM pushes full 4K @60Hz video up to 120m over a single CAT6 cable using ipcolor STREAM technology - delivering crisp detail and smooth motion where standard HDMI can’t reach. Plug-and-play One-to-One or One-to-Many via a Gigabit switch, with built-in KVM, RS232 passthrough and HDMI loop-out - perfect for remote rooms, conference spaces, digital signage or home-theatre setups. Add rock-solid reliability: HDMI 2.0 plus HDCP 2.2 support, 18Gbps bandwidth and full lightning, surge and ESD protection. Plug in - extend far - control everything.
Features
- Supports Resolutions up to 4K @60Hz
- ipcolor STREAM Technology
- Connects One-to-One or One-to-Many
- KVM Function
Specifications
- HDMI Cable Length: ≤5m
- Maximum Transfer Rate: 18Gbps
- Compatibility: HDMI 2.0, HDCP 2.2/1.4
- Supported Resolutions: 3840×2160 @24/30/50/60Hz, 1080p @50/60Hz; 720p @50/60Hz, 1920×1200 @60Hz, 2560×1440 @60Hz, 2560×1600 @60Hz
- Connection Types: One-to-One Connection, One-to-Many Connection, Switch Cascading
- Maximum Transmission Distance: Over CAT6/6A/7 Cable ≤120m
- Transmission Latency: 80~140ms
- Audio Support: HDMI Output LPCM 2.0, 3.5mm L/R Output PCM
- RS232 Command Signal (GND/RXD/TXD): Supported Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
- Power Supply: DC 5V 2A
- Power Consumption: TX ≤5.5W, RX ≤4W
- Operating Temperature Range: –20~60°C
- Storage Temperature Range: –30~70°C
- Humidity Range: 0–90% RH (No Condensation)
- Housing: Material Metal, Colour Black
- Dimensions (L × W × H): 106 × 103 × 20.6mm
- Weight: TX 315g, RX 307g
- Protection: ESD, Lightning and Surge Protection - Meets Standard IEC61000-4-2 (Contact Discharge ±4kV, Air Discharge ±8kV)
