LENKENG LKV582 4K @60Hz 120m HDMI over IP Extender
Bring 4K Anywhere - Long‑Distance HDMI Made Easy.
Extend full 4K @60Hz HDMI up to 120m over a standard network setup - perfect for long‑range displays, dense AV installations or multi‑room streaming. With ipcolor STREAM technology, rock‑solid signal stability and low latency, your source looks crisp no matter how far the screen is.

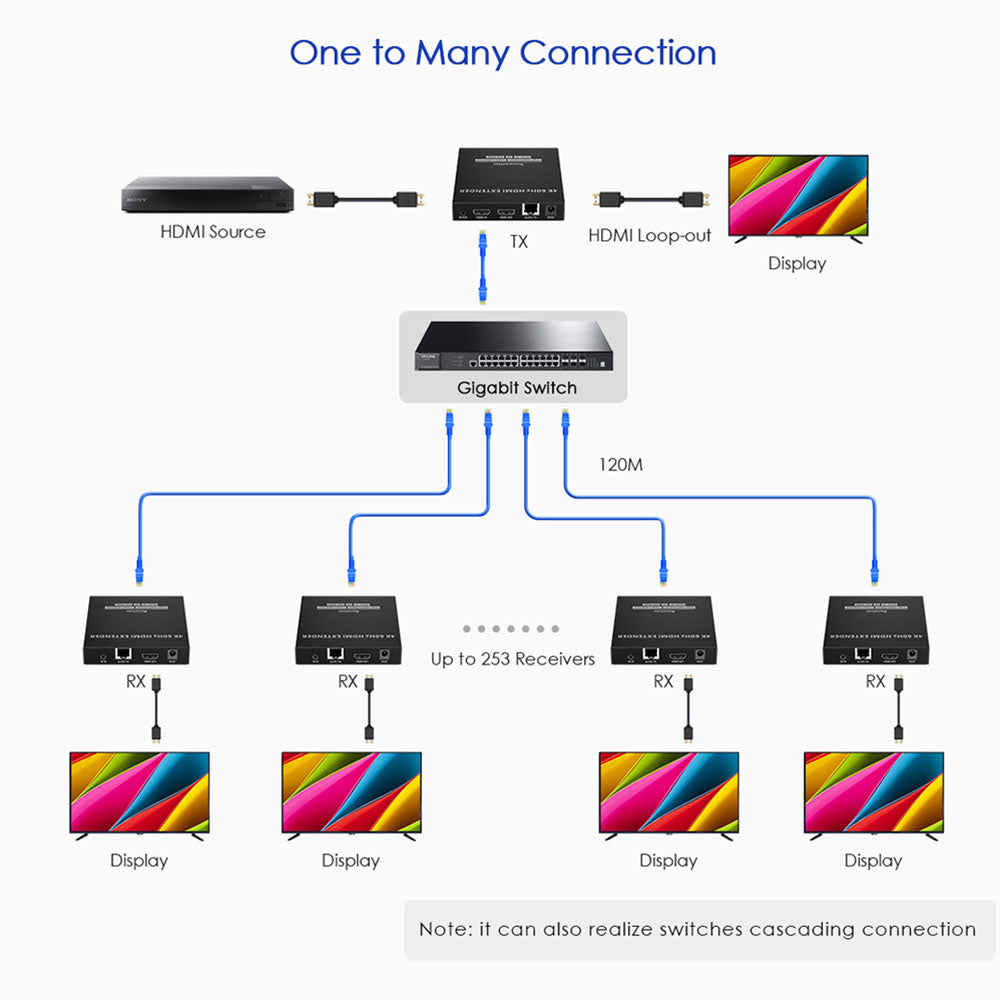

This extender supports One‑to‑Many distribution via an ordinary Gigabit switch, letting you feed multiple TVs or monitors simultaneously. Add in IR passback and RS232 control and HDMI loop‑out for a clean, streamlined installation.
Whether you’re setting up a digital signage network, home theatre matrix or office AV system - the LKV582 delivers 4K power and flexibility, over long distances, with zero fuss.
Features
- Resolutions up to 4K @60Hz (3840×2160)
- Extend up to 120m
- Low Latency
- IR Passback
- RS232 Control
- Lightning, Surge and ESD Protection
Specifications
- HDMI Length: ≤5m
- Maximum Transfer Rate: 18Gbps
- Compatibility: HDMI 2.0, HDCP 1.4 / HDCP 2.2
- Supported Resolutions: 3840×2160 @24/30/50/60Hz, 1080p @50/60Hz, 720p @50/60Hz; 1920×1200 @60Hz, 2560×1440 @60 Hz, 2560×1600 @60Hz
- Connection Types: One-to-One, One-to-Many, Switch Cascading
- Transmission Distance: CAT6/6A/7 ≤120m
- Transmission Latency: 70~180ms
- IR Receiving Range: ≤5m
- IR Frequency Range: 20~60kHz
- RS232 (GND/RXD/TXD): Default Baud Rate 115200; Supported Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
- Power Supply: DC 5V 1A
- Power Consumption: TX: ≤4.5W, RX: ≤2.5W
- Operating Temperature: –20~60°C
- Storage Temperature: 30~0°C
- Humidity: 0~90% RH (No Condensation)
- Housing: Metal
- Weight: TX: 254g, RX: 242g
- Colour: Black
- Dimensions (L × W × H): 106 × 103 × 20.6mm
- Protection: ESD Protection, Contact Discharge Level 2 (±4kV); Air Discharge Level 3 (±8kV); Meets IEC61000-4-2 Standard, Lightning and Surge Protection
