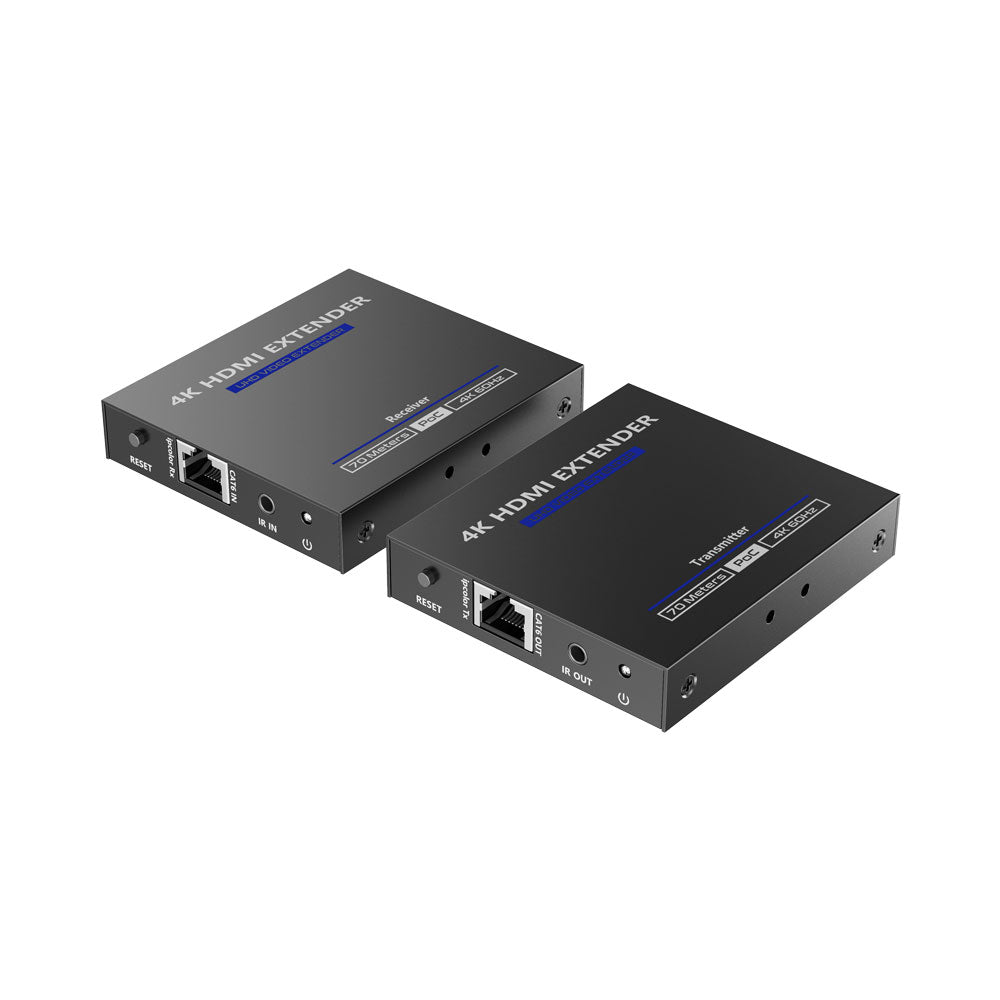

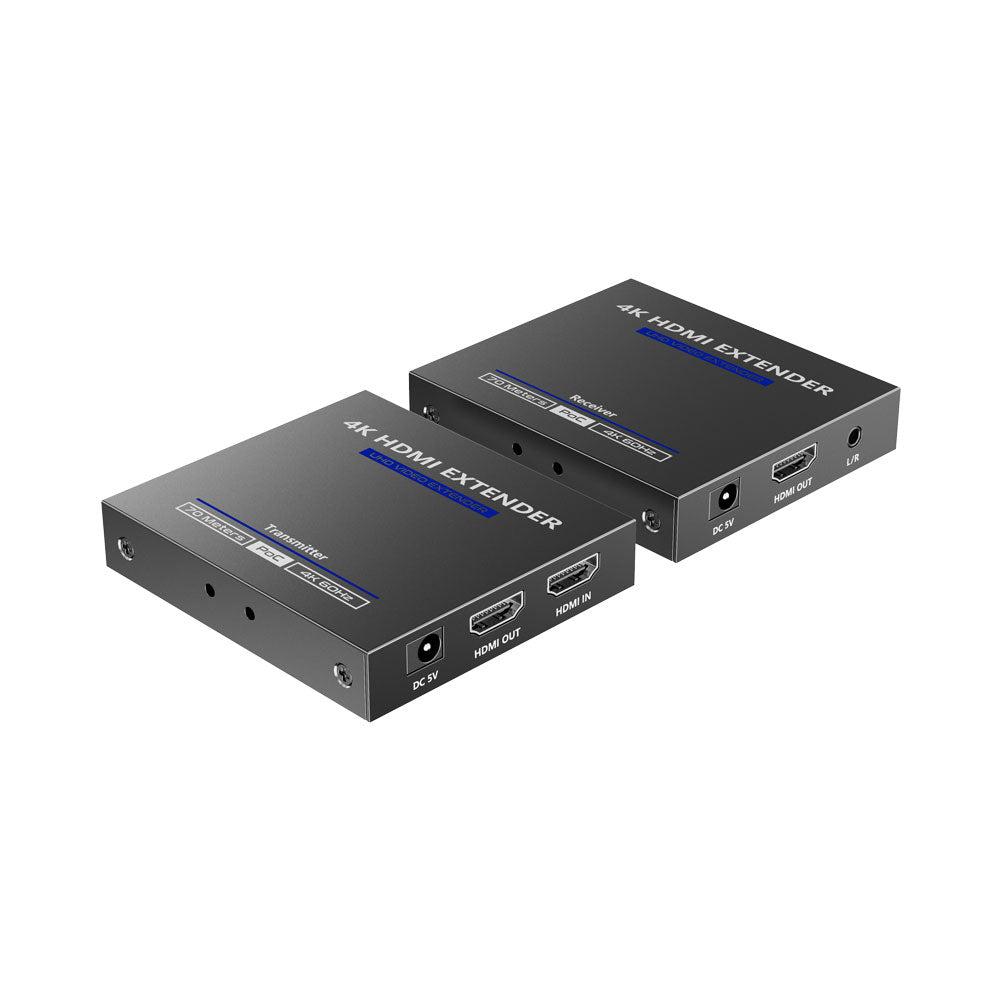

LENKENG LKV565P Ultra-Slim 70m 4K HDMI HDR Point-to-Point PoC Extender Over CAT6/6A/7 Cable with ipcolor IMAGE
Extend Smarter, Stream Stronger.

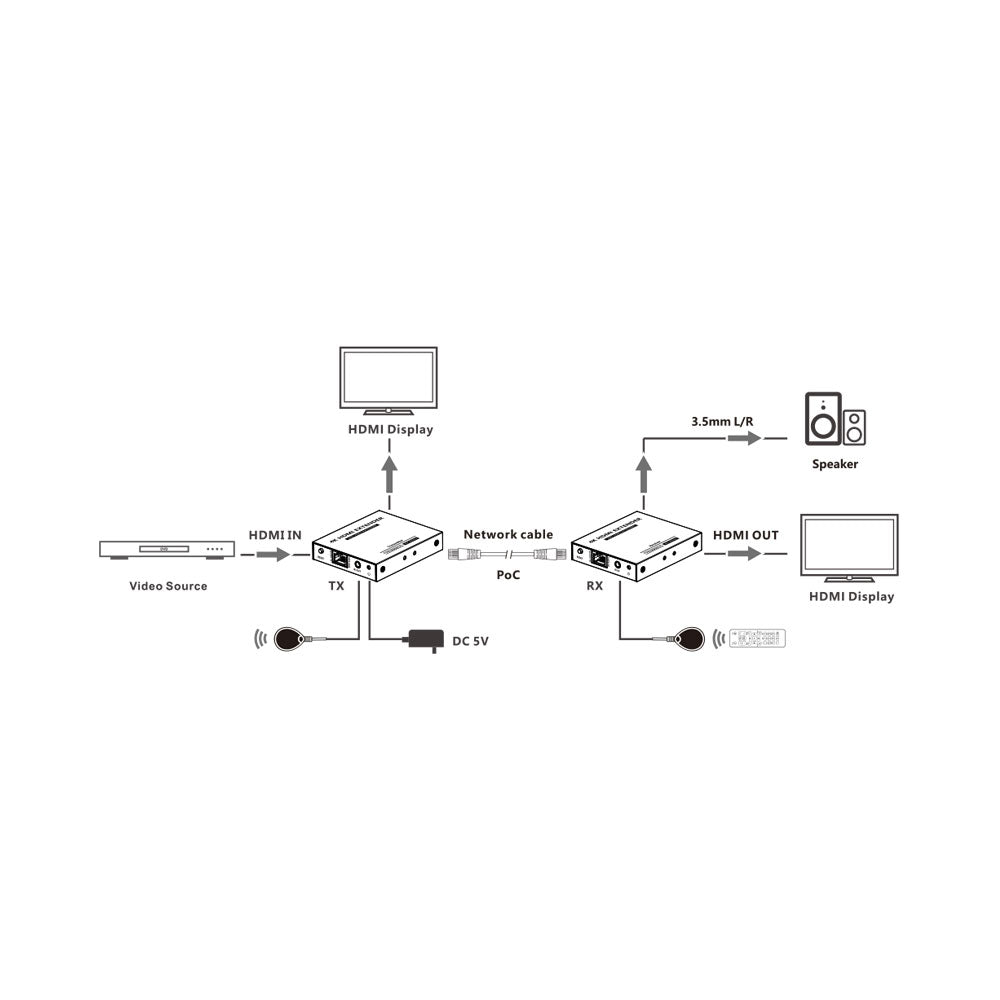

Push crystal-clear 4K @60 Hz HDR video up to 70m over a single CAT6/6A/7 cable - with zero latency and visually lossless quality thanks to advanced ipcolor transmission. This ultra-slim, point-to-point kit supports HDMI loop-out, IR passback and 3.5mm audio, making setup clean and intuitive. Powered over cable (PoC) for a neater install, it’s perfect for home theatre setups, security monitoring, corporate training or broadcast environments.
Reliable, sleek and plug-and-play - long-range 4K just got easier.
Features
- One to One
- Zero Latency
- Visually Lossless
- Distance up to 70m - 4K @60Hz with PoC
- HDMI Loop-Out
- IR Passback Function
- 3.5mm L/R Audio
Specifications
Video
- Input Interface: 1× HDMI Type-A Female (Transmitter) / 1× RJ45 Female (Receiver)
- Output Interface: 1× HDMI Type-A Female and 1× RJ45 Female (Transmitter) / 1× HDMI Type-A Female (Receiver)
- HDMI Length: <5m
- Maximum Transfer Rate: 18Gbps
- Maximum Transmission Bandwidth: 600MHz
- EDID Passthrough: Yes
- Compatibility: HDMI 2.0 (Deep Colour, 4K, HDR, YUV4:4:4), HDCP 2.2
- Resolutions: 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz, 1280×960, 1280×800, 280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
Transmission Distance: CAT6/6A/7 ≤70m
Audio
- Input Interface: 1× HDMI Type-A Female (Transmitter) / N/A (Receiver)
- Output Interface: 1× HDMI Type-A Female (Transmitter) / 1× HDMI Type-A Female and 1× 3.5mm L/R Female (Receiver)
- Audio Formats: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH / Dolby Atmos
Command Signal
- IR Interface: 1× 3.5mm IR OUT Female (Transmitter) / 1× 3.5mm IR IN Female (Receiver)
- Receiving Range: ≤5m
- Infrared Frequency: 20~60kHz
Power
- Power Supply: DC 5V 2A
- Power Consumption: <4W
Operating Environment
- Working Temperature: –20~60°C
- Storage Temperature: –30~70°C
- Humidity: 0~90% RH (No Condensation)
Physical Properties
- Housing: Metal
- Weight: 140g
- Colour: Black
- Dimensions (L × W × H): 85 × 75.5 × 16.5mm
Protection
- ESD Protection: Contact Discharge Level 2 (±4kV), Air Discharge Level 3 (±8kV), IEC61000‑4‑2 Standard
- Lightning and Surge Protection
Certifications
