LENKENG LKV562PRO 1080p @60Hz 150m Uncompressed HDMI over IP Extender
Send crisp 1080p @60Hz HDMI up to 150m over a single CAT6/6A/7 cable. Perfect for long-range installs, this extender supports One-to-One or One-to-Many setups via a Gigabit switch, with cascading for even bigger systems. Built-in perks include HDMI loop-out, bi-directional IR, RS232 passthrough and HDR10 support - all in a rugged, protected design ideal for security hubs, smart buildings, broadcast setups or pro home theatres.
Extend farther, connect smarter and maintain full HDMI functionality - even over long distances.
Features
- Adopting ipcolor PIXEL technology for uncompressed and low latency transmission
- Supports up to 1080p @60Hz Resolution
- Video signals can travel up to 150m over CAT6 or higher network cable
- Supports one-to-many connection through a Gigabit switch or switch cascade
- Supports HDR10
- Supports EDID pass-back
- Supports RS232 passthrough

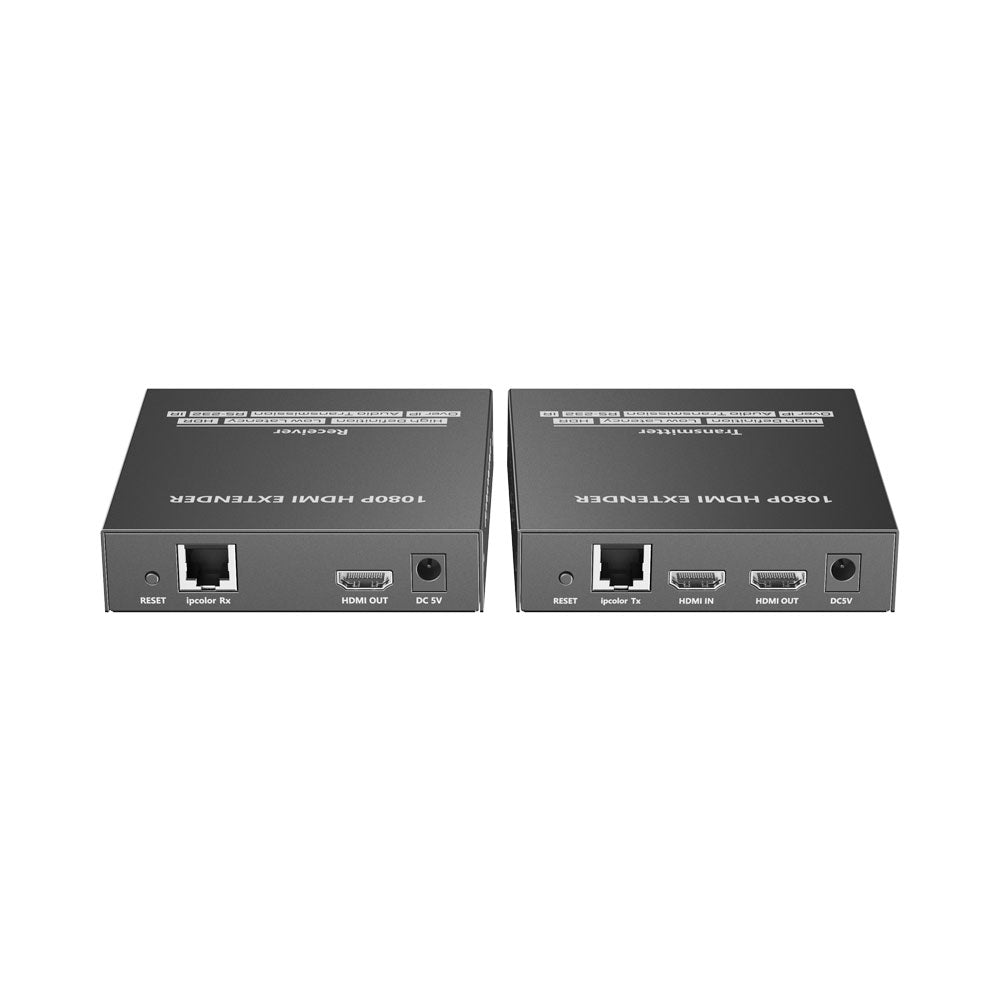

- With HDMI loop-out on the transmitter

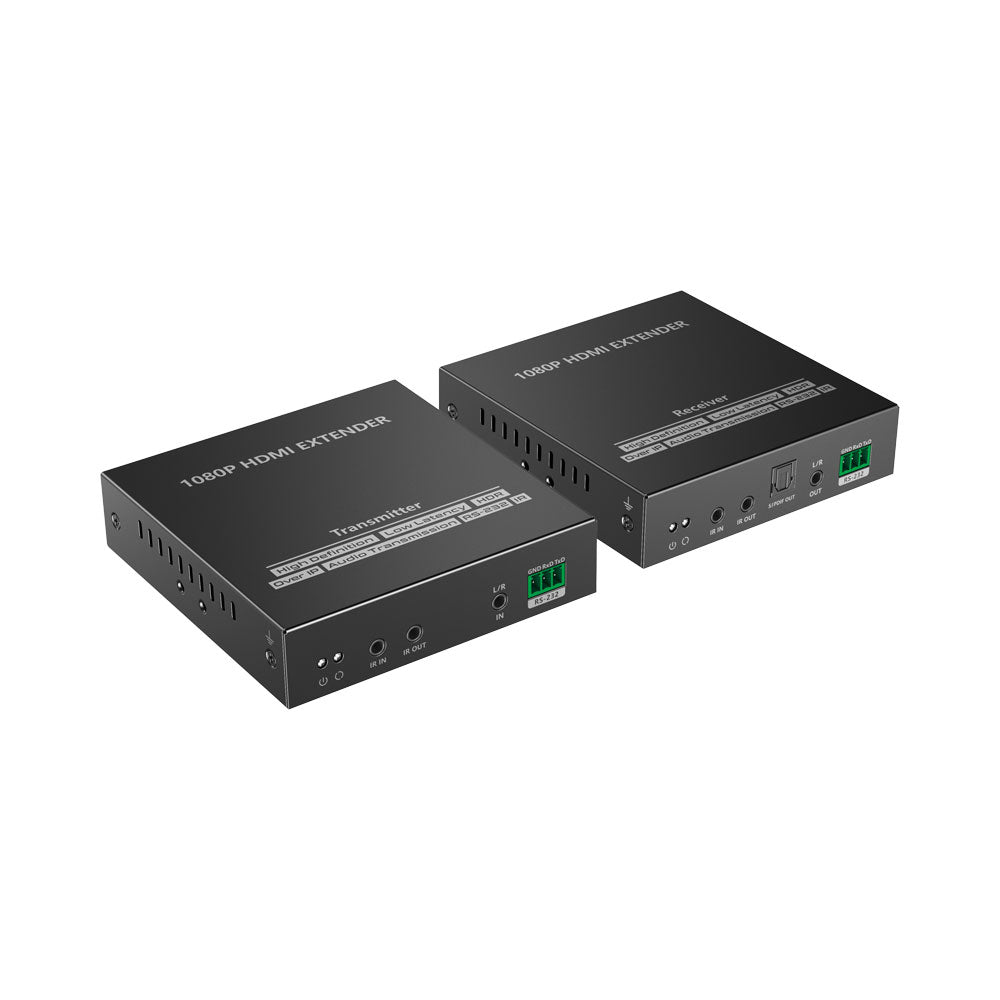

- Supports bi-directional IR passthrough
- The transmitter has a 3.5mm audio input for sound embedding
- The receiver has an independent 3.5mm and S/PDIF audio output
- Lightning, Surge and ESD protection
Specifications
- HDMI Cable Length: ≤5m
- Compatibility: HDMI 1.4 (HDR10), HDCP 1.4
- Supported Resolutions: 1080p @24/25/30/50/60Hz, 720p @50/60Hz, 1024×768 @60Hz, 1280×800 @60Hz, 1280×960 @60Hz, 1280×1024 @60Hz, 1440×900 @60Hz, 1600×900 @60Hz, 1600×1200 @60Hz, 1680×1050 @60Hz, 1920×1200 @60Hz, 480p @60Hz, 576p @50Hz, 1360×768 @60Hz (and other common resolutions)
- Connection Types: One-To-One, One-To-Many, Switch Cascading
- Transmission Distance: CAT6/6A/7 ≤150m
- Transmission Latency: 16ms – 33ms
- HDMI Audio Output: DTS-Audio / Dolby Digital 5.1 / LPCM 2.0
- S/PDIF Audio Output: LPCM 2.0 / DTS-Audio 5.1 / Dolby Digital 5.1
- 3.5 mm L/R Audio Output: PCM 2.0
- Audio Sampling Rates: 32kHz, 44.1kHz, 48kHz, 88kHz, 96kHz, 176kHz, 192kHz
- Audio bit Depth: 16-bit, 24-bit
- IR Receiving Range: ≤5m
- IR Frequency Range: 20~60kHz
- RS232 Support: Standard GND / RxD / TxD, Default Baud Rate ~9600 (Varies By Device)
- Power Supply: DC 5V 2A (Typical for TX and RX)
- Power Consumption: TX <5W, RX <4W (Approx.)
- Working Temperature Range: –20~60°C
- Storage Temperature Range: –30~70°C
- Humidity (No Condensation): 0~90% RH
- Housing Material: Metal
- Colour: Black
- Dimensions (Approx.): TX and RX 106 × 103 × 25mm each
- Protection: ESD Protection (Contact ±4kV / Air ±8kV), Lightning and Surge Protection
