Lenkeng LKV483Pro 4K @60Hz Extender

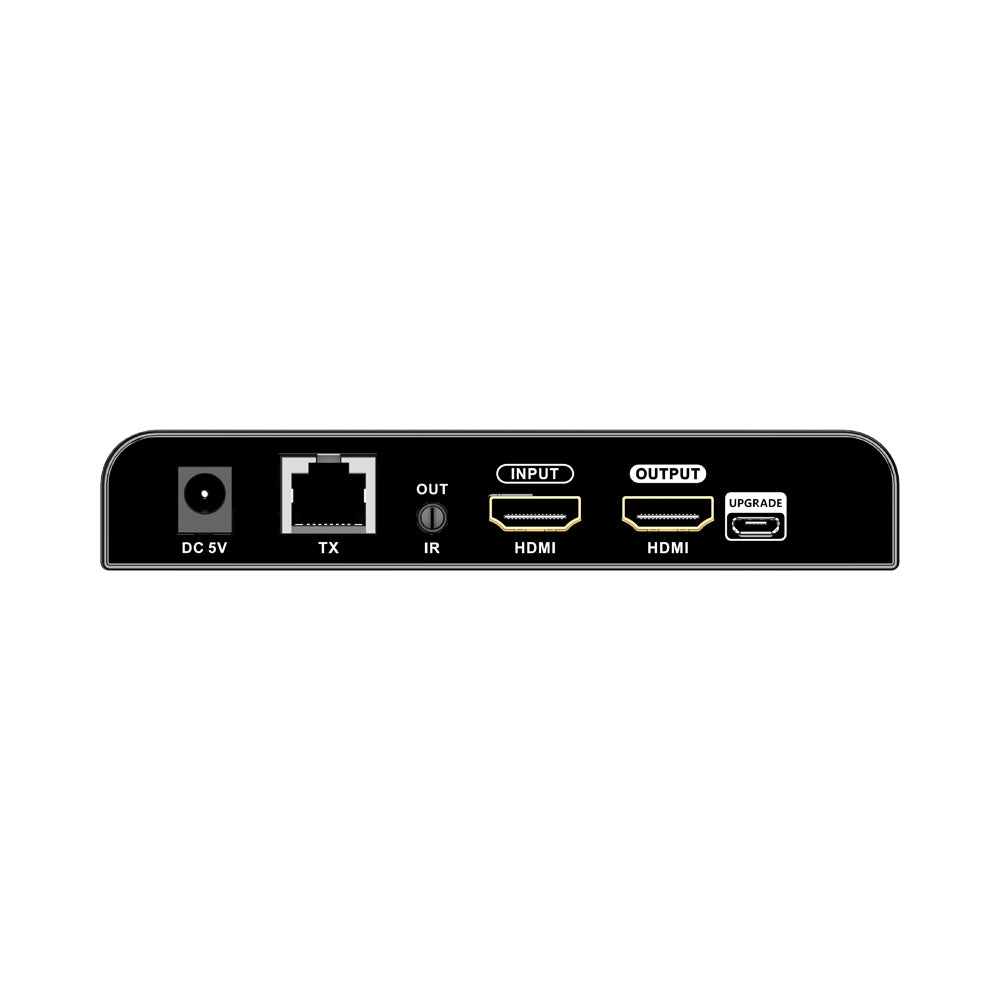

Experience ultra-clear transmission with the 4K @60Hz HDMI Extender, designed for high-definition, low-latency video performance across long distances. Supporting resolutions up to 4096×2160 @60Hz and backward compatibility with lower formats, it ensures exceptional image quality for any display. Compatible with Cat5/5e/6 or higher network cables, it delivers stable transmission up to 120 meters using Cat6, making it ideal for professional AV setups. The system supports both one-to-one and one-to-many connections via a Gigabit switch, offering flexible deployment for various environments. The transmitter includes HDMI loop-out, allowing simultaneous local and remote display monitoring, while IR passback (20–60kHz) enables convenient remote control functionality. Additional features include firmware upgrade via Micro USB and built-in lightning, surge, and ESD protection for enhanced reliability. Engineered for continuous 24/7 stable operation, this extender is the perfect solution for conference rooms, digital signage, control centers, and home theatres.
Specifications
- HDMI length: ≤5m
- Maximum Transfer Rate: 18Gbps
- Compatibility: HDMI 2.0，HDCP 1.4/HDCP 2.2
- Resolutions: 4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600

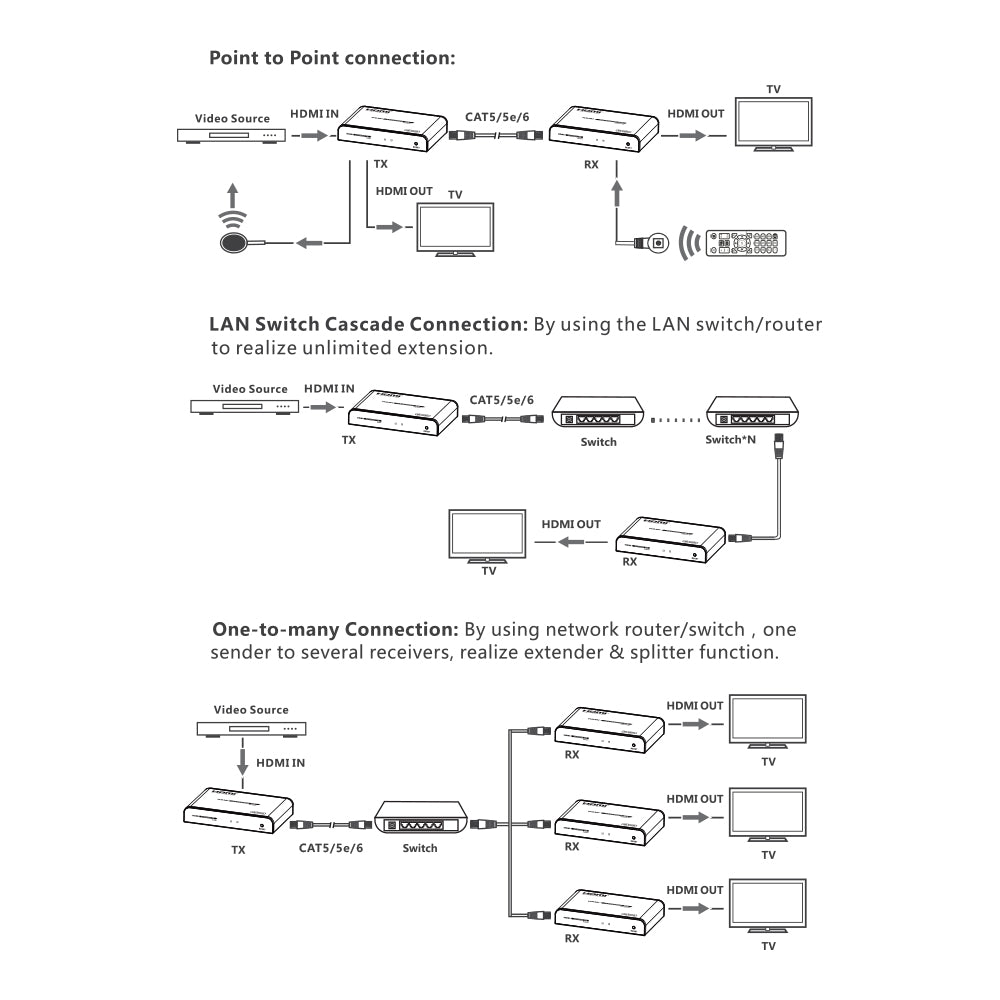

- Connection Types: One-to-One Connection, One-to-many connection
- Transmission Distance: CAT5 80m / CAT5E 100m / CAT6 120m
- Transmission latency: 1080P - 80~130ms, 4K@60Hz - 150~220ms
- HDMI Output: LPCM 2.0
- IR receiving range: ≤ 5m
- IR frequency: 20kHz~60kHz
- Power Supply: DC 5V/1A
- Power Consumption: TX ≤ 3W, RX ≤ 3W
- Working temperature: - 20°C~60°C
- Storage temperature: - 30°C~70°C
- Humidity: 0~90%RH (No Condensation）
- Housing: Aluminium
- Weight: TX - 200g RX - 196g
- Colour: Black
- Dimensions (L x W x H): : 130.0 x 84.0 x 23.2mm
- Protection: ESD protection, 1a Contact discharge level 2 (±4KV), 1b Air discharge level 3 (±8KV), Implementation of the standard: IEC61000-4-2, Lightning protection, Surge protection
