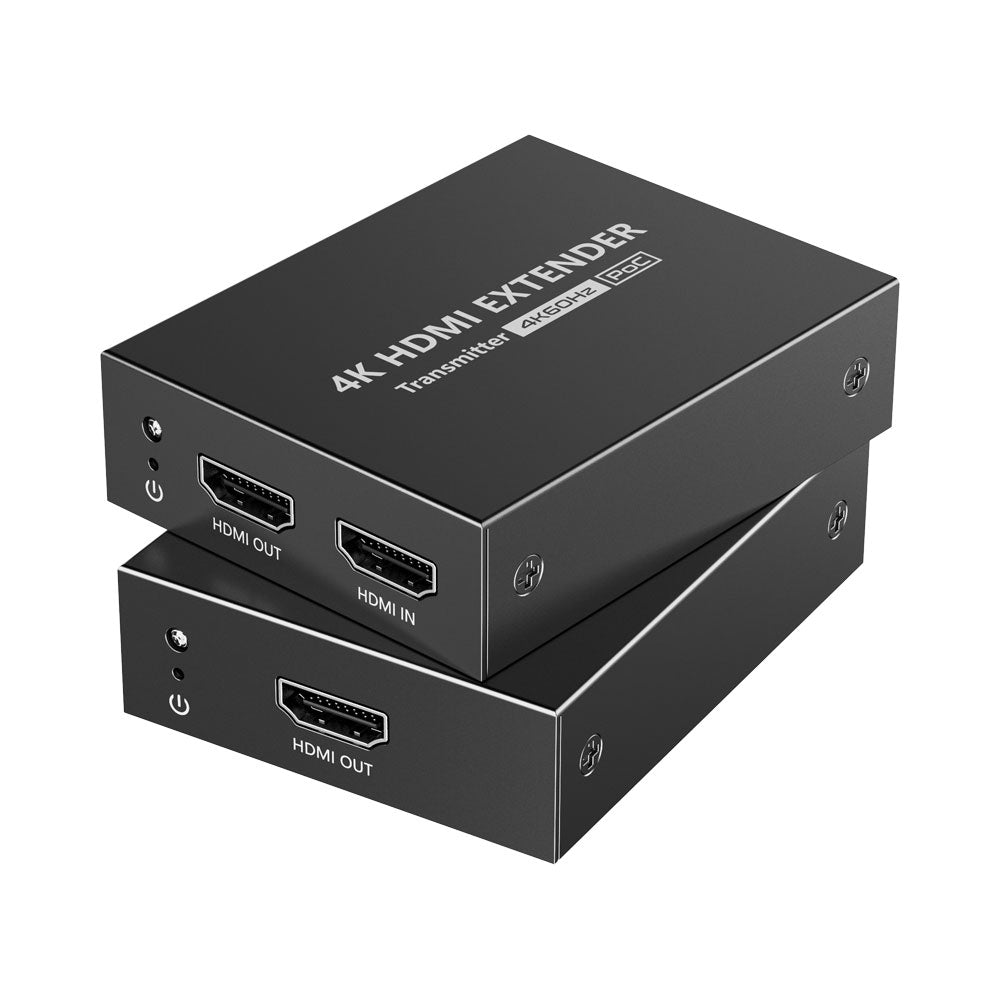

LENKENG LKV465P 50m 4K @60HZ HDR HDMI Extender with PoC
Extend Your 4K - Farther, Faster, Flawless.

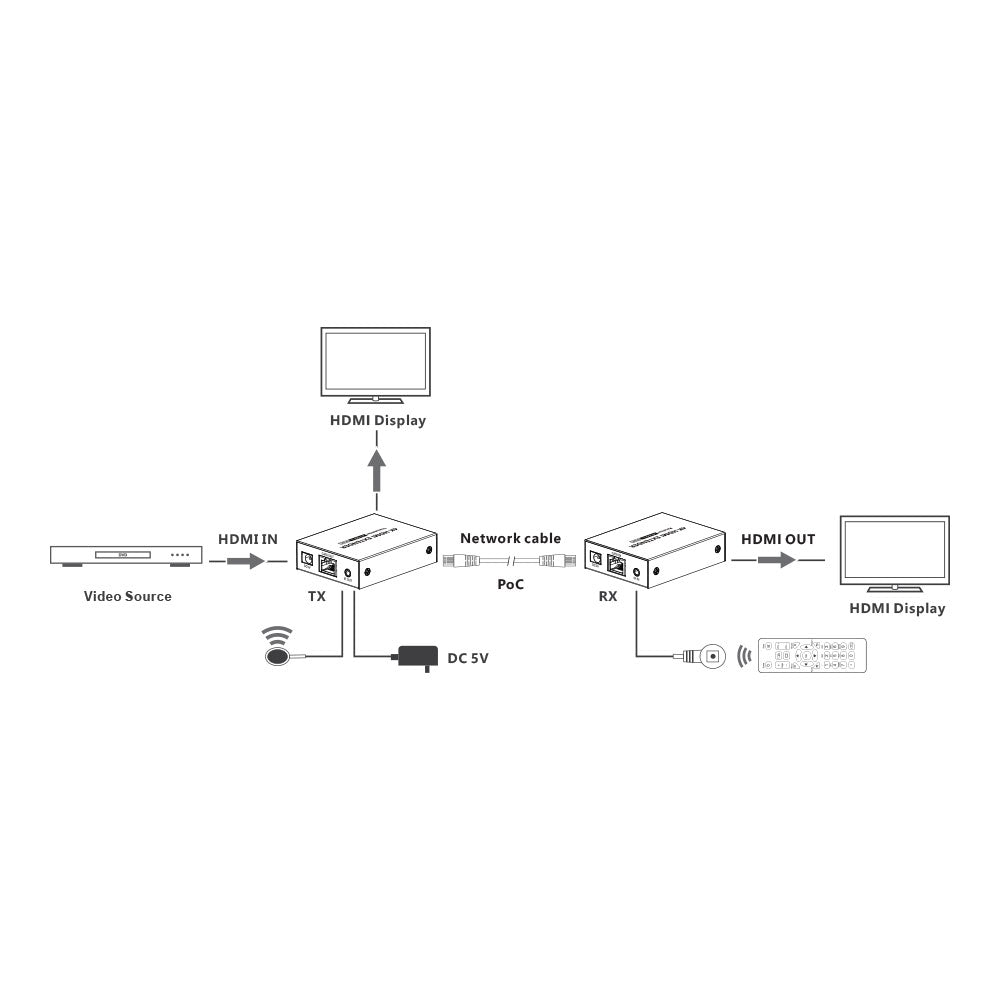

Drop the bulky cables and extend a pristine 4K @60 Hz HDR signal up to 50m over a single CAT6/6A/7 cable. With zero-latency transmission, EDID passthrough, auto-downscaling and IR passthrough, your source device stays responsive no matter how far the screen is. Thanks to PoC (Power-over-Cable) - only the transmitter needs a power supply - setup is clean, simple and plug-and-play. Add HDMI loop-out and lightning, surge and ESD protection and you’ve got a reliable, high-fidelity solution for home theatres, projectors or any long-distance display setup.
Features

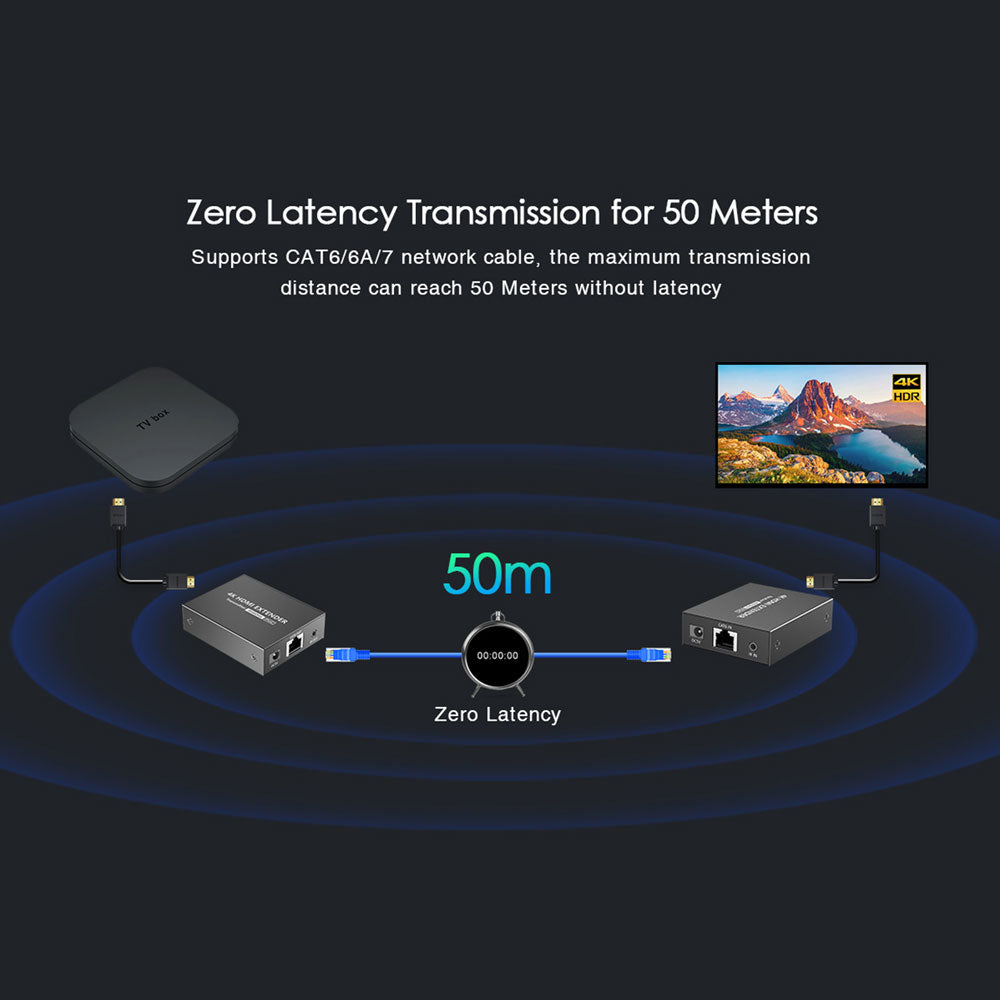

- Zero-Latency Transmission
- Extend 4K @60Hz HDMI Signals up to 50m Over CAT6/6A/7 Cable
- Supports HDR10

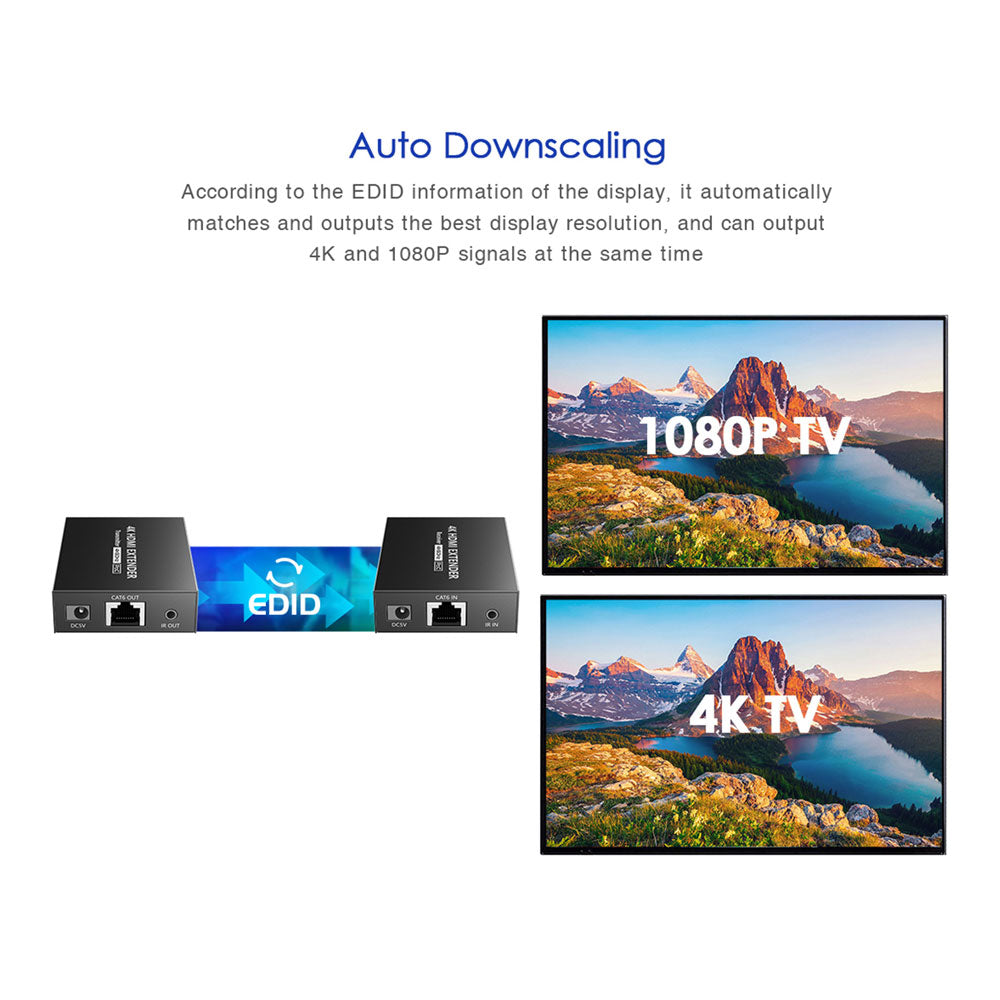

- Supports EDID Passthrough and Auto-Downscaling
- Supports PoC Network Cable Power Supply (Only the Transmitter Requires a Power Supply)
- The Transmitter Supports HDMI Loop-Out
- Supports IR Passthrough
- Lightning, Surge and ESD Protection
Specifications

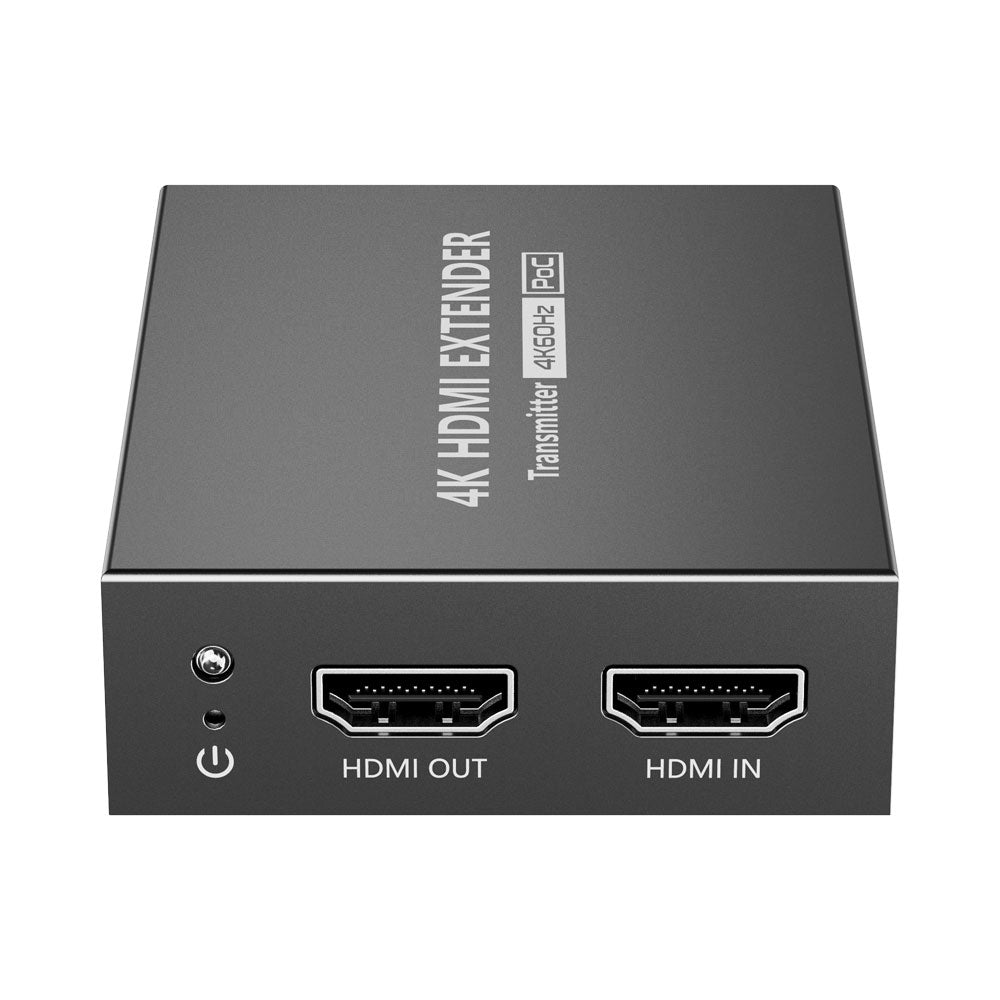

- Input Interface (Transmitter): 1× HDMI

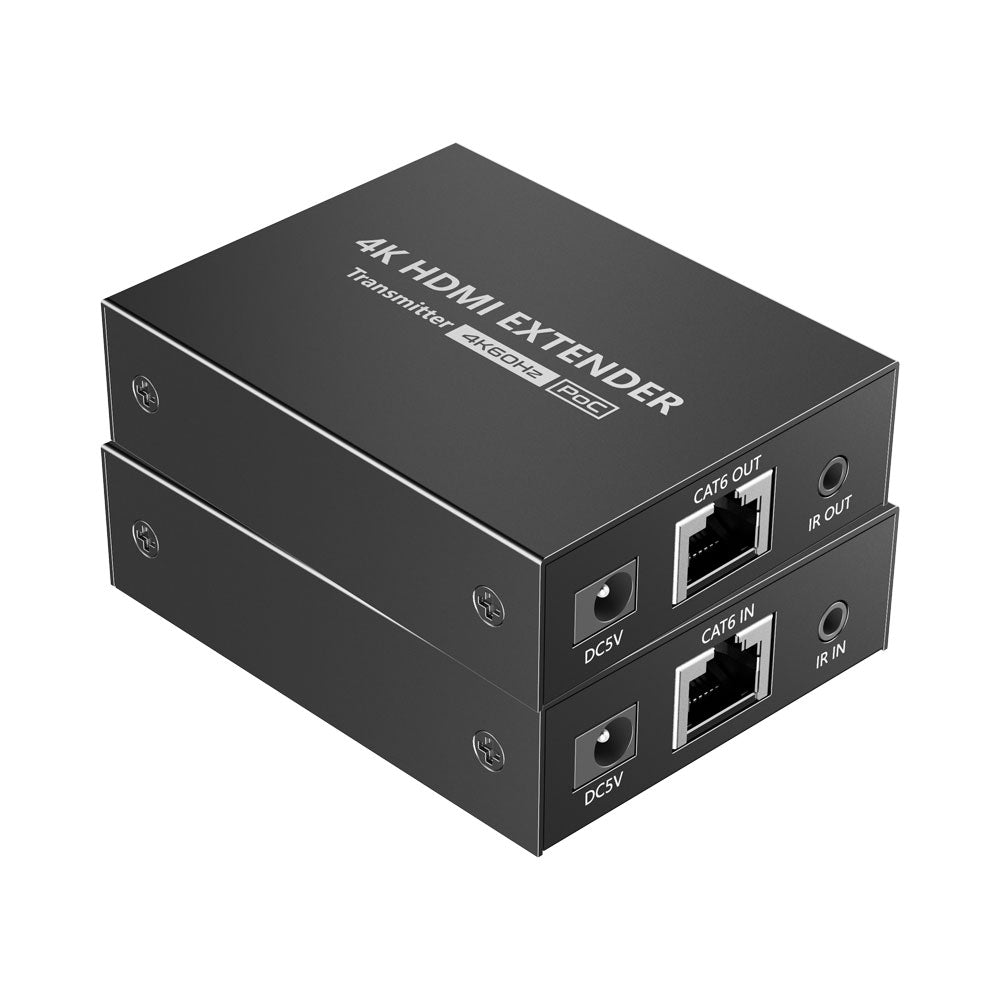

- Output Interface (Transmitter): 1× HDMI plus 1× RJ45

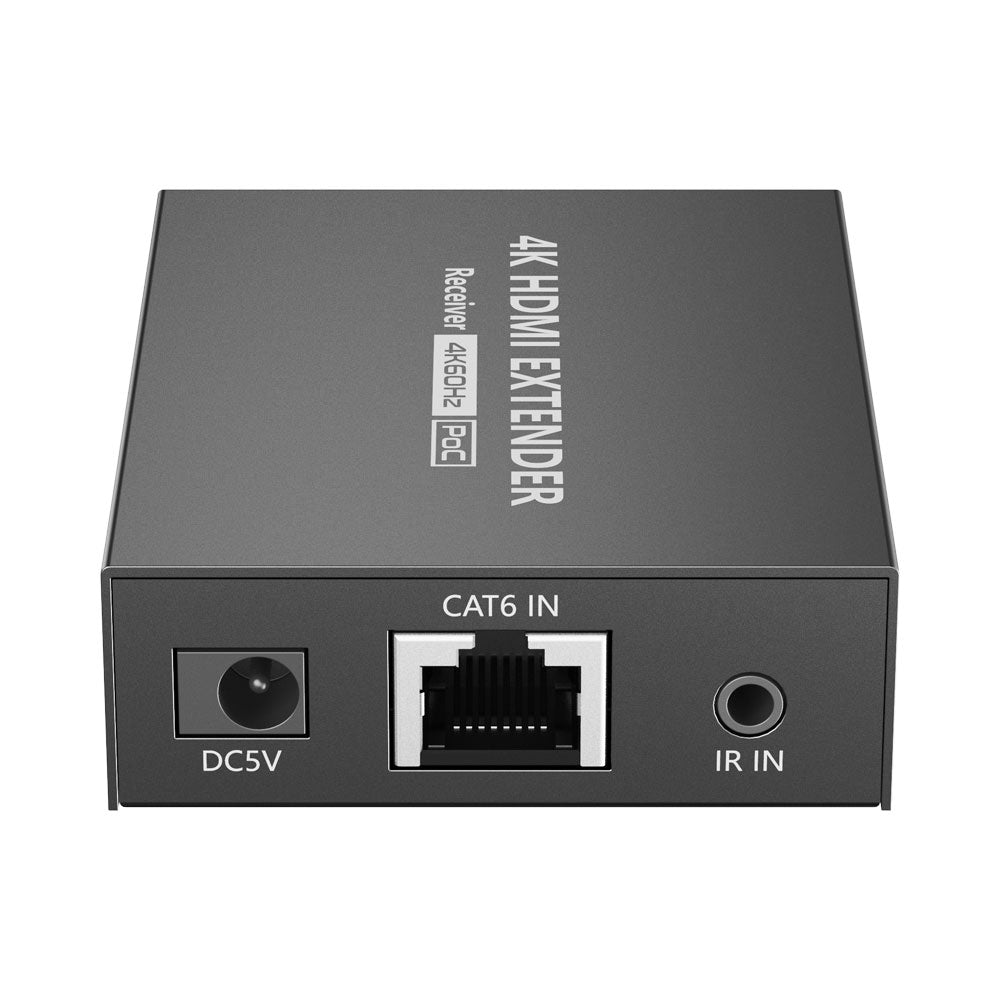

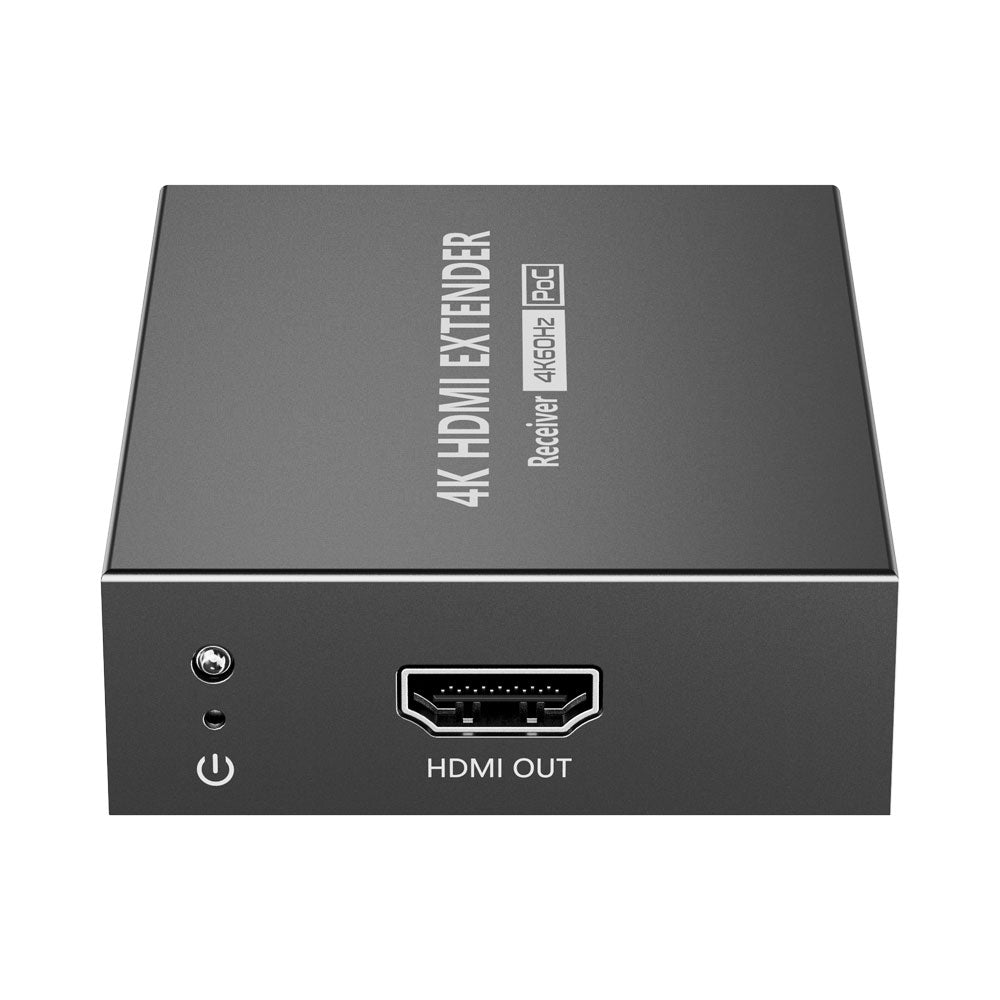

- Output Interface (Receiver): 1× HDMI
- HDMI Cable Length (Max.): ≤5m
- Maximum Transfer Rate: 18Gbps
- Maximum Transmission Bandwidth: 600MHz
- EDID Passthrough: Yes
- Compatibility: HDMI 2.0 (Deep Colour, 4K, HDR, YUV 4:4:4), HDCP 2.2 / HDCP 1.4
- Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840×2160 @24/25/30/50/60Hz, 3440×1440, 2560×1440, 2560×1080, 2048×1080, 1920×1440, 1920×1080, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
- Transmission Distance: 4K - 50m, 1080p - 70m

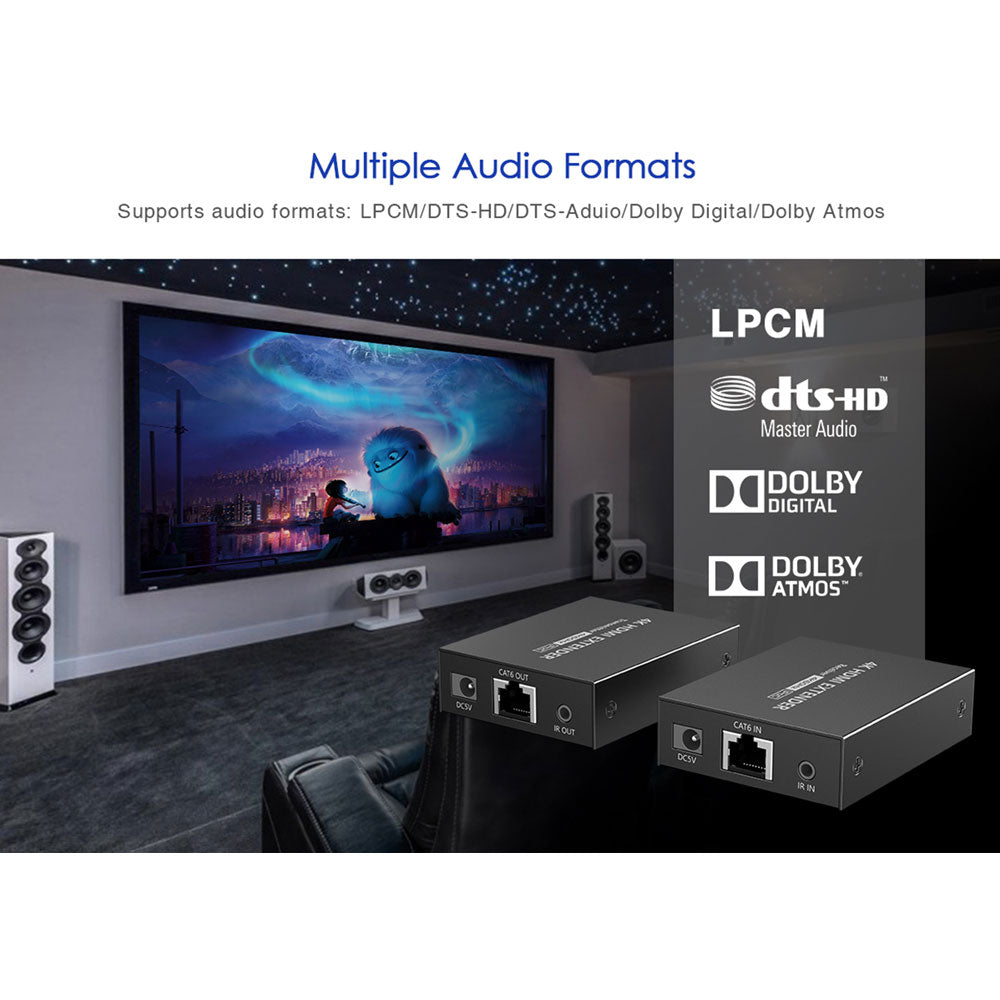

- Supported Audio Formats: LPCM / DTS‑HD / DTS‑Audio / Dolby Digital 5.1‑Channel / Dolby Atmos
- IR Interface: 1× 3.5mm IR Out (Transmitter) / 1× 3.5mm IR In (Receiver)
- IR Receiving Range: ≤5m
- Infrared Frequency: 20~60kHz
- Power Supply: Transmitter - DC 5V 2A, Receiver - PoC (Powered by Transmitter)
- Power Consumption (TX + RX): <5.5W
- Working Temperature Range: –20~60°C
- Storage Temperature Range: –30~70°C
- Humidity (No Condensation): 0–90% RH
- Housing Material: Metal
- Colour: Black
- Dimensions (L × W × H): 75 × 60 × 21mm
- Weight (Each Unit): 130g
- Protection: Lightning Protection, Surge Protection, ESD Protection (Contact Discharge ±4kV, Air Discharge ±8kV — compliant with IEC61000‑4-2)
