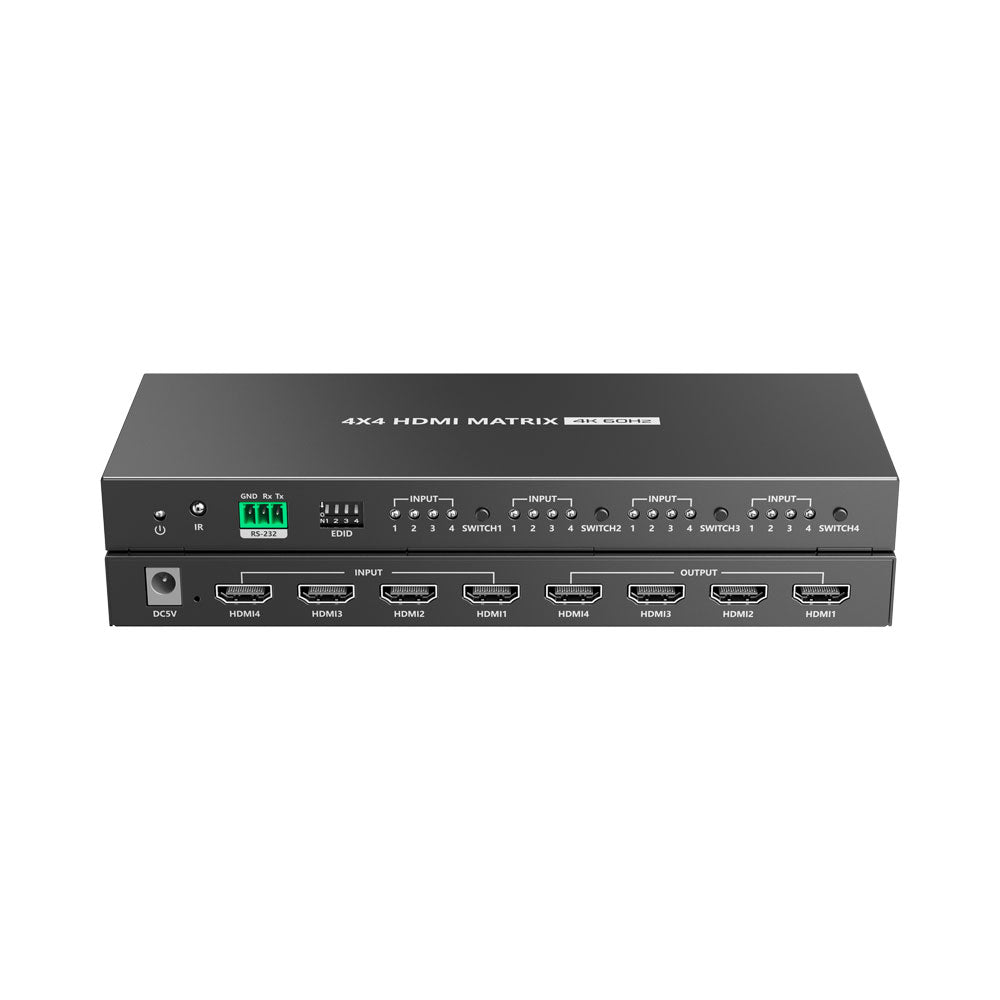

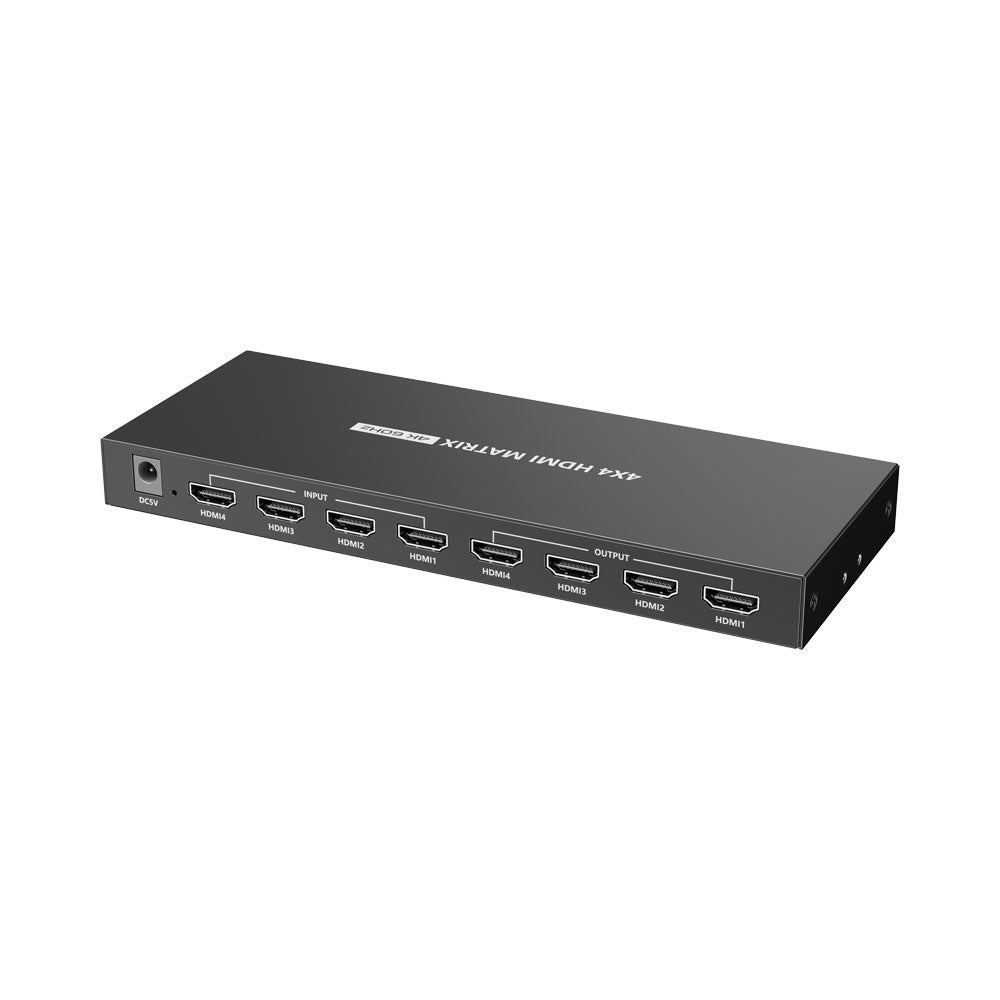

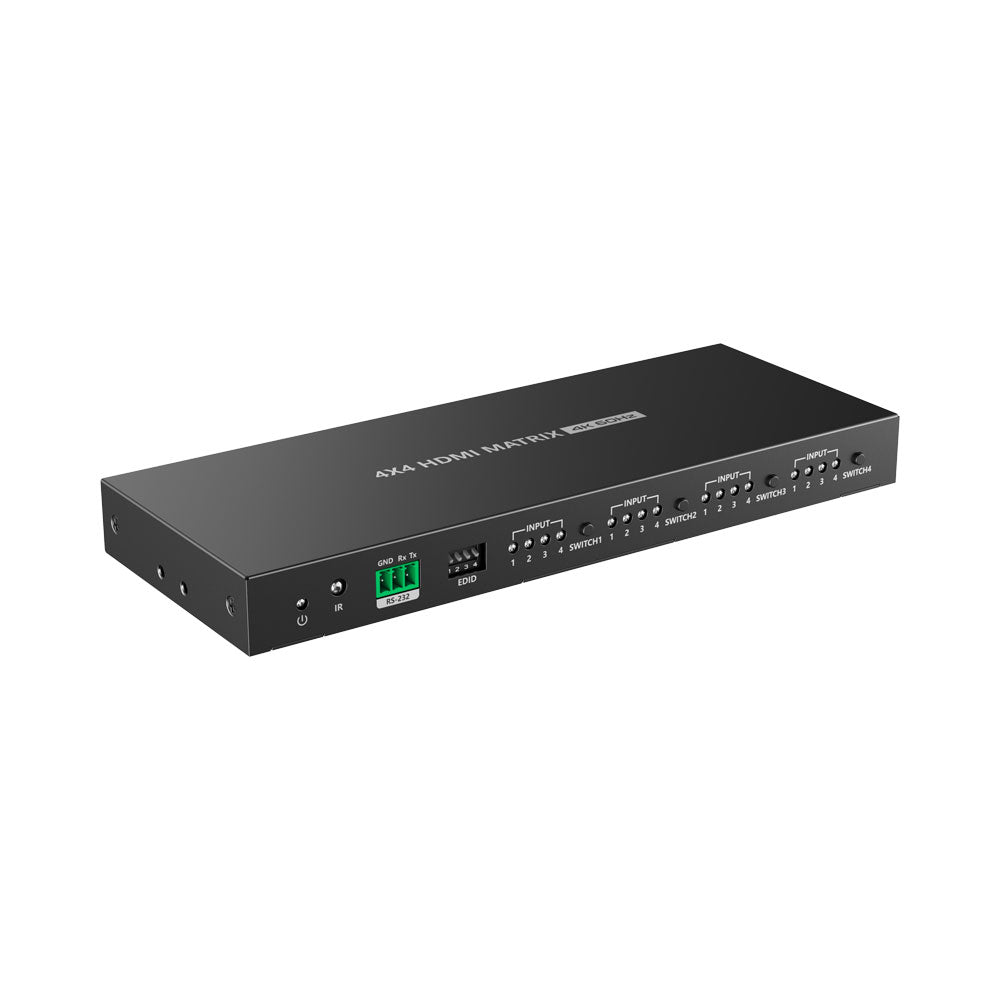

LENKENG LKV424 4×4 4K HDR HDMI Matrix Switch with RS232
Switch Like a Pro - 4 in, 4 out. Any Input to Any Screen.
Hook-up up to four HDMI sources - streaming devices, consoles, PCs or set-top boxes and route them freely to any of four displays. With full 4K @60 Hz, HDR10, YUV 4:4:4 and HDCP 2.2 support, you get crystal-clear video and rich, accurate colours. Control is effortless: use IR remote, the front panel button or even RS232 for advanced setups. Built-in lightning, surge and ESD protection keeps your gear safe. Whether for a home theatre, multi-room installation or pro AV setup - this matrix gives you total flexibility, zero fuss.
Features

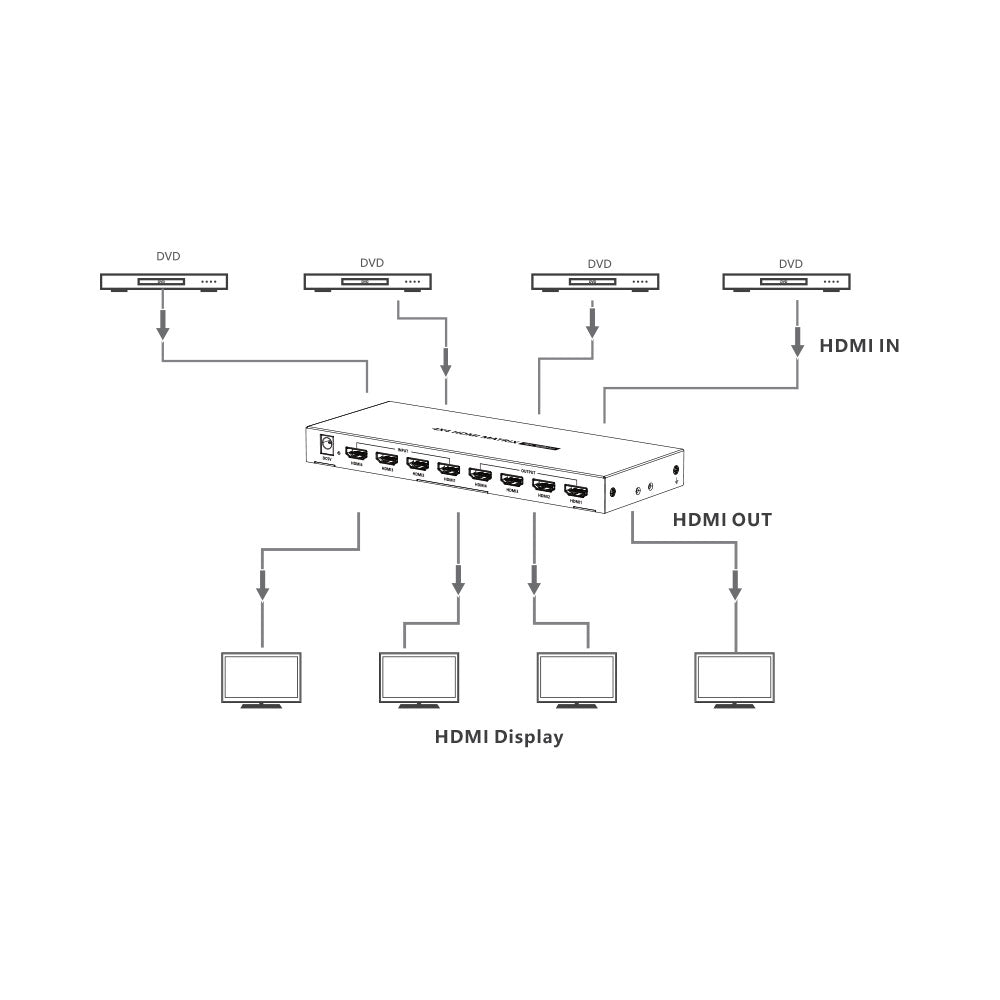

- 4× HDMI Sources to 4× HDMI Displays
- 4K @60Hz HDR10 4:4:4
- Supports EDID
- Multiple Control Methods including Remote Control
- Any Two of the Four HDMI Ports Support Auto Down-Scaling
- Lightning, Surge and ESD Protection
Specifications
- HDMI Version: HDMI 2.0 (HDR, YUV4:4:4) - Compatible With HDCP 2.2 / HDCP 1.4
- HDMI Interface: 4× HDMI Input, 4× HDMI Output
- Transmission Rate: 18Gbps
- Bandwidth: 600MHz
- Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840×2160 @24/25/30/60Hz, 4096×2160 @24/25/30/60Hz
- Audio Formats: LPCM 7.1 / DTS-HD / DTS-Audio / Dolby Digital Plus / Dolby TrueHD 7.1 / Dolby Digital 7.1CH / Dolby Atmos
- RS232 Port: 3-Pin (GND / Rx / Tx), Baud Rate 9600
- Voltage: DC 5V 1A
- Power Consumption: <4W
- Working Temperature Range: –20~60°C
- Storage Temperature Range: –30~70°C
- Humidity (No Condensation): 0~90% RH
- Housing Material: Metal
- Colour: Black
- Weight: 375g
- Dimensions (L × W × H): 210 × 80 × 21mm
- Protection: ESD Protection (Contact Discharge ±4kV, Air Discharge ±8kV per IEC61000-4-2), Lightning Protection, Surge Protection
