LENKENG LKV401MV-4K60Hz-V2.0 4K @60Hz HDMI 4x1 Quad Multiviewer Switcher
Display up to Four HDMI Sources on One Screen.
The LENKENG LKV401MV-4K60Hz-V2.0 is a professional HDMI 4×1 multiviewer switcher designed to display up to four HDMI source devices through one HDMI output. It supports full-screen, dual-screen and quad-screen layouts, making it suitable for surveillance monitoring, control rooms, presentations and multi-source display applications. HDMI2.0 support enables input resolutions up to 4096 × 2160 @60Hz, with output resolutions up to 3840 × 2160 @60Hz. Display modes can be selected using the front-panel buttons or included IR remote control, while Dolby Digital 5.1CH, DTS 5.1CH and LPCM2.0 audio support provide flexible compatibility. Its metal housing and stable 24/7 operation make it suitable for professional installations.
Features
- 4×1 HDMI Multiviewer - Connects up to four HDMI source devices to one HDMI display

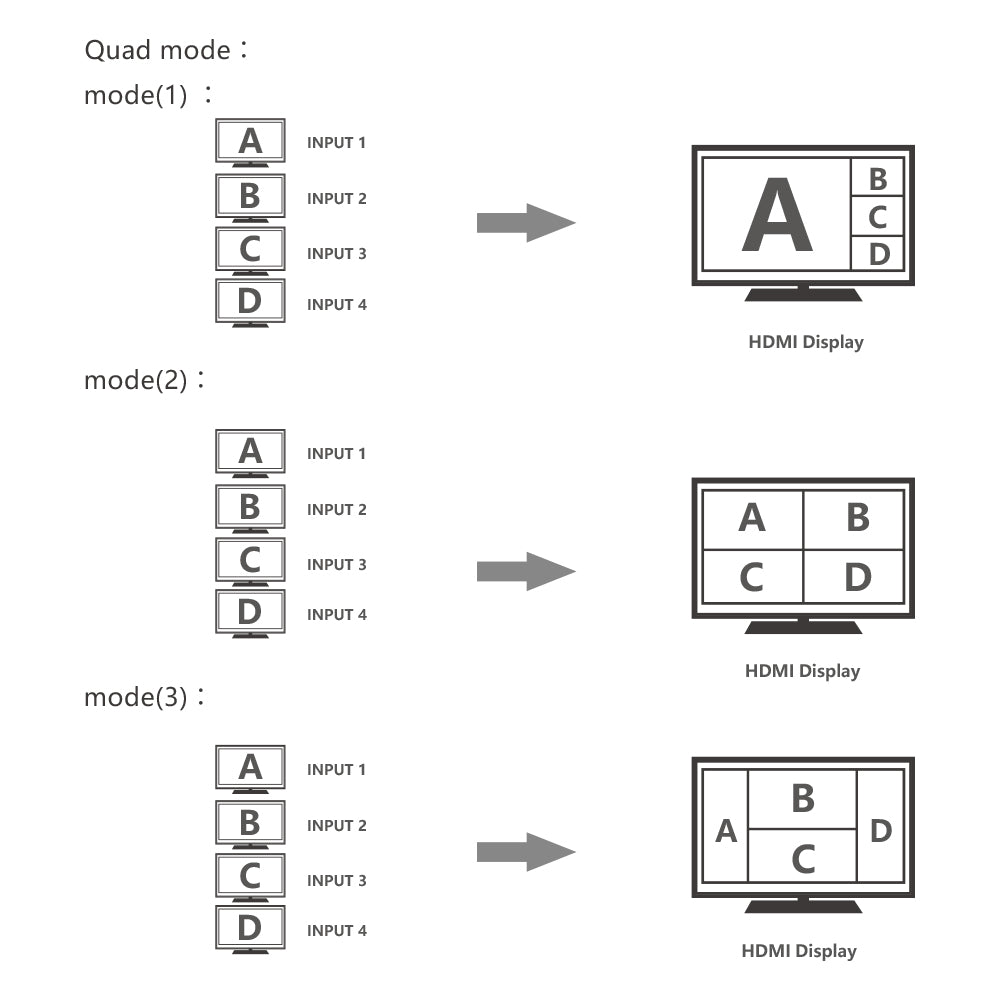

- Quad-Screen Display - Shows all four connected HDMI sources simultaneously

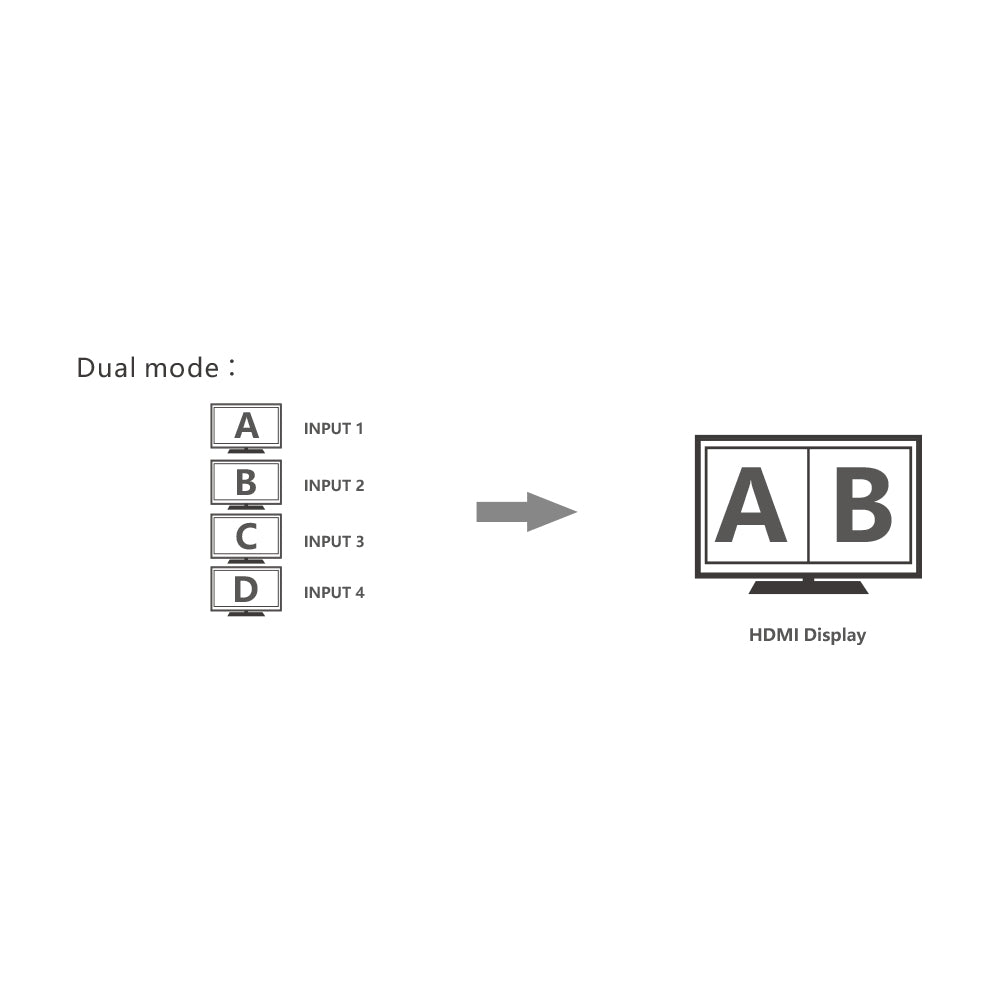

- Dual-Screen Display - Displays two selected sources together on one screen

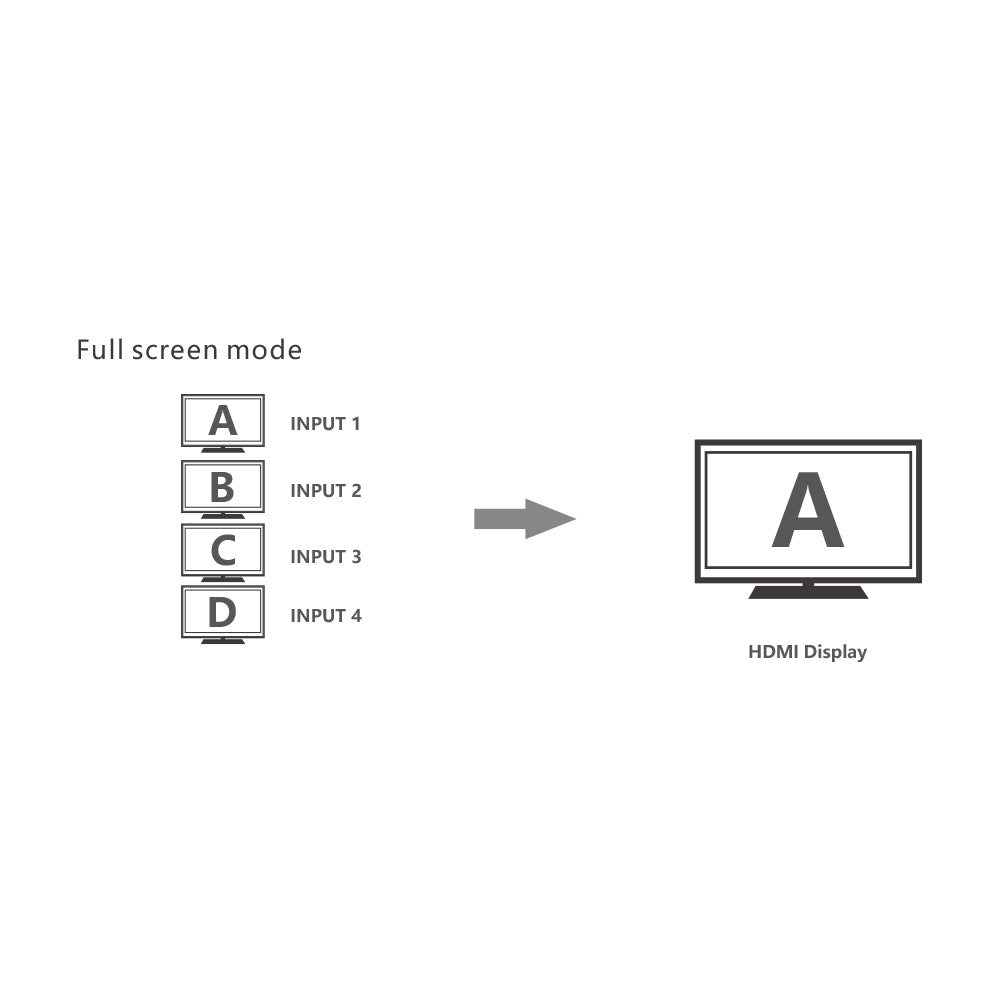

- Full-Screen Display - Shows one selected source across the entire display
- 4K @60Hz Support - Accepts HDMI input resolutions up to 4096 × 2160 @60Hz
- 4K HDMI Output - Delivers output resolutions up to 3840 × 2160 @60Hz
- HDMI2.0 Compatibility - Supports modern high-resolution HDMI source devices and displays
- HDCP Support - Compatible with HDCP1.4 and HDCP2.2 protected content
- Multi-Format Audio - Supports Dolby Digital 5.1CH, DTS 5.1CH and LPCM2.0 audio

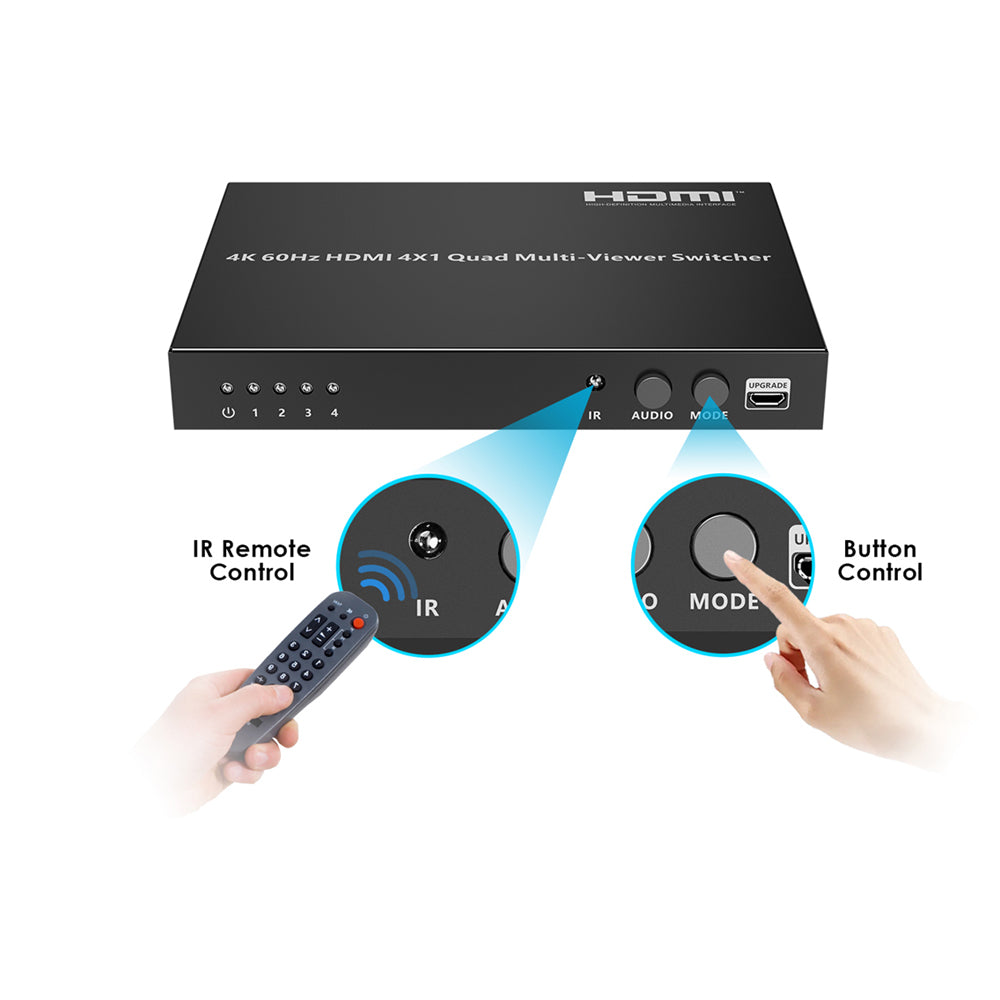

- Dual Control Options - Switches display modes using front-panel buttons or the IR remote control
- Plug-and-Play - Requires no additional software or drivers
- Stable 24/7 Operation - Designed for continuous professional use
Specifications
- HDMI Inputs: 4× HDMI
- HDMI Outputs: 1× HDMI
- Display Modes: Full Screen, Dual Screen And Quad Screen
- HDMI Standard: HDMI2.0
- HDCP Standard: HDCP1.4 and HDCP2.2
- Maximum Input Resolution: 4096 × 2160 @60Hz
- Maximum Output Resolution: 3840 × 2160 @60Hz
- Supported Output Resolutions: 3840 × 2160 @60Hz and 1080p @60Hz
- Supported Audio Formats: Dolby Digital 5.1CH, DTS 5.1CH and LPCM2.0
- Control Methods: IR Remote Control and Front-Panel Buttons
- Recommended HDMI Cable Length: up to 5m
- Power Supply: DC12V 2A
- Power Consumption: Less Than 14W
- Housing Material: Metal
- Colour: Black
- Weight: 498g
- Dimensions: 178.5 × 104.74 × 21.2mm
- Operating Temperature: -20~60°C
- Storage Temperature: -30~70°C
- Operating Humidity: 0~90% RH, Non-Condensing
- ESD Protection: ±4kV Contact Discharge and ±8kV Air Discharge
- ESD Standard: IEC61000-4-2
- Additional Protection: Lightning and Surge Protection
