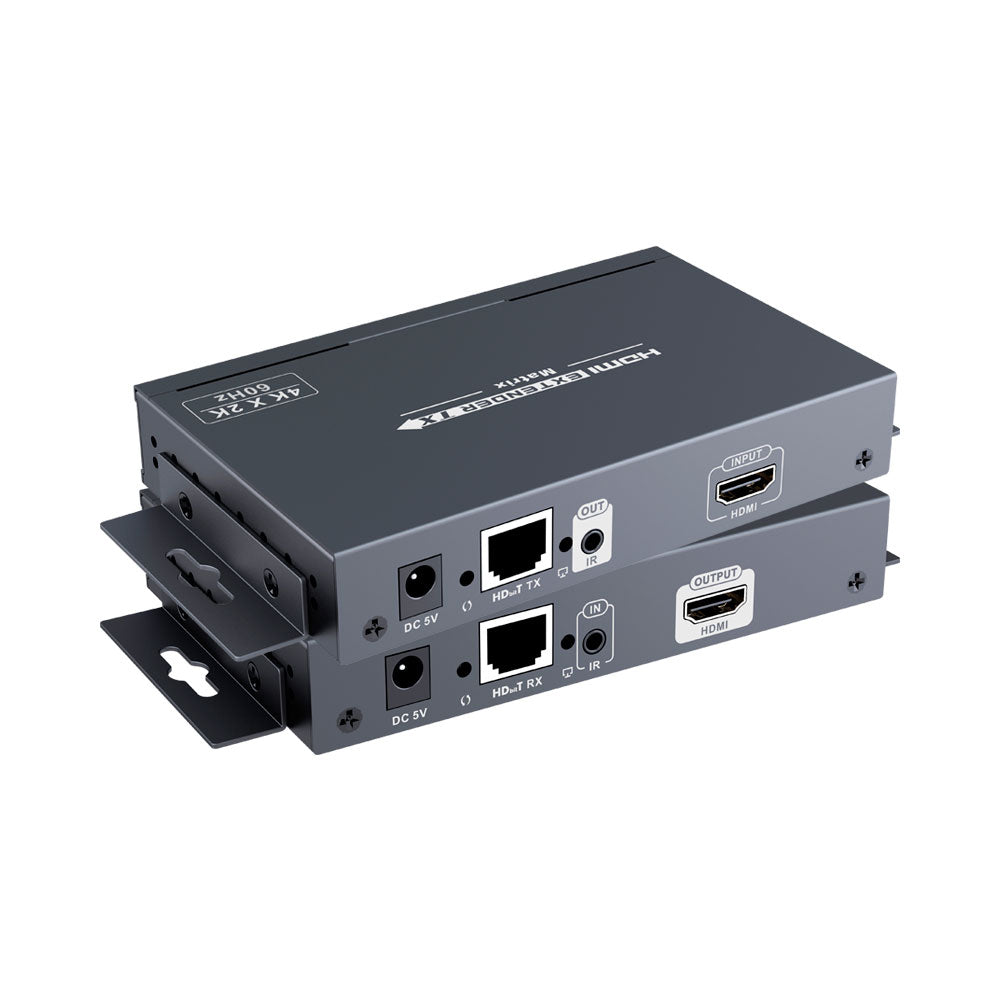

Lenkeng LKV393MATRIX 120m 4K HDbitT HDMI 2.0 Matrix Over CAT6 Extender with PoE
This HDMI extender matrix applies advanced HDbitT over IP technology, to build up a many to many HDMI 2.0 extender matrix with IGMP LAN switch. It supports up to 100 pcs transmitters input and unlimited receivers output. It transmits the signal over a single CAT5/5e/6 cable up to 120 meters.
Features

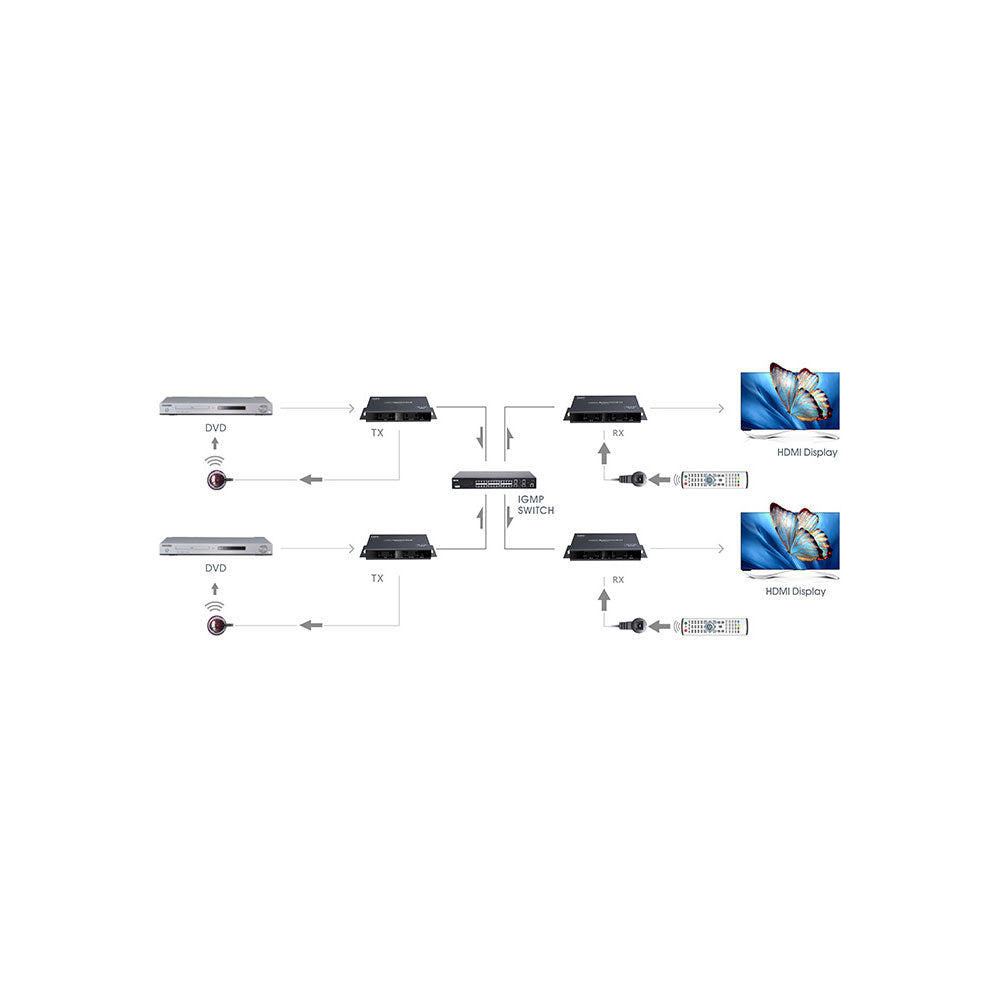

- Route multiple HDMI sources to multiple HDMI displays through LAN switch supporting IGMP
- Support up to 100 transmitters input, output is unlimited
- Extend HDMI signal over a single CAT5/5e/6 cable
- Support transmission distance up to 394ft/120m up to 4Kx2K@60Hz
- Support point to point and point to multi-point connection
- Support IR pass-back function to control source device from Receiver location
- Support to select and switch source device input from receiver via remote control and hard button
- Support computer control software to select and switch source device input
- Wall-mounting kits with screws
- HDMI 2.0 and HDCP 2.2 compliant
Specifications
- Voltage/Current: DC5V/3A
- Power Consumption: TX: 7W, RX:＜10W
- HDMI Compliance: HDMI2.0
- HDCP Compliance: HDCP2.2
- HDMI Input Resolution: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz,4Kx2K @24/25/30/60Hz
- HDMI Output Resolution: 1080p @60Hz, 4Kx2K @30/60Hz
- Supports Audio Formats: PCM
- Maximum Transfer Rate: 18Gbps
- Input and Output TMDS Signal: 0.7~1.5Vp-p (TMDS)
- Input and Output DDC Signal: 5Vp-p (TTL)
- Input Cable Length: ≤5m( AWG26)
- Output Cable Length: ≤5m(AWG26)
- APP Control: Support APP control, user can scan, preview, build up their configuration by using a phone/tablet easily, OS system supports IOS and Android
- IR Remote Control: Supports IR passback with 20~60KHz frequancy
- Transfer Method: Over UTP/STP CAT5/5e/6
- Transmission Distance: 120m
- Connector: RJ45
- Delay: ≤200 ms
- Electrostatic Protection of the Whole Machine: 1a Contact discharge level 3, 1b Air discharge level 3, Standard: IEC61000-4-2
- Working Temperature: 0~50°C
- Storage Temperature: -10~70°C
- Humidity (No Condensation): 0~90%
- Dimension164(L) x 108.5(W) x 23.6(H)mm
- Material: Iron Alloy Material + Crystal Panel
- Finishing: Grit blast
- Colour: Black
- Weight: TX:330g, RX:330g
- Mean Time Between Failures: >30000 Hours (MTBF)
