Lenkeng LKV383MATRIX-V4 120m HDMI Matrix Over IP Extender Kit

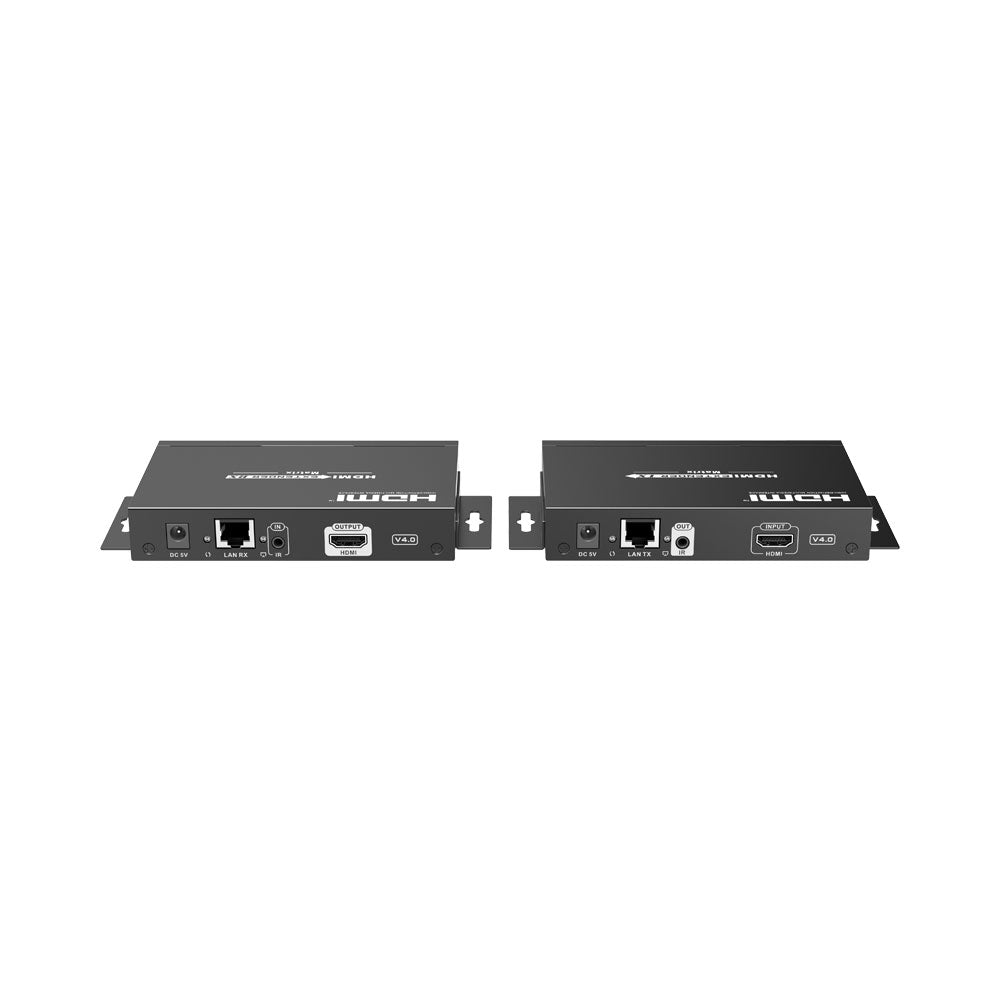

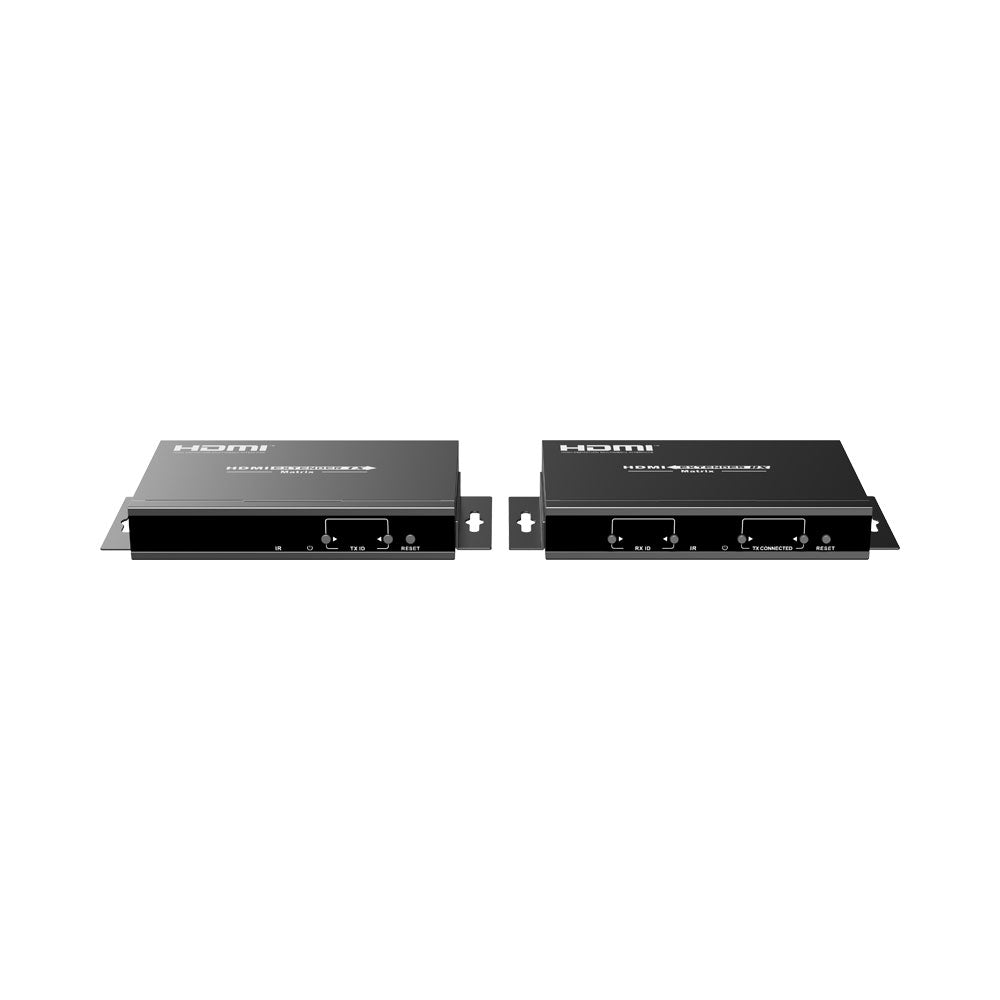

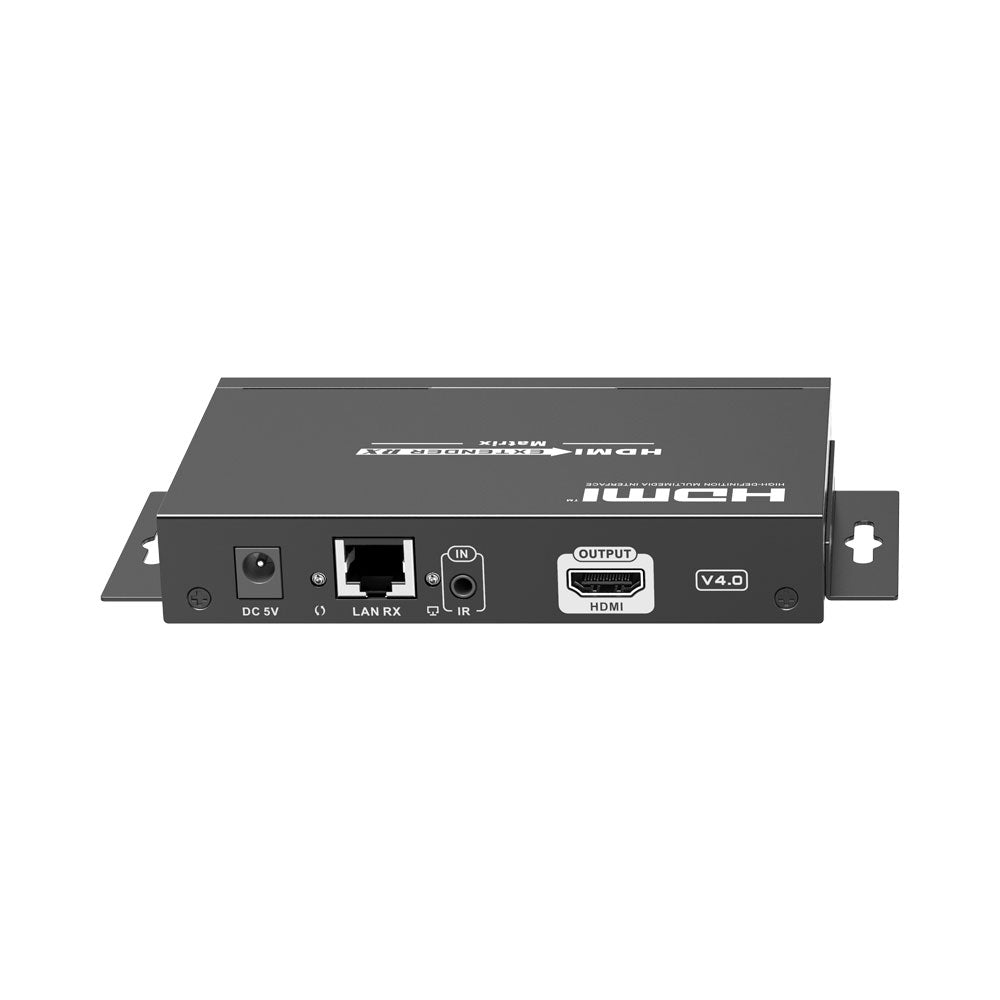

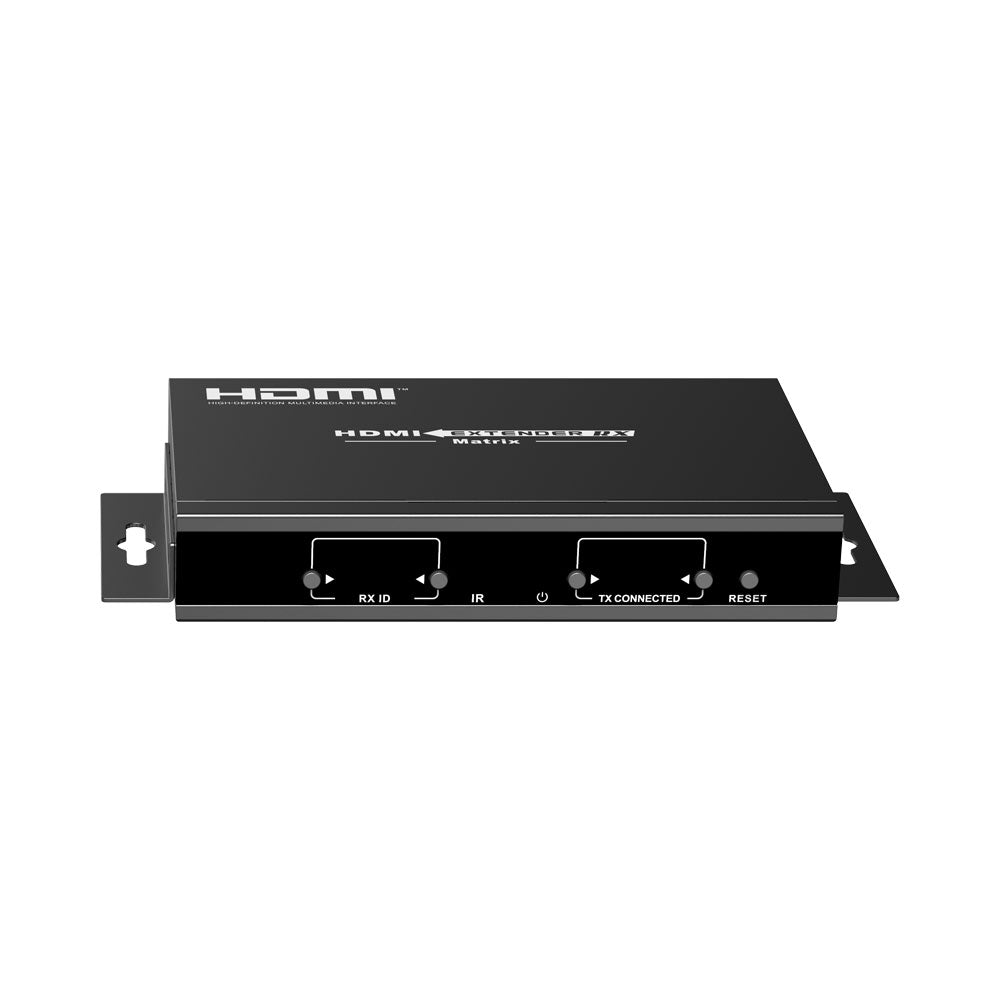

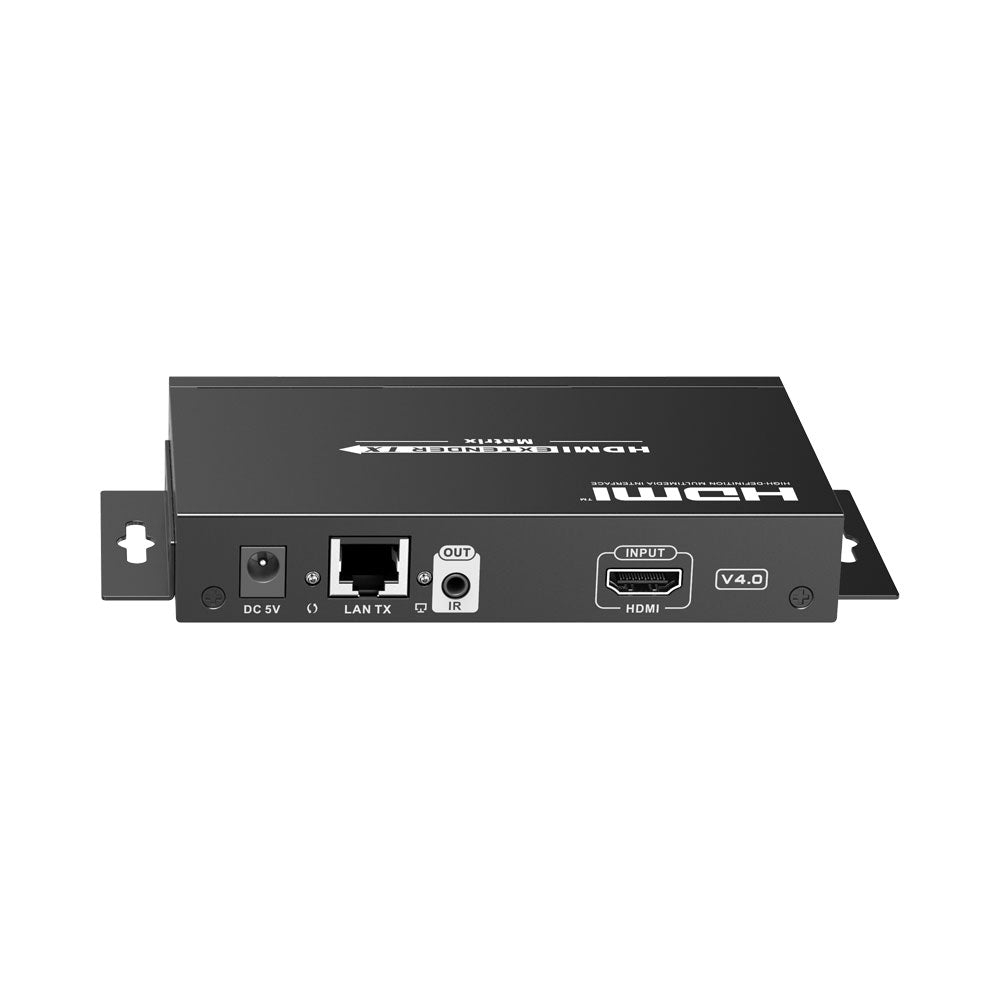

This HDMI Extender Matrix includes a transmitter unit(TX) and a receiver unit(RX). It allows for the distribution and switching of high definition video/audio signal by this product and off-the-shelf IGMP switch. It applies advanced technology over IP (HDbitT), and the resolution supported is up to 1080p @60Hz full HD. It can also used in a point-to-point connection, the distance is up to 120 meters. It is widely applied in digital signage advertisement, control room, command centers, entertainment and exhibition center; safety monitoring system, etc.
Specifications
- HDMI signal: HDMI1.3,compliant to HDCP
- Network Bandwidth: 18Mbps
- Supported Resolution: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720 p@50/60Hz, 1080 i@50/60Hz, 1080 p@50/60Hz
- Audio Format: PCM
- TMDS signal: 0.7-1.2Vp-p
- DDC signal: 5Vp-p
- Remote Control: Supported
- IR Pass-Back: Supports 20~60KHz IR devices
- Matrix Configuration: Up to 100 source signals can be connected and switched to infinite output
- Power Supply: 5V 2A
- Power Consumption: TX＜4W, RX＜4W
- Weight: TX: 260g, RX: 250g Each
- Protection: Lightning Protection, Surge Protection and ESD Protection
- Dimensions: 133.8 (L) x 83.8 (W) x 23.8mm (H)
- Working Temperature: 0~60°C
- Storage Temperature: -20~70°C
- Relative Humidity: 0~95% (No Condensation)
- Colour: Black
