Lenkeng LKV372EDID40M HDMI Extender Over CAT6 with EDID

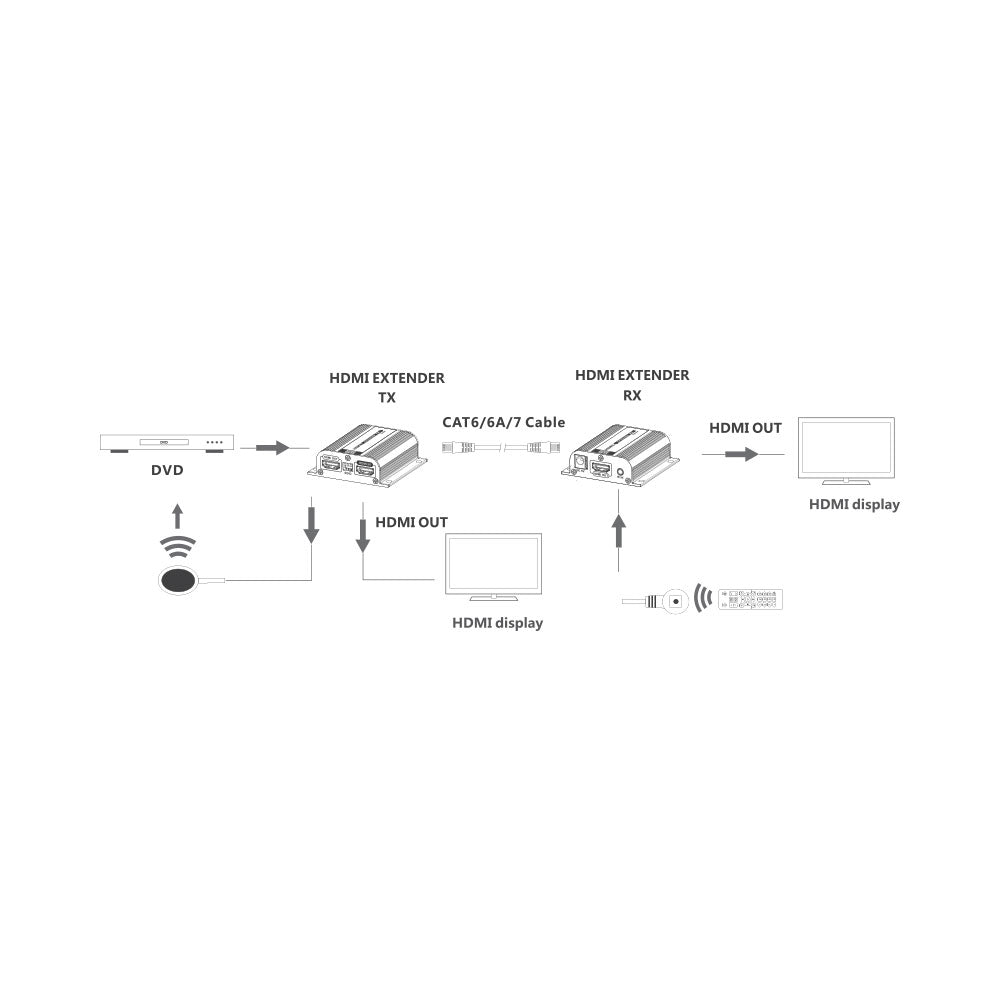

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p @60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 50m.
Features
- Supports resolutions up to 1080p
- Supports EDID Dial Switch for switching HDMI output resolution and audio format
- Supports EDID pass-through for smart match between the source device and display device
- Supports IR pass-back with 20~60KHz IR frequency function to control source device from receiver location
- Supports one HDMI output at the local unit
- Uncompressed and zero latency
- Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable
Specifications
- HDMI Signal: HDMI1.4a, Full compatible with HDCP1.2a
- HDMI Resolution: 480p / 576p / 720p / 1080p
Transmission Distance: 40m via CAT6
- Audio Format: PCM, AC3, DTS
- Power Supply: DC 5V2A (1pc Only)
- Dimension: 71.6 (L) x 66.9 (W) x 22.6 (H) mm Each
- Weight: 70g Each
