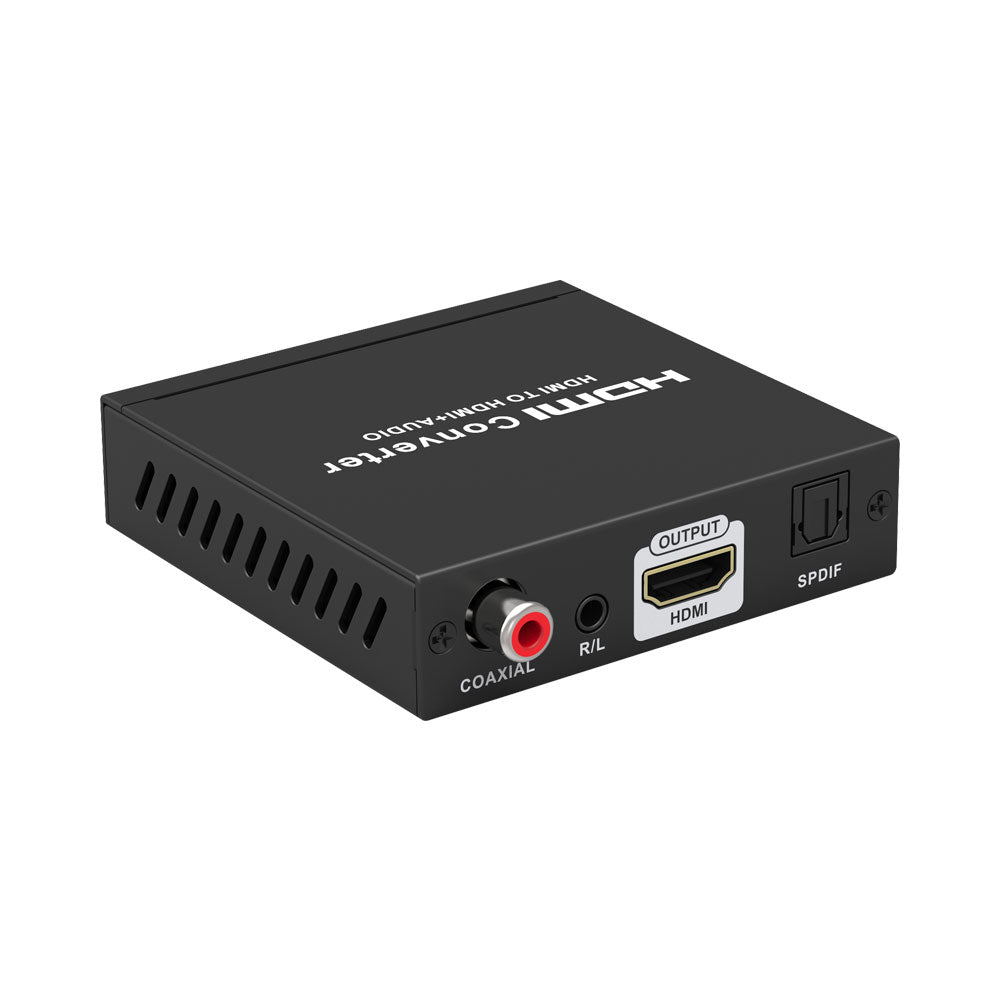

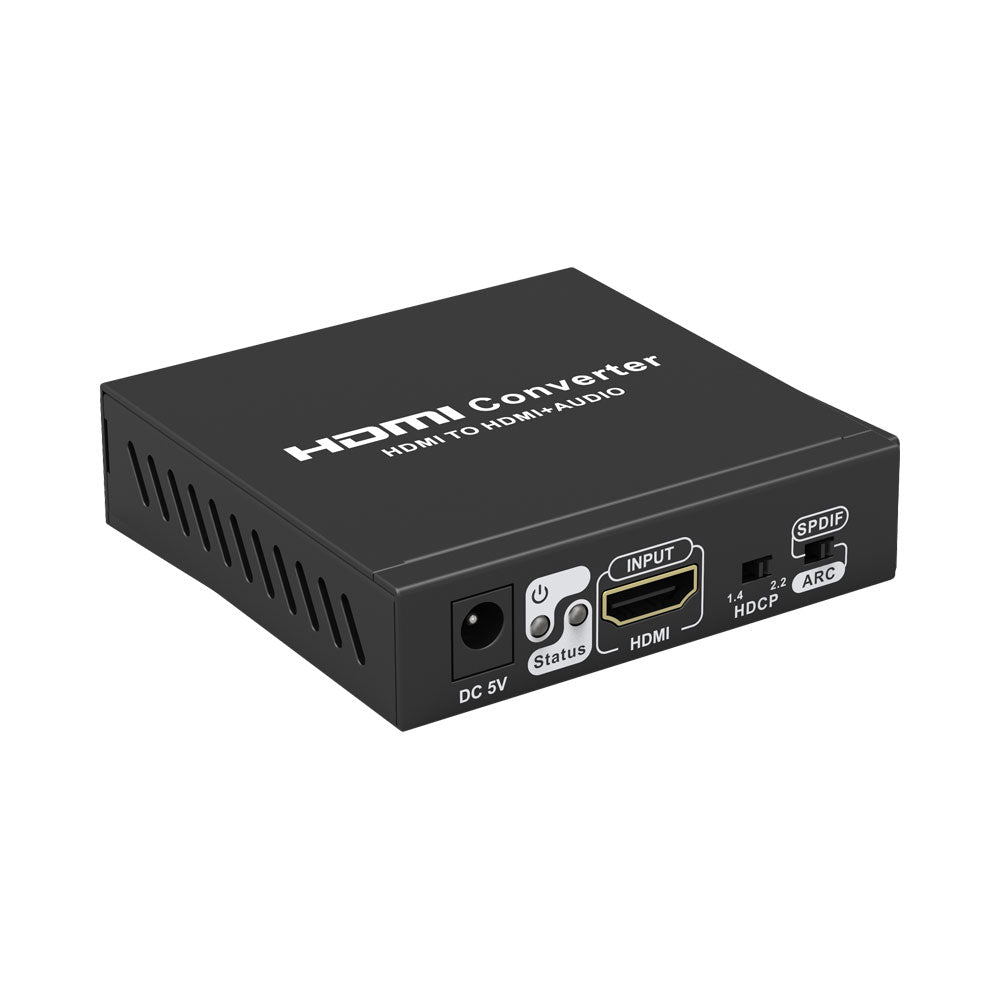

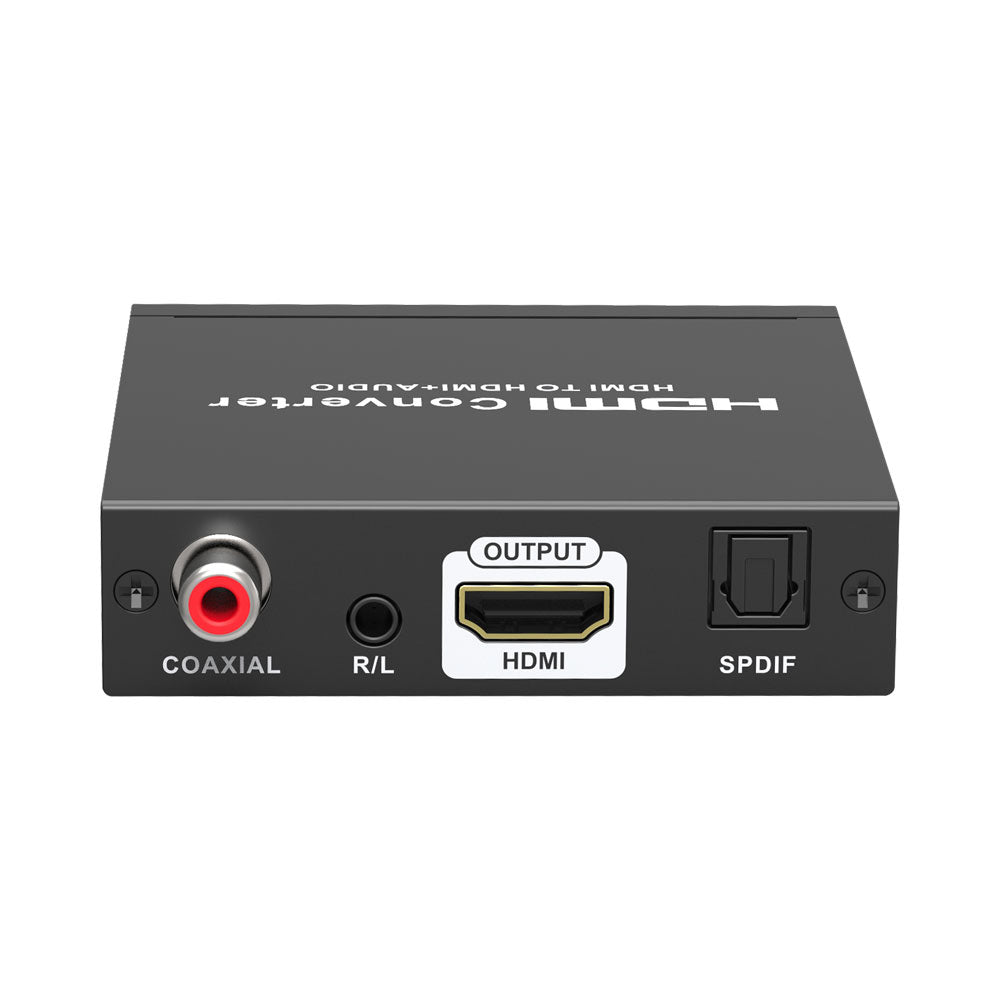

Lenkeng LKV3061 HDMI2.0 Audio Extractor with ARC and HDMI Bypass
One HDMI input converted to one HDMI Video + (SPDIF+R/L+COAXIAL) Audio output. (SPDIF optical audio output and COAXIAL audio output cannot be used simultaneously. R/L stereo output is not available when using the ARC function)
Features
- One HDMI input converted to one HDMI Video + (SPDIF+R/L+COAXIAL) Audio output
- (SPDIF optical audio output and COAXIAL audio output cannot be used simultaneously
- R/L stereo output is not available when using the ARC function)
- Supports HDMI2.0, HDCP2.2, HDCP1.4
- Supports HDCP1.4 to HDCP2.2 and HDCP2.2 to HDCP1.4 conversion
- Supports 3D video format
- Supports ARC function
- Supports HDR
- Resolution supported is up to 4Kx2K@60Hz Ultra HD
- Supports YUV4:2:0 / 4:2:2 / 4:4:4 and RGB 4:4:4
- Lossless transmission
- Plug and play, easy installation
Specifications
- HDMI Compliance: HDMI2.0
- HDCP Compliance: HDCP2.2, HDCP1.4
- HDMI Resolution: 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4Kx2K @24 / 25 / 30 / 60Hz
- Audio Formats: Dolby, DTS, LPCM
- Maximum Transfer Rate: 18Gbps
- Input and Output TMDS Signal: 0.7~1.2vp-p
- Input and Output DDC Signal: 5vp-p (TTL)
- Supported Input/Output Cable Lengths: ≤5m (AWG24)
- Dimension: 80 (L) x 80 (W) x 19.5 (H) mm
- Weight: 175g
