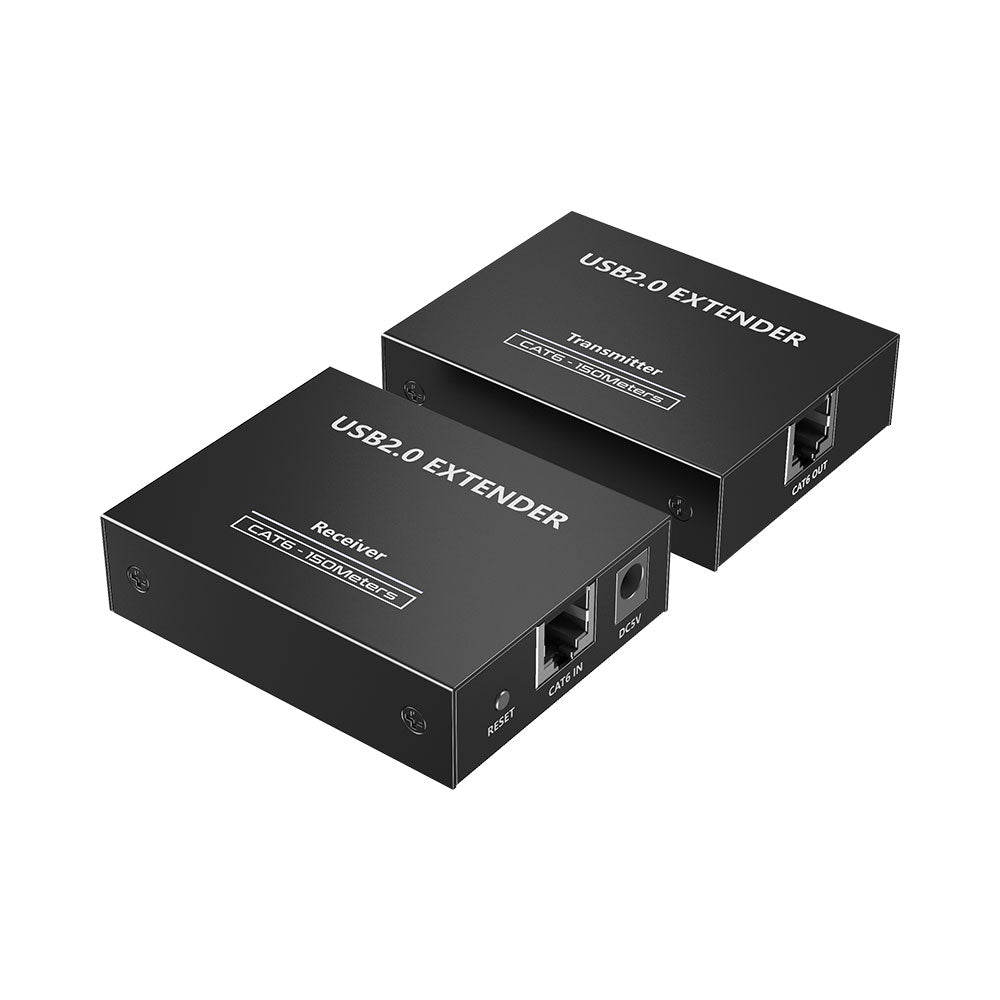

Lenkeng LKV100USB 150m 4-Port USB2.0 Extender Over CAT6
Extend Four USB Connections up to 150m Over One Network Cable.

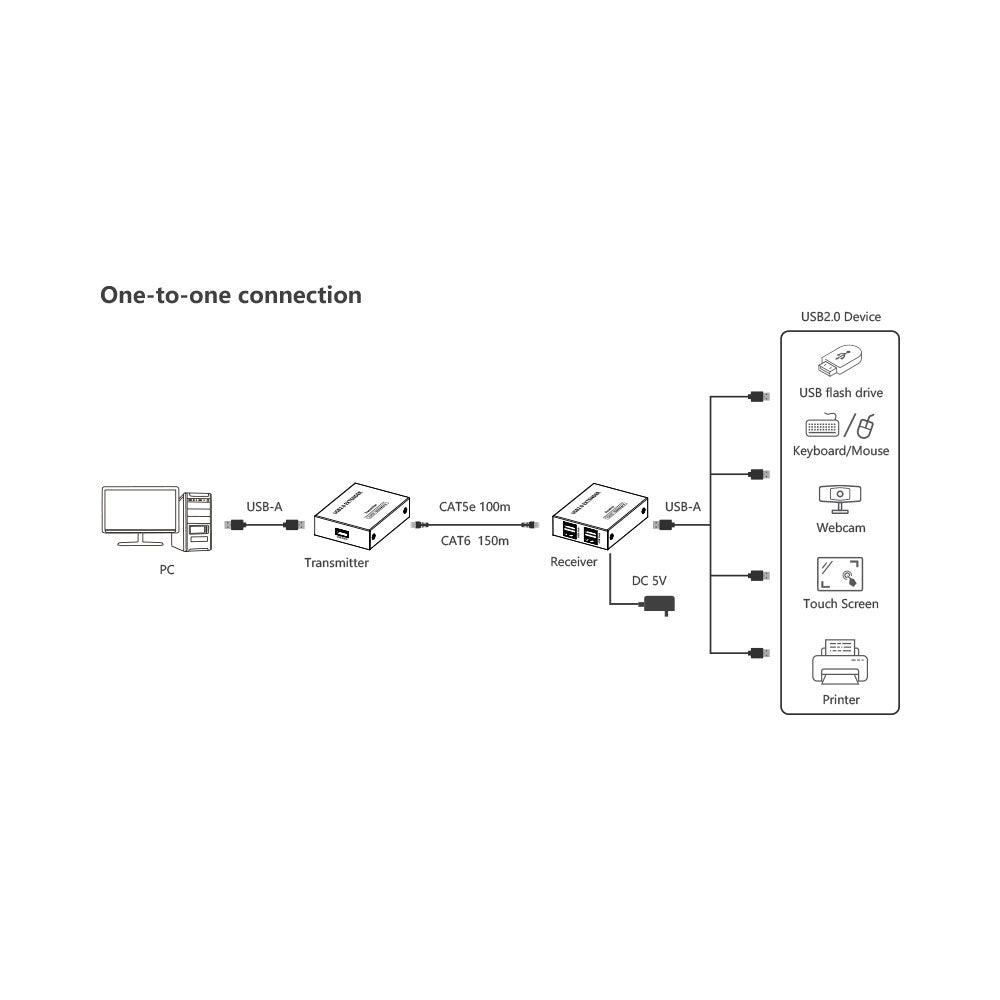

The Lenkeng LKV100USB extends USB connectivity between a host computer and up to four USB devices using one CAT5e, CAT6, CAT6A or CAT7 network cable. It supports USB2.0 High-Speed data transfer at up to 480Mbps, with backwards compatibility for USB1.1 and USB1.0 devices such as printers, cameras, scanners, flash drives, keyboards, mice and touchscreens. Transmission distances reach up to 100m over CAT5e or 150m over CAT6 and higher-category cabling. A compatible Gigabit switch can also be installed between the transmitter and receiver for extended applications. The transmitter draws power from the connected host, while the receiver uses the supplied DC5V 1A power adapter. Plug-and-Play operation, hot-plug support and four receiver-side USB ports make the extender suitable for professional AV, monitoring, industrial-control and workspace installations.
Features
- 150m USB Extension - Extends USB connectivity up to 150m over CAT6, CAT6A or CAT7 network cable

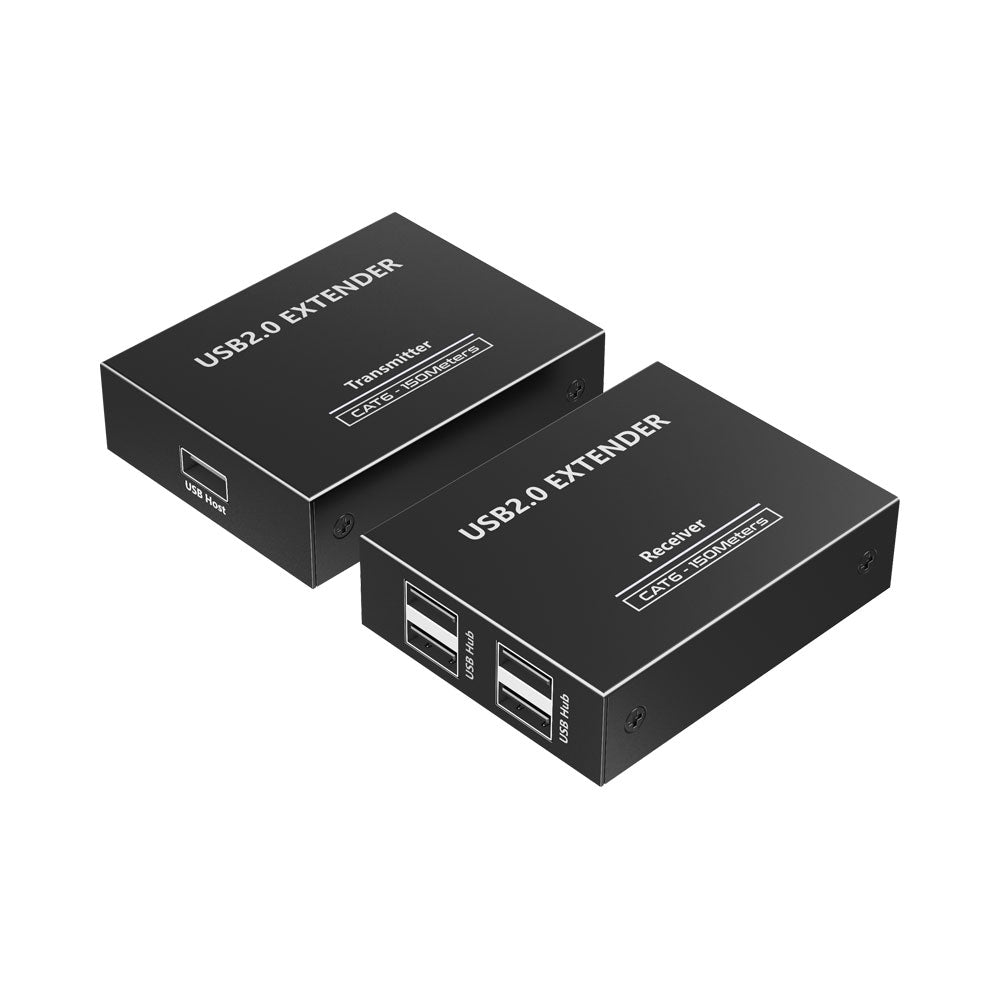

- Four USB Device Ports - Connects up to four compatible USB devices at the receiver
- 480Mbps Data Transfer - Supports USB2.0 High-Speed operation at up to 480Mbps
- Backwards Compatibility - Supports compatible USB1.1 Full-Speed and USB1.0 Low-Speed devices
- Flexible Cabling - Operates over CAT5e, CAT6, CAT6A or CAT7 network cable

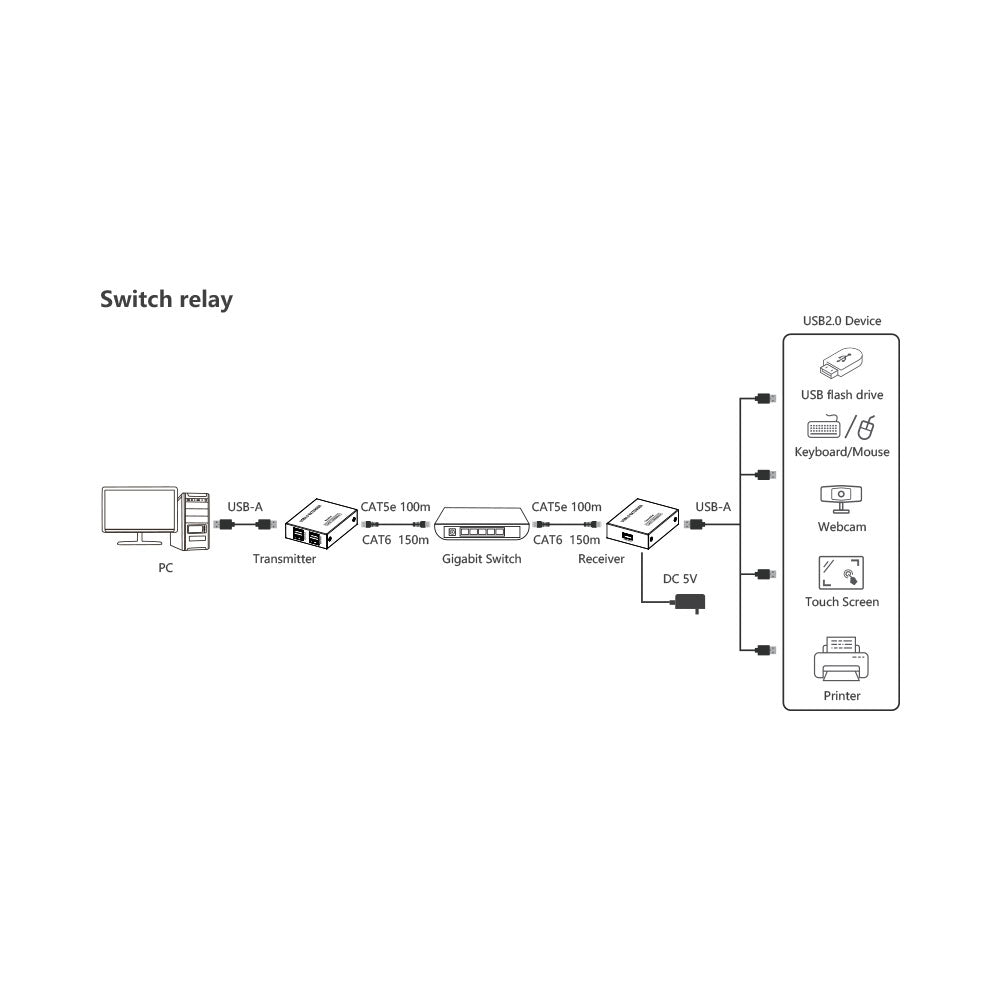

- Gigabit Switch Support - Allows a compatible Gigabit switch to be installed between the transmitter and receiver
- Host-Powered Transmitter - Draws transmitter power from the connected computer without a separate power supply
- Plug-and-Play Operation - Supports hot-plugging and automatically identifies High-Speed, Full-Speed and Low-Speed USB devices
Specifications
Connectivity
- Host USB Connection: 1× USB Type-A Female
- Device USB Connections: 4× USB Type-A Female
- Extension Connection: RJ45
- USB Standard: USB2.0
- Maximum Data Rate: 480Mbps
- Full-Speed Data Rate: 12Mbps
- Low-Speed Data Rate: 1.5Mbps
- Supported Network Cable: CAT5e, CAT6, CAT6A or CAT7
- Wiring Standard: T568B
- USB Hot-Plug: Supported
Transmission
- Maximum Distance with CAT5e: 100m
- Maximum Distance with CAT6/CAT6A/CAT7: 150m
- Switch Extension: Compatible Gigabit Switches
Power
- Transmitter Power: Supplied by the Host Device
- Receiver Power: DC5V 1A
- Transmitter Power Consumption: Up to 2W
- Receiver Power Consumption: Up to 2W
Compatibility
- Operating Systems: Windows, macOS, Linux and Android
Physical
- Housing: Metal
- Dimensions: 76 × 60 × 21mm
- Transmitter Weight: 123g
- Receiver Weight: 128g
- Colour: Black
Protection
- ESD Contact Discharge: ±4kV, Level 2
- ESD Air Discharge: ±8kV, Level 3
- ESD Standard: IEC61000-4-2
- Additional Protection: Lightning and Surge Protection
Environmental
- Operating Temperature: -20~60°C
- Storage Temperature: -30~70°C
- Relative Humidity: 0~90% RH, Non-Condensing
