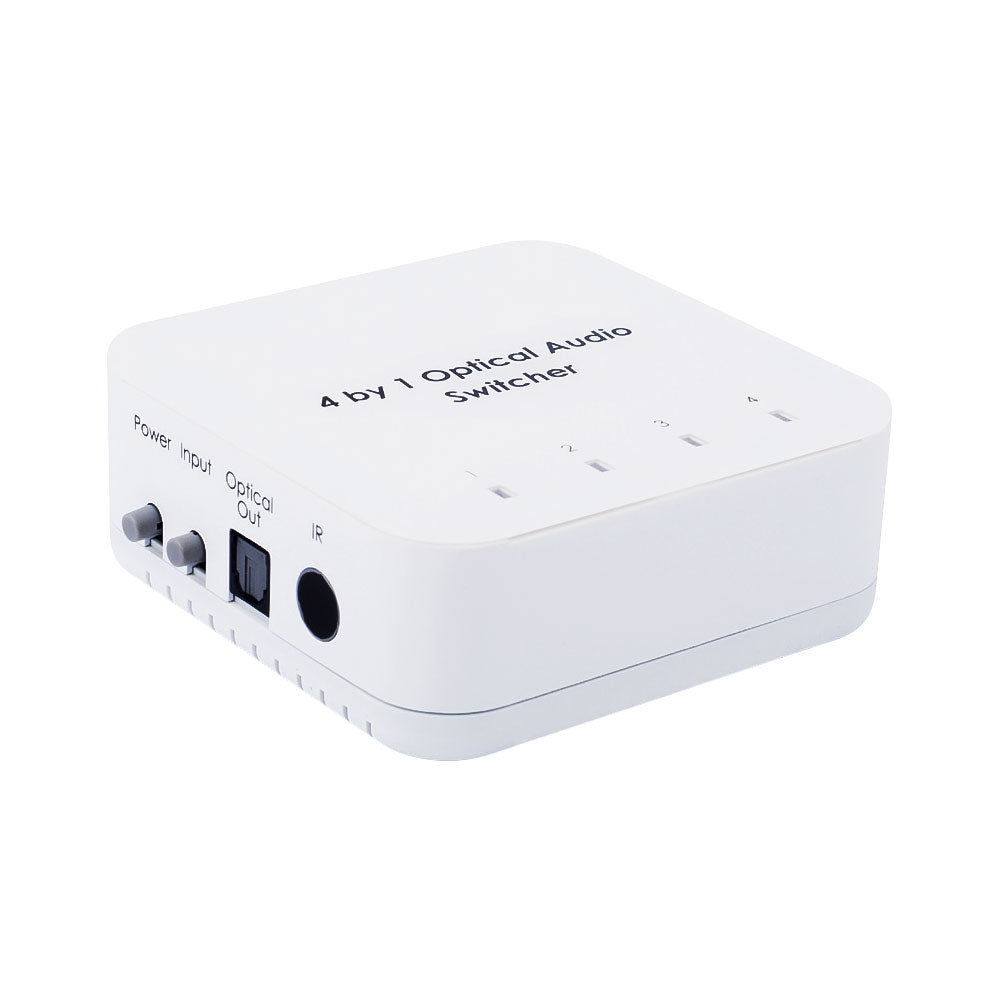

CYP DCT-17 4×1 Toslink Audio Switch
Seamlessly Switch Between Multiple Optical Audio Sources with Crystal-Clear Digital Audio Performance.
The CYP DCT-17 4×1 Toslink Audio Switch allows users to connect up to four optical audio sources to a single optical audio output, making it ideal for home theatre systems, AV installations, gaming setups and professional audio environments. Supporting optical sampling rates up to 192kHz with Dolby 5.1 and DTS 5.1 pass-through, the DCT-17 delivers high-quality digital audio switching without signal delay. Featuring IR remote control functionality, low power consumption and built-in last memory recall, this compact optical switcher provides a convenient and user-friendly solution for expanding limited Toslink audio inputs.
Features
- 4×1 Optical Audio Switching - Connect up to four Toslink audio sources to one output
- Toslink Optical Connectivity - Ideal for digital audio systems and AV equipment
- High Audio Sampling Support - Supports optical sampling rates up to 192kHz
- Dolby and DTS Pass-Through - Compatible with Dolby 5.1 and DTS 5.1 audio
- IR Remote Control Included - Convenient source switching from a distance
- Instant Source Switching - Switch between inputs without noticeable delay
- Last Memory Function - Automatically recalls the previously selected source
- Low Power Consumption - Efficient operation with less than 1W usage
Specifications

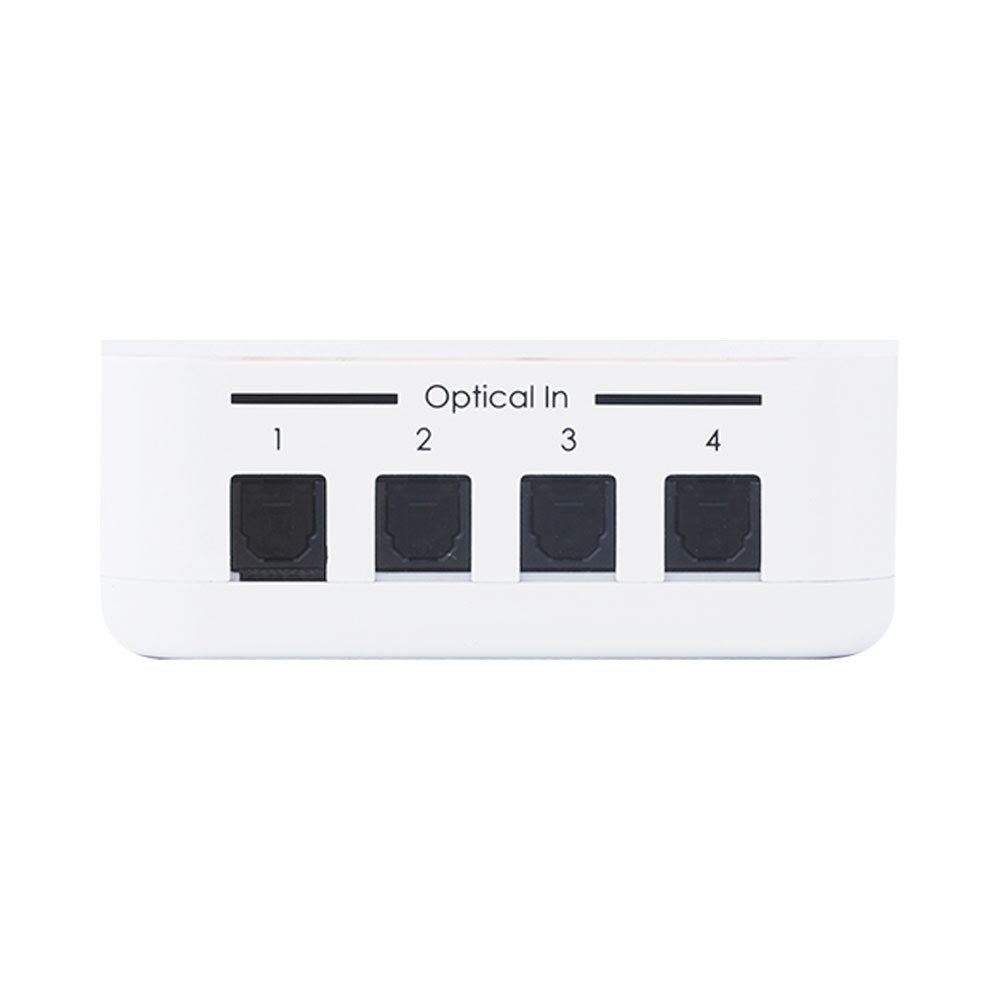

- Input Ports: 4× Optical (Toslink)
- Output Port: 1× Optical (Toslink)
- Audio Format Support: PCM2, Dolby 5.1 and DTS 5.1 Pass-Through
- Sampling Rate Support: up to 192kHz
- Power Supply: 5V 1A DC
- IR Remote Control: Included
- ESD Protection: ±8kV Air-Gap Discharge / ±6kV Contact Discharge
- Input Level/Frequency: Optical 0dBFS 1kHz
- Output Level: 0~0.05dBFS
- THD+N: <0.01%
- Frequency Response: ±1dBFs
- SNR: >90dB
- Crosstalk: <-90dB
- Dimensions: 85 × 85 × 35mm
- Weight: 90g
- Chassis Material: Plastic
- Operating Temperature: 0~40°C
- Power Consumption: <1W
- Relative Humidity: 20~90% RH Non-Condensing
