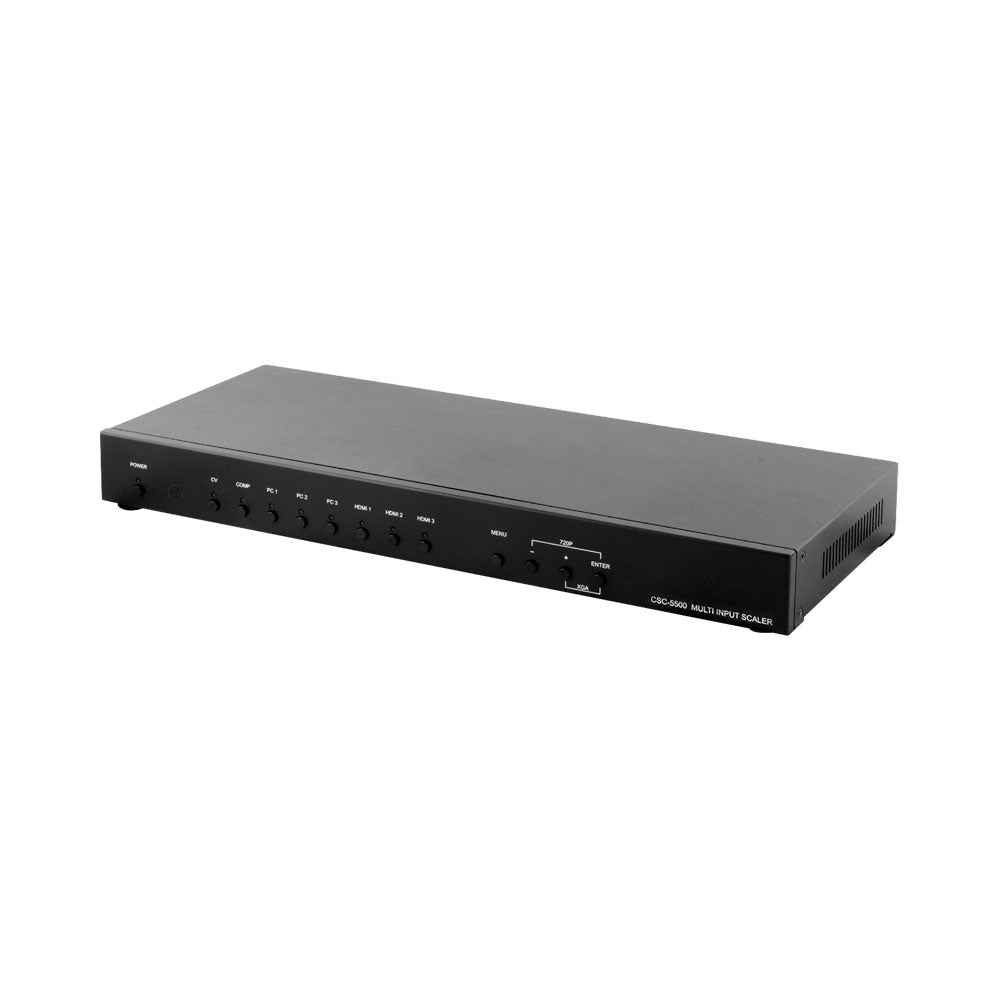

CYP CSC-5500 Multiple Inputs to HDMI/VGA Scaler
Professional Multi-Format AV Scaling and Switching for Modern Display Environments.
The CYP CSC-5500 Multiple Inputs to HDMI/VGA Scaler is a versatile AV processing solution designed to switch and scale multiple analogue and digital video sources to HDMI or VGA displays with integrated audio support. Featuring HDMI, VGA, Component and Composite video inputs, this powerful scaler supports output resolutions up to 1920×1200 and 1080p Full HD for seamless compatibility across professional AV installations. Advanced video processing technologies including 3D de-interlacing, frame rate conversion and noise reduction ensure enhanced image quality, while flexible control options via RS232, IR and IP WebGUI make it ideal for boardrooms, classrooms, control rooms and commercial display applications.
Features
- Multi-Format AV Scaling - Converts and scales multiple video sources to HDMI or VGA displays
- Multiple Input Support - Supports HDMI, VGA, Component and Composite video sources
- Full HD Output Resolution - Supports up to 1920×1080p @60Hz and WUXGA resolutions
- Advanced Video Processing - Includes 3D de-interlace, noise reduction and 3D comb filter
- Frame Rate Conversion - Delivers smoother and more stable video playback
- HDMI and VGA Outputs - Flexible display connectivity for modern and legacy displays
- Audio Conversion Support - Supports DAC and ADC audio conversion functionality
- Flexible Control Options - Supports RS232, IR and IP Telnet/WebGUI control
- EDID and HDCP Support - Ensures broad device compatibility
- On-Screen Display Control - Easy configuration and input management
- Apple Device Compatibility - Supports non-HDCP signals from Apple computers
Specifications
Input Ports
- 3× HDMI
- 3× VGA (15-Pin D-Sub)
- 1× Component Video
- 1× Composite Video
- 6× 3.5mm Stereo Audio
- 4× RCA Stereo Audio
- 1× IR Extender (3.5mm)
- 1× RS232 (9-Pin D-Sub)
- 1× IP Control (RJ45)
- 1× USB (Service)
Output Ports
- 2× HDMI
- 1× VGA (15-Pin D-Sub)
- 1× Coaxial Audio
- 1× 3.5mm Stereo Audio
Compliance
- HDMI 1.3 (DVI 1.0)
- HDCP 1.4
Maximum Input Resolution
- HDMI: 1920×1080p @60Hz
- VGA: 1920×1200 @60RB
- Component: 1920×1080p @60Hz
- Composite: 480i/576i
Maximum Output Resolution
- HDMI: 1920×1080p @60Hz
- VGA: 1920×1200 @60RB
Other
- Audio Support: LPCM 2-Channel Audio
- Power Supply: 5V 3A DC
- Power Consumption: 11W
- Chassis Material: Metal
- Colour: Black
- Dimensions: 432 × 47 × 183mm
- Weight: 2.14kg
- Firmware Update Interface: USB Service Port
